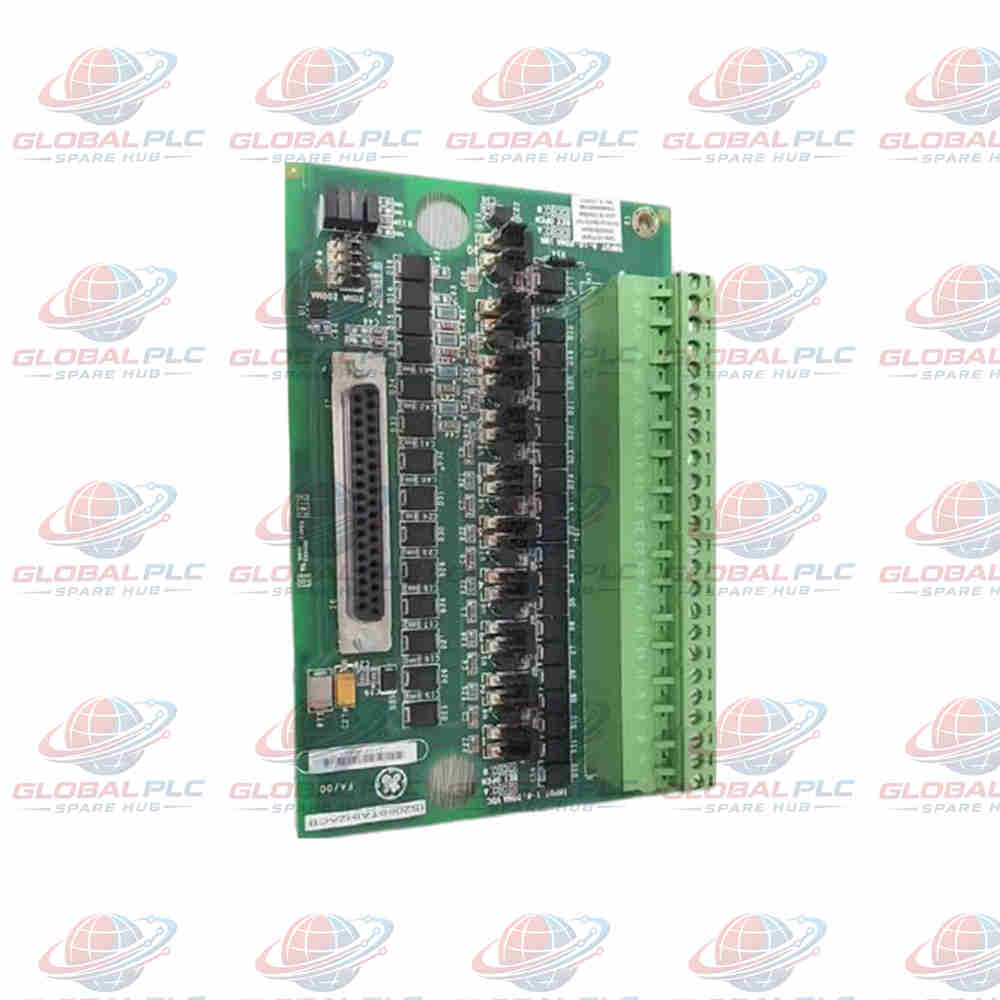

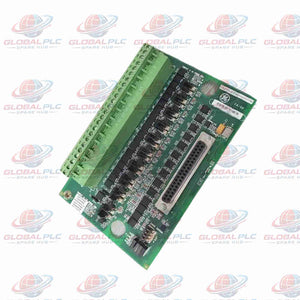

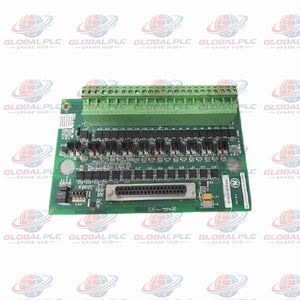

IS200STAIH2ACB GE Mark VIe Compact Analog Input Terminal Board

Product Overview

The General Electric IS200STAIH2ACB serves as a compact Simplex Analog Input Terminal Board for Mark VI and Mark VIe Speedtronic turbine control systems. The board manages 10 analog inputs alongside 2 analog outputs through high-density Euro-block terminals. An onboard electronic ID chip reports hardware revision data directly to the Programmable Analog Input Controller (PAIC). Hardware jumper arrays allow engineers to configure current or voltage inputs and adjust output current ranges up to 200 mA.

Technical Specifications

• Manufacturer: General Electric (GE)
• Part Number: IS200STAIH2ACB
• Product Series: Mark VI / Mark VIe Speedtronic Control
• Board Type: Compact Analog Input Terminal Board (STAI Variant)
• Input Channels: 10 Analog Inputs (Supports 2-wire, 3-wire, 4-wire, or external power transmitters)
• Output Channels: 2 Analog Outputs (Standard 0-20 mA; Output 1 jumper-configurable up to 200 mA)
• Input Signal Levels: Jumper-selectable current (1 mA or 20 mA) or voltage configuration
• Hardware Form Factor: Compact DIN-rail mounted printed circuit card
• Dimensions: 15.9 cm High x 10.2 cm Wide
• Shipping Weight: 4.19 lbs (1.90 kg)
• Operating Temperature Range: -30°C to +65°C (-22°F to +149°F)
• Terminal Blocks: High-density green Euro-block terminal strip with 24 screw contacts
• Hardware Components: 14 potentiometers, black protective diodes, 1 male D-shell header port
• Country of Origin: United States (USA)

Functional Architecture

Signal Routing & Jumper Management

• Configures individual input channels via jumpers J1A through J8A for current or voltage loops.
• Adjusts signal return connections via jumpers J1B through J8B to open or common ground paths.
• Selects input current ranges (1 mA or 20 mA) across auxiliary loops using jumpers J9A and J10A.
• Modifies Output 1 current drive capability between 20 mA and 200 mA via jumper J0.

Board Identification & System Diagnostics

• Transmits serial numbers, board revision codes, and slot locations directly to the PAIC module.
• Protects field loops against electrical spikes using onboard black protective diode arrays.
• Facilitates manual circuit calibration using 14 precision potentiometers arranged on the PCB surface.

System Compatibility & Machinery Applications

The IS200STAIH2ACB terminal card connects directly into GE Mark VIe cabinet racks. Field engineers integrate this compact analog board across essential industrial turbomachinery:

• Heavy industrial gas turbine fuel valve positioning and pressure transmitter loops.
• Steam turbine main steam temperature and inlet header pressure monitoring.
• Combined-cycle feed pump flow transmitter feedback assemblies.
• Hydro-generator governor actuator command and feedback interfaces.

Diagnostic Capabilities & Field Testing

• PAIC Automatic Board Discovery: The onboard ID chip communicates with system software to flag missing, mismatched, or misplaced terminal boards instantly.
• Individual Return Isolation: Jumpers J1B through J10B allow technicians to isolate signal returns, aiding in ground fault troubleshooting on field loops.
• Potentiometer Trace Adjustment: Integrated trim potentiometers allow precise zero and span fine-tuning during system loop commissioning.

Global PLC Spare HUB's Insight

In compact turbine control panels, signal noise often results from incorrect ground return routing. During a site rehabilitation at a power plant, engineers encountered signal drift on pressure loops wired to an IS200STAIH2ACB board. Troubleshooting revealed that field loops used externally powered 4-wire transmitters while the J1B–J8B jumpers remained set to the common ground position, creating a ground loop. Opening the return jumpers cleared the signal offset immediately. Always verify whether your field transmitters share a common supply ground before setting channel return jumpers, and ensure jumper J0 is set correctly if driving high-current 200 mA actuators.

Purchasing Guide

• Confirm Simplex Architecture: Verify that your panel design utilizes a Simplex STAI board layout rather than a redundant TMR fanning configuration.
• Verify Jumper Settings: Match jumper positions J1A through J10B against your site loop drawings prior to energizing connected transmitters.
• Check Terminal Block Clearance: Ensure the high-density Euro-block wiring harness has adequate strain relief inside compact DIN-rail enclosures.

Package Contents & Logistics

• 1 x General Electric IS200STAIH2ACB Compact Analog Input Terminal Board.
• Protective anti-static ESD packaging.
• Standard 12-Month Replacement Warranty.
• Global Express Delivery: Ships worldwide within 24 to 48 hours via FedEx, UPS, or DHL.

Frequently Asked Questions (FAQ)

Q: How does the PAIC controller recognize the IS200STAIH2ACB board upon installation?

A: The onboard ID chip transmits hardware parameters, serial numbers, and revision levels to the PAIC module automatically upon system power-up.

Q: What is the purpose of jumper J0 on this analog terminal board?

A: Jumper J0 configures Analog Output 1, allowing technicians to switch its current drive range between standard 0-20 mA and high-current 0-200 mA applications.

Q: What field symptom indicates a misconfigured input jumper on a 4-20 mA channel?

A: Setting a current loop channel jumper to voltage input causes saturated high readings or dead-zero input feedback at the controller display.

Q: Can 2-wire and 4-wire field transmitters be mixed on the same terminal board?

A: Yes. The board supports 2-wire, 3-wire, 4-wire, and externally powered transmitters across its 10 input channels by setting the appropriate channel jumpers.

Q: What shipping options are available for urgent turbine maintenance stops?

A: Orders are processed and dispatched within 24 to 48 hours using express carriers including FedEx, UPS, and DHL.
