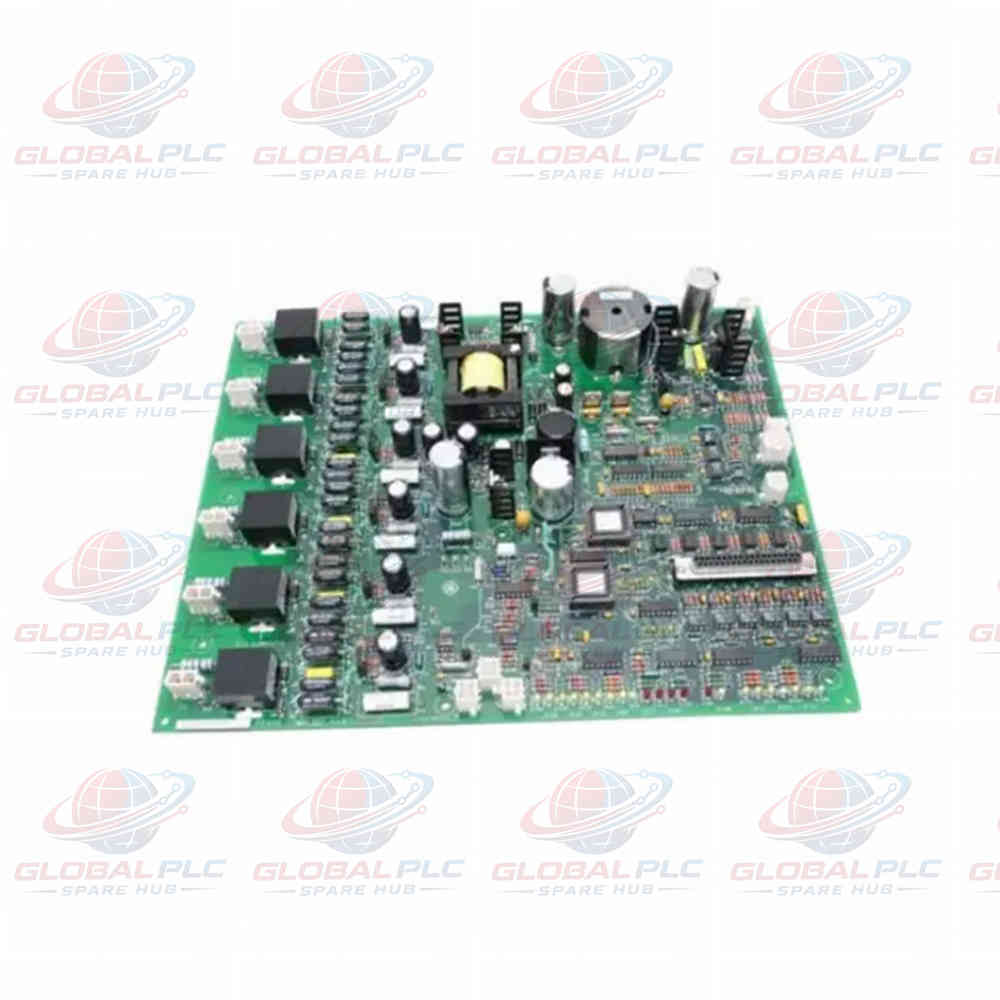

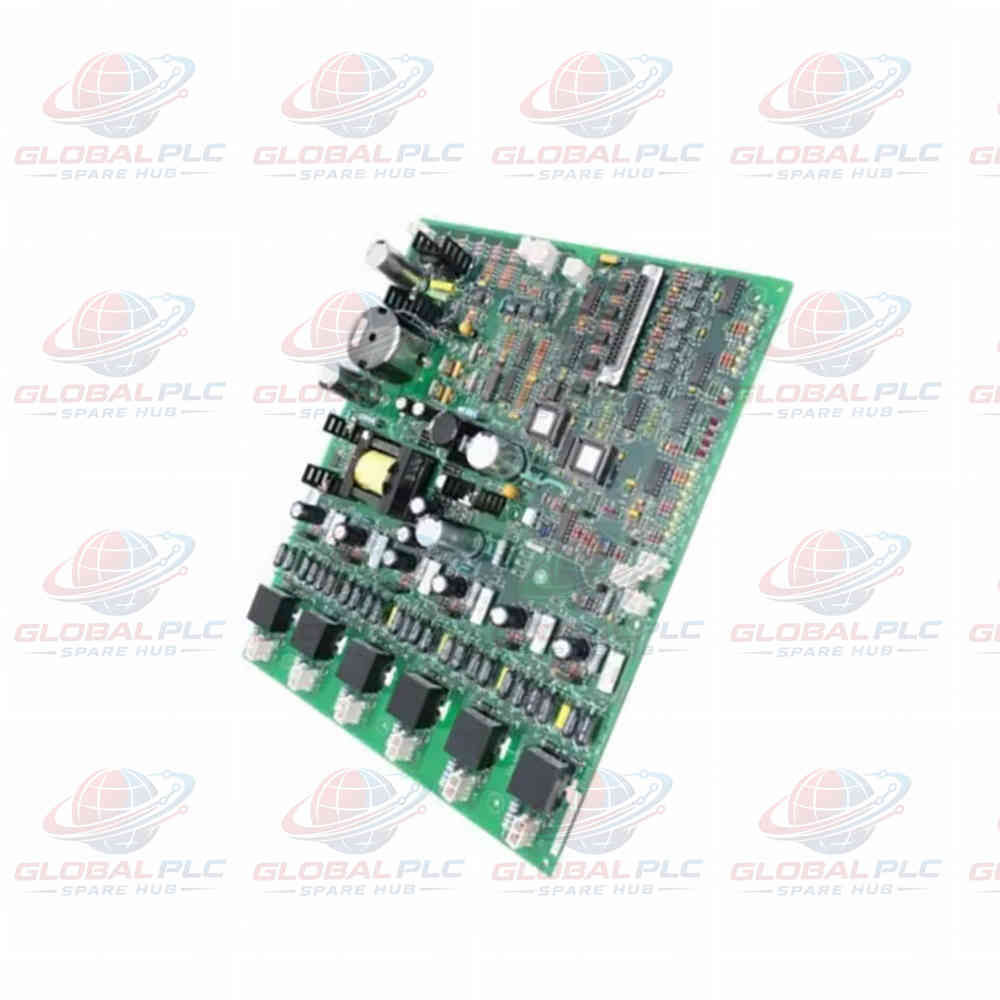

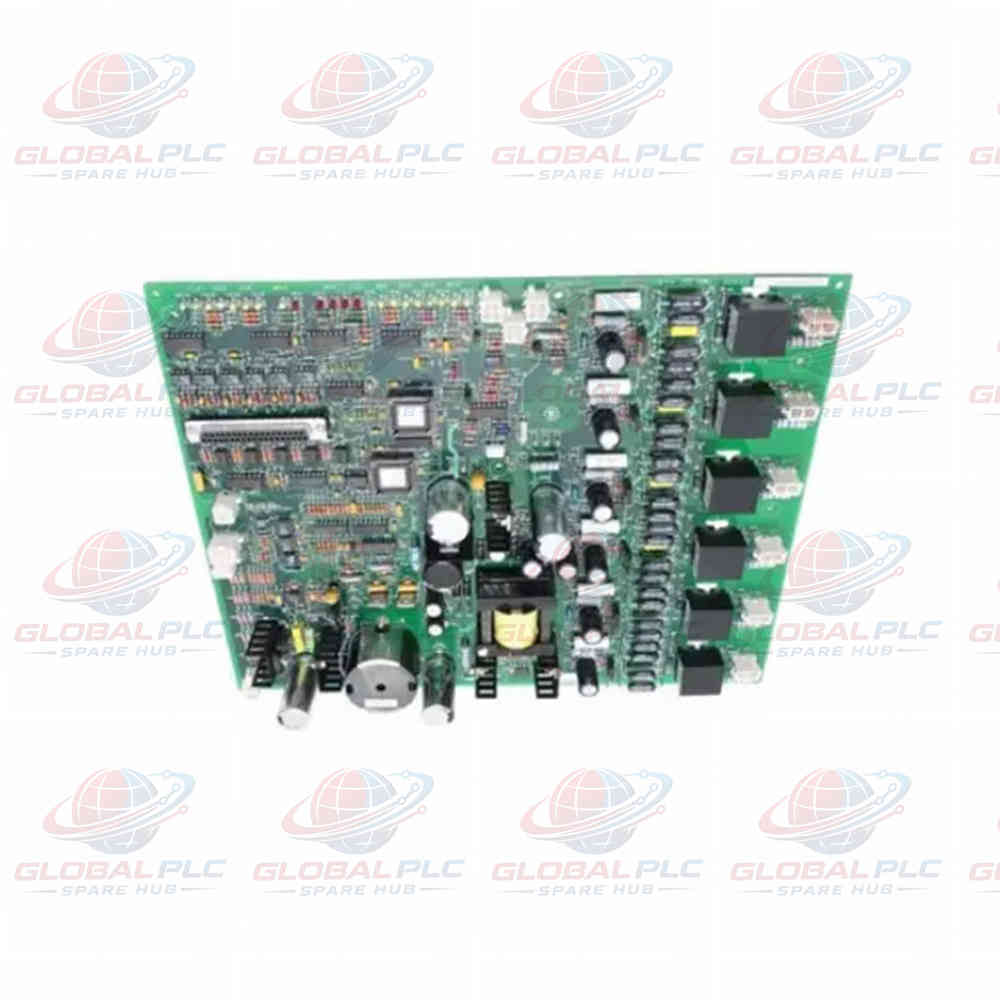

IS200EHPAG1DAB GE EX2100 Gate Pulse Amplifier Board

Product Overview

The GE IS200EHPAG1DAB (IS200EHPAG1DAB) functions as an exciter gate pulse amplifier board.

It forms an essential hardware component within the EX2100 generator excitation control series.

The card drives up to six Silicon Controlled Rectifiers on the power bridge.

An onboard processor runs a real-time QNX operating system for precise timing.

Technical Specifications

Signal Handling & Hardware Configuration

• Optically isolated differential channels receive six gate commands from ESEL boards.
• Dedicated pulse amplifiers provide complete galvanic isolation between individual SCR gates.
• Connectors J9 and J10 process three-phase current feedback from Hall effect sensors.
• Jumper JP2 configures airflow monitoring for pulsed or dry-contact fan sensors.
• Terminal J13 accommodates thermistor RTDs or legacy bimetallic temperature switches.

Diagnostic Capabilities & Visual Supervision

• Onboard status LEDs deliver immediate visual feedback for power and gate commands.
• The board continuously monitors cooling fan rotation and bridge airflow levels.
• Integrated circuits evaluate SCR output firing signals and line filter status.
• Automatic detection circuits log bridge over-temperature alarms and fault events.

Target Applications & Equipment Compatibility

• Controls power thyristor firing in heavy-duty utility generator excitation systems.
• Interfaces Hall sensors on EXCS boards with main system controllers.
• Upgrades legacy excitation frames during gas or steam turbine control retrofits.

Global PLC Spare HUB's Insight

During a combined-cycle power plant trip, thermal stress caused premature SCR gating errors.

Replacing the damaged firing card with GE IS200EHPAG1DAB restored stable thyristor pulse timing.

Setting jumper JP2 correctly cleared false cooling fan alarms on the EX2100 controller.

Galvanic isolation prevented high-voltage bridge spikes from damaging upstream processor cards.

Selection & Engineering Guidance

• Verify whether your bridge uses RTD sensors or thermal switches before setting J13.
• Ensure maximum lead resistance remains below 15 ohms to avoid signal loss.
• Select IS200EHPAG1DAB for 100 mm EX2100 thyristor bridge control applications.

Package List & Commercial Terms

• Included Items: One original IS200EHPAG1DAB Gate Pulse Amplifier Board.
• Warranty Term: Full 12-month factory coverage on all components.
• Dispatch Speed: Ships within 24 to 48 hours from warehouse stock.
• Global Carriers: Express air shipment via FedEx, UPS, or DHL.

Frequently Asked Questions

Q1: How do technicians configure temperature monitoring for retrofit excitation bridges?

A1: Connect existing temperature switches to J13 and set jumpers to deactivate RTD mode.

Q2: What power source energizes the gate pulse amplifier board?

A2: The module receives a nominal 125 V DC input from the EPDM power supply board.

Q3: How does the board isolate gate commands from upstream controller circuits?

A3: Optical isolators and differential filters isolate incoming signals from the ESEL board.

Q4: What fan sensor signals does the airflow monitoring circuit accept?

A4: Jumper JP2 selects between pulsed tachometer signals and dry-contact normally open switches.

Q5: How many thyristors can a single gate pulse amplifier card trigger?

A5: A single module drives up to six individual Silicon Controlled Rectifiers independently.
