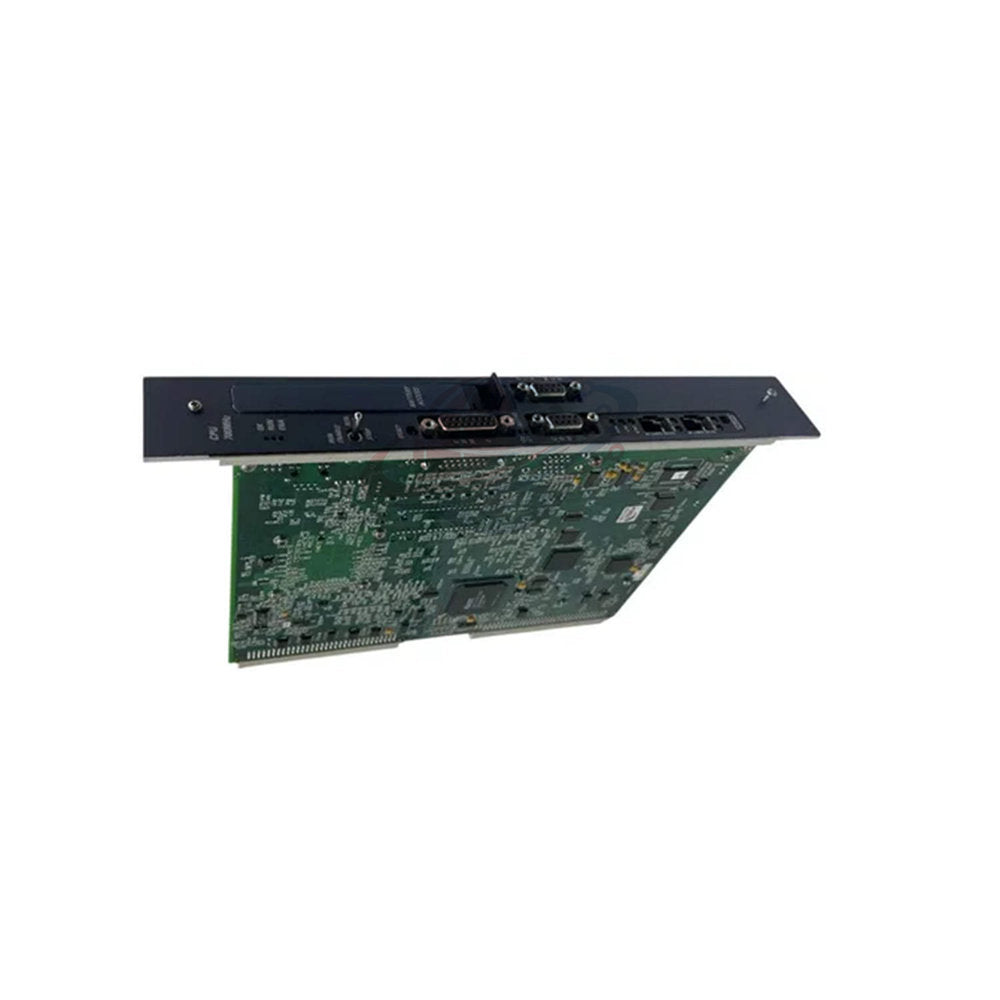

GE Fanuc IC698CRE020 RX7i PACSystems Redundancy CPU 700MHz 10MB

Product Overview

• The GE Fanuc IC698CRE020 serves as a high-performance redundancy CPU for the RX7i PACSystems series.
• It delivers rapid processing speeds and extensive memory for complex automation tasks.
• Engineers utilize this module to upgrade legacy systems without changing existing field wiring.
• The Pentium-based architecture ensures reliable execution of logic and data handling.

Global PLC Spare HUB's Insight

• The IC698CRE020 represents a critical bridge between legacy reliability and modern connectivity.
• Its ability to convert Series 90-70 programs into Machine Edition applications saves engineering time.
• The dual RJ-45 ports provide robust communication flexibility for mission-critical redundant architectures.
• This module excels in high-availability environments where downtime is not an option.

Technical Specifications

• Brand: GE Fanuc / Emerson
• Model: IC698CRE020
• Series: RX7i PACSystems
• CPU Type: Redundancy Central Processing Unit
• Processor Speed: 700 Megahertz (Pentium Processor)
• User Memory: 10 MB Internal Storage
• Operating Temperature: 32 to 140 degrees Fahrenheit
• Relative Humidity: 5% to 95% Non-Condensing
• Serial Interfaces: Three isolated ports (RS-232, RS-485, and Station Manager)
• Ethernet Ports: Dual auto-sensing RJ-45 ports via internal switch
• Interference Resistance: Industrial-grade EMI/RFI shielding for harsh environments

Hardware Compatibility

• Series 90-70 VME racks and I/O modules
• Genius Network devices and interface blocks
• RX3i PACSystems via network integration
• VME64 standard backplanes and legacy components

Installation and Maintenance

• Always install the IC698CRE020 with a fan tray to prevent thermal issues.
• Slide the CPU into the rack without disturbing existing I/O terminal blocks.
• Connect dedicated redundancy cables to ensure seamless bumpless transfer between CPUs.
• Use the Station Manager port for low-level hardware troubleshooting and configuration.
• Access internal CPU diagnostics through a standard web browser via Ethernet.

Typical Application Scenarios

• High-speed manufacturing production lines requiring rapid logic execution.
• Critical infrastructure management where system redundancy prevents total plant failure.
• Migration projects upgrading older Series 90-70 PLCs to modern Ethernet standards.
• Data-intensive processes requiring 10 MB of user memory for recipe storage.

Shipping and Warranty

• Shipping Methods: Express delivery via FedEx, UPS, or DHL.
• Dispatch Time: All orders ship within 24-48 hours.
• Warranty: Includes a comprehensive 12-month warranty coverage.
• Packaging List: One IC698CRE020 CPU module and product certification certificate.

FAQ and Purchasing Guide

• How do I prevent duplicate packets when using the dual Ethernet ports?
• Do not connect both RJ-45 ports to the same unmanaged switch or device simultaneously.

• Can I run my old Series 90-70 programs on this CPU?
• Yes, the IC698CRE020 supports program conversion from Logicmaster and VersaPro to Machine Edition.

• What is the primary benefit of the 700MHz Pentium processor?
• It reduces scan times significantly for large-scale applications with high I/O counts.

• Selection Advice: Why choose the IC698CRE020 over standard CPUs?
• Choose this model if your process requires high availability through hardware redundancy and large data storage.
