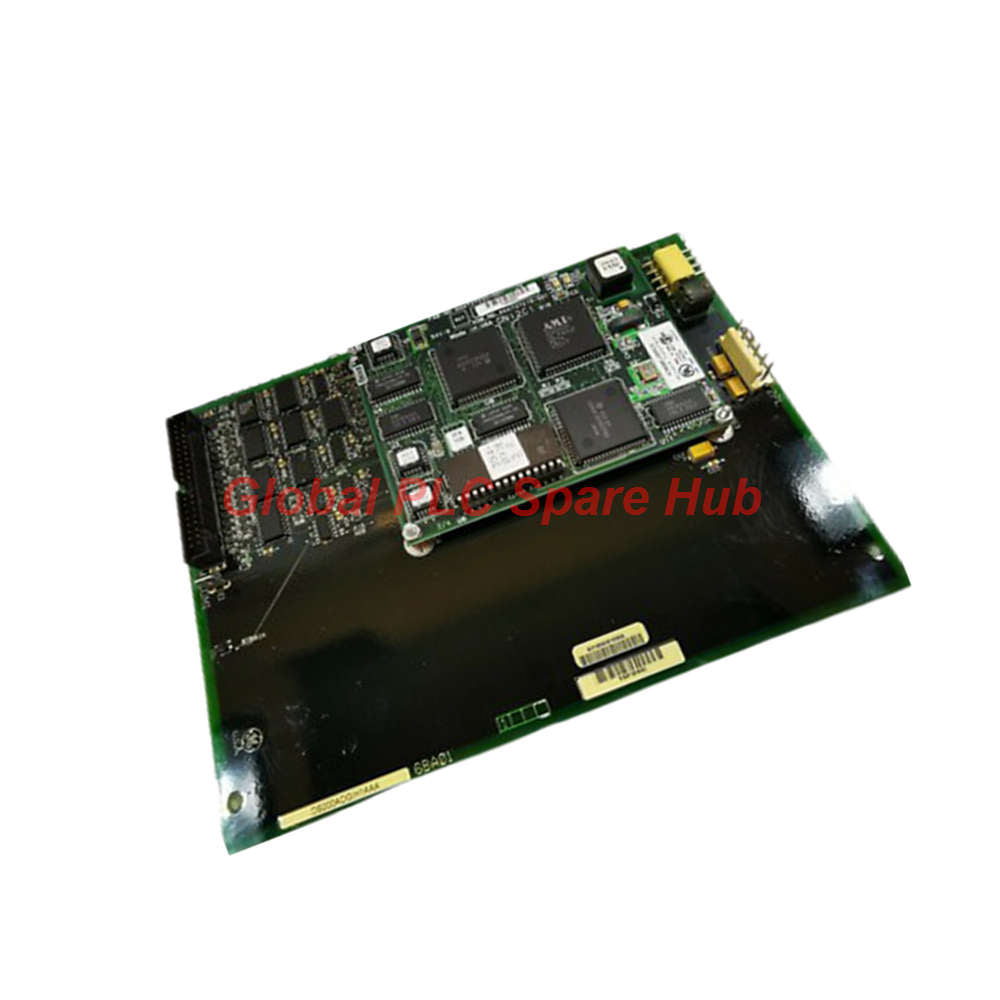

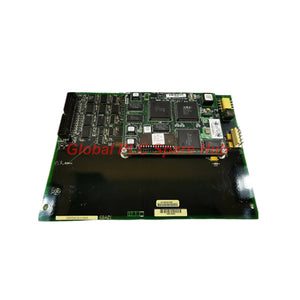

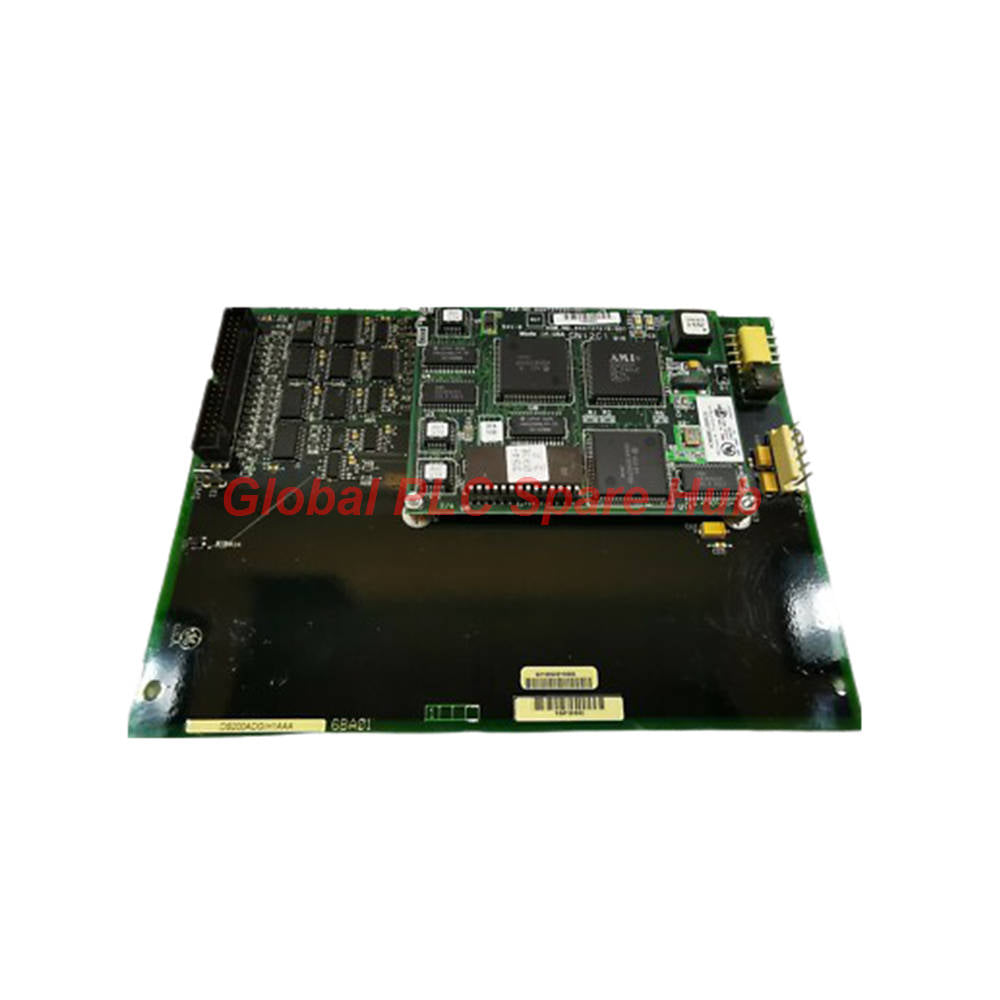

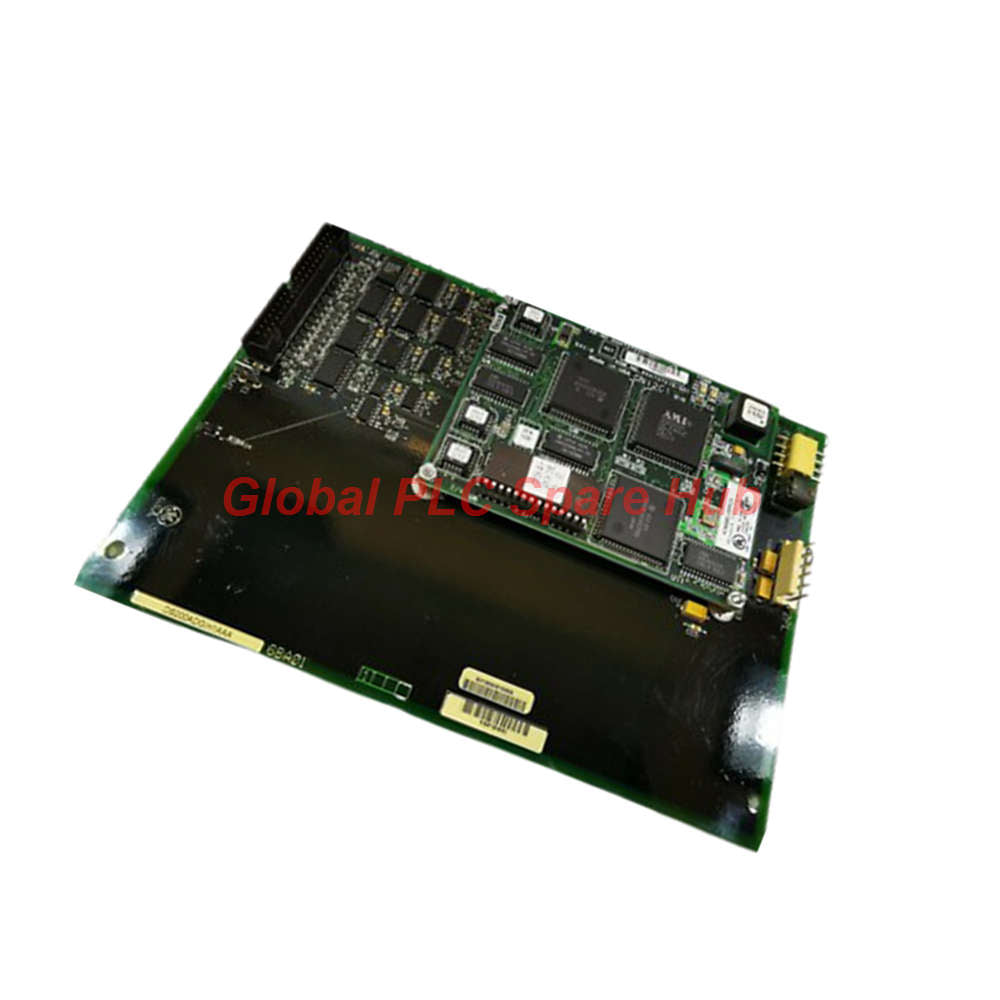

GE DS200ADGIH1AAA EX2000 Auxiliary DC Generator Control Card

Product Overview

The General Electric DS200ADGIH1AAA serves as an auxiliary DC 2000V generator interlock control card. This advanced board integrates into legacy Mark V turbine control systems and EX2000 excitation environments. It manages critical safety logic for high-voltage direct current auxiliary systems. Engineers rely on this module to orchestrate field flashing execution safely. It monitors breaker status and drives critical system interlocks continuously. The board prevents destructive generator operation by enforcing hardware-level permissive sequences. It secures the turbine-generator unit during startup, synchronization, and emergency shutdown phases.

Technical Specifications

• Brand: General Electric (GE)
• Model Number: DS200ADGIH1AAA
• Control Series: Mark V / EX2000 Excitation Control
• Module Type: Auxiliary Interface and Generator Interlock Board
• Analog Output Current: 0-20 mA loop configuration
• Power Demand: Requires stable +5 V dc logic power
• Measurement Range: Monitored auxiliary voltage levels up to 2000V DC
• Frequency Response: Optimized for rapid sub-millisecond fault detection
• Hardware Interface: Contains one 40-pin connector and one 6-pin connector
• Configuration Jumpers: Includes 60 on-board hardware jumpers for signal routing
• Operating Temperature Range: Performance certified from -30 to +65 °C
• Physical Form Factor: Measures 17.8 cm width by 33.02 cm length
• Assembly Classification: Normal assembly utilizing 3 hardware revision layers
• Electromagnetic Compatibility: Enhanced shielding for superior high-voltage noise immunity
• Country of Origin: Manufactured in the United States

System Compatibility & Hardware Integration

The DS200ADGIH1AAA interfaces directly with high-voltage excitation cabinets. It connects seamlessly with standard generator control panels. This board supports legacy EX2000 frameworks alongside modern Mark VIe migration architectures. It works efficiently with Basler DECS regulators and Woodward governors. The card bridges the gap between field-level hardware and protection relays. It communicates flawlessly with Allen-Bradley PLCs. It links with breaker management modules like the SEL-751 and GE Multilin SR489. Engineers establish connections via discrete I/O paths or Modbus/TCP networks.

Diagnostics & Protection Capabilities

• Fast-Acting Trips: Instantly transmits fault signals to the turbine control system during overvoltage events.
• Hardware Test Points: Features multiple built-in test points for precise voltage and waveform tracking.
• Interlock Logic Enforcement: Blocks crucial operations if field flashing permissives fail to clear.
• ANSI Relay Coordination: Integrates seamlessly with ANSI 59, 64, 87G, and 40 protective relays.
• Real-Time Monitoring: Supplies accurate 0-20 mA feedback loops to track generator field status.

Equipment Suitability

This control card provides optimal performance across specific heavy-duty power generation assets. It integrates perfectly with General Electric frame-size gas turbines. The board functions reliably within large-scale utility steam turbine assemblies. It operates perfectly within static excitation systems that utilize high-capacity thyristor bridges. It supports industrial power distribution setups and synchronization panels. Plant operators install this card within critical turbine supervisory instrument loops.

Global PLC Spare HUB's Insight

From an engineering perspective, the DS200ADGIH1AAA represents robust industrial design. GE built this module to endure severe electrical noise. The 60 onboard hardware jumpers provide versatile loop configuration options. Maintenance teams appreciate the dedicated test points. These test points simplify routine diagnostics during turnarounds. This card remains a vital asset for maintaining uptime. It secures critical infrastructure installations worldwide.

Installation & Grounding Guide

• Enclosure Deployment: Always house the card within shielded excitation or generator control cabinets.
• ESD Protection Requirements: Service technicians must wear a grounded wrist strap during hardware handling.
• Static Dissipation: Touch the protective anti-static bag to a metallic ground structure before unboxing.
• Mechanical Mounting: Secure the card onto the board rack utilizing the four factory-aligned corner screws.
• Cable Segregation: Route high-voltage 2kV cabling away from sensitive low-voltage signaling lines.
• Shield Termination: Ensure all signal shields terminate at a single clean instrumentation ground point.

Troubleshooting & Maintenance Convenience

The DS200ADGIH1AAA features hardware-driven test architectures. It simplifies complex troubleshooting tasks significantly. Technicians measure system health directly across isolated trace paths. They utilize calibrated multimeter probes for safe diagnostics. The multi-revision layout ensures straightforward backward compatibility with existing field installations. Maintenance remains safe due to galvanic isolation structures. These structures segment logic circuits from the 2kV bus. Regular inspection schedules require minimal tool kits, shortening plant downtime.

Shipping, Warranty, & Commercial Terms

• Package Contents: Contains one factory-sealed DS200ADGIH1AAA interface board safely packed in ESD wrapping.
• Warranty Duration: Includes an extensive 12-month comprehensive warranty coverage period.
• Shipping Methods: Dispatched globally via premium courier services including FedEx, UPS, and DHL.
• Processing Speed: Orders qualify for fast 24-48 hour dispatch from our inventory hubs.
• Stock Availability: Maintained in high-priority stock reserves to minimize critical industrial downtime.

Frequently Asked Questions

How does the card manage backward compatibility across its hardware revisions?

The current DS200ADGIH1AAA design supports direct backward compatibility with the first two production revisions.

What specific tools are required to test the onboard circuit loops?

Technicians require a calibrated high-impedance digital multimeter along with properly insulated test probes.

Why does this module contain sixty physical jumpers?

The hardware jumpers allow manual configuration of signal routing, isolation preferences, and specific logic paths.

How do you prevent static damage if a wrist strap is unavailable?

Touch the sealed anti-static bag against a grounded metal desk structure before extracting the circuit card.

What control signals are used to interface with external turbine panels?

The board utilizes 0-20 mA analog output current loops alongside hardwired discrete relay logic.

Procurement & Selection Guidance

Verify the full alphanumeric string matching DS200ADGIH1AAA when replacing a card. Check that your cabinet layout aligns with the physical board dimensions. Review your existing jumper settings on the active board prior to removal. Document every jumper position to ensure identical hardware behavior. Always match the logic compatibility levels with your current turbine control baseline version.
