DS200PCCAG6ACB GE Mark V Power Connect Card Drive Interface
Manufacturer: GE
Product No.: DS200PCCAG6ACB
Condition： In stock
Product Type: Power Connect Card
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Engineering Core: DS200PCCAG6ACB

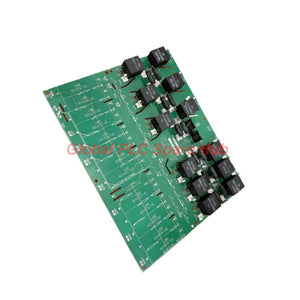

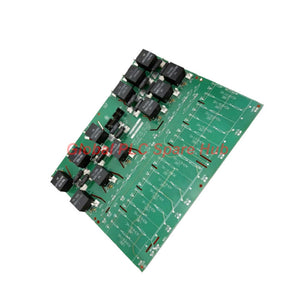

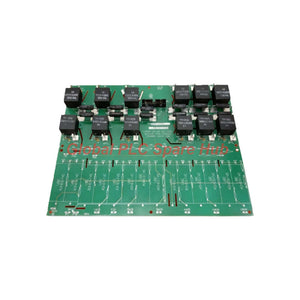

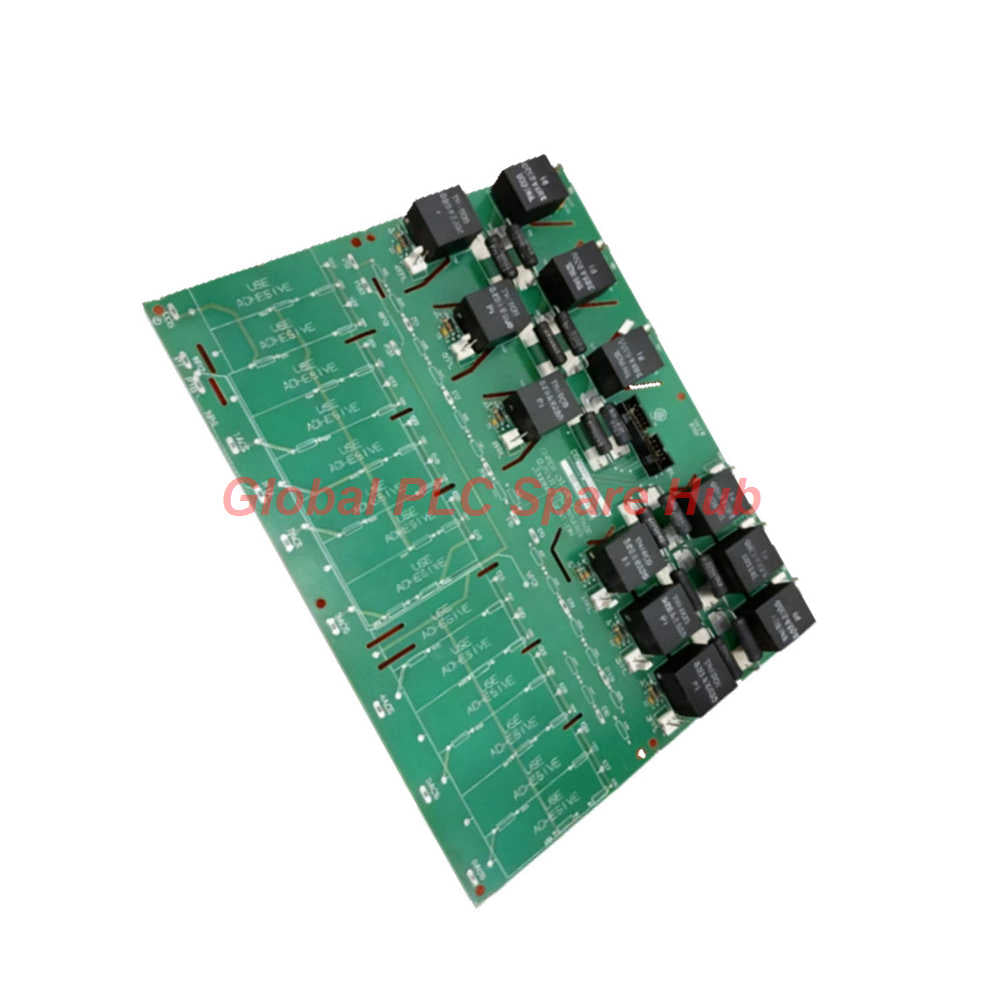

The DS200PCCAG6ACB acts as the essential bridge between GE Mark V control logic and high-power SCR (Silicon Controlled Rectifier) bridges. This Group 6 Power Connect Card (PCCA) regulates armature voltage ranges and facilitates bi-directional signal exchange between the drive controller and the power conversion stage. Its design minimizes transient interference, ensuring high-fidelity feedback in demanding industrial drive applications.
Critical Technical Specifications
- Manufacturer: General Electric (GE)
- Part Number: DS200PCCAG6ACB
- Series: Mark V Speedtronic
- Component Category: Power Connect Card (PCCA)
- Application Group: Group 6
- Configuration: 12 plug-in diagnostic connectors for SCR bridge feedback
- Coating: Standard industrial protective coating
- Origin: Made in USA
Global PLC Spare HUB's Insight
Our technical analysis confirms that the DS200PCCAG6ACB is prone to performance drift if the onboard snubber circuits are not configured to match the drive's specific horsepower. We recommend this board for facilities managing legacy DC drive retrofits. It is a highly stable interface for systems requiring tight armature voltage regulation in variable speed applications.
Diagnostic & Operational Versatility
- Diagnostic Capability: Features 12 dedicated signal ports for real-time SCR bridge monitoring. Technicians can use laptop-based editing software to download unique configuration files to individual drives, streamlining system-wide commissioning.
- Scalable Architecture: Modular jumper configuration (JP1, JP2, WP3, WP4) allows for precise voltage spike suppression, adapting the board to various AC line environments.
- Best-Suited Equipment: Primarily utilized in large-frame DC motor drives, regenerative power conversion systems, and steam/gas turbine auxiliary controllers.
Logistics & Quality Assurance
- Global Logistics: Reliable dispatch via FedEx, UPS, and DHL.
- Lead Time: 24–48 hour rapid processing.
- Warranty: 12-month standard performance warranty.
- Package Contents: DS200PCCAG6ACB module and technical reference documentation.
Expert Frequently Asked Questions
How can I identify if my PCCA board needs recalibration during setup?
If the drive exhibits unstable armature voltage or unexpected SCR firing angles, verify your jumper settings (JP1-JP4). Mismatched jumpers against your group number (Group 6) are the most frequent cause of startup communication faults.
What is the primary risk of using an incorrectly jumpered board?
Incorrectly set WP3/WP4 jumpers can lead to poor snubber performance, causing premature aging of your semiconductor devices due to unsuppressed transient voltage spikes.
Can I use this board for both regenerative and non-regenerative drives?
The DS200PCCAG6ACB is group-specific. Always consult your original equipment Bill of Materials to ensure the PCCA group matches your specific regenerative/non-regenerative conversion method.
What is the best way to back up my configuration file before replacing the board?
Use the GE-authorized editing software via the drive’s control panel port. Download the existing parameters to a laptop to ensure you have a "Golden File" that can be uploaded to the new unit immediately upon installation.
Why are snubber circuits omitted on some high-horsepower board variations?
In higher horsepower applications, physical space and heat dissipation requirements necessitate relocating snubber components to a separate chassis-mounted assembly to prevent thermal degradation of the PCB.
