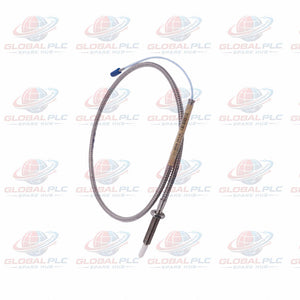

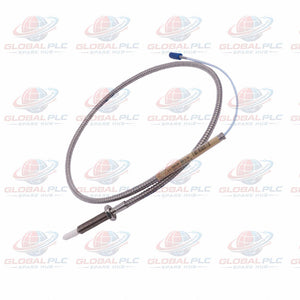

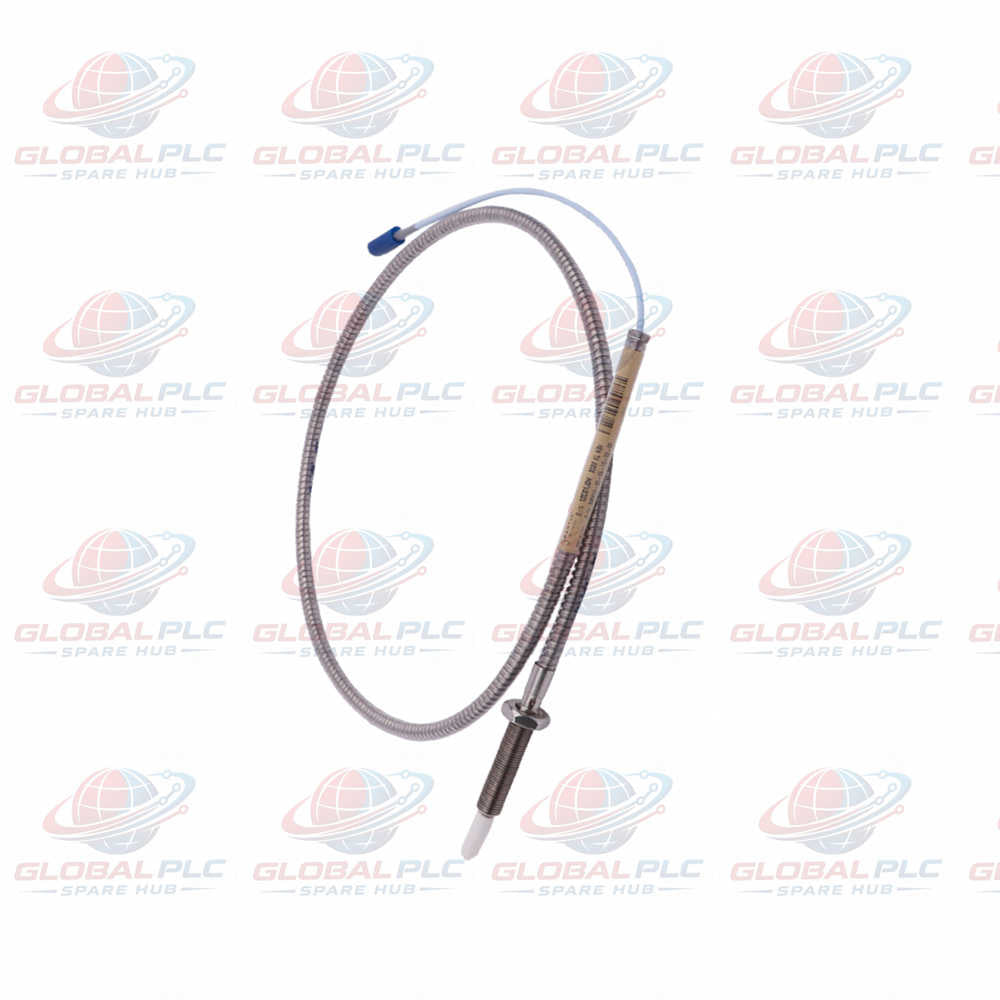

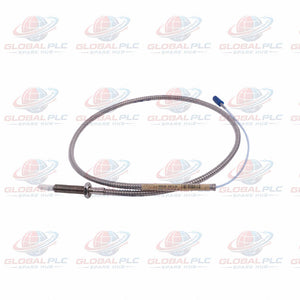

Bently Nevada 330910-00-05-10-01-00 3300 NSv Proximity Probe

Product Overview

The Bently Nevada 330910-00-05-10-01-00 belongs to the 3300 NSv series. Engineers deploy this proximity probe system to measure static and dynamic vibration on small-target machinery. The 330910-00-05-10-01-00 features an M10x1 thread with protective armor. Technicians rely on the 330910-00-05-10-01-00 sensor for high-precision radial vibration and axial position monitoring in tight spaces.

Technical Specifications

This technical summary outlines the core operating metrics for the 330910-00-05-10-01-00:

• Manufacturer: Bently Nevada
• Product Series: 3300 NSv Proximity Probes
• Model / Part Number: 330910-00-05-10-01-00
• Measurement Range: Designed for small targets down to 1.6 mm width, offering linear range optimized for tight clearances.
• Sensitivity: High scale factor configuration to capture micro-displacements accurately.
• Linearity: Stable output across the operational linear range with minimal signal distortion.
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 304 stainless steel (SST) with integrated armor.
• Probe Cable Specifications: 75 ohm coaxial, FEP insulated cable, 1.0 meter total length.
• Electrical Resistance: 4.2 ± 0.5 ohms from center conductor to outer conductor.
• Operating Temperature: -52°C to +177°C (-62°F to +351°F) for probe tip and case.
• Environmental Tolerance: Withstands rigorous industrial conditions, hazardous area temperature classifications up to T1 through T5 for EPL Ga and Gc.
• Interference Resistance: Shielded coaxial design resists electromagnetic interference in heavy plant environments.

Installation Guide

• Verify thread specifications match the M10x1 mounting hole before insertion.
• Apply recommended probe case torque of 11.3 N•m (100 in•lb) up to a maximum of 33.9 N•m (300 in•lb).
• Ensure the unthreaded length leaves at least 20 mm clearance from the total case length.
• Maintain a minimum bend radius of 25.4 mm (1.0 in) for the armored probe cable during routing.
• Connect the miniature coaxial ClickLoc connector securely and attach the connector protector.

Debugging and Maintenance Convenience

• Inspect probe DC resistance regularly to verify cable integrity and pin continuity.
• Monitor connector-to-connector torque to prevent loosening from machine vibration.
• Avoid exposing the probe tip to temperatures below -34°C for extended periods to protect the pressure seal.
• Check signal outputs via monitoring systems to detect early insulation degradation or mechanical wear.

Compatibility & System Integration

The 330910-00-05-10-01-00 integrates seamlessly with standard 3300 NSv extension cables and 3300 NSv proximitor monitors. Engineers use this setup across diverse turbomachinery architectures.

Certification Information

• Agency Approvals: Standard non-hazardous option designated by -00 code.
• Complies with relevant hazardous area temperature schedules (EPL Ga, Gc, and Dc classifications).

Package Contents & Fulfillment Terms

• Package Contents: One New & Original Bently Nevada 330910-00-05-10-01-00 unit in factory packing.
• Factory Warranty: Comprehensive 12-month warranty included.
• Shipping Logistics: Fast dispatch within 24-48 hours via FedEx, UPS, and DHL.

Typical Application Scenarios & Diagnostic Capabilities

Industrial facilities deploy the 330910-00-05-10-01-00 on high-speed centrifugal compressors, small motors, and pumps. Plant engineers utilize the diagnostic capability of the 330910-00-05-10-01-00 to detect shaft imbalance, bearing wear, and rotor rub before catastrophic failure occurs.

Model Selection and Comparison

When engineering small-target measurement loops, technicians frequently compare variations within the 3300 NSv series based on cable length and armor requirements. For an alternative configuration featuring a different unthreaded and cable length specification, review the Bently Nevada 330910-00-18-10-02-00 3300 NSv Proximity Probe.

Frequently Asked Questions (FAQ)

Q: What maintenance check helps prevent premature pressure seal failure on the 330910-00-05-10-01-00?

A: Avoid exposing the probe tip to sustained ambient temperatures below -34°C (-30°F), which protects the internal pressure seal against thermal shock and premature leakage.

Q: How does Global PLC Spare HUB verify the authenticity of the 330910-00-05-10-01-00?

A: Global PLC Spare HUB's Insight confirms that every unit ships in original factory packaging with verified manufacturing serial numbers and full trace documentation.

Q: What installation practice prevents signal loss in high-vibration environments?

A: Ensure the armored cable maintains the mandatory minimum bend radius of 25.4 mm and verify that the ClickLoc connector is fully locked with its protector engaged.
