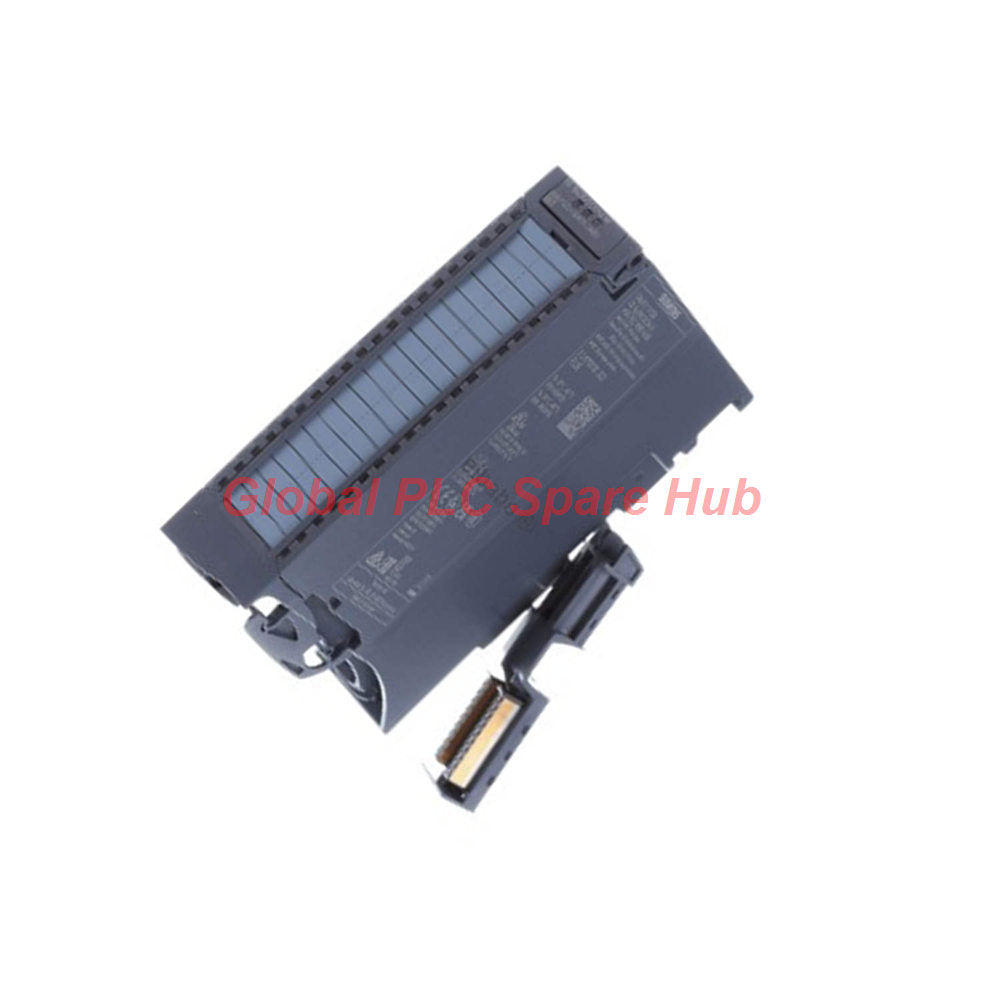

6ES7522-1BH01-0AB0 Siemens S7-1500 DQ 16-Channel Output Module

Manufacturer: Siemens
Product No.: 6ES7522-1BH01-0AB0
Condition： In stock
Product Type: Output Module
Product Origin: DE
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Technical Profile: 6ES7522-1BH01-0AB0

The 6ES7522-1BH01-0AB0 is a High-Feature (HF) digital output module designed for the Siemens SIMATIC S7-1500 PLC platform. This module provides 16 transistor outputs grouped in two sets of 8, capable of handling 0.5A per channel. It is engineered for high-precision environments where diagnostic feedback and process reliability are mandatory.

Operational Capabilities

Output Configuration: 16 channels, current-sourcing transistor type.
Safety Integration: Supports safety-oriented load group shutdown (SIL2 / Cat 3 / PL d) when correctly configured.
Diagnostic Sophistication: Native support for wire-break, short-circuit, and supply voltage monitoring.
Operational Versatility: Supports MSO and integrated switching cycle counters for actuator health monitoring.
Environmental Robustness: Operating range from -30°C to +60°C.

Global PLC Spare HUB Insight

At Global PLC Spare HUB, we identify this module as a premier choice for safety-conscious manufacturing. Its per-channel diagnostic feedback is vital for modern predictive maintenance strategies, effectively reducing machine downtime.

Logistics and Quality Assurance

Warranty: 12-month comprehensive quality warranty.
Processing Time: Orders are dispatched within 24–48 hours.
Shipping Partners: Reliable global transit via FedEx, UPS, and DHL.

Professional Technical FAQ

Q: Does this module require a specific front connector?

A: Yes, front connectors (screw or push-in) are sold separately. Please confirm your site's wiring standard before checkout.

Q: How does the safety-related shutdown function?

A: The module is approved for safe load group disconnection up to SIL2. Ensure the external power feed is managed through certified safety-rated hardware.

Q: Is this suitable for PWM control?

A: No, this module does not support Pulse Width Modulation. It is optimized for standard digital switching and isochronous mode timing.

Q: How do I interpret the channel diagnostic LEDs?

A: A solid red LED indicates a localized wire-break or short-circuit. Verify that your connected load resistance is within the 48Ω to 12kΩ operating range.

Q: Why is the switching cycle counter useful?

A: It logs the precise number of activations for each actuator, allowing you to schedule replacements based on actual wear rather than arbitrary time intervals.
