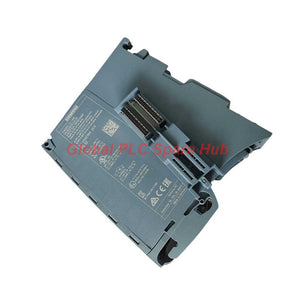

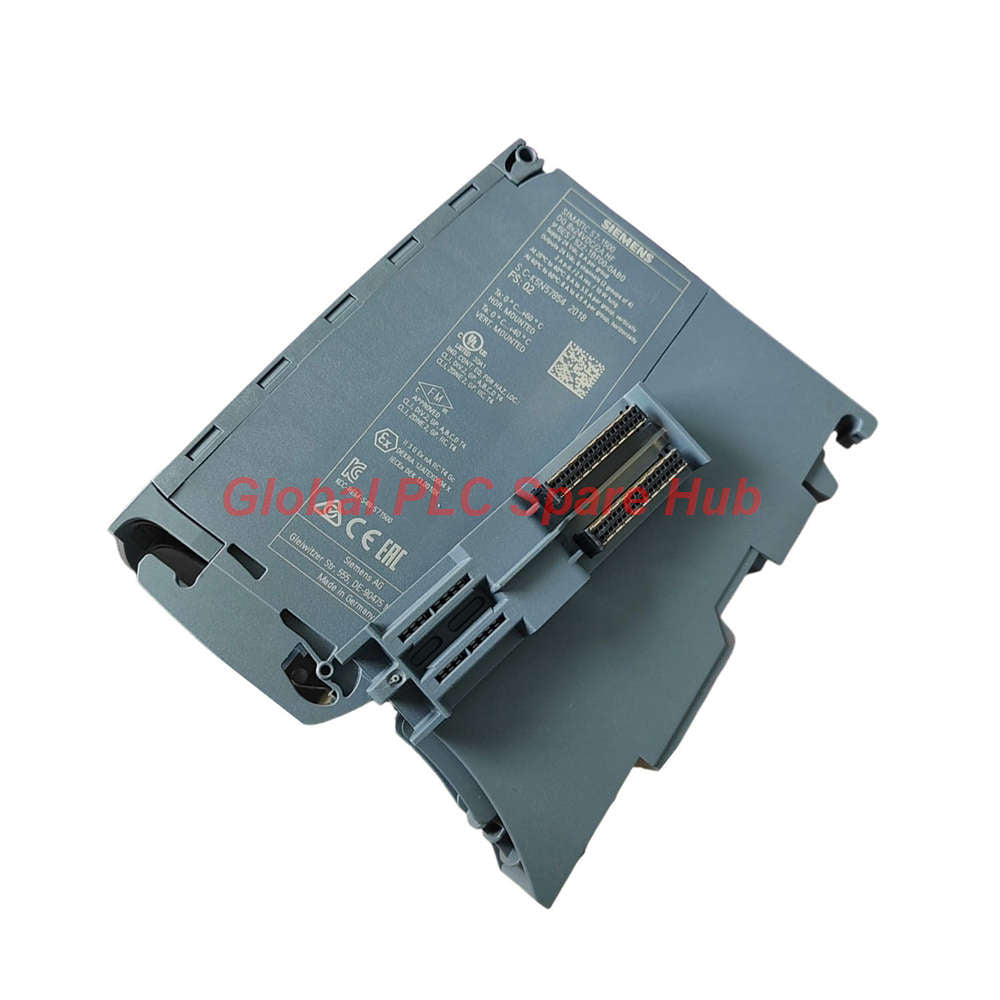

6ES7522-1BF00-0AB0 Siemens SIMATIC S7-1500 Digital Output Module

Product Overview

The 6ES7522-1BF00-0AB0 is a high-feature digital output module within the Siemens SIMATIC S7-1500 hardware family. Configured with 8 sourcing channels rated at 24 V DC and 2 A per output, this robust digital output module delivers exceptional performance under demanding load conditions. The hardware system allows two specific channels to function as high-frequency Pulse Width Modulation (PWM) drivers up to 500 Hz. Engineers leverage this specialized configuration to handle proportional valves and precise resistive heating elements natively from the controller rack.

Global PLC Spare HUB's Insight

The 6ES7522-1BF00-0AB0 stands out due to its dual-purpose deployment model. From hardware functional status FS03 onwards, this standard SIMATIC S7-1500 module integrates seamlessly into safety-oriented shutdown architectures. It facilitates load-group tripping up to SIL2 (EN IEC 62061:2021) and Category 3 / PL d (EN ISO 13849-1:2015) without necessitating dedicated, high-cost failsafe output cards. This capability drastically reduces hardware overhead while maintaining compliance with stringent European and international machine safety Directives.

Compatible Equipment & Host Systems

• Siemens SIMATIC S7-1500 Central Processing Units (CPUs) spanning standard, compact, and technology variants
• ET 200MP distributed I/O interface modules operating on PROFINET or PROFIBUS networks
• Standard 35mm S7-1500 mounting rails and system power supply (PM/PS) infrastructure
• Unified front connector systems utilizing standard screw terminals or rapid push-in terminal blocks

Targeted Application Scenarios

• Pneumatic and Hydraulic Manifold Control: Drives heavy-duty 2A DC solenoids and directional control valves with high repetitive accuracy.
• Safe Load Group Tripping: Acts as the primary actuator disconnect card in zone-based machine safety circuits requiring PL d safety ratings.
• Precision Thermal Management: Employs integrated 500 Hz PWM channels to regulate solid-state relays in industrial heating processes.
• High-Current Inductive Actuation: Commands large contactors, magnetic brakes, and industrial signaling arrays safely across long cable runs.

Technical Specifications Matrix

• Brand / Manufacturer: Siemens
• Model Number: 6ES7522-1BF00-0AB0
• Product Series: SIMATIC S7-1500 Automation Platform
• Module Classification: High Feature Digital Output (DQ 8x24VDC/2A HF)
• Output Topology: Transistor-based current-sourcing configuration
• Channel Density: 8 outputs organized into a single electrical group of 8 channels
• Continuous Current Rating: 2 A rated per channel, 8 A maximum per group, 16 A aggregate per module
• Output Voltage Tolerance: Minimum L+ (-0.8 V) for active signal "1" states
• Supply Voltage Envelope: 24 V DC nominal, operating within a permissible window of 19.2 V to 28.8 V DC
• Internal Power Dissipation: Typically 5.6 W under standard loads; 6.8 W during full active PWM execution
• Backplane Current Consumption: 0.9 W total power available drawn from the S7 backplane bus
• Pulse Width Modulation Capabilities: 2 channels max; 2 to 100 ms cycle duration with 0.1% duty cycle resolution
• Inductive Clamping Protection: Internal limitation of inductive shutdown voltages capped at -17 V
• Response Threshold (Short-Circuit): Typical trip point at 3 A to prevent permanent circuit path failure
• Operational Altitude Limits: Up to 5000 meters above sea level with environmental derating applied above 2000 meters

Diagnostic Capabilities & Feedback Mechanisms

• System software executes continuous monitoring of the incoming 24 V DC load power supply.
• Onboard short-circuit tracking reports overcurrent and grounding faults back to the central processor module.
• Dedicated channel-level red diagnostics LEDs isolate specific output faults instantly on the physical chassis.
• Module-level RUN, ERROR, and MAINTENANCE indicators display hardware status and synchronization states immediately.
• Integrated operational cycle counters record transistor switching transitions to enable predictive maintenance scheduling.

Procurement Guidance & Engineering Selection Advice

• Verify that your TIA Portal software environment meets version V13 SP1 or higher for seamless hardware catalog integration.
• Calculate total cabinet heat dissipation based on the elevated 6.8 W signature if you plan to activate the onboard PWM functions.
• Ensure you order the 40-pin front connector panel separately, as Siemens does not bundle terminal blocks with this module.
• Observe specific channel-current derating profiles when running maximum PWM duty cycles at elevated ambient cabinet temperatures.

Logistics & Warranty Structure

• Package Inventory: One factory-sealed Siemens 6ES7522-1BF00-0AB0 digital output module and technical data insert sheet.
• Warranty Safeguard: This industrial hardware unit includes an unconditional 12-month comprehensive warranty policy.
• Order Fullfillment: Warehouses guarantee dispatch within 24 to 48 hours following payment verification.
• Global Delivery Channels: Standard air express routing managed via reliable premium networks including FedEx, DHL, and UPS.

Frequently Asked Questions

• Question: How does the safety-related tripping function operate on this standard module without a fail-safe CPU?
• Answer: The hardware design allows external safety relays to cut the main L+ supply to the module terminal block. The internal circuit components are thoroughly evaluated to ensure zero energy leakage across the output transistors when the supply path drops, fulfilling Cat.3/PL d standards safely.
• Question: What are the critical wiring constraints when using the PWM functionality on inductive loads?
• Answer: While the module limits inductive shutdown voltage to -17 V for standard switching up to 0.5 Hz, continuous 500 Hz PWM operation requires an external recovery diode clamped across the inductive load to dissipate excessive flyback energy safely.
• Question: Why does the module require special configuration parameters above 2000 meters altitude?
• Answer: Rarefied air decreases thermal dissipation efficiency and lowers the dielectric breakdown voltage of electrical clear distances. You must derate the maximum aggregate module current and operating temperature limits according to the official manual curves when installing in high-altitude environments.
• Question: Can I wire multiple digital outputs in parallel to increase the total current drive capability to 4 Amps?
• Answer: No, the internal timing tolerances of the switching transistors do not guarantee simultaneous turn-on states. You may only parallel channels for logical link redundancy or load sharing of independent circuits, never for uprating single-path output currents.
• Question: Which software tools are mandatory to view the data accumulated by the integrated operating cycle counter?
• Answer: The cycle counter stores switching tallies directly within the module's internal non-volatile memory registers. You can read these registers directly via standard cyclical I/O addresses or retrieve them acyclically using I&M data read commands inside STEP 7 or TIA Portal blocks.
