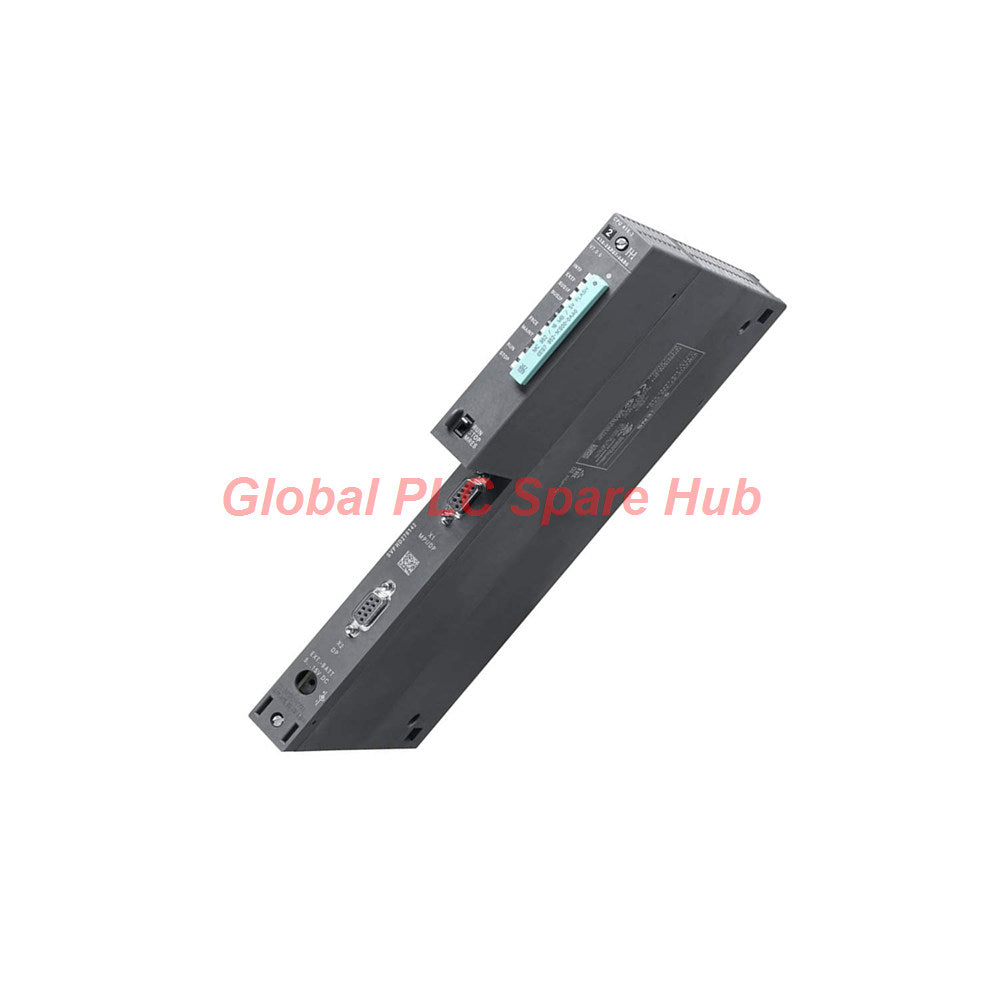

6ES7416-2XP07-0AB0 Siemens CPU 416-2 S7-400 Logic Processor

Product Deep-Dive: Siemens 6ES7416-2XP07-0AB0

The 6ES7416-2XP07-0AB0 represents the pinnacle of the SIMATIC S7-400 series, specifically designed for high-availability manufacturing and process control. With a 12.5 ns bit-processing speed, this central processing unit (CPU) is built to handle intensive computational loads in real-time. It features an integrated 8 MB work memory, providing sufficient headroom for complex ladder, function block, and structured control language (SCL) programs.

Technical Performance Matrix

• Core Architecture: SIMATIC S7-400 CPU 416-2
• Memory Configuration: 8 MB integrated work memory (4 MB code / 4 MB data)
• Execution Speed: 12.5 ns for bit/word/fixed-point arithmetic operations
• Connectivity: Dual RS-485 interfaces (MPI/DP & PROFIBUS DP) @ 12 Mbit/s
• Isochronous Mode: Fully supported for high-precision motion control
• Nesting Depth: 24 per priority class
• Diagnostic Integrity: 3,200-entry buffer with integrated System Function (SFC/SFB) support
• Environmental Rating: ATEX II 3G Ex nA IIC T4 Gc (0°C to 60°C operating range)
• Warranty: 12-month standard manufacturer warranty

Global PLC Spare HUB Insight

Our technical team at Global PLC Spare HUB identifies the 6ES7416-2XP07-0AB0 as the premier choice for brownfield modernization. This module excels in heavy industrial environments, managing up to 131,072 digital I/O channels. It is the ideal backbone for automotive powertrain assembly lines and power generation control systems requiring ultra-low latency.

Logistics and Quality Assurance

• Packaging: Secure, anti-static, and moisture-proof industrial protective shipping.
• Dispatch: Orders are processed and shipped within 24–48 hours.
• Shipping Partners: Reliable global transit via FedEx, UPS, and DHL.

Expert Technical FAQ

Q: Can I expand the work memory of this CPU beyond 8MB?

A: No, the 8MB work memory is fixed. However, you can utilize a Flash or RAM memory card to expand the load memory to 64MB for large project storage.

Q: What is the most common cause of bus faults for this model?

A: Based on our experience, faults often stem from improper PROFIBUS termination or cycle time configuration in OB30-38. Ensure your network cycle aligns with the 500 µs minimum setting.

Q: How does the "Forcing" function impact real-time safety?

A: Forcing allows temporary I/O overrides for debugging. Exercise caution, as this bypasses physical feedback loops, which can be critical in high-speed mechanical safety circuits.

Q: Why choose the 416-2 over a smaller S7-400 variant?

A: The 6ES7416-2XP07-0AB0 is chosen when your application demands the 12.5 ns instruction cycle or requires dual-isolated PROFIBUS interfaces for complex network segmentation.

Q: Does this model support remote Web Server monitoring?

A: No, the V7.0 firmware on this unit does not feature a native Web Server. We recommend using a CP 443-1 communication processor for Ethernet-based remote data access.
