531X167MFRALG1 GE Motor Field Remote Board | Original PCB

Product Overview

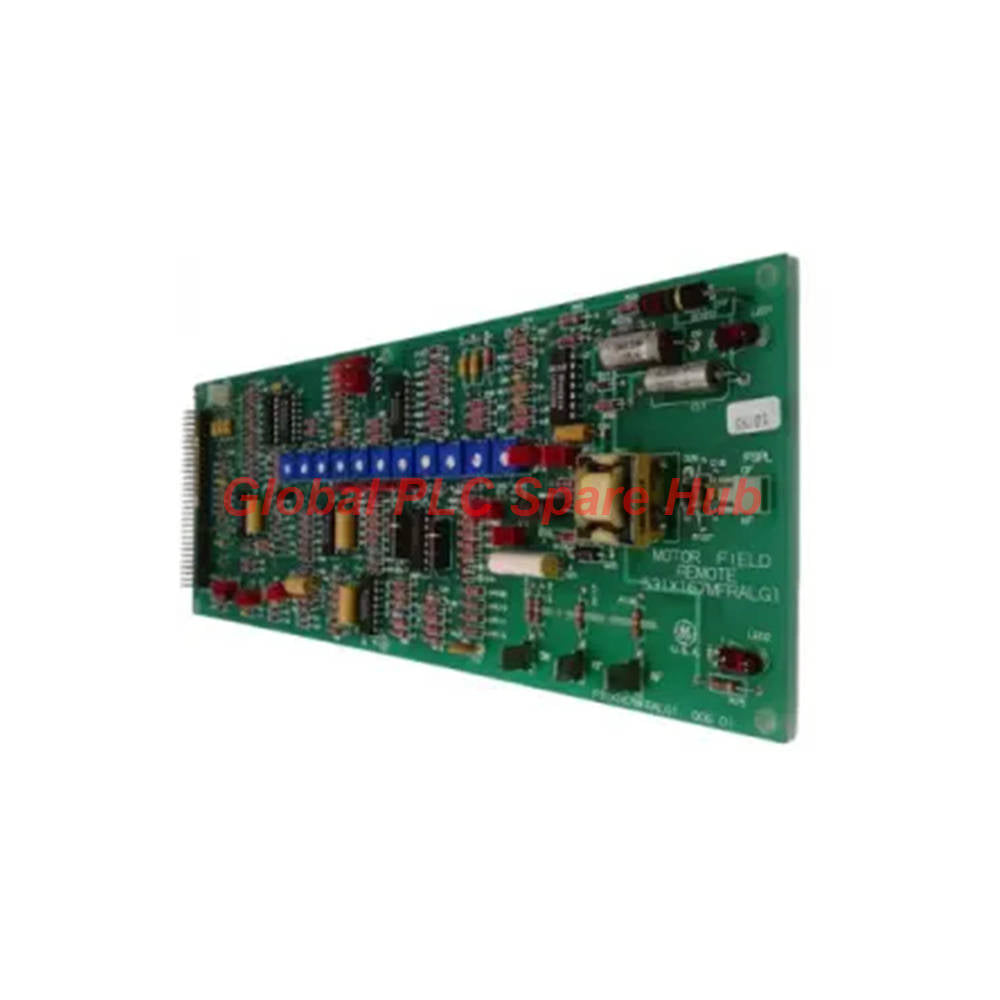

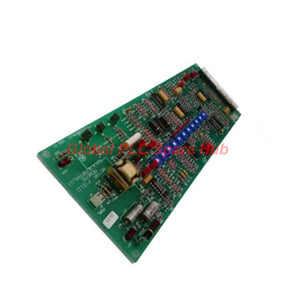

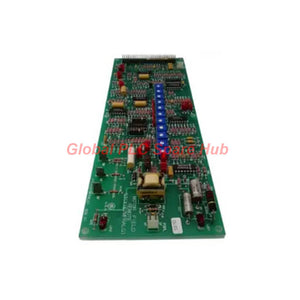

The 531X167MFRALG1 is a legacy Motor Field Remote Printed Circuit Board (PCB) engineered by General Electric as part of the specialized 531x series. This high-density board serves as a vital link in managing motor field excitation and control signals. Given its long-form factor and intricate component layout, it remains a critical spare for maintenance engineers tasked with sustaining legacy industrial drive architectures.

Global PLC Spare HUB's Insight

Our engineering team identifies the 531X167MFRALG1 as a sophisticated control interface requiring precision handling. This board is best suited for heavy-duty DC motor drives and excitation control systems. Its architecture relies on a complex network of potentiometers for variable energy regulation and integrated circuits for logic execution. We recommend this board for facilities currently maintaining GE drive systems where board-level diagnostics are required to minimize downtime.

Technical Architecture

• Manufacturer: General Electric (GE)
• Series: 531x Board Series
• Energy Regulation: Features a dual-tiered resistor network, combining axial-lead resistors with precision potentiometers (rheostats).
• Energy Storage: Equipped with varied capacitors (condensers) to stabilize local electrical fields.
• Logic Processing: Houses 8 dedicated Integrated Circuits (ICs) governing board-level programming.
• Interface: Features 2 white male ports, 1 high-capacity black male port, and 3 precision metal terminals.
• Diagnostics/Status: Incorporates 2 red LEDs for real-time operational status monitoring.
• Configuration: Includes configurable jumper ports with bypass caps for custom circuit path management.
• Power/Mechanical: Contains one primary transformer; board secured via 4 standard corner-mount points.

Logistics and Quality Assurance

• Global Fulfillment: Rapid shipping provided via FedEx, UPS, and DHL.
• Lead Time: Orders are processed for dispatch within 24-48 hours.
• Warranty: Every 531X167MFRALG1 comes with a 12-month performance warranty.

Applications and Diagnostic Capabilities

• Target Devices: Ideal for GE industrial drive cabinets, motor field control modules, and legacy automation racks.
• Diagnostic Ability: Onboard LED indicators provide immediate visual cues for fault conditions. Engineers can utilize jumper ports to isolate sub-circuits, effectively narrowing root-cause analysis during troubleshooting.

Frequently Asked Questions

What is the primary function of the potentiometers on this board?
These variable resistors allow for fine-tuned energy modulation (under 1 watt), essential for maintaining precise excitation levels in DC motor fields.

How should I approach troubleshooting when the red LEDs are inactive?
Verify the primary transformer output and check the incoming voltage at the black male port. If power is present but LEDs are dark, inspect the onboard ICs for signs of thermal stress.

Can I replace individual jumper caps if they go missing?
Yes, the jumper ports are standard industrial type. Ensure the replacement cap matches the impedance and contact rating of the original to maintain circuit stability.

What is the best way to handle the board during installation?
Because the 531X167MFRALG1 is a long-format PCB, always support the center of the board when mounting to the four corner holes to prevent mechanical flexion and hairline fractures.

Buying Guide: What should I look for when sourcing this legacy board?
Always verify the physical integrity of the large capacitors and the cleanliness of the connector ports. Given that this board is no longer in production, ensure your supplier provides a formal warranty period.
