330103-03-06-05-02-00 Bently Nevada 3300 XL 8mm Proximity Probe

Technical Engineering Brief

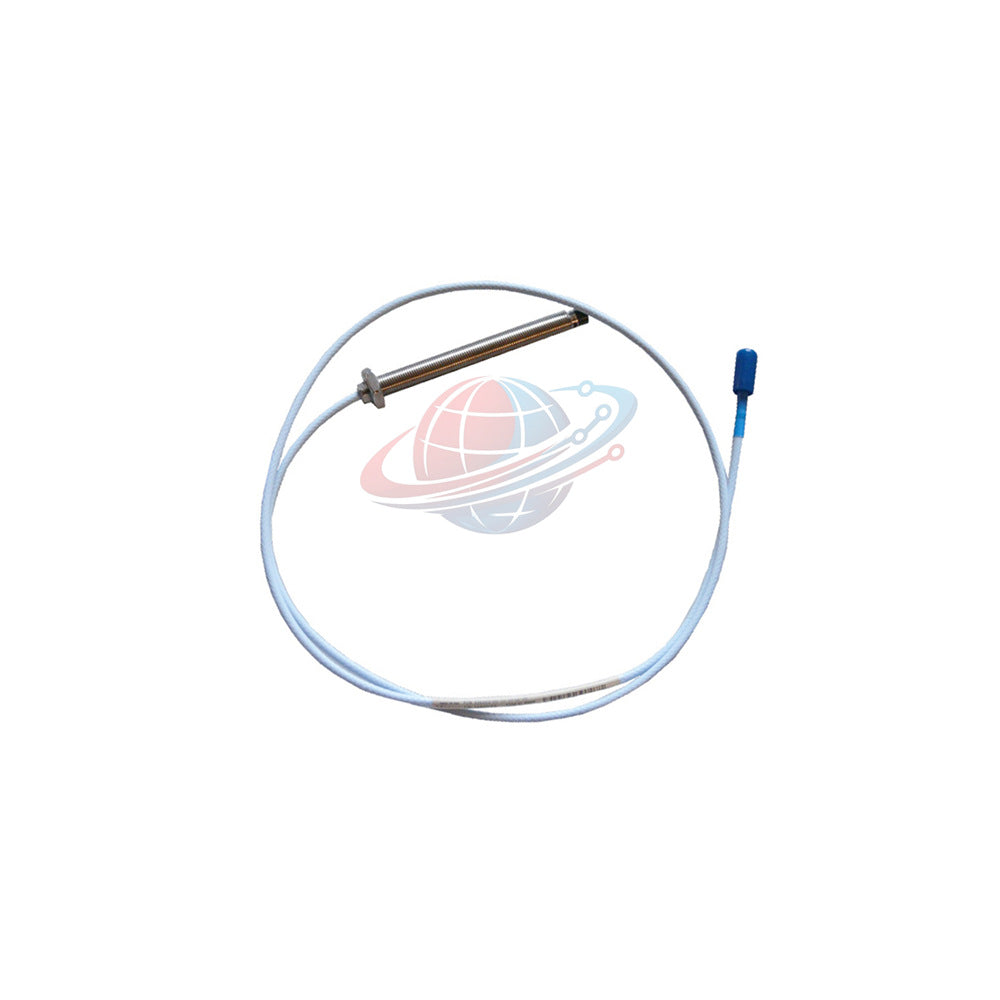

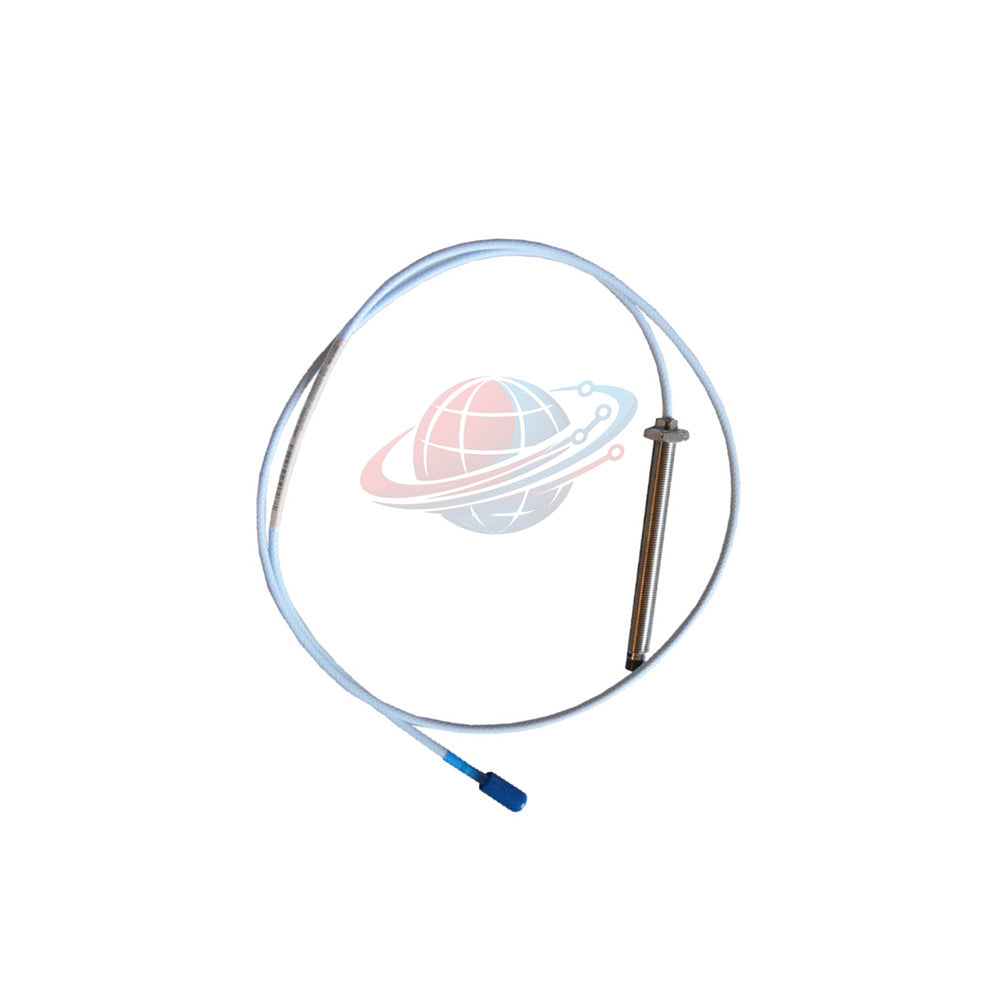

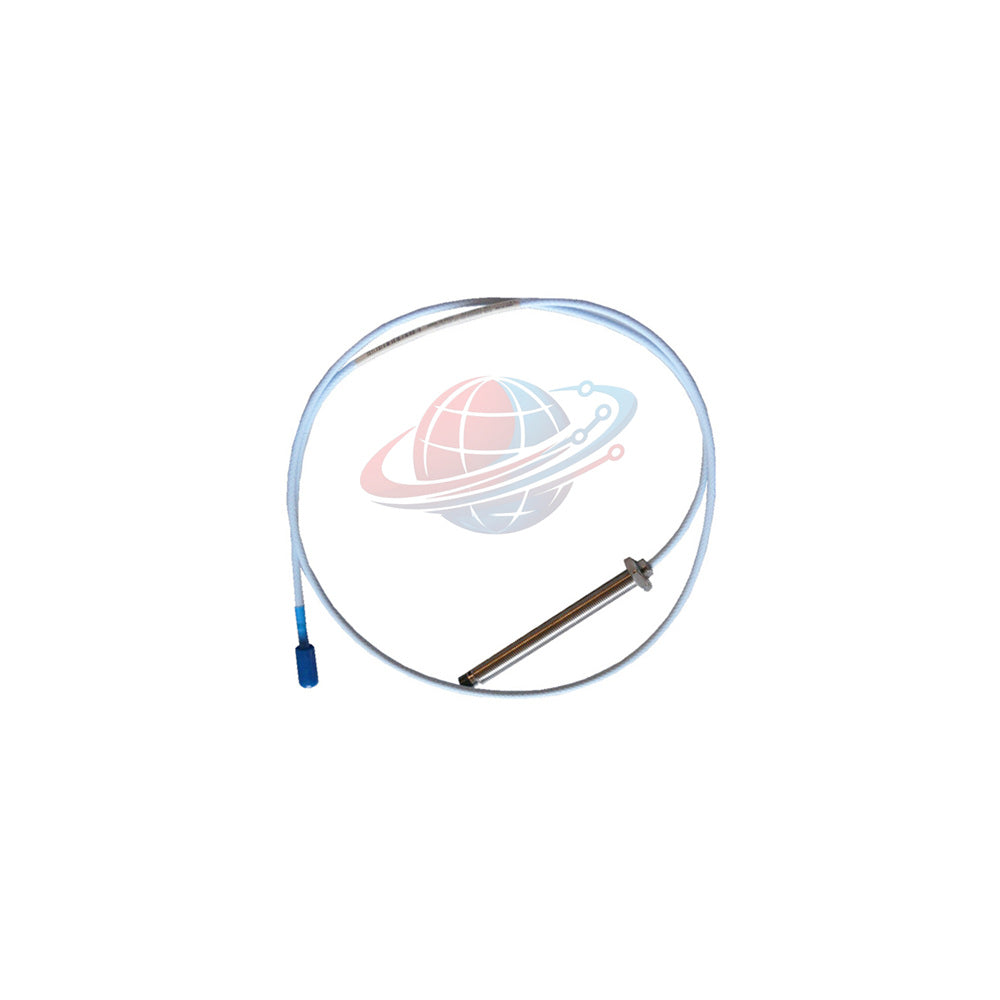

The Bently Nevada 330103-03-06-05-02-00 is a precision eddy-current proximity transducer belonging to the industrial-standard 3300 XL 8 mm series.

Engineers deploy this non-contacting sensor to measure static gaps and dynamic displacement profiles against fluid-film bearings safely.

The M10 x 1 threaded physical body translates micro-inch movements into linear DC voltage steps reliably.

It offers robust structural sealing alongside high-temperature resistance to deliver deterministic, low-noise vibration data within hostile industrial environments.

Model Configuration Breakdown

• 330103 ── Core Proximity Probe Type
  • ↳ Series Type: 3300 XL 8 mm Standard Transducer
  • ↳ Thread Profile: M10 x 1 metric thread
  • ↳ Armor Configuration: Unarmored standard coaxial cable design
• 03 ── Unthreaded Length Option
  • ↳ Dimension: 30 mm unthreaded sleeve area
• 06 ── Overall Case Length Option
  • ↳ Dimension: 60 mm total metallic housing length
• 05 ── Total Length Option
  • ↳ Dimension: 0.5 meter (1.6 feet) physical integration length
• 02 ── Connector & Cable-Type Option
  • ↳ Variant: Miniature coaxial ClickLoc connector with standard electrical cable
• 00 ── Agency Approval Option
  • ↳ Status: Base variant, no localized hazardous zone certification tags required

Core Architecture & Technical Specifications

• Brand: Bently Nevada
• Model: 330103-03-06-05-02-00
• Series: 3300 XL 8 mm
• Component Type: Non-Contact Eddy Current Proximity Transducer
• Measurement Linear Range: 2 mm (80 mils) total displacement window
• Operational Gap Limits: Commences at 0.25 mm (10 mils) up to 2.3 mm (90 mils) from the target face
• Electrical Signaling Range: Corresponds linearly from -1 V DC to -17 V DC output levels
• Recommended Radial Vibration Gap: Set at -9 V DC bias point (approximately 1.27 mm or 50 mils distance)
• Nominal Loop DC Resistance: 7.45 ohms ± 0.50 ohms measured between center and outer shield conductors
• Tip Material Compounding: High-stability Polyphenylene Sulfide polymer
• Housing Metallic Composition: AISI 303 or 304 austenitic stainless steel
• High-Pressure Process Sealing: Integrated Viton O-ring provides a differential pressure barrier between tip and case
• Maximum Case Engagement: 15 mm total permissible metric thread mechanical interlock depth
• Recommended Installation Torque: 11.2 N·m (100 in·lbf) for standard face mounting operations
• Maximum Rated Torque Limit: 33.9 N·m (300 in·lbf) across full threaded section
• Physical Mass Index: Weighs approximately 323 g/m (11.4 oz)
• Environmental Protection: Restricts Average Scale Factor shifts below 3% under 93% relative humidity exposure
• Standard Temperature Limits: Sustains internal components across a -52 °C to +177 °C operational spectrum

Host Equipment Interoperability

The Bently Nevada 330103-03-06-05-02-00 functions as the physical front-end capture mechanism, providing direct analog links to:

• Bently Nevada 3300 XL Proximitor Sensors (5-meter or 9-meter baseline system tunes)
• Bently Nevada 3500/40M Proximitor Monitor Modules
• Bently Nevada 3500/42M Ceramic Bearing Displacement Monitors
• Bently Nevada 990 Vibration Transmitters for direct PLC/DCS connection paths

Target Field Implementations

• Dynamic radial vibration monitoring of high-speed fluid-film journal bearings.
• Static axial thrust position monitoring on large utility steam and gas turbines.
• Shaft eccentricity measurements and slow-roll machine speed monitoring setups.
• Structural case expansion measurements and oil-film clearance tracking in industrial machinery.

Network Diagnostics & Metrology Verification

• DC Loop Impedance Diagnostics: Verification of the 7.45-ohm base resistance quickly flags open coils or cable crimps.
• Voltage Gap Verification: Field technicians track the static voltage bias against target surfaces to monitor sensor degradation.
• Scale Factor Calibration: Tracks thermal shifts to maintain scale accuracy within IEC 68-2-3 standards.
• ClickLoc Mechanical Verification: Coaxial interfaces verify electrical circuit contact and signal integrity under heavy vibration.

Global PLC Spare HUB's Insight

The Bently Nevada 330103-03-06-05-02-00 provides excellent mechanical reliability for standard metric industrial casings.

The 30 mm unthreaded sleeve design gives field technicians ample adjustment room inside complex bearing housings.

By using a compact 0.5-meter cable layout, this module keeps local connections close to the junction box.

This design minimizes internal electrical noise and eliminates signal distortion caused by excessive field-wire loops effectively.

Cross-Model Selection Analysis

• 330103-03-06-05-02-00 (Current Model): Features a standard M10x1 thread path, short 30 mm unthreaded casing, 60 mm case length, and a 0.5-meter standard unarmored cable lead. It is optimized for small internal bearing clearances.
• 330103-00-18-10-12-05: Features a 0 mm unthreaded sleeve, an extended 1.8-inch case, a 1.0-meter overall length, an armored fluid cable sleeve, and ATEX zone approvals.

Technical Application Guidance

• Sleeve Selection Rules: Use the 30 mm unthreaded option when mounting through thick external fluid-film casing block walls to prevent thread galling.
• Cable Protection Rules: If the proximity line is exposed to flying debris or synthetic lubricants outside the machine casing, transition to the armored model link above.
• Matched System Tuning: Always verify that the combined length of the probe cable and extension line matches your Proximitor's calibration profile.

Logistical Logistics & Warranty Terms

• Standard Packaging: Factory-sealed anti-static shielding box with protective contact caps.
• Express Courier Distribution: Priority global air freight fulfilled via FedEx, UPS, or DHL networks.
• Processing Lead Time: Guaranteed automated packaging and dispatch completed within 24 to 48 hours.
• Extended Coverage: Backed by a comprehensive 12-month industrial replacement warranty covering functional performance.

Advanced Engineering FAQ

Why does an eddy-current probe loop show unstable DC voltage readings right after a new mechanical installation?

Unstable gap voltages usually stem from localized cross-talk caused by incorrect probe-to-probe clearance.

Alternatively, shaft surface irregularities like scratches or magnetized spots can disrupt the eddy-current field.

What is the best way to clean and inspect the ClickLoc coaxial connector during planned plant maintenance?

Clean the gold contact pins using a residue-free electronics cleaner spray carefully.

Inspect the outer shielding sleeve for physical distortion before latching the connection into place again.

Can this specific probe run reliably if submerged continuously in high-pressure synthetic bearing lubricants?

Yes, the PPS tip and stainless housing withstand standard synthetic oils perfectly.

However, you must monitor process temperatures to ensure the built-in Viton O-ring seal stays within its rated range.

How can field teams quickly test if the transducer coil has suffered internal thermal degradation?

Disconnect the sensor and measure the resistance with a calibrated digital multimeter immediately.

A reading outside the 7.45 ohms ± 0.50 ohms specification at room temperature indicates internal thermal breakdown.

What causes premature pressure seal failure near the sensor tip when operating in northern outdoor environments?

Exposing the module to temperatures below –34 °C during plant outages can cause the Viton seal material to harden.

This thermal hardening leads to premature failure under differential process pressures once operations resume.

Procurement Guidance

• Verify Case Thread Pitch: Ensure your machine casing matches the metric M10x1 thread profile before completing your procurement paperwork.
• Check Target Material Calibration: Standard probes are calibrated for 4140 steel alloys. Request a custom calibration if your shaft uses alternative steel compositions.
• Audit Total Loop Extensions: Double-check your extension cable lengths to ensure the total system impedance matches your Proximitor module's technical specifications.
