330103-00-18-10-12-05 Bently Nevada Proximity Probe New

Product Overview

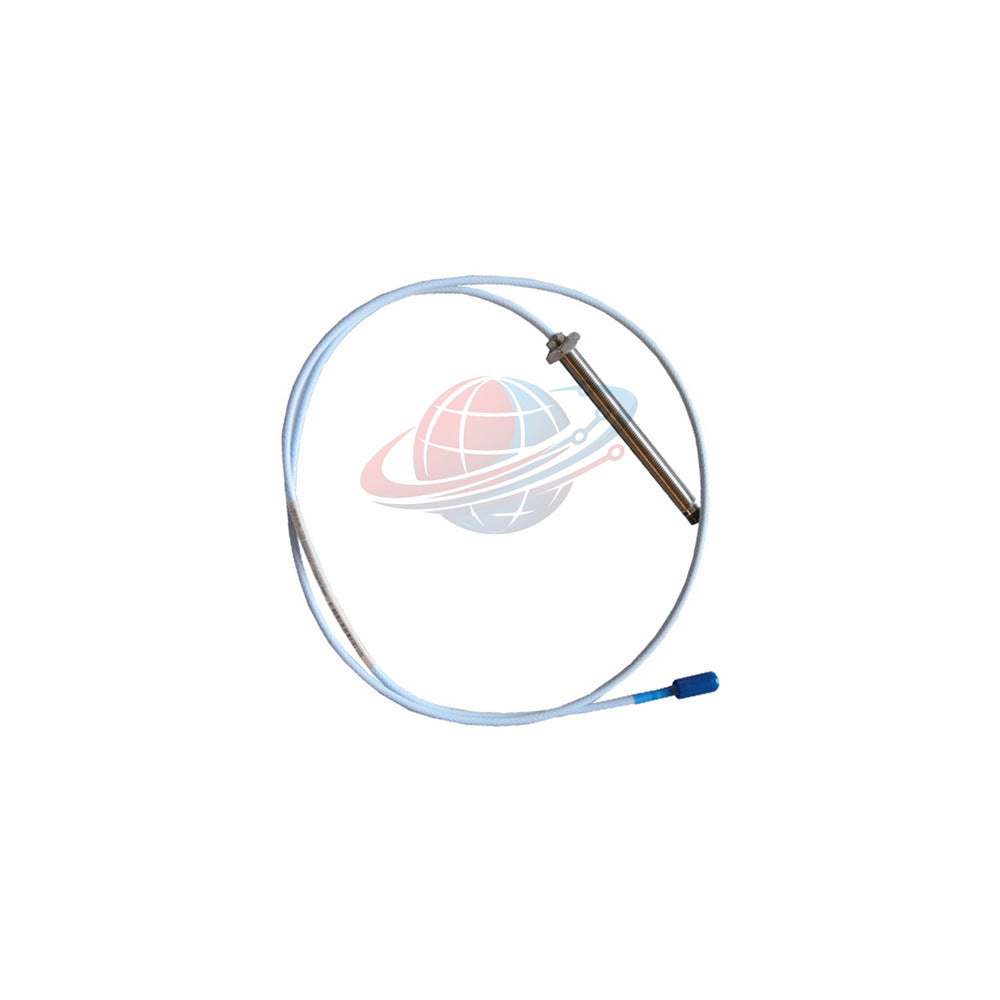

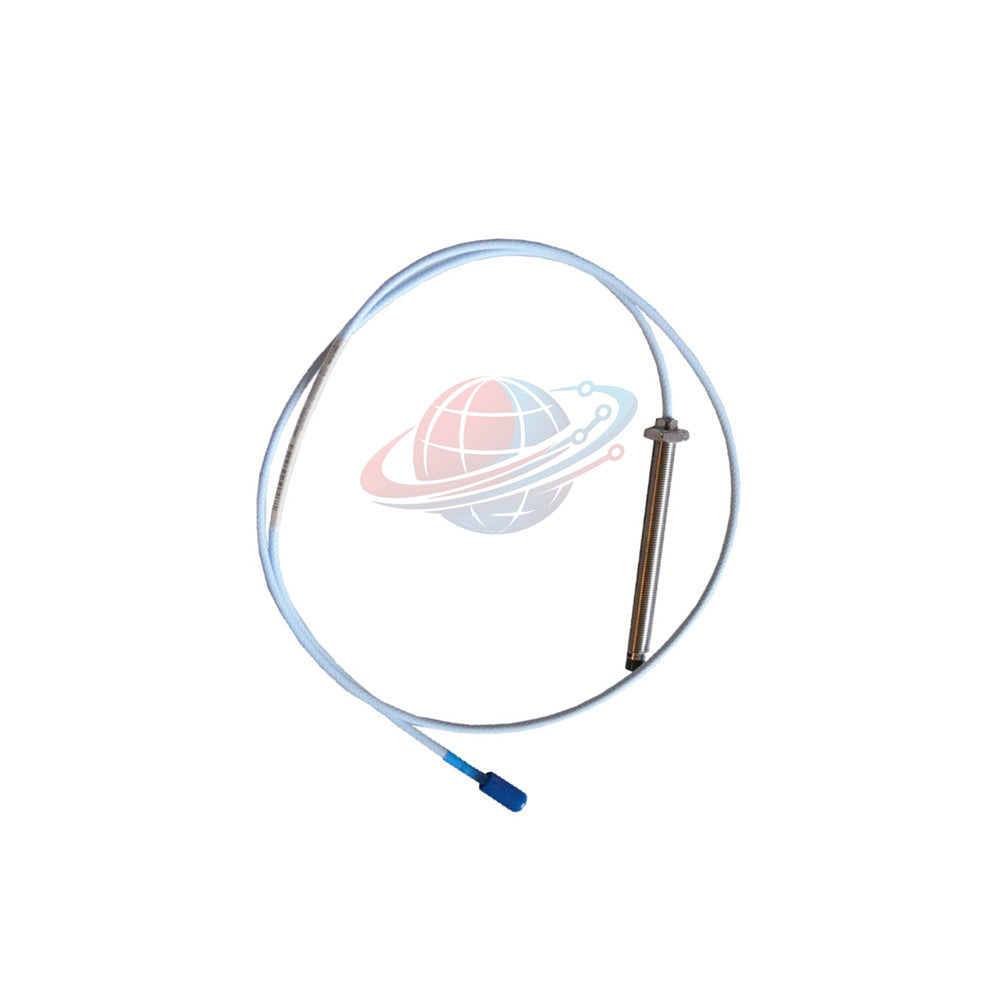

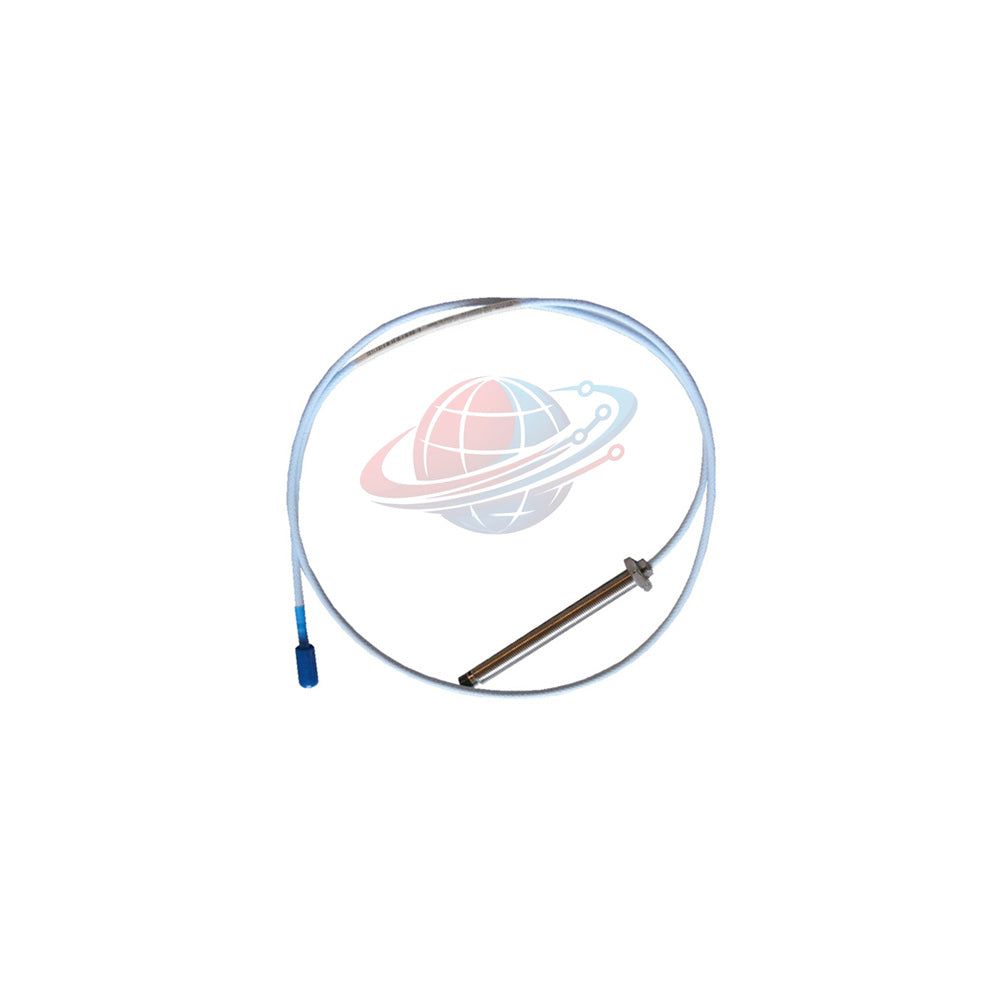

The 330103-00-18-10-12-05 is a premium 8 mm metric eddy current proximity transducer engineered by Bently Nevada for the 3300 XL series. This specialized instrument dynamically measures physical gap variations between its sensor tip and rotating machine elements. It delivers precise, continuous vibration data to protective monitoring racks, safeguarding high-speed turbomachinery from critical failures.

Featuring an unarmored FluidLoc triaxial cable configuration, the module blocks moisture and lubricating fluids from migrating into critical terminal enclosures. The rugged construction utilizes a premium Polyphenylene Sulfide (PPS) tip head integrated with an AISI 303/304 stainless steel threaded body, maintaining exceptional mechanical and signal stability under demanding industrial conditions.

Configuration Breakdown

The structural part number matrix for the 330103-00-18-10-12-05 probe is decoded below:

• 330103 (Base Model): 3300 XL 8 mm Probe, M10 x 1 metric thread, unarmored cable design
• └─ 00 (Unthreaded Length): 00 mm fully threaded case profile
• └─ 18 (Overall Case Length): 180 mm total rigid case extension
• └─ 10 (Total Length): 1.0 meter (3.3 feet) integrated loop length
• └─ 12 (Connector & Cable Type): Miniature coaxial ClickLoc connector paired with fluid-blocked FluidLoc cabling
• └─ 05 (Agency Approvals): Comprehensive multi-zone CSA, ATEX, and IECEx safety certification package

Technical Specifications

• Brand: Bently Nevada (Baker Hughes)
• Model Coding: 330103-00-18-10-12-05
• Product Series: 3300 XL 8 mm Proximity System
• Sensor Tip Diameter: 8 mm projection face
• Thread Pitch Designation: M10 x 1 metric thread profile
• Maximum Thread Engagement: 15 mm structural limit
• Center-to-Outer DC Resistance (RPROBE): 7.59 ± 0.50 Ohms tracking loop
• Linear Measurement Range: 2.0 mm (80 mils) total displacement depth
• Linear Range Boundaries: Begins at 0.25 mm (10 mils) up to 2.3 mm (90 mils) with an output of –1 to –17 V DC
• Recommended Radial Gap Voltages: -9 V DC bias point [approximately 1.27 mm (50 mils) physical clearance]
• Internal Pressure Seal Design: Viton O-ring sealing interface between probe tip and outer case
• Extreme Operational Thermal Range: -52 °C to +177 °C (-62 °F to +350 °F) operating standard
• High-Humidity Scaling Resistance: Under 3% Average Scale Factor (ASF) shift when exposed to 93% humidity per IEC 68-2-3
• Hazardous Location Protection: Certified Class I Zone 0 (Ex ia IIC T5...T1 Ga) and Class I Division 2 (Ex nA/ec IIC T5...T1 Gc)

Target Equipment & Field Application Scenarios

The 330103-00-18-10-12-05 sensor tracks mechanical conditions in heavy rotating machinery. It maps radial shaft vibration inside high-velocity steam and gas turbines. It manages axial thrust position monitoring on processing compressors and detects hydrodynamic oil film thickness in large journal bearings. Additionally, it tracks thermal housing expansion on industrial power generation alternators and high-torque turbo-expanders.

Diagnostic & Calibration Routines

The sensor relies on precise electrical verification loops. Technicians can diagnose the probe by checking the DC loop resistance between the ClickLoc center conductor and the outer shield, which must verify between 7.09 and 8.09 Ohms. Fluctuations outside these limits reveal line crimps, fluid leakage past the Viton O-ring, or core coil fractures. During runtime, monitoring the DC voltage drop provides a real-time gap clearance baseline, allowing operators to spot shaft misalignment or bearing wear before critical conditions occur.

Logistics, Storage & Warranty Terms

• Inventory Placement: Factory new and original units maintained in original factory packing
• Priority Air Logistics: Secured global transit through express networks including DHL, FedEx, and UPS
• Fulfillment Lead Time: Handled and dispatched from our facility within 24 to 48 hours
• Warranty Integrity: Supported by a comprehensive 12-month structural operational warranty
• Field Cabling Guide: Requires 0.2 to 1.5 mm² (16 to 24 AWG) 3-conductor shielded triad cable up to a 305-meter limit

Global PLC Spare HUB's Insight

The 330103-00-18-10-12-05 is a staple in high-precision turbomachinery safeguarding. Unlike variants with simple regional approvals, the "05" modifier blends CSA, ATEX, and IECEx certifications into one piece of hardware. This global compliance footprint simplifies engineering specs for multi-national skid builders. The 180 mm extended case provides deeper penetration through thick turbine outer shells, keeping the internal connector safely accessible outside the hot lagging layer. This structural choice reduces sensor cable exposure to intense convective heat traps.

Selection & Model Comparison

When selecting a replacement probe, matching the configuration parameters precisely is critical to prevent calibration mismatches. Review the structural differences below:

• Target Unit: 330103-00-18-10-12-05 — Features a 180 mm overall case length paired with a global multi-agency certification package (CSA/ATEX/IECEx Option 05) for wide industrial deployment.
• Alternative Unit: 330103-00-13-10-12-CN — Utilizes a shorter 130 mm overall case length alongside a country-specific "CN" approval package.

Technical Procurement Advice

Do not mix these two models if your mechanical casing requires deep penetration. Replacing a 180 mm probe with the shorter 130 mm alternative will prevent the sensor face from reaching its linear measurement range. Additionally, ensure the regional regulatory approval codes match your facility's hazardous area zoning maps. Mismatched safety ratings can compromise plant safety certifications during routine compliance audits.

Frequently Asked Questions

What specific failure occurs if this probe is exposed to temperatures below -34 °C?

Exposing the hardware to temperatures below -34 °C causes the internal Viton O-ring to harden and lose elasticity. This compromise degrades the internal pressure seal, causing oil ingress and destroying the sensor coil calibration.

Can this unarmored sensor cable be routed through open wire trays inside a facility?

No, because this variant lacks protective armor, you must route the unarmored FEP cable through sealed, rigid metal conduit to shield it from physical damage, sharp edges, and cross-talk noise.

Why is tinned field wiring recommended for extending the link to the Proximitor?

Tinned copper wiring resists corrosion and oxidation in humid or chemically aggressive environments. This ensures the loop maintains low connection resistance over its maximum 305-meter run.

How does the ClickLoc connector protector design reduce signal distortion?

The specialized connector protector isolates the miniature coaxial junction from grounding paths and prevents moisture ingress, which maintains the required 75 Ohm characteristic line impedance.

What does a runtime sensor signal reading of -19 V DC indicate to the control panel?

An output of -19 V DC indicates an over-range condition, meaning the probe face has moved beyond its 2.3 mm linear threshold or the sensor extension cable has developed an open circuit fault.

Procurement & Selection Guidance

Always check the laser-etched part number ring on the stainless steel casing before installing a new probe. Suffix updates alter parameters like overall case depth or safety approvals, which can impact fitment or compliance. Ensure you use the exact calibration target material (typically AISI 4140 steel) specified by the 3300 XL platform. Using alternative target alloys will alter the average scale factor, distorting your vibration measurements.
