148239-110-120-90-02 Bently Nevada Underwater Proximity Probe 3300 XL Series

Engineering Overview

The 148239-110-120-90-02 Bently Nevada 3300 XL 11mm Underwater Proximity Probe is engineered for fluid-immersed machinery vibration and radial displacement monitoring. Built with a 304 stainless steel threaded body and protective Tefzel tubing, this 148239-110-120-90-02 sensor maintains linear gap measurement under pressurized liquid conditions.

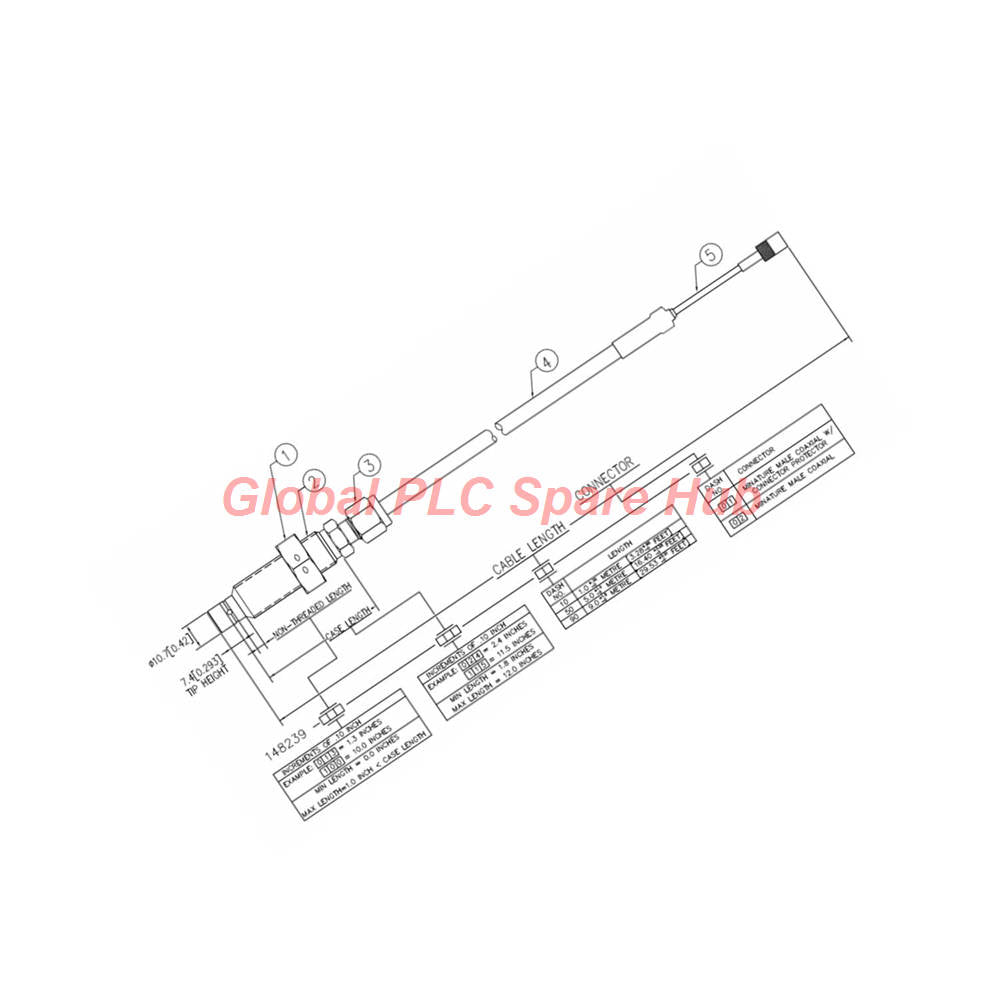

Configuration Breakdown (Model 148239 - AA-BB-CC-DD)

• Base Part Number: 148239 (5/8-18 UNF sealed case with Tefzel tubing)
• Option A (Unthreaded Length - 110): 11.0 inches of unthreaded body
• Option B (Overall Case Length - 120): 12.0 inches total case length
• Option C (Total Length - 90): 9.0 meters (29.5 feet) integral cable length
• Option D (Connector & Cable - 02): Miniature coaxial ClickLoc connector with standard cable

Core Technical Specifications

Installation & Fluid Submersion Guidelines

• Ensure the probe body is fully immersed or exposed to compatible industrial fluids, keeping connector ends completely dry.
• Verify that process fluid chemistry is compatible with 304 stainless steel to avoid corrosion (avoid salt-water environments).
• Torque the 5/8-18 UNF threaded probe case carefully into mounting holes using appropriate thread sealant.
• Route protective Tefzel tubing securely away from turbulent fluid impingement points.
• Maintain minimum bend radii on the integral cable to protect internal coaxial conductors.

Commissioning & Calibration

• Perform static gap voltage checks using a digital multimeter matched to Proximitor power outputs.
• Verify system scale factor (-7.87 V/mm or -200 mV/mil) during initial machine cold alignment.
• Check pressure seal integrity around mounting threads following system pressurization up to 34 Bar.

Built-In Diagnostic Capabilities

• Continuous gap voltage monitoring isolates open-circuit wiring faults and probe tip damage.
• Shield continuity checking detects grounding loops and electromagnetic interference.

Commercial Terms, Fulfillment & Warranty

• Expedited global dispatch processed within 24 to 48 hours.
• Trusted courier networks: FedEx, UPS, and DHL.
• Backed by a reliable 12-month operational warranty.

Model Selection Comparison & Technical Recommendations

When engineering vibration monitoring for submerged fluid pumps or hydraulic gearboxes, selecting the correct unthreaded and overall case lengths ensures proper tip positioning relative to the rotating shaft. For applications requiring a shorter unthreaded body and compact case dimensions, compare this unit with the alternative 148239-01-18-50-02 model, which features an 0.1-inch unthreaded length, an 1.8-inch case length, and a 5.0-meter cable.

Global PLC Spare HUB's Insight

In high-pressure industrial lubrication systems and closed-loop hydraulic reservoirs, fluid turbulence often subjects probe cables to severe mechanical fatigue. Field engineers prevent premature coaxial failure by securing the Tefzel-protected tubing of the 148239-110-120-90-02 probe with rigid brackets, preventing vortex-induced vibration before it reaches the connector interface.

Frequently Asked Questions

What factors should guide my selection between short-case and long-case underwater probes?

Choose longer case variants like the 148239-110-120-90-02 when penetrating thick vessel walls or mounting bosses, and select compact models like the 148239-01-18-50-02 when space constraints limit internal projection depth.

Can this underwater proximity probe be installed in marine salt-water environments?

No, the 304 stainless steel housing is vulnerable to chloride pitting and corrosion in salt water; application is restricted to freshwater or closed industrial fluids.

What happens if the coaxial connector end of the probe becomes submerged?

The connector end is not hermetically sealed against liquids; submersion causes signal shorting, erroneous vibration readings, and permanent sensor damage.

How do I verify the pressure seal rating during hydrostatic testing?

The probe case is rated to seal up to 34 Bar (500 psi) Nitrogen; ensure proper O-ring or thread sealing is applied during installation to maintain pressure boundary integrity.

Why is 304 stainless steel chosen over other alloys for this probe series?

It provides an optimal balance of mechanical strength and chemical compatibility for standard industrial hydraulic fluids while maintaining stable eddy-current generation properties.
