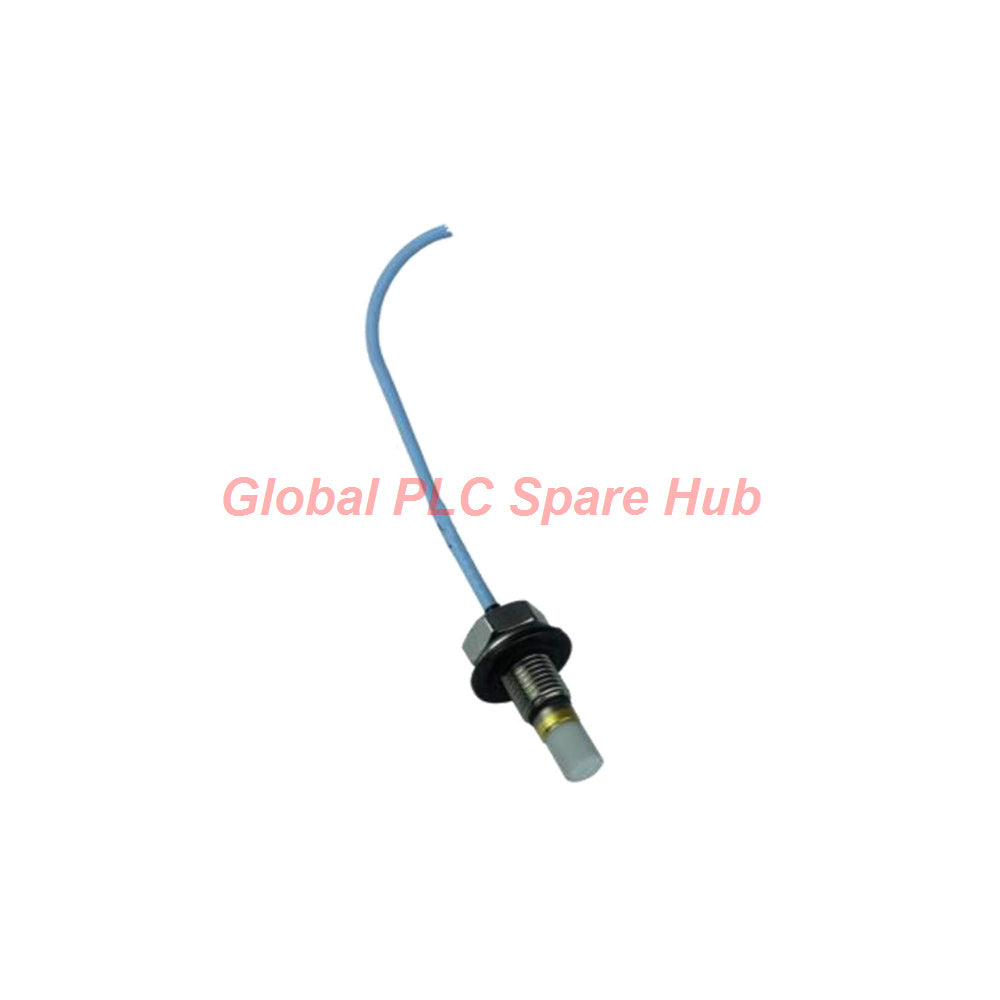

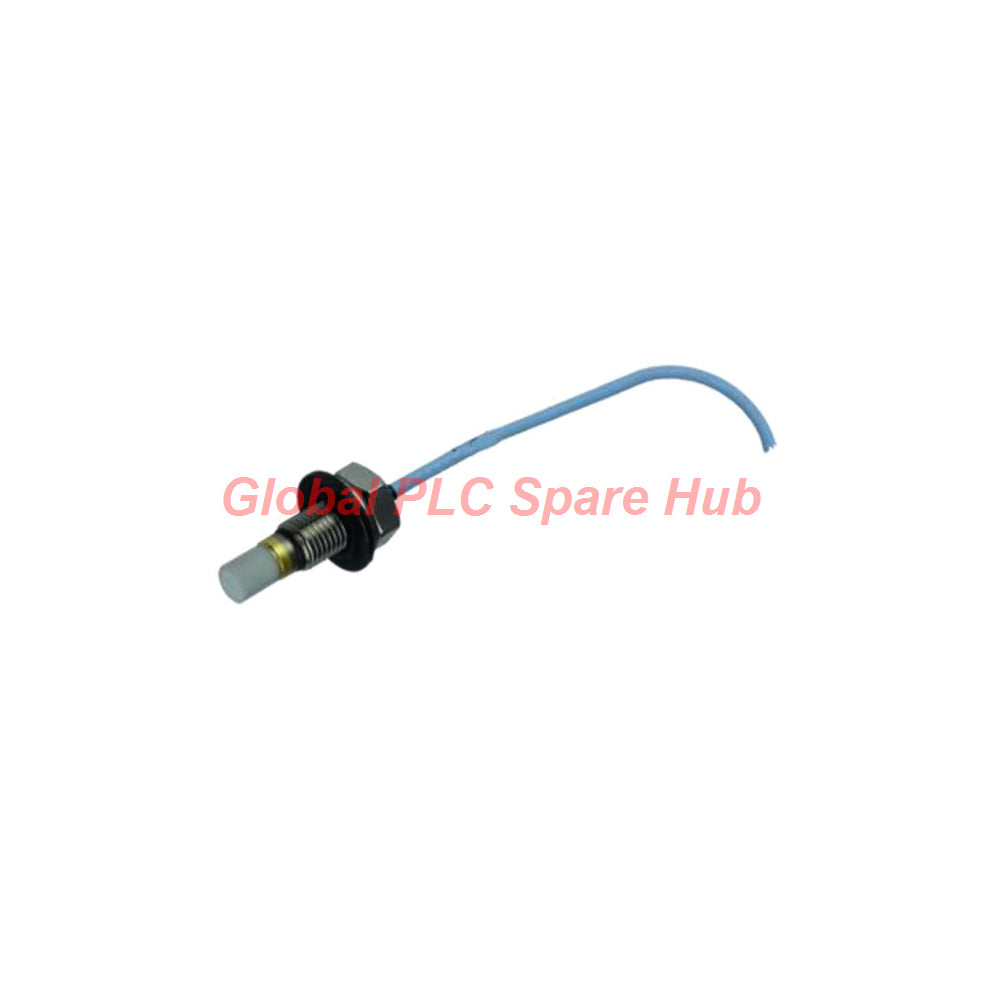

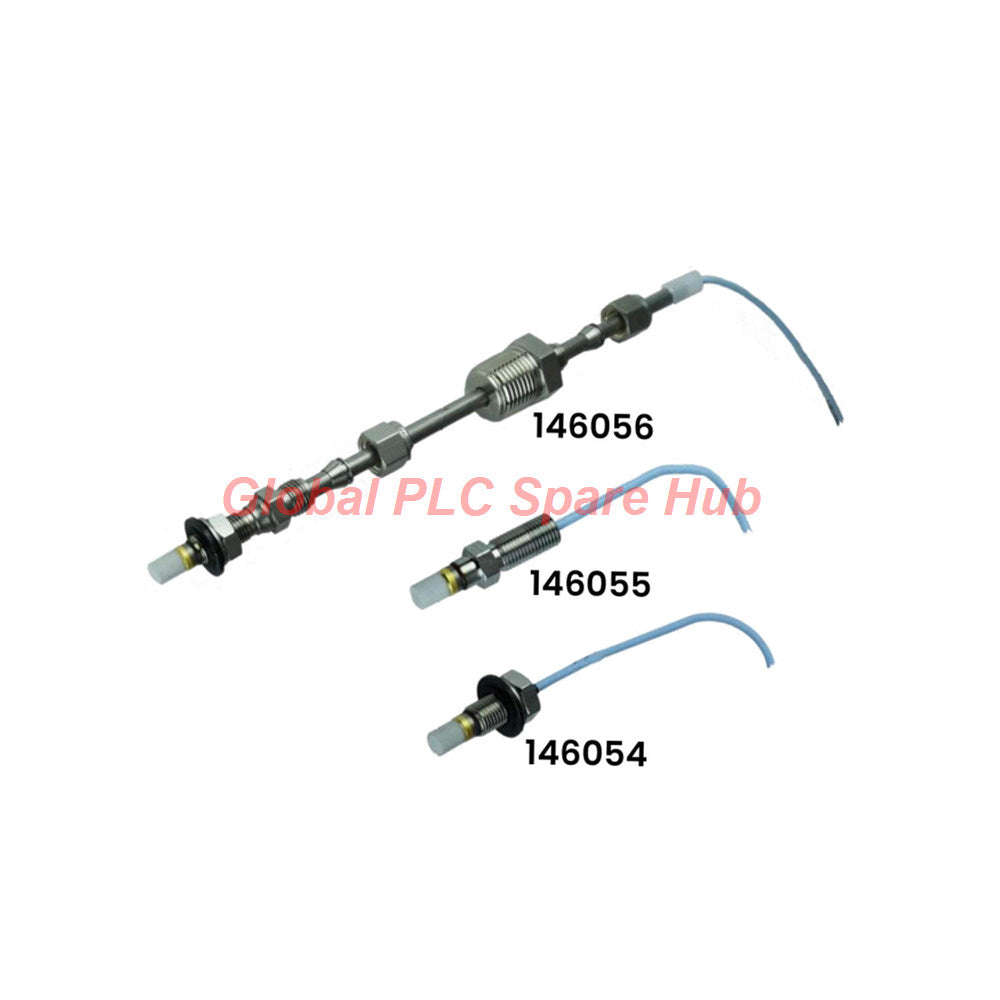

146054-08-10-00-00 Bently Nevada Ceramic Proximity Probe

Overview

The 146054-08-10-00-00 is a specialized high-reliability proximity probe engineered by Bently Nevada within the 3300 Ceramic Capped Proximity Probe series. Designed for severe industrial environments subject to chemical exposure, abrasive media, or high-temperature build-up, this probe features a durable alumina ceramic (Al₂O₃) tip bonded to an AISI 304 stainless steel case. It measures relative shaft vibration and position with exceptional linearity, providing robust performance where standard polyphenylene sulfide (PPS) probe tips degrade.

Part Number & Configuration Breakdown (146054-AA-BB-CC-DD)

• Base Model (146054): 3300 Ceramic Capped Probe, 3/8-24 UNF thread, without armor
• Option A (-08): Overall Case Length Option — 0.8 in case thread length
• Option B (-10): Total Length Option — 1.0 meter (3.3 feet) integral coaxial cable
• Option C (00): Connector and Cable-Type Option — No connector attached (bare leads for custom termination)
• Option D (00): Agency Approval Option — Standard hazardous area classification not required
• Brand: Bently Nevada
• Series: 3300 Ceramic Capped Proximity Probes
• Condition: New & Original in Factory Packing

Technical Specifications Matrix

1. Metrology & Electrical Performance

• Linear Range: 1.52 mm (60 mils), starting approximately 0.25 mm (10 mils) from target (0.25 to 1.78 mm / 10 to 70 mils range, roughly -4 to -16 V DC)
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ± 6.5 % including interchangeability error (tested over a 60 mil linear range from 0 °C to +45 °C)
• Nominal DC Resistance: 7.59 ± 0.50 Ω from center conductor to outer shield for a 1.0 m probe assembly
• Target Material Compatibility: Optimized for AISI 4140 steel target specifications

2. Mechanical Construction & Materials

• Probe Tip Material: Alumina ceramic (Al₂O₃)
• Probe Case Material: AISI 304 stainless steel with 3/8-24 UNF thread
• Maximum Thread Engagement: 0.563 in
• Cable Specifications: 75 Ω coaxial, fluoroethylene propylene (FEP) insulated cable (1.0 meter length)
• Pressure Sealing: Rated to seal 34 Bar (500 psi) nitrogen gas pressure

3. Environmental & Thermal Ratings

• Operating & Storage Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
• Gas EPL (Ga/Gc) Temperature Classes: Rated across T1 (-55 °C to +232 °C) down to T5 (-55 °C to +40 °C) depending on probe tip ambient limits
• Dust EPL (Dc) Ratings: Certified for surface temperature limits ranging from T90 °C up to T280 °C based on operational ambient exposure

Model Comparison & Technical Selection Guide

When selecting between different cable lengths within this ceramic-capped product line, cable capacitance alters the overall resonant tuning of the Proximitor system. Compare with the alternative variant 146054-08-50-00-00, which features a longer 5.0 meter integral cable option. Technical Recommendation: If your junction box or monitor rack is located in close proximity to the machine bearing housing, select the 1.0 meter 146054-08-10-00-00 model to minimize excess cable coiling and reduce high-frequency noise pickup. If a longer cable run is mandatory to reach remote marshalling cabinets without an extension cable, transition to the 5.0 meter configuration while verifying that system impedance matches your Proximitor calibration curve.

Installation & Wiring Guidelines

• Torque Specifications: Exercise caution when tightening the 3/8-24 UNF probe threads into mounting brackets to prevent mechanical stress fracture of the alumina ceramic tip.
• Bare Lead Termination: Since option CC = 00 indicates no pre-installed connector, attach the coaxial shield and center conductor to approved terminal blocks or crimp pins maintaining strict impedance continuity.
• Sealing Compounds: Use thread-sealing compounds rated for high-pressure 500 psi containment if installing in fluid-immersed or pressurized compressor cavities.

Diagnostic Capabilities & Fault Monitoring

• Gap Voltage Monitoring: Track the steady-state DC gap voltage (-4 to -16 V DC) via the 3500 rack to ensure the ceramic tip maintains proper mechanical clearance from the rotating shaft target.
• Insulation Resistance Checks: Periodic checks between the center conductor and outer shield should read stable baseline resistance around 7.59 Ω, identifying internal micro-cracks or moisture ingress caused by severe thermal shock.

Global PLC Spare HUB's Insight & Expert Guidance

Global PLC Spare HUB's Insight notes that ceramic-capped probes are frequently deployed in heavy hydrocarbon sludge or high-varnish lubricant environments where standard plastic tips absorb fluids and swell. When installing the 146054-08-10-00-00, ensure the probe tip face remains perpendicular (± 1°) to the shaft axis to prevent distorted eddy-current feedback loops.

Compatible Equipment & Target Application Scenarios

• Compatible Equipment: Bently Nevada Proximitor sensors (3300 XL 5mm systems), 3500 Machinery Protection System monitors, and specialized mounting brackets.
• Target Application Scenarios: Hydrocarbon cracking compressors, heavy industrial steam turbines operating with high particulate steam carryover, and chemical reactor agitator shafts exposed to corrosive solvents.

Logistics, Fulfillment & Warranty Protection

• Shipping Carriers: Express global dispatch via FedEx, UPS, and DHL.
• Fulfillment Speed: Guaranteed processing and dispatch within 24 to 48 hours.
• Warranty Terms: Fully backed by a 12-month factory replacement or repair warranty.

Professional Frequently Asked Questions

Why choose a ceramic-capped probe over standard polyphenylene sulfide (PPS) probe tips?

Alumina ceramic offers superior resistance to chemical attack, high temperatures up to 177 °C and above, and abrasive particulate wear found in aggressive industrial process fluids where standard plastic tips fail.

How does selecting the 1.0 meter cable length affect system calibration?

The 146054-08-10-00-00 is factory-matched with a 1.0-meter integral cable designed to operate directly with compatible Proximitor sensors without requiring an intermediate extension cable.

What precautions are necessary when tightening a ceramic-capped probe into a mounting hole?

Never over-torque the 3/8-24 UNF threads; ceramic is brittle under uneven mechanical shear loads, so use a calibrated torque wrench and a jam nut to secure the housing safely.

Can the bare lead ends (Option C = 00) be terminated with standard Bently Nevada connectors in the field?

Yes, qualified technicians can install approved coaxial connectors using proper crimping tools, provided the strip lengths maintain exact coaxial shielding geometry to prevent signal attenuation.

What does an unexpected drop in DC gap voltage indicate on this sensor?

A sudden voltage drop towards zero typically indicates that the probe tip has physically contacted the rotating shaft or that the mounting bracket has slipped out of its calibrated linear range.
