MTL5053 MTL 5000 Series Fieldbus Power Conditioner

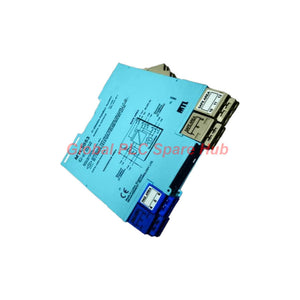

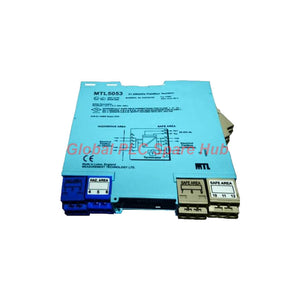

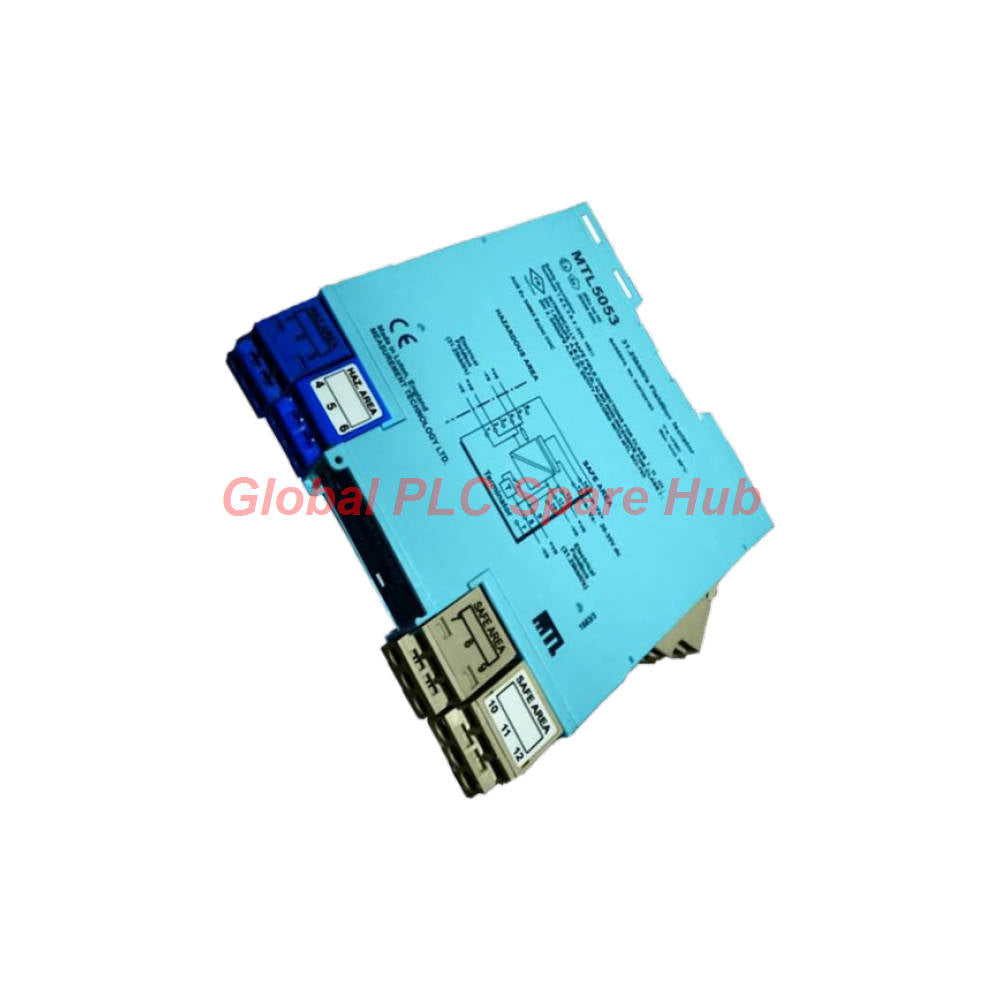

MTL5053 Fieldbus Isolator and Power Supply — Product Overview

The MTL5053 is an intrinsically safe fieldbus isolator and power supply designed for 31.25 kbit/s H1 fieldbus networks. It extends fieldbus communication into hazardous areas while supplying power to compatible field devices through the signal conductors.

Designed for industrial process automation, the MTL5053 combines hazardous-area fieldbus power, signal transmission, and electrical isolation. Its selectable internal terminator supports network configuration when the safe-area bus segment is short.

The module complies with Fieldbus Foundation power supply Type 133 requirements for an intrinsically safe power supply. It supports installations that require fieldbus communication with suitably certified devices in hazardous locations.

• Primary function: Intrinsically safe fieldbus power supply and isolator.
• Communication rate: 31.25 kbit/s H1 fieldbus.
• Hazardous-area output: 18.4 V DC nominal, with specified impedance and current limits.
• Network configuration: Switch-selectable internal termination.
• Electrical isolation: 250 V AC between safe-area circuits, hazardous-area circuits, and the power supply.
• Installation: DIN-rail mounting with specified thermal spacing.

Technical Data at a Glance

Fieldbus Power and Signal Integrity

The MTL5053 provides power through the fieldbus signal conductors. Its specified output characteristics support compatible 31.25 kbit/s H1 networks.

Network design consideration: The allowable cable length depends on intrinsic safety requirements, connected device loads, cable characteristics, and acceptable voltage drop. Calculate the complete segment before commissioning.

Supply Consumption and Thermal Management

Install the module on a horizontal DIN rail mounted to a vertical surface. Maintain 10 mm spacing between adjacent modules with MTL MS010 spacers.

Non-optimum mounting orientation reduces the maximum operating temperature to 45°C. Check cabinet airflow, ambient temperature, and adjacent heat sources before installation.

Terminal Layout and Wiring Reference

Important screening note: Terminals 3, 6, 7, and 10 assist cable-screen termination. They have no internal electrical connection and are not earthed terminals.

Follow the approved grounding and shielding plan for the complete installation. Do not use these terminals as protective earth connections.

Hazardous-Area Compatibility and Standards

The supplied specification identifies the hazardous-area field devices as suitable for Zone 0, IIC, T4–T6, provided they carry the required certification.

The module documentation lists the following applicable standards:

• FF-816
• IEC 61158-2:1993
• ISA-S50.02-1992
• Fieldbus Foundation Type 133 power supply requirements

The stated safety parameters for terminals 1 and 2 are 22 V, 102 Ω, and 216 mA. The maximum external voltage parameter is Um = 250 V RMS or DC.

Confirm the complete intrinsic safety assessment before connecting field devices. Check entity parameters, cable capacitance, cable inductance, device certification, and the applicable control drawing. The listed standards alone do not establish approval for every installation.

Installation and Commissioning Workflow

1. Verify the network: Confirm that the application uses compatible 31.25 kbit/s H1 fieldbus devices.
2. Check intrinsic safety: Review the area classification and approved system documentation.
3. Prepare the cabinet: Provide a horizontal DIN rail on a vertical mounting surface.
4. Provide thermal clearance: Fit MTL MS010 spacers and maintain 10 mm between adjacent modules.
5. Wire the supply: Connect the 20–35 V DC supply to terminals 13 and 14.
6. Wire the hazardous-area segment: Connect the fieldbus conductors to terminals 1 and 2.
7. Wire the safe-area segment: Use terminals 8 and 11 for negative connections and terminals 9 and 12 for positive connections.
8. Set termination: Select the internal terminator only when the network design requires it.
9. Check shielding: Terminate cable screens according to the system grounding plan.
10. Commission the segment: Verify the power LED, bus voltage, device communication, and network diagnostics.

Always isolate the supply before changing wiring. Follow the manufacturer's complete installation instructions and site hazardous-area procedures.

Compatible Equipment and Typical Applications

The MTL5053 is intended for compatible Foundation Fieldbus H1 devices that receive power through their signal conductors. It can support fieldbus segments serving equipment such as:

• Field transmitters: Compatible pressure, temperature, flow, and level transmitters.
• Valve positioners: Suitable fieldbus positioners used for process valve control.
• Process instrumentation: Compatible fieldbus instruments in chemical and petrochemical facilities.
• Oil and gas systems: Hazardous-area instrumentation networks designed for intrinsically safe operation.
• Tank farms: H1 fieldbus segments supporting compatible process monitoring devices.
• Distributed control systems: Fieldbus infrastructure connected to a suitable host interface or control system.

Compatibility depends on the actual H1 interface, device power demand, intrinsic safety assessment, and network topology. The MTL5053 is not a universal Ethernet, PROFIBUS, or RS-485 power supply.

Diagnostic Capabilities and Field Troubleshooting

The module provides a green power LED. It does not provide dedicated per-device communication or fault LEDs in the supplied specification. Diagnose network issues through electrical measurements and host-system diagnostics.

Scenario 1: Field devices fail to power up

Measure the DC supply at terminals 13 and 14. Confirm that the supply remains within 20–35 V DC under load. Then measure the fieldbus segment voltage and compare the total device load with the 80 mA maximum output rating.

Scenario 2: Devices intermittently lose communication

Inspect cable polarity, shielding, cable routing, and network termination. Measure voltage at the most distant device under operating load. Excessive voltage drop or incorrect termination can affect network stability.

Scenario 3: Communication fails after a segment modification

Review the network drawing and verify the terminator setting. Confirm the intended termination points and check for unintended additional terminators. Use the host's fieldbus diagnostic tools to examine communication quality.

Scenario 4: The module runs hot inside the cabinet

Check the mounting orientation and the required 10 mm spacing. Verify the actual load and cabinet ambient temperature. If the orientation is non-optimum, observe the specified 45°C maximum operating-temperature limitation.

These checks provide a practical diagnostic sequence. They do not replace approved test equipment, network design calculations, or manufacturer service procedures.

Global PLC Spare HUB's Insight

For process engineers, the main design task is balancing intrinsic safety, fieldbus voltage drop, device current demand, and communication integrity. The MTL5053 should therefore be selected as part of a complete H1 segment design rather than as an isolated power component.

Field engineering example: A segment may operate correctly during a bench test but lose communication after several field instruments are connected. The engineering team should measure voltage at the furthest device and calculate the segment's total current demand. The team should also verify cable parameters and intrinsic safety limits before extending the cable run.

Another common commissioning error involves enabling termination without reviewing the complete segment topology. Confirm the existing terminators and safe-area bus arrangement before changing the module's termination switch.

These checks can reduce unnecessary module replacement and help identify network-design problems earlier.

Selection Guide: Is the MTL5053 Suitable?

• Choose this model when: You require an intrinsically safe power supply and isolator for a compatible 31.25 kbit/s H1 fieldbus segment.
• Check before ordering: Confirm the device count, maximum current demand, cable length, voltage drop, and intrinsic safety calculations.
• Verify the network: Check termination requirements and the relationship between safe-area and hazardous-area segments.
• Confirm mounting: Allow the required thermal spacing and consider the cabinet's installation orientation.
• Replacement checks: Compare the full model number, terminal functions, output characteristics, safety parameters, and termination arrangement.

Do not substitute another fieldbus isolator based only on its nominal output voltage. Network compatibility, impedance, intrinsic safety parameters, and installation requirements must also match.

Frequently Asked Questions

1. How should engineers estimate the maximum number of field devices?

Add the operating current requirements of all connected devices and compare the total with the 80 mA maximum output rating. Then check the voltage available at each device, cable resistance, and intrinsic safety restrictions. The current rating alone does not determine the permissible device count.

2. When should the internal terminator be enabled?

Use the switch only when the approved network design requires the module's internal termination. Review the complete H1 segment topology and existing termination points first. Incorrect termination can cause communication instability even when the power supply operates normally.

3. Can the MTL5053 extend a fieldbus segment indefinitely?

No. The maximum cable length depends on intrinsic safety limits, connected devices, cable characteristics, and acceptable voltage drop. Calculate the complete segment and verify compliance with the applicable fieldbus design rules before adding cable.

4. What should buyers confirm when replacing an existing fieldbus power supply?

Check the output voltage, impedance, current limit, intrinsic safety parameters, isolation rating, terminal assignments, and termination function. Confirm that the replacement supports the same H1 network architecture and has suitable documentation for the installed hazardous area.

5. What information helps diagnose a fieldbus communication problem?

Record the supply voltage, fieldbus voltage at the nearest and furthest devices, total device current, cable length, termination settings, and host diagnostic messages. This information helps engineers separate power-budget issues from wiring, termination, and communication faults.

Packaging, Shipping, and Warranty

• Product: MTL5053 fieldbus isolator and power supply.
• Package contents: One module, subject to the confirmed order configuration.
• Shipping options: FedEx, UPS, or DHL, subject to destination and service availability.
• Dispatch target: 24–48 hours after order confirmation, subject to stock availability and processing.
• Warranty: 12 months, subject to the seller's written warranty terms and conditions.
• Order verification: Confirm stock status, included accessories, shipping timing, and warranty coverage before purchase.
