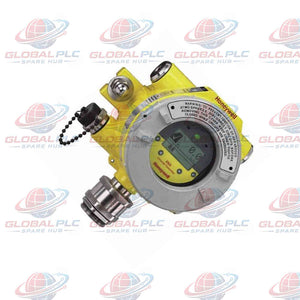

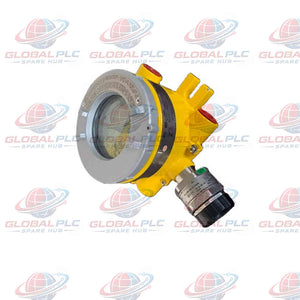

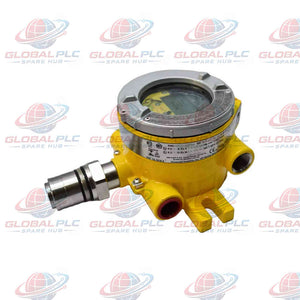

XNX-AMSV-NNNNN Honeywell Universal Transmitter mV Sensor Interface

Overview

The XNX-AMSV-NNNNN Honeywell Universal Transmitter delivers reliable field performance for continuous flammable gas monitoring in hazardous industrial plants. Encased in a painted 316 stainless steel housing, this transmitter serves as a heavy-duty millivolt (mV) sensor interface for Sensepoint HT, Model 705, and MPD catalytic detector assemblies. It provides standard analog 4-20mA current loop output embedded with digital HART protocol to support remote diagnostics and seamless Integration into central safety shutdown systems.

Configuration Architecture Breakdown

• Honeywell XNX Series Platform
  • Approval Rating [A]: ATEX / IECEx Explosion-Proof Hazardous Location Certified
  • Entry Ports [M]: 5 x M25 Threaded Cable Entries
  • Housing Construction [S]: Marine-Grade Painted 316 Stainless Steel (6.8 kg)
  • Sensor Interface [V]: Millivolt (mV) Input (Sensepoint HT, Model 705, MPD)
  • Internal Option [N]: No Relays / No Bus Options Installed (Base Output Architecture)
  • Local Interface [N]: Standard Casing (No External Local HART Port Installed)
  • Sensor Range [NNN]: Base Transmitter Assembly (Sensor Module Sold Separately)

Technical Specifications & Operating Boundaries

Compatible Hardware & Operational Deployments

• Compatible Sensor Hardware:
  • Sensepoint High Temperature (HT) Combustible Gas Sensors.
  • Model 705 & 705HT Catalytic Bead Sensing Elements.
  • MPD Series Cartridges (Combustible Catalytic Bead and Infrared mV Variants).
• Target Industrial Facilities:
  • High-ambient heat zones such as turbine enclosures, exhaust ducts, and furnace rooms (via remote HT sensors).
  • Offshore drilling rigs, FPSO vessels, and marine terminals requiring 316SS corrosion immunity.
  • Petrochemical refineries and hydrocarbon storage skids linked to central Safety Instrumented Systems (SIS).

Diagnostic & Predictive Self-Monitoring Capabilities

The XNX-AMSV-NNNNN Honeywell transmitter features built-in self-testing routines that continuously evaluate microprocessor memory integrity, bridge circuit baseline drift, internal voltage stability, and sensor filament continuity. If a open-circuit sensor coil fault or supply drop occurs, the system immediately shifts its 4-20mA signal to a dedicated fault current (≤2.0mA), broadcasting precise diagnostic codes over the HART link to inform operators before unexpected system trips happen.

Model Selection Comparison & Engineering Recommendation

Matching the correct internal personality interface, casing material, and secondary output hardware is essential for plant safety. Below is a technical comparison between the XNX-AMSV-NNNNN transmitter and the alternative XNX-AMSE-RHNNN configuration:

Engineering Advice: Specify the XNX-AMSV-NNNNN when monitoring flammable hydrocarbon gases in high-temperature environments using millivolt catalytic sensors where all trip logic and relay contacts are handled centrally by an external Safety PLC or DCS. Choose the XNX-AMSE-RHNNN when measuring toxic gases or oxygen levels, when local electromechanical relay interlocks (beacons, alarms) must be switched directly from the field unit, or when external plug-in HART access is necessary.

Global PLC Spare HUB's Insight

On a gas turbine retrofitting project, field engineers encountered high thermal stress that degraded standard integral electronics when mounted directly adjacent to exhaust plenums. Replacing those units with the XNX-AMSV-NNNNN Honeywell transmitter paired with remote-mounted Sensepoint HT sensors completely solved thermal degradation issues. The heavy 316 stainless steel housing provided a sturdy thermal buffer in harsh ambient conditions, while running the 4-20mA HART line back to the main control room ensured continuous real-time diagnostic visibility without requiring extra junction boxes.

Warranty Terms, Logistics & Fast Shipping

• Product Condition: 100% Brand New and Original Equipment Supply
• Warranty Guarantee: Standard 12-Month Quality Warranty from dispatch date
• Order Processing Time: Fast handling, shipping within 24 to 48 hours post-payment
• Express Global Logistics: Express door-to-door delivery via FedEx, UPS, and DHL networks

Engineering Selection & Operational FAQ

What is the benefit of selecting a transmitter configured without internal relay options?

Selecting the 'N' option under hardware reduces internal power consumption, lowers overall module heat generation, and simplifies wiring when all alarm logic, safety interlocks, and voting schemes are executed within a central SIS or Safety PLC.

Can I connect this 'V' personality unit to an electrochemical toxic sensor cartridge?

No. The 'V' personality board provides a millivolt bridge circuit specifically designed for catalytic bead and MPD sensors. Toxic and oxygen electrochemical cells require an 'E' personality board with built-in intrinsically safe galvanic isolation.

How do technicians perform zero and span calibrations without opening the flameproof enclosure?

Using a magnetic wand tool against the front glass display window allows operators to navigate calibration menus, perform zero adjustments, and apply span gas non-intrusively in hazardous locations without issuing a hot-work permit.

Why are 5 x M25 entry ports provided on this base model configuration?

Five cable ports allow flexible field wiring strategies, such as separate gland entries for main power, 4-20mA loop signaling, remote sensor cabling, and daisy-chained HART loop connections without using external junction boxes.

How does HART protocol access work on this model since it lacks an external local HART port?

Technicians access HART digital communications by clipping an intrinsically safe handheld communicator directly onto the loop signal wires inside the control room junction panel or across field termination blocks.
