TWDLMDA20DTK Schneider Electric Modular PWM/PLS Control

Engineering Excellence: The TWDLMDA20DTK Core

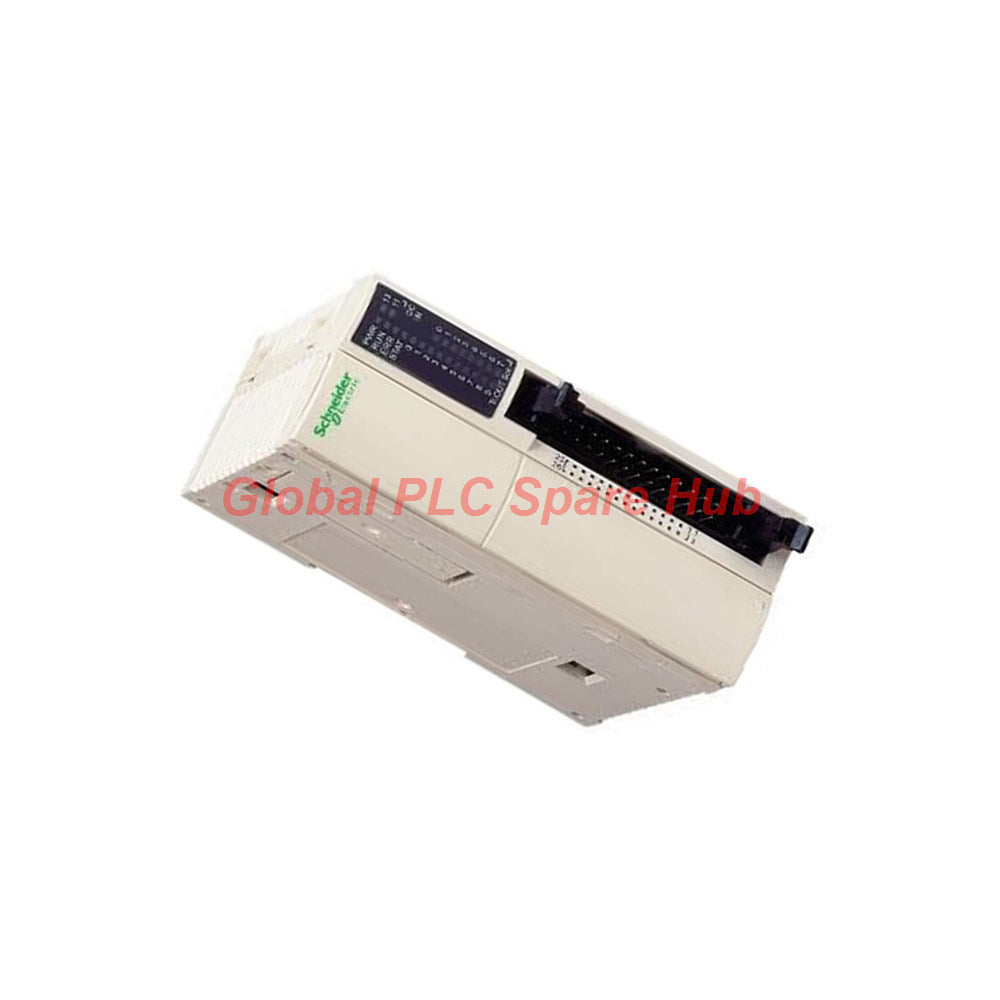

The Schneider Electric TWDLMDA20DTK represents a high-density, modular solution within the Twido ecosystem. Built for demanding real-time control, this unit integrates 12 sink/source DC inputs and 8 fast-switching transistor (source) outputs. Designed for precision motion and high-speed logic, the TWDLMDA20DTK supports complex PWM/PLS functions, making it a professional-grade choice for compact machine automation.

Technical Specifications

• Brand: Schneider Electric
• Model: TWDLMDA20DTK
• Series: Twido Modular Base Controller
• Supply Input: 24V DC
• I/O Configuration: 12 Inputs (DC), 8 Transistor Outputs (Source)
• High-Speed Processing: 2 channels @ 20kHz (32-bit), 2 channels @ 5kHz (16-bit)
• Analog Capability: 1 Integrated 0-10V input (9-bit resolution)
• Positioning: Dual 7kHz PWM/PLS channels
• Expansion: Expandable via 4 additional modules (up to 148 I/O via HE-10)
• Connectivity: Modbus RTU/ASCII (RS485)
• Power Profile: ≤15W (Total system consumption)

Global PLC Spare HUB's Insight

Our engineering team identifies the TWDLMDA20DTK as the "swiss army knife" for small-scale motion control. Unlike relay-based bases, the transistor output architecture allows for high-frequency switching, critical for step-motor drive control and rapid-cycle solenoid actuation.

Diagnostics and Operational Reliability

• Fault Isolation: The dedicated "ERR" status LED provides immediate visual indication of system-level failures.
• Channel Monitoring: Individual LED indicators per I/O point allow for rapid physical layer troubleshooting without a programming console.
• Immunity: Built-in 10ms micro-break immunity ensures process stability during power fluctuations.
• Maintenance: Features a lithium RAM-backup battery with a 10-year life-cycle and 30-day memory retention without power.

Deployment Applications

• Multi-axis stepper motor positioning using integrated PWM outputs.
• Precise analog process control (temperature or pressure loops) using the internal 9-bit ADC.
• High-speed pulse acquisition for flow metering or rotary encoding.
• Compact packaging machines requiring rapid logic updates (1ms/1k instructions).

Purchasing and Logistics

• Warranty: Full 12-month professional warranty.
• Shipping: Global express delivery via FedEx, UPS, or DHL.
• Lead Time: Rapid fulfillment; dispatch within 24-48 hours.

Professional FAQ

How do I integrate the analog input into my existing logic?
The analog input maps to a specific internal register accessible in the TwidoSuite/TwidoSoft environment. Ensure your sensor voltage does not exceed 10V to prevent impedance mismatching.

What is the benefit of the HE-10 connector over standard screw terminals?
HE-10 connectors significantly reduce wiring time and footprint in high-density installations. They are preferred for pre-wired loom assemblies in serialized machine production.

Can I run PWM and high-speed counting simultaneously?
Yes, the hardware architecture is designed for concurrent execution, provided that your scan time cycle is optimized to account for the additional system overhead.

What is a common pitfall during the installation of this specific transistor-output model?
Engineers often overlook the residual voltage and leakage current characteristics of transistor outputs. Always ensure your load current stays within the 0.36A limit per channel to prevent transistor thermal degradation.

Selection Guide: When should I choose the TWDLMDA20DTK over the relay-output versions?
Select the TWDLMDA20DTK if your application requires switching frequencies above 1Hz or if you intend to implement PWM/PLS motion control. If you are only doing low-speed contactor switching, a relay-output base may be more cost-effective.
