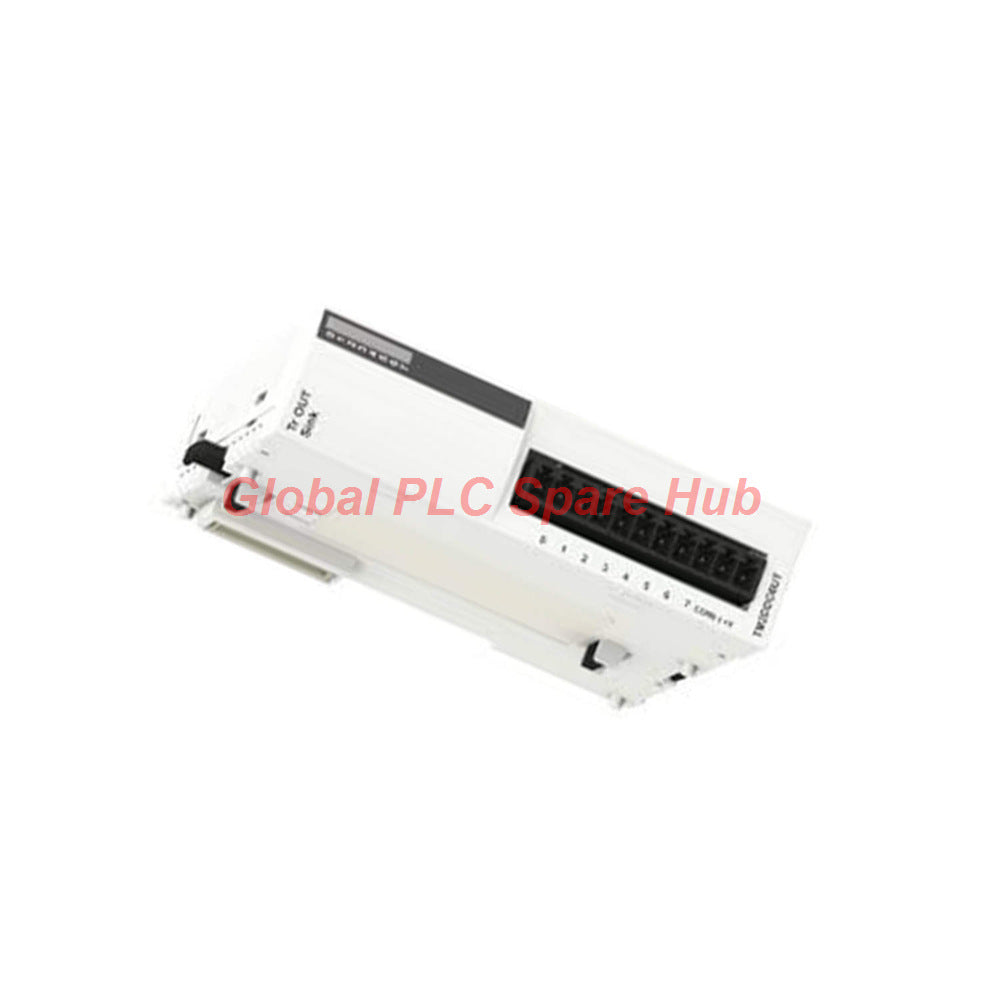

TWDDRA8RT Schneider Twido 8-Point Relay Output Module

Product Overview

The TWDDRA8RT functions as a high-reliability electromechanical relay interface within the Schneider Electric automation ecosystem. This robust Twido expansion module adds eight independent switching channels to control circuits. It bridges low-power PLC logic with higher-voltage field actuators safely. The module handles both Alternating Current and Direct Current loads across standard plant layouts. A removable screw terminal block simplifies mounting and replacement tasks during setup. Control engineers specify this module for versatile power switching without requiring auxiliary interposing relays.

Global PLC Spare HUB's Insight

Our engineering review confirms that the TWDDRA8RT offers excellent circuit isolation for older automation setups. The eight Normally Open contacts feature a low contact resistance of 40 milliohms. This ensures minimal voltage drops across the terminals during high-load switching. A fast response time under 7 milliseconds ensures highly predictable machine sequencing. The 1500 Vrms isolation completely guards the core Twido backplane against high-voltage inductive surges. This module provides a flexible solution for switching diverse voltage levels simultaneously.

Technical Specifications

• Brand: Schneider Electric
• Model: TWDDRA8RT
• Product Series: Twido
• Module Type: Discrete Relay Output Module
• Discrete Output Number: 8 channels
• Discrete Output Type: Electromechanical Relay
• Discrete Output Function: 8 Normally Open (NO) contacts
• Current per Channel: 2 A maximum
• Maximum Current per Output Common: 7 A maximum shared across 1 common point
• Initial Contact Resistance: Less than or equal to 40000 µOhm (40 mOhm)
• Response Time: Less than or equal to 7 ms for state transitions
• Electrical Insulation: 1500 Vrms for 1 minute between channel and internal logic
• Internal Backplane Current Consumption: 30 mA at 5 V DC and 40 mA at 24 V DC (all paths active)
• Wiring Interface Connection: Removable screw terminal block
• Terminal Mapping Layout: OUT_DIS#0 to OUT_DIS#7 with integrated COM0 and COM1 configurations
• IP Protection Class: IP20
• Operating Ambient Temperature: 0 to 55 degrees Celsius
• Storage Ambient Temperature: -25 to 70 degrees Celsius
• Physical Module Weight: 0.11 kg

Compatible Equipment

• Twido Compact Logic Controllers
• Twido Modular Control Bases
• Industrial Solenoid Valves and Small AC Motor Starters
• Remote Alarms, Annunciator Panels, and Visual Indicator Stacks

Diagnostic Capabilities

• Physical LED indicators display the real-time mechanical state of each individual relay coil.
• The central processor monitors the expansion bus connection to detect module configuration faults.
• The controller application logs unexpected dropouts or hardware initialization failures automatically.

Typical Application Scenarios

• Interfacing PLC outputs with 120V AC or 230V AC pilot lights and sirens.
• Controlling small unidirectional hydraulic or pneumatic power packs.
• Managing auxiliary contact signals for motor control center starter circuits.
• Isolating critical process loops from high-voltage field instrumentation systems.

Certification and Standards

• UL Listed
• CSA Certified
• CE Marking compliant

Shipping, Packaging, and Warranty

• Packaging List: One original Schneider Electric TWDDRA8RT relay module, physical installation pamphlet.
• Shipping Window: Orders ship promptly within 24 to 48 hours of verification.
• Express Logistics Carriers: Global express delivery managed by FedEx, UPS, and DHL network services.
• Warranty Policy: Protected fully by a comprehensive 12-month standard replacement warranty.

Procurement Guide

• Review total simultaneous load currents to ensure aggregate paths stay below the 7 Amp common maximum.
• Evaluate contact life cycles if your system designs require extremely high-frequency switching operations.
• Confirm your cabinet layout permits vertical or horizontal clip mounting onto standard 35mm DIN rail.

Frequently Asked Questions

Can I mix AC and DC voltages across different channels on this module?

Yes, the dry relay contacts allow you to switch different voltages on separate output runs safely.

What happens if a single contact welds due to an overcurrent spike?

The individual contact remains closed, and you must replace the module to restore normal channel operations.

Does the module require external 24V DC to power the internal relay coils?

Yes, the unit draws 40 mA from the 24V DC bus to energize active relay paths.

Is an RC snubber circuit necessary when driving inductive solenoid loads?

We recommend installing external surge suppressors to extend contact life when switching highly inductive devices.

What is the maximum wire gauge supported by the screw terminal block?

The removable terminal block accepts standard control wires up to 1.5 square millimeters securely.
