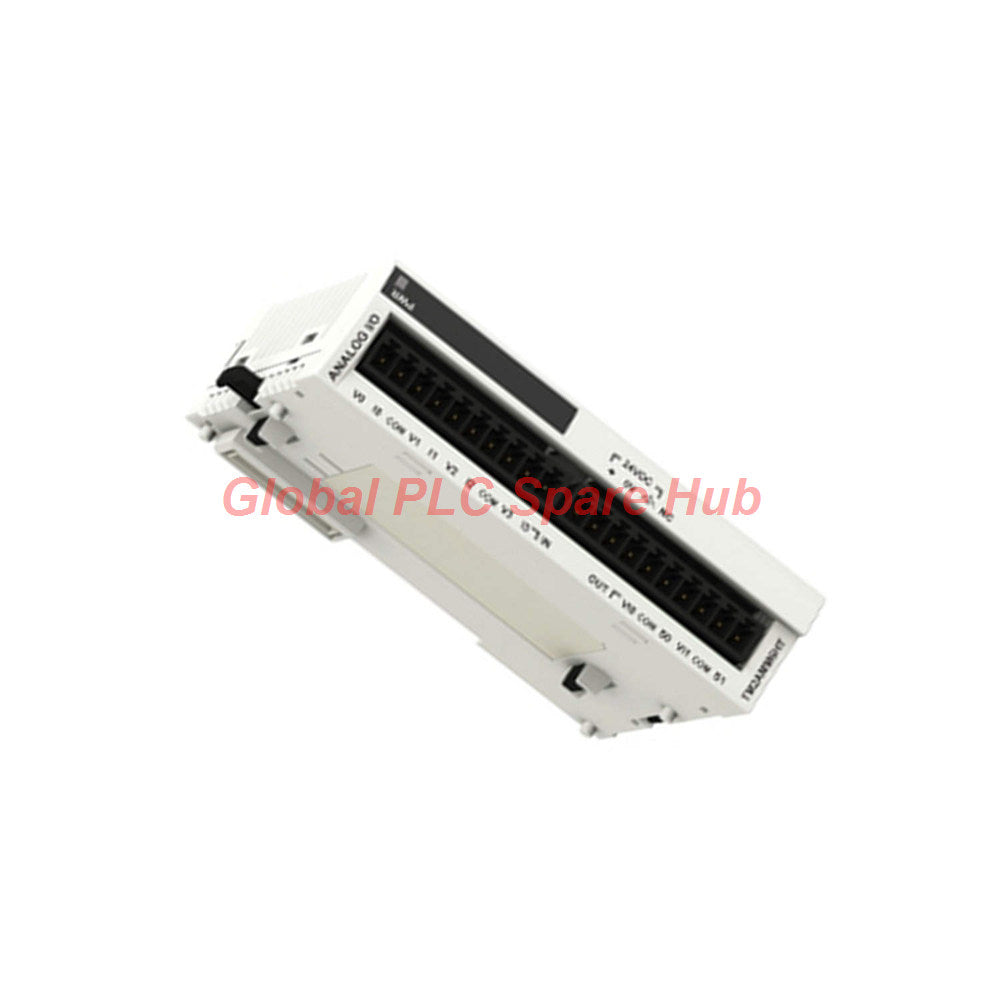

TM2AMM6HT Schneider Electric Modicon M238 Analog I/O Module

Engineering Overview & Connectivity

The TM2AMM6HT is a high-precision analog I/O expansion module specifically engineered for the Modicon M238 logic controller series. This compact unit bridges the gap between digital processing and real-world analog signals, offering 4 configurable analog inputs and 2 analog outputs. It supports both voltage (0-10V) and current (4-20mA) loops, making it an essential tool for complex process control applications. With 12-bit resolution across all channels, it ensures granular data acquisition and smooth actuator response in industrial environments.

Precision Technical Specifications

• Brand: Schneider Electric
• Model: TM2AMM6HT
• Series: Modicon M238
• I/O Configuration: 4 Analog Inputs / 2 Analog Outputs
• Resolution: 12 bits (Voltage & Current)
• Sampling/Acquisition: 16ms per channel plus controller cycle time
• Supply Voltage: 24V DC (19.2-30V range)
• Isolation: Photocoupler insulation (1500V to supply circuit)
• Dimensions: 23.5mm x 90mm x 70mm
• Environment: Industrial-grade temperature tolerance with shielded cable requirements

Global PLC Spare HUB Insight

Field automation experts identify the TM2AMM6HT as a high-reliability component for tight-tolerance loop control. Its ability to handle resistive loads with high accuracy—combined with an external supply configuration—makes it highly resilient to power fluctuations common in factory floors. We recommend this module specifically for temperature monitoring and variable frequency drive (VFD) speed referencing where signal stability is non-negotiable. The module's diagnostic capabilities allow system controllers to detect faults rapidly, significantly reducing downtime during process errors.

Operational Advantages & Diagnostics

• Fault Isolation: Galvanic isolation between channels and internal logic prevents electrical noise cross-talk.
• Diagnostic Monitoring: 12-bit resolution allows for early detection of signal drift in sensor feedback.
• Ease of Installation: Utilizes a removable screw terminal block for rapid field maintenance.
• Application Versatility: Perfectly suited for Advantys OTB and Twido ecosystems.

Logistics, Warranty, and Expert Support

• Rapid Fulfillment: Dispatched via FedEx, UPS, or DHL within 24-48 hours.
• Warranty Assurance: Includes a comprehensive 12-month quality guarantee.
• Package Security: Individually protected in static-shielding material.
• Installation Tip: Always use shielded, twisted-pair cabling for input/output runs to maximize signal integrity against electromagnetic interference (EMI).

Professional Frequently Asked Questions

Question: How do I handle signal drift within the TM2AMM6HT module?

Answer: Ensure all wiring shields are correctly tied to the system ground. If drift persists, verify that the external 24V DC supply is within the 19.2-30V range to prevent voltage-induced fluctuations.

Question: Can I mix voltage and current signals on the inputs?

Answer: Yes, the module supports heterogeneous signal types across its 4 input channels, provided they are configured correctly within the M238 control software.

Question: Why is the stabilization time defined as 20ms?

Answer: This is the time required for the internal circuitry to filter the analog signal and reach steady-state accuracy, ensuring stable input data for the controller logic.

Question: Is the external supply necessary for operation?

Answer: Yes, the 24V DC external supply is mandatory to power the analog output circuitry and provide the necessary loop power for connected sensors.

Question: How do I determine if a channel failure has occurred?

Answer: Use the M238 controller diagnostics to read the status registers of the module; any channel reading outside the expected 4-20mA or 0-10V scaling usually indicates a broken wire or sensor failure.
