IS415UCVHH1A GE Mark VIe VME Controller Board

IS415UCVHH1A | GE Mark VIe VME Turbine Controller

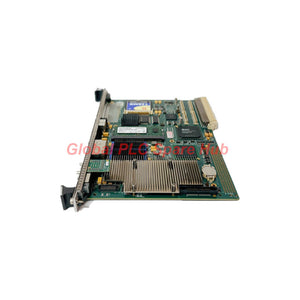

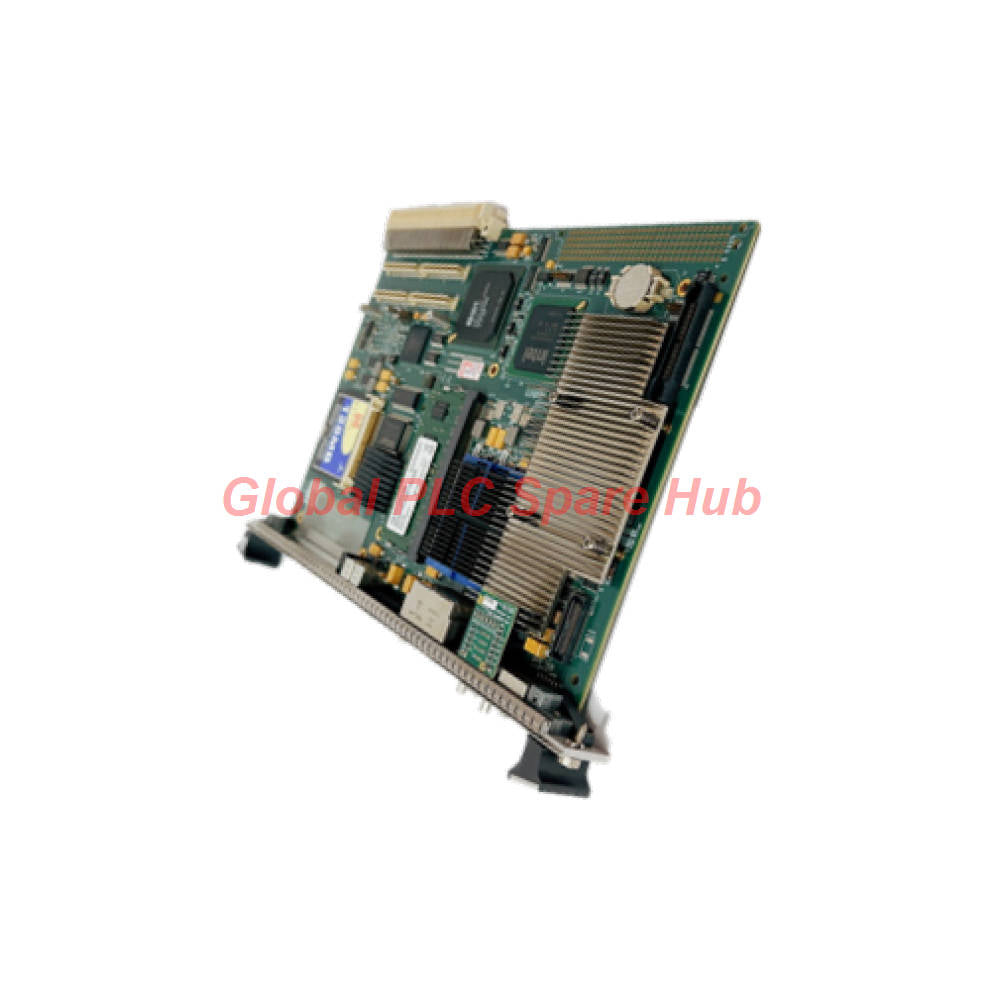

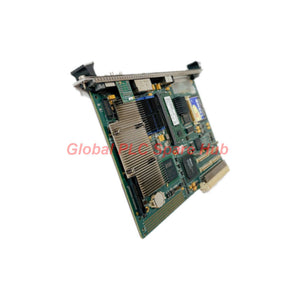

IS415UCVHH1A is a General Electric VME Controller Board designed for the Mark VIe Turbine Control System. It functions as a single-board computer within GE's distributed turbine control architecture.

The controller executes turbine application code and coordinates data exchange with connected I/O modules. It uses an Intel Celeron processor, SDRAM memory, and the QNX real-time operating system.

Its VME bus interface connects the processor with compatible control and communication boards. The controller also provides Ethernet, serial, USB, and VGA interfaces for system integration and maintenance.

Key Engineering Value: The UCVH controller supports simplex, dual, and Triple Modular Redundant (TMR) architectures. This flexibility allows engineers to configure processing and I/O redundancy according to plant requirements.

01. Product Identity and Technical Specifications

Specification	Technical Details
Brand	General Electric (GE)
Part Number	IS415UCVHH1A
Functional Abbreviation	UCVH
Product Type	VME Controller Board / Single-Board Computer
Product Series	Mark VIe
Manufacturer	GE Industrial Systems
Controller Architecture	VME-based processor platform
Processor	Intel Ultra Low Voltage Celeron
Processor Frequency	650 MHz
Memory	128 MB SDRAM
Additional Storage	128 MB CompactFlash, as described in the hardware reference
Operating System	QNX Real-Time Operating System
Engineering Software	GE ControlST
Faceplate Alarm LEDs	5
Ethernet Interfaces	2
USB Interfaces	2
Serial Interfaces	2 × COM ports
Display Interface	VGA
Additional Interface	Keyboard / Mouse Connector
Operating Temperature	0°C to +70°C
Power Reference	200–250 VAC, listed in supplied specifications; verify system-level power requirements
PCB Protection	Conformal Coating
Functional Revision	Revision 1A
Revision Quantity	1
Approximate Weight	2–3 lb, depending on the supplied configuration
Board Dimensions	3.4 × 6.37 inches, as listed in the supplied reference
Hardware Manual Reference	GEH-6421 M

Technical Verification: Some reference specifications require confirmation against the actual board revision. The processor, memory, dimensions, and power details should match the hardware label and GE documentation.

02. Controller Architecture – From Processor to VME Bus

The IS415UCVHH1A operates as the processing core of a compatible Mark VIe control module.

Its architecture combines computing resources, communication interfaces, and VME bus connectivity. Each element supports a specific part of the turbine control process.

Processor and Memory Subsystem

• Intel Celeron CPU: Executes turbine application software and control logic.
• 128 MB SDRAM: Provides working memory for controller operations.
• CompactFlash Storage: Provides local storage according to the supplied hardware description.
• QNX Operating System: Supports real-time multitasking and industrial control execution.
• CMOS Battery: Supports the associated board-level configuration and clock-retention functions.
• Heatsinks: Help dissipate heat from selected electronic components.

VME Bus Communication

The controller mounts in a compatible VME rack inside the control module. The VME bus provides communication between the processor and connected control boards.

The VCMI communication board exchanges external data with the controller's Control System Database (CSDB). This arrangement supports coordinated information exchange between processing and I/O hardware.

ControlST Software Environment

GE ControlST provides engineering tools for programming, configuration, system analysis, and diagnostics. Engineers can use the software environment to examine controller operation and plant process information.

03. Communication Interfaces and Operator Connectivity

The front panel provides several interfaces for engineering access and control system communication.

Interface	Primary Application
Ethernet Port 1	Communication with the Unit Data Highway (UDH), subject to network configuration.
Ethernet Port 2	Additional compatible control network connectivity.
COM1	RS-232C setup and maintenance connection.
COM2	RS-232C communication with compatible DCS equipment.
USB Ports	Supported peripheral and maintenance connections.
VGA Port	Connection to a compatible display.
Keyboard / Mouse	Local operator and engineering interface connections.

These interfaces support engineering access without replacing the controller's primary VME communication path.

04. Real-Time Processing and Redundant Control

The UCVH controller supports different redundancy arrangements. Engineers can select an architecture based on availability requirements and plant control objectives.

Simplex Configuration

• Uses a single active controller processing path.
• Receives process information from the configured I/O system.
• Provides a straightforward architecture for suitable applications.

Dual Controller Configuration

• Uses two controllers within an approved redundant arrangement.
• Supports increased control system availability.
• Requires compatible hardware and configuration settings.

Triple Modular Redundant Configuration

• Uses three processor channels in a TMR architecture.
• Processes corresponding application data across redundant channels.
• Supports coordinated control and output voting arrangements.
• Requires compatible communication, synchronization, and I/O hardware.

Processing Performance Reference

The supplied technical description lists execution performance of up to 100,000 average-sized logic rungs or blocks per second. Actual performance depends on application complexity and configuration.

The reference also describes synchronization with the VCMI communication board within 100 microseconds. This timing depends on the configured hardware and synchronization mechanism.

Engineers should validate these performance figures against the applicable controller manual and application requirements.

05. Installation Engineering and Rack Configuration

Installation requires coordination between the controller, VCMI communication board, VME rack, and cooling arrangement.

Control Module Composition

• UCVH Controller: Executes turbine application code.
• VCMI Board: Provides VME bus communication and data exchange.
• VME Rack: Houses the controller and associated control hardware.
• Cooling Fan: Provides forced airflow where the rack configuration requires it.
• VDSK Board: Supports fan power and rack identification in the specified standalone GE Fanuc rack arrangement.

Rack Selection Considerations

The Mark VIe platform supports different rack arrangements for local and remote I/O applications.

• Standalone Rack: Suitable for specified configurations using remote I/O.
• Long Mark VIe Rack: Supports configurations with local and remote I/O.
• GE Fanuc Integrator Rack: Requires the appropriate associated hardware and identification arrangement.

Recommended Installation Sequence

1. Confirm the complete controller part number and hardware revision.
2. Check the VME rack type and controller slot assignment.
3. Verify VCMI compatibility and the required communication arrangement.
4. Inspect the board, connectors, and conformal coating condition.
5. Check the cooling fan location and airflow direction.
6. Verify the applicable power and grounding requirements.
7. Install the controller using approved ESD precautions.
8. Reconnect Ethernet, serial, and other required interfaces.
9. Restore power and inspect the controller's faceplate indicators.
10. Use ControlST to verify configuration and communication status.

Important: Never remove or install the controller under energized conditions unless the approved GE procedure explicitly permits it.

06. Diagnostic Strategy and Maintenance Experience

The five faceplate alarm LEDs provide local status indications. Engineers should combine these indications with ControlST diagnostics and system event records.

Diagnostic Area	Inspection Method	Engineering Objective
Faceplate Alarm LEDs	Observe all five indicators and record their states.	Identify abnormal controller status.
Processor Operation	Review startup behavior and controller diagnostics.	Identify processing or initialization problems.
VME Communication	Check VCMI communication and associated event records.	Identify bus communication interruptions.
Ethernet Network	Inspect physical links and network communication records.	Separate network faults from controller faults.
Serial Communication	Check COM1 and COM2 connections and settings.	Identify configuration or interface problems.
Thermal Conditions	Inspect heatsinks, fan operation, and cabinet airflow.	Reduce temperature-related instability.
Memory and Storage	Review available system diagnostics and storage status.	Identify memory or storage-related abnormalities.
Redundancy Status	Compare available controller channel diagnostics.	Identify channel-specific problems.

Field Case 1 – Controller Fails to Complete Startup

A controller may stop during initialization after maintenance. First, record the faceplate alarm LED states. Then check the power supply, board seating, and VME connections. Review available startup diagnostics before changing the controller configuration.

Field Case 2 – Communication Loss Between Controller and I/O

A turbine control system may report missing I/O data. Check the VCMI communication path and VME connections first. Then inspect the affected I/O modules and communication records. This method helps isolate the failing section.

Field Case 3 – Abnormal Controller Temperature

A control cabinet may develop temperature alarms during prolonged operation. Inspect the cooling fan and airflow path. Check heatsink cleanliness and cabinet ventilation. Compare the measured conditions with the specified operating limits.

Field Case 4 – One Channel Reports an Abnormal Condition

In a TMR installation, one processor channel may show different diagnostic information. Compare all three channel records and identify the first abnormal event. Inspect the affected channel's hardware and communication path before changing system redundancy.

07. Suitable Equipment and Industrial Applications

The GE IS415UCVHH1A is designed for compatible Mark VIe VME control configurations. Its applications extend across several turbine and power generation environments.

• Gas Turbine Generators: Executes turbine control application logic and coordinates associated I/O communication.
• Steam Turbine Systems: Supports control processing for steam turbine operating sequences.
• Land-Based Industrial Turbines: Supports compatible turbine control and monitoring installations.
• Marine Gas Turbine Applications: Supports suitable turbine control configurations for marine installations.
• Wind Turbine Assemblies: Applies to compatible control architectures using the specified GE platform.
• Balance of Plant Systems: Supports associated plant control applications where the system architecture permits.
• Combined-Cycle Power Plants: Supports turbine control infrastructure in integrated power generation facilities.

08. Global PLC Spare HUB's Insight

When evaluating a turbine controller, engineers should examine the complete control module rather than the processor board alone.

The IS415UCVHH1A depends on several associated components. These include the VCMI communication board, VME rack, cooling arrangement, and configured I/O architecture.

One common maintenance mistake involves replacing a controller before checking its communication path. A VME bus fault or VCMI issue can produce symptoms similar to processor failure.

Our recommended troubleshooting sequence is straightforward:

• Record controller alarms and the sequence of events.
• Check power and physical board connections.
• Inspect the VME communication path and VCMI status.
• Compare network and serial communication records.
• Review controller configuration through ControlST.
• Compare redundant channel diagnostics where applicable.

For replacement projects, always record the complete part number, functional revision, rack position, and existing configuration. These details reduce compatibility risks and simplify commissioning.

Engineering Recommendation: Confirm the controller's hardware revision and associated VCMI configuration before procurement. A visually similar VME board may have different firmware, interface, or application requirements.

09. Compatibility and Selection Considerations

Before purchasing this controller, verify the following engineering requirements.

• System Generation: Confirm the installation uses a compatible Mark VIe platform.
• Controller Revision: Match the functional revision and hardware identification.
• Rack Compatibility: Verify the VME rack and slot arrangement.
• VCMI Interface: Confirm the associated communication board and synchronization requirements.
• Software Environment: Check ControlST project compatibility and QNX software requirements.
• Redundancy Design: Confirm simplex, dual, or TMR architecture requirements.
• Peripheral Connections: Verify Ethernet, serial, display, and USB interface requirements.

Do not assume compatibility with Mark V or other GE controller generations. Similar turbine applications do not guarantee hardware interchangeability.

10. Environmental Protection and Compliance

• Operating Temperature: 0°C to +70°C, according to the supplied specification.
• PCB Protection: Conformal coating helps protect electronic circuitry against environmental contaminants.
• Thermal Management: Follow the specified rack cooling and ventilation requirements.
• Handling: Use ESD protection during inspection, installation, and maintenance.

Specific CE, UL, ATEX, or other certification details were not included in the supplied documentation. Confirm applicable approvals through the manufacturer documentation before project acceptance.

11. Packaging, Warranty and Shipping

Item	Supply Information
Product	GE IS415UCVHH1A VME Controller Board
Manufacturer	General Electric
Packaging	Protective electronic-component packaging
Accessories	Included only when confirmed in the order
Warranty Period	12 Months
Shipping Methods	FedEx / UPS / DHL

12-Month Warranty: Global PLC Spare HUB provides a 12-month warranty for this product. Contact our sales team for coverage details and claim procedures.

International Shipping: We support worldwide shipping through FedEx, UPS, and DHL. Shipping arrangements depend on destination and order confirmation.

12. Frequently Asked Questions

Q1. What information should engineers record before removing an existing UCVH controller?

Record the controller identification, functional revision, rack position, VCMI arrangement, and software configuration. Photograph the existing connections and document active alarms. This information helps preserve the original installation arrangement during replacement.

Q2. Can a controller replacement affect turbine application logic?

Yes. Hardware replacement may require configuration verification and application compatibility checks. Confirm the approved project configuration and backup files before commissioning. Never assume the replacement automatically retains the original application settings.

Q3. Why should the VCMI board be inspected when troubleshooting controller-related faults?

The VCMI board provides communication through the VME bus. A communication interruption can affect data exchange between the controller and connected I/O hardware. Inspecting both boards helps prevent incorrect fault attribution.

Q4. What should procurement teams consider when sourcing a controller for a TMR installation?

Confirm the exact controller revision and its role within the redundant architecture. Check compatibility with the other processor channels, communication hardware, and application software. Procurement teams should also confirm the required quantity and replacement scope.

Q5. How can maintenance teams reduce repeat controller failures?

Establish a maintenance baseline for temperature, power, communication status, and alarm history. Inspect cooling fans and cabinet ventilation regularly. Keep configuration backups and compare diagnostic trends after maintenance interventions.
