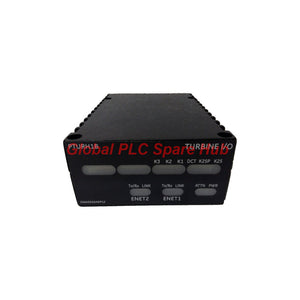

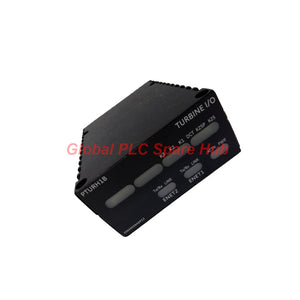

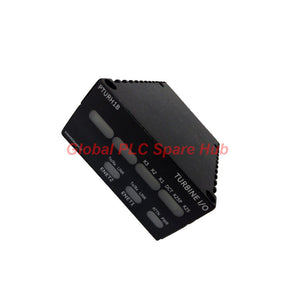

IS220PTURH1B GE Mark VIe Primary Turbine Protection I/O Pack

IS220PTURH1B | Product Identity & Engineering Overview

The GE IS220PTURH1B is a Turbine-Specific Primary Trip I/O Pack for the GE Mark VIe Speedtronic control platform. It handles dedicated turbine protection signals through the associated TRPA terminal board. The module interfaces with emergency stop circuits, voltage detection inputs, speed signals and external trip devices. Unlike general-purpose process I/O modules, this unit serves a dedicated turbine protection function. It supports the protection architecture used in gas turbine and combined-cycle power generation plants. The module also supports plant-level control applications involving HRSG equipment and balance-of-plant systems. Its electrical interfaces help connect turbine protection logic with field devices and external trip circuits.

01 | Product Identification

Attribute	Specification
Manufacturer	General Electric (GE)
Model Number	IS220PTURH1B
Ordering Number	IS220PTURH1B
Product Category	Turbine Protection I/O Pack
Product Function	Primary Turbine Trip Module
Control Platform	Mark VIe Speedtronic
System Application	Gas Turbine and Steam Turbine Control
Associated Terminal Board	IS200TRPAH1A
Country of Origin	United States
Approximate Weight	0.8 kg
Ambient Temperature	-30°C to +65°C (-22°F to +149°F)

02 | Electrical Performance Matrix

The following values define the module's specified electrical operating characteristics.

Electrical Parameter	Minimum	Nominal	Maximum
Power Supply Voltage	27.4 VDC	28.0 VDC	28.6 VDC
Power Supply Current	—	—	0.41 A
Voltage Detection Inputs (TRPA)	16 VDC	—	140 VDC
E-stop Input (TRPA)	18 VDC	—	140 VDC
Speed Inputs (TRPA)	-15 VDC	—	+15 VDC
E-stop Power Output (Open Circuit)	—	28 VDC	—
E-stop Power Output (Short Circuit)	—	17 mA	—
Contact Output Voltage	—	24 VDC	28 VDC
Contact Output Current	—	—	7 A

Electrical Engineering Notes - The nominal power supply voltage is 28 VDC. - The supply voltage must remain within 27.4–28.6 VDC. - Voltage detection inputs accept 16–140 VDC. - E-stop inputs accept 18–140 VDC. - Speed input circuits support signals from -15 to +15 VDC. - The contact output supports up to 7 A. - The E-stop power output provides 28 VDC under open-circuit conditions. These values describe electrical interface limits. They do not represent analog measurement accuracy or sensor resolution.

03 | Protection Signal Architecture

The IS220PTURH1B connects dedicated turbine protection circuits with the Mark VIe control architecture. Its primary signal groups include: A. Emergency Stop Interface - Receives external emergency stop signals. - Supports E-stop input voltage from 18 to 140 VDC. - Provides a nominal 28 VDC E-stop power output under open-circuit conditions. - Supports associated external trip circuit connections. B. Voltage Detection Interface - Receives DC voltage detection signals through the TRPA terminal board. - Supports an input range of 16–140 VDC. - Provides an interface for monitoring external protection circuit conditions. - Helps identify abnormal voltage states during commissioning and operation. C. Turbine Speed Signal Interface - Accepts bipolar speed input signals. - Supports an electrical input range of -15 to +15 VDC. - Interfaces with the turbine speed protection architecture. - Supports speed-related protection signal processing. D. Contact Output Interface - Provides external contact control capability. - Supports a nominal output voltage of 24 VDC. - Allows a maximum specified voltage of 28 VDC. - Supports contact current up to 7 A.

04 | Compatible Hardware and System Configuration

The correct terminal board is essential for reliable installation.

Hardware	Part Number	System Role
Primary Trip I/O Pack	IS220PTURH1B	Mark VIe turbine protection interface
Primary Trip Terminal Board	IS200TRPAH1A	Field signal termination and electrical interface
Alternative PTUR Version	IS220PTURH1A	Related Mark VIe primary trip I/O Pack
Mark VIeS Primary Trip Pack	IS220YTURS1A / IS220YTURS1B	Separate Mark VIeS protection architecture
Mark VIeS Terminal Board	IS200TRPAS1A	Associated Mark VIeS terminal board

Hazardous Area Hardware Combination GE identifies the following combination for approved hazardous-location applications: - I/O Pack: IS220PTURH1A or IS220PTURH1B. - Terminal Board: IS200TRPAH1A. The IS220YTURS family uses a different terminal board. Do not interchange the two architectures without manufacturer approval. Always verify the applicable hazardous-area certification and installation requirements for the complete assembly.

05 | Installation and Commissioning Procedure

A controlled installation process helps prevent wiring errors and unexpected protection alarms. Installation Sequence 1. Confirm the complete I/O Pack model and hardware revision. 2. Verify the Mark VIe controller configuration. 3. Check the associated IS200TRPAH1A terminal board. 4. Isolate the relevant power sources before installation. 5. Inspect connectors and mounting interfaces. 6. Verify field wiring against the approved schematic. 7. Check the 28 VDC nominal power supply. 8. Verify E-stop and voltage detection wiring. 9. Inspect speed input polarity and signal references. 10. Confirm contact output wiring and load ratings. Commissioning Checks - Measure the supply voltage at the specified connection points. - Confirm stable voltage within the permitted range. - Test E-stop input response using an approved procedure. - Verify voltage detection input states. - Check speed signal presence and polarity. - Test external contact output operation. - Review Mark VIe controller diagnostic messages. - Record the final wiring and commissioning results. Protection circuit testing must follow the plant's approved safety procedures. Never bypass an active turbine trip circuit during normal operation.

06 | Field Diagnostics and Maintenance

The module provides electrical interfaces for several important protection functions. Engineers can use these signal groups to narrow down field faults.

Field Symptom	Possible Cause	Inspection Method
Module power alarm	Incorrect DC supply or loose power connection	Measure supply voltage and inspect connectors.
E-stop input remains active	External trip contact or wiring fault	Check the field contact and input circuit state.
Voltage detection fault	Missing DC signal or incorrect polarity	Measure the input voltage at the terminal board.
Speed signal unavailable	Sensor fault, cable damage or incorrect wiring	Inspect the pickup circuit and verify signal polarity.
Contact output failure	Incorrect load, damaged wiring or external circuit fault	Check load current and external contact wiring.
Repeated protection alarms	Intermittent connections or unstable field signals	Review event records and inspect terminal connections.

Recommended Maintenance Strategy - Inspect terminal connections during planned shutdowns. - Check the module supply voltage periodically. - Examine connectors for oxidation and mechanical damage. - Verify field cable insulation and shielding. - Review controller event logs after protection alarms. - Record abnormal input states and trip events. - Replace damaged external wiring before replacing the I/O Pack. Engineering Diagnostic Example A turbine may report an E-stop input alarm after maintenance. First, inspect the external emergency stop circuit. Then measure the input voltage at the TRPA terminal board. Compare the measured value with the specified 18–140 VDC range. Next, check the external contact state and field wiring. If the field signal remains correct, review the I/O Pack status and controller diagnostics. This sequence helps separate field wiring problems from module-related faults.

07 | Equipment Applications and Industrial Use

The IS220PTURH1B is suitable for dedicated turbine protection applications in power generation facilities. Gas Turbine Protection - Emergency shutdown signal interfaces. - Turbine speed protection circuits. - External trip device connections. - Protection system signal acquisition. Steam Turbine and Combined-Cycle Plants - Steam turbine protection interfaces. - Gas turbine and steam turbine coordination. - HRSG-related plant control integration. - Auxiliary plant protection interfaces. Balance-of-Plant Applications - Motor-operated valve control interfaces. - Boiler auxiliary equipment. - Boiler drum level control system integration. - Plant-level equipment protection. - Auxiliary electrical control circuits. Typical Equipment Groups - Gas turbine generator sets. - Steam turbine generator sets. - Heat Recovery Steam Generators (HRSG). - Motor-operated valves. - Emergency shutdown systems. - Turbine trip cabinets. - Combined-cycle power plant control systems. The module handles dedicated protection interfaces. General process regulation functions require the appropriate additional Mark VIe I/O hardware and application logic.

08 | Global PLC Spare HUB's Insight

From a field engineering perspective, the IS220PTURH1B should be evaluated as a protection-specific I/O module rather than a general-purpose controller interface. Three areas deserve particular attention during replacement and commissioning. 1. Power Supply Verification The module requires a nominal 28 VDC supply. Its specified operating range is relatively narrow. For example, a technician may measure 26.8 VDC during a turbine cabinet inspection. This value falls below the specified 27.4 VDC minimum. The technician should inspect the power supply, wiring resistance and connector condition before replacing the module. 2. E-stop Circuit Integrity An emergency stop alarm does not automatically indicate an I/O Pack failure. For example, an external contact may remain open after equipment maintenance. The resulting input state can trigger a protection alarm. Engineers should verify the contact state and terminal voltage first. They should then compare the module diagnostics with the field measurements. 3. Correct Hardware Pairing The I/O Pack and terminal board must match the approved configuration. For example, the Mark VIe PTUR combination uses the IS200TRPAH1A terminal board. The Mark VIeS YTURS family uses the IS200TRPAS1A terminal board. These combinations serve different hardware architectures. Similar product names do not establish interchangeability. Our Engineering Recommendation Before ordering, confirm the complete model number, terminal board revision and installed controller generation. For critical turbine protection applications, also verify the field wiring and approved hardware combination. This reduces commissioning delays and unnecessary component replacement.

09 | Product Advantages

- Dedicated Protection Function: Designed for primary turbine trip applications. - Wide Input Voltage Range: Supports voltage detection inputs from 16 to 140 VDC. - Flexible Speed Interface: Accepts bipolar speed input signals. - Emergency Stop Support: Interfaces with external E-stop circuits. - High Contact Capacity: Supports contact output current up to 7 A. - Mark VIe Integration: Fits the GE turbine protection architecture. - Industrial Temperature Rating: Supports the specified -30°C to +65°C ambient range.

10 | Supply, Packaging and Warranty

Supply Information - Manufacturer: General Electric. - Model: IS220PTURH1B. - Product: Primary Turbine Protection I/O Pack. - Weight: Approximately 0.8 kg. - Country of Origin: United States. Packaging List - 1 × GE IS220PTURH1B I/O Pack. - Protective packaging for electronic components. - Shipping documentation. - Product identification information. The terminal board is not included unless the order explicitly specifies it. Warranty Terms - 12-month warranty from the agreed warranty start date. - Product identification and order traceability. - Technical assistance for model verification. - Warranty service subject to the agreed sales terms. Shipping Options - FedEx International Express. - UPS Worldwide Shipping. - DHL Express. Dispatch Commitment Orders are arranged for dispatch within 24–48 hours after order confirmation and stock verification. International delivery and tracking support are available.

11 | Professional Frequently Asked Questions

Q1: What is the difference between a turbine protection I/O Pack and a standard process I/O module? A turbine protection I/O Pack handles dedicated trip-related signals and protection interfaces. A standard process I/O module generally handles routine measurement and control signals. Engineers should select hardware according to the required protection architecture, not simply the number of available channels. Q2: Can this module directly replace another GE PTUR model? Not automatically. Related PTUR models may have different hardware revisions or configuration requirements. Compare the complete part number, terminal board compatibility and system documentation. Confirm the replacement with the approved GE hardware list before installation. Q3: What should engineers investigate when the measured supply voltage fluctuates? Inspect the DC power supply first. Check terminal tightness, cable condition and connector contact resistance. Measure the voltage under operating load. The specified supply range is 27.4–28.6 VDC, with a nominal value of 28 VDC. Q4: Is the IS220PTURH1B suitable for every HRSG control application? No. The module serves turbine-specific primary trip functions. HRSG drum level regulation and other boiler control loops may require separate process I/O modules and control logic. Select the I/O hardware according to each instrument signal and control requirement. Q5: How should purchasing teams verify the correct replacement before ordering? Request a clear photograph of the installed module label. Record its complete part number and revision. Check the associated terminal board and controller platform. For hazardous-area installations, verify the approved hardware combination and certification documents before purchase.
