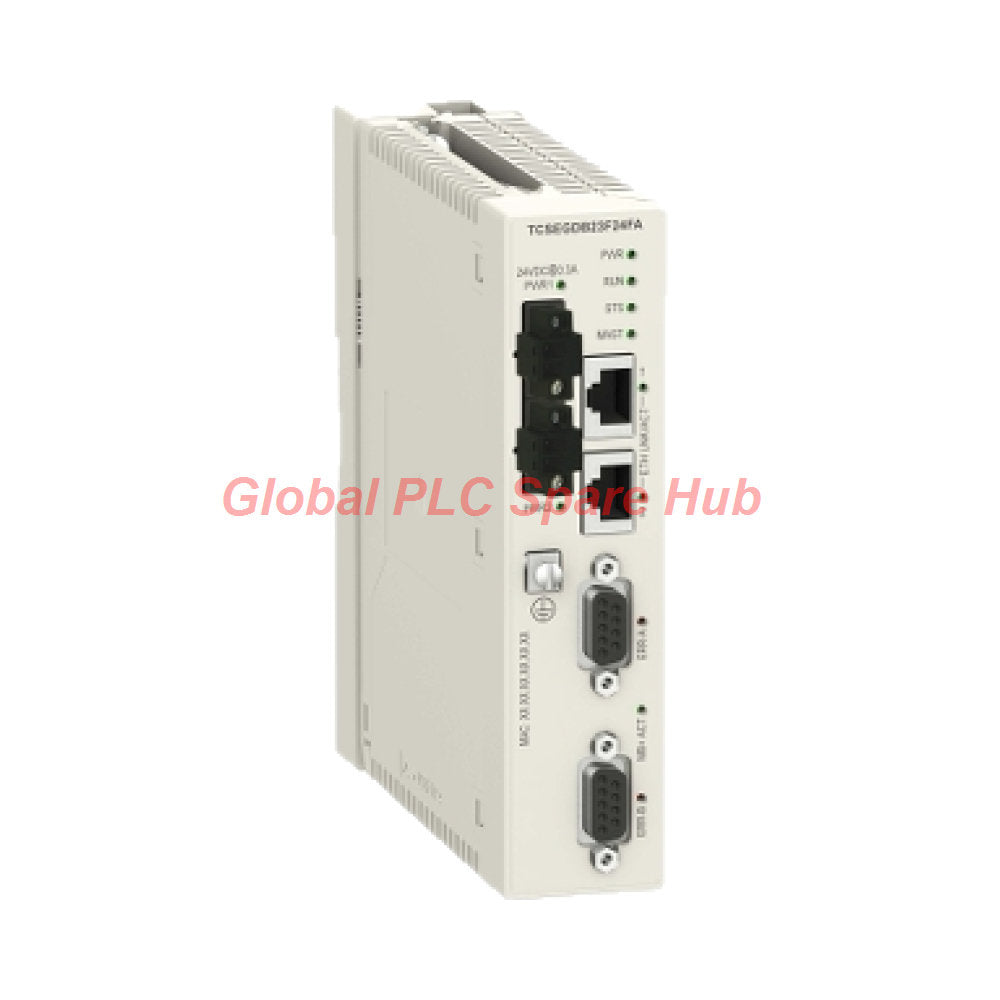

TCSEGDB23F24FA Schneider Electric ConneXium Series Communication Gateway Module

Core Architecture & Network Integration

The TCSEGDB23F24FA is an advanced communication gateway engineered by Schneider Electric within the ConneXium product family. Designed to bridge legacy networks with modern control infrastructures, the TCSEGDB23F24FA seamlessly translates Ethernet Modbus TCP protocols to traditional Modbus Plus networks. System integrators rely on this proxy module to link up to 128 slave devices, ensuring transparent data exchange across complex industrial automation hierarchies.

Technical & Electrical Specifications

• Manufacturer Brand: Schneider Electric
• Product Line Series: ConneXium
• Catalog Model Number: TCSEGDB23F24FA
• Device Type: Modbus Plus Proxy Module / Communication Gateway
• Ethernet Ports: 2 x RJ45 connectors supporting 10/100 Mbps Ethernet TCP/IP (Modbus TCP)
• Serial Ports: 2 x SUB-D9 connectors supporting Modbus Plus network loops
• Slave Capacity: Supports up to 128 connected slave nodes
• Communication Services: Modbus TCP/Plus messaging, FDR (Fast Device Replacement), SNMP, Global Data, and Peer-to-Peer cop dialogue
• Automation Platform: Compatible with Modicon M340 control architectures
• External Power Supply: 24V DC input with a nominal current consumption of 300 mA

Deployment & Hardware Installation Guidelines

• Mount the TCSEGDB23F24FA module securely onto a standard DIN rail adjacent to your Modicon M340 controller rack.
• Connect shielded twisted-pair cables to the dual SUB-D9 ports using proper Modbus Plus termination plugs to prevent signal reflection.
• Plug standard RJ45 Ethernet cables into the dual TCP/IP ports to establish redundant or ring-based Modbus TCP backbone links.
• Supply a stable 24V DC external power source, verifying terminal polarity before energizing the gateway.

Diagnostics & Network Monitoring Features

• Track communication traffic, token passing, and node health instantly via front-panel diagnostic LED indicators.
• Leverage SNMP and built-in diagnostic services to remotely monitor network congestion and packet error rates.
• Utilize Fast Device Replacement (FDR) capabilities to automatically restore configuration parameters during module replacement.

Target Equipment & Industrial Application Scenarios

• Legacy Modbus Plus networks upgrading to modern Ethernet Modbus TCP SCADA software.
• Modicon M340 automation platforms integrating distributed remote telemetry units.
• Continuous process manufacturing plants requiring high-availability bridge gateways.
• Oil and gas pipeline monitoring systems utilizing mixed serial and Ethernet architectures.

Logistics, Supply, and Warranty Terms

• Inventory Status: In-stock and ready for immediate dispatch.
• Processing Window: Rapid 24-48 hour order handling.
• Logistics Partners: Secure global shipping via FedEx, UPS, and DHL.
• Warranty Protection: Comprehensive 12-month warranty included with every TCSEGDB23F24FA unit.

Global PLC Spare HUB's Insight

When integrating legacy serial loops with modern Ethernet backbones, improper cable termination or incorrect node addressing on the Modbus Plus side can cause intermittent packet drops. Based on field expertise at Global PLC Spare HUB, technicians deploying the TCSEGDB23F24FA should always verify that the dual SUB-D9 drop cables use true 150-ohm twinax media with matching end-of-line resistors. Furthermore, mapping out your 128-slave node allocation carefully before configuring the Modbus TCP routing tables prevents gateway buffer overflows during high-poll-rate data exchanges.

Frequently Asked Questions

What is the primary function of the TCSEGDB23F24FA module in an industrial network?

The unit acts as a proxy gateway to bridge modern Ethernet Modbus TCP networks with traditional Modbus Plus serial fieldbuses.

How many slave devices can be managed through a single gateway module?

The TCSEGDB23F24FA supports transparent communication for up to 128 individual slave nodes across the network architecture.

What power supply requirements are needed to operate this gateway?

It requires an external 24V DC power source with a low nominal current consumption of approximately 300 mA.

What selection guidelines should engineers follow when sourcing a replacement communication bridge?

Verify that your control platform utilizes Modicon M340 standards, confirm your system requires Modbus Plus to TCP conversion, and purchase exclusively from certified vendors offering a 12-month warranty.

How does the Fast Device Replacement (FDR) feature assist maintenance personnel?

FDR allows the network infrastructure to automatically download configuration settings to a newly swapped module, drastically minimizing plant downtime.
