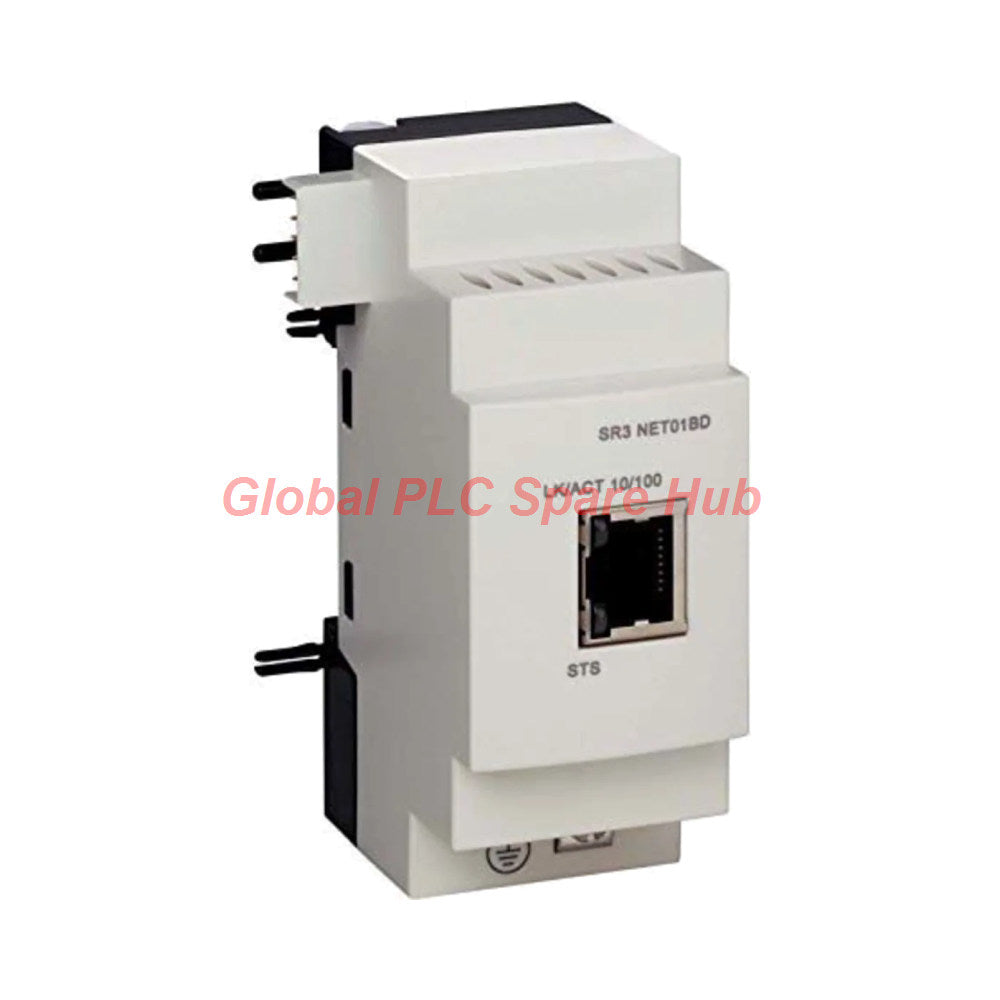

SR3NET01BD Schneider Ethernet Interface Module Zelio Range

Engineering Blueprint & Core Architecture

The SR3NET01BD is a dedicated Ethernet communication interface module engineered by Schneider Electric to expand the connectivity capabilities of the Zelio Logic smart relay family. Designed for seamless side-mounting onto SR3 24V DC base units, this compact module bridges local control logic with modern plant networks via a 10/100 Mbps RJ45 port supporting the industry-standard Modbus TCP protocol. Powered directly by the connected base relay, it enables remote monitoring, web server access, and SCADA integration without requiring complex gateway hardware.

Global PLC Spare HUB's Insight

In compact automation systems where smart relays handle standalone machine control, operators often require remote diagnostic capabilities and SCADA data visibility without upgrading to a full-scale modular PLC. During a recent retrofit of a remote water-pumping skid, our engineering team integrated the SR3NET01BD communication module to link an existing Zelio SR3 relay to the central control room. The Modbus TCP protocol implementation allowed real-time tag monitoring and remote parameter adjustments over Ethernet, eliminating costly onsite manual checks while preserving the existing relay configuration.

Technical Specification Matrix

• Manufacturer & Brand: Schneider Electric
• Product Series: Zelio Logic Smart Relay Family
• Catalog / Part Number: SR3NET01BD
• Module Type: Ethernet Communication Interface Module
• Base Unit Compatibility: SR3 24V DC smart relays (side-mount configuration)
• Network Interface: Single RJ45 port (10/100 Mbps Fast Ethernet)
• Communication Protocol: Modbus TCP server/client architecture
• Electrical Supply: 24V DC (sourced directly from connected base relay unit)
• Environmental Limits: Operating temperature range of -20 degrees Celsius to 55 degrees Celsius (-4 degrees Fahrenheit to 131 degrees Fahrenheit)
• Enclosure Protection: IP20 rated housing for standard control cabinet mounting

Mechanical Installation & Wiring Guidelines

• Side-Mount Attachment: Securely snap the SR3NET01BD onto the left-hand expansion bus connector of a compatible SR3 24V DC Zelio Logic base relay inside a DIN rail enclosure.
• Network Cabling: Use standard Category 5e or Category 6 shielded twisted-pair cables with RJ45 connectors to link the module to an industrial Ethernet switch or router.
• Power & Grounding: Verify that the 24V DC base relay power supply maintains steady voltage regulation to prevent communication resets across the internal expansion bus.
• Thermal Considerations: Ensure adequate vertical clearance inside the control panel to maintain ambient operating temperatures below 55 degrees Celsius.

Diagnostic Capabilities & Fault Management

• Link & Activity LEDs: Front-panel status indicators provide instant visual verification of Ethernet link integrity, network traffic, and module power status.
• Modbus Timeout Monitoring: Zelio Soft programming software allows configuration of communication watchdog timers to detect lost network packets and trigger safe fallback states.
• Expansion Bus Diagnostics: Monitors internal data transmission errors between the communication module and the base relay processor to prevent intermittent logic freezes.

Industrial Application Sectors

• Water Treatment Skids: Remote booster pump stations, chemical dosing units, and municipal wastewater monitoring panels.
• Building Automation: HVAC air handling unit controls, lighting automation schedules, and remote facility energy metering.
• OEM Machinery: Standalone packaging machines, conveyor sorting tables, and automated gate systems requiring remote telemetry.

Warranty & Global Logistics Support

• Warranty Coverage: Fully protected by a comprehensive 12-month warranty covering structural manufacturing defects and operational reliability.
• Express Shipping Partners: Fast worldwide dispatch handled securely through Tier-1 logistics carriers including FedEx, UPS, and DHL.
• Order Fulfillment: Secure anti-static industrial packaging ensures prompt processing and shipment dispatch within 24-48 hours.

Expert Purchasing Guide & Selection Tips

• Base Unit Voltage Verification: Confirm that your existing Zelio Logic relay is an SR3 24V DC model, as AC-powered base units are incompatible with this communication interface.
• Software Version Check: Ensure your Zelio Soft programming environment is updated to support Ethernet parameter configuration before deploying the module onsite.
• Spare Inventory Strategy: Keeping a backup SR3NET01BD module in stock minimizes plant downtime when maintaining remote unattended automation assets.

Professional Frequently Asked Questions

Q: Can the SR3NET01BD module be used with AC-powered Zelio Logic relay bases?
A: No, this communication module is strictly engineered for compatibility with SR3 24V DC smart relay base units.

Q: How does the communication interface receive its operating power?
A: The module draws its 24V DC operating power directly through the side-mount expansion bus connector from the connected base relay.

Q: What industrial communication protocol does this interface support?
A: The module natively supports the Modbus TCP protocol over standard 10/100 Mbps Ethernet networks for seamless SCADA integration.

Q: What mounting method is required for installation inside an electrical enclosure?
A: The unit is designed for standard DIN rail mounting, attaching directly to the side of the main Zelio Logic relay assembly.

Q: Which international courier services are used for urgent global spare part deliveries?
A: All international orders are dispatched rapidly via premier logistics partners including FedEx, UPS, and DHL within 24 to 48 hours.
