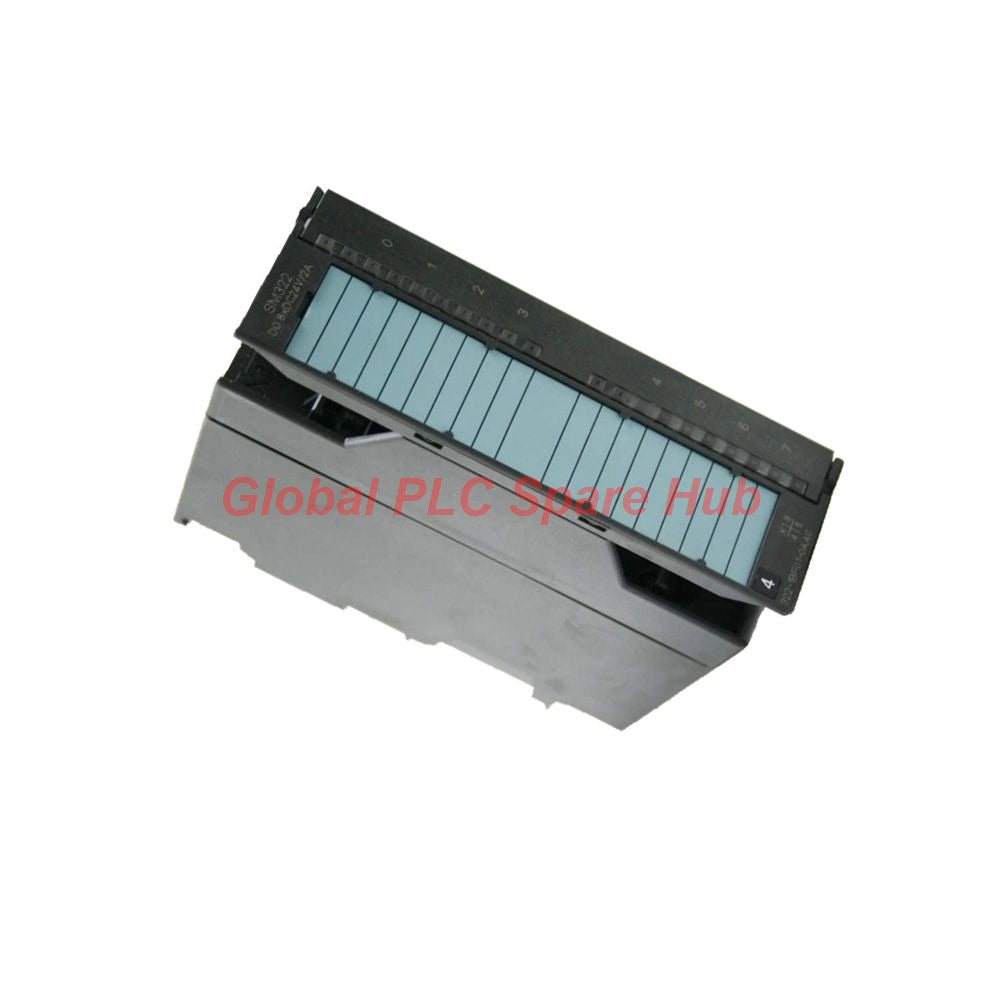

Siemens SIMATIC S7-300 6ES7322-1BF01-0AA0 Digital Output Module
Manufacturer: Siemens
Product No.: 6ES7322-1BF01-0AA0
Condition： In stock
Product Type: Digital Output Module
Product Origin: DE
Payment: T/T, Western Union
Weight: 190g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The 6ES7322-1BF01-0AA0 is a high-performance digital output module for the Siemens SIMATIC S7-300 automation series. This unit provides 8 channels of 24V DC output with robust optical isolation. It delivers reliable signal switching for industrial automation processes. The module ensures efficient control of actuators and heavy-duty loads.
Technical Specifications
- Brand: Siemens
- Model: 6ES7322-1BF01-0AA0
- Series: SIMATIC S7-300
- Output Count: 8 digital outputs
- Rated Voltage: 24V DC (20.4V to 28.8V)
- Output Current: 2A per channel (rated)
- Frequency Response (Resistive): 100 Hz max
- Frequency Response (Inductive): 0.5 Hz max
- Frequency Response (Lamp Load): 10 Hz max
- Isolation Type: Optocoupler (Galvanic isolation)
- Operational Temperature Range: 0°C to 60°C
- Environmental Tolerance: High immunity to industrial EMI
- Connection Interface: 20-pin front connector
- Dimensions: 40mm x 125mm x 120mm
- Weight: 190g
Global PLC Spare HUB Insight
Engineers select the 6ES7322-1BF01-0AA0 for its excellent load handling capability. The module effectively separates high-current field devices from the backplane bus. Its design excels in applications where channel-to-channel interference must be eliminated. This unit is perfectly compatible with SIMATIC S7-300 CPU modules and rack systems.
Installation, Maintenance, and Compatibility
- Installation: Mounts directly onto the standard S7-300 DIN rail profile.
- Setup: Requires a dedicated 20-pin front connector for field wiring.
- Maintenance: Status LEDs per channel allow for quick visual troubleshooting.
- Compatibility: Fully compatible with existing S7-300 I/O configurations.
- Diagnostics: Local green status LEDs confirm channel output state clearly.
Typical Applications
- High-speed electromagnetic valve control.
- Industrial lighting and relay switching systems.
- Conveyor belt motor start-stop automation.
- Production line sequence controllers.
Procurement and Logistics
- Warranty: Full 12-month quality assurance guarantee.
- Shipping: We ship via FedEx, UPS, or DHL.
- Dispatch: Orders ship within 24-48 hours.
- Package Contents: 1x 6ES7322-1BF01-0AA0 module.
Purchasing Guide
- Check your backplane power budget before adding this module.
- Ensure the 20-pin front connector is ordered separately if not in stock.
- Verify your voltage range remains between 20.4V and 28.8V DC.
- Contact our technical team if integrating into complex high-frequency cycles.
Frequently Asked Questions
Q: Can this module drive large inductive loads directly?
A: Yes, but keep the switching frequency below 0.5 Hz to protect internal components.
Q: Are the channels individually protected against short circuits?
A: No, this model does not feature internal short-circuit or wire-break diagnostics.
Q: What is the benefit of the optocoupler isolation?
A: It prevents electrical surges from damaging the backplane bus and CPU.
Q: How do I identify a failed output channel?
A: Use the front-mounted green status LEDs to verify signal state.
Q: Is this module compatible with S7-400 racks?
A: No, this unit is specifically designed for the SIMATIC S7-300 form factor.
