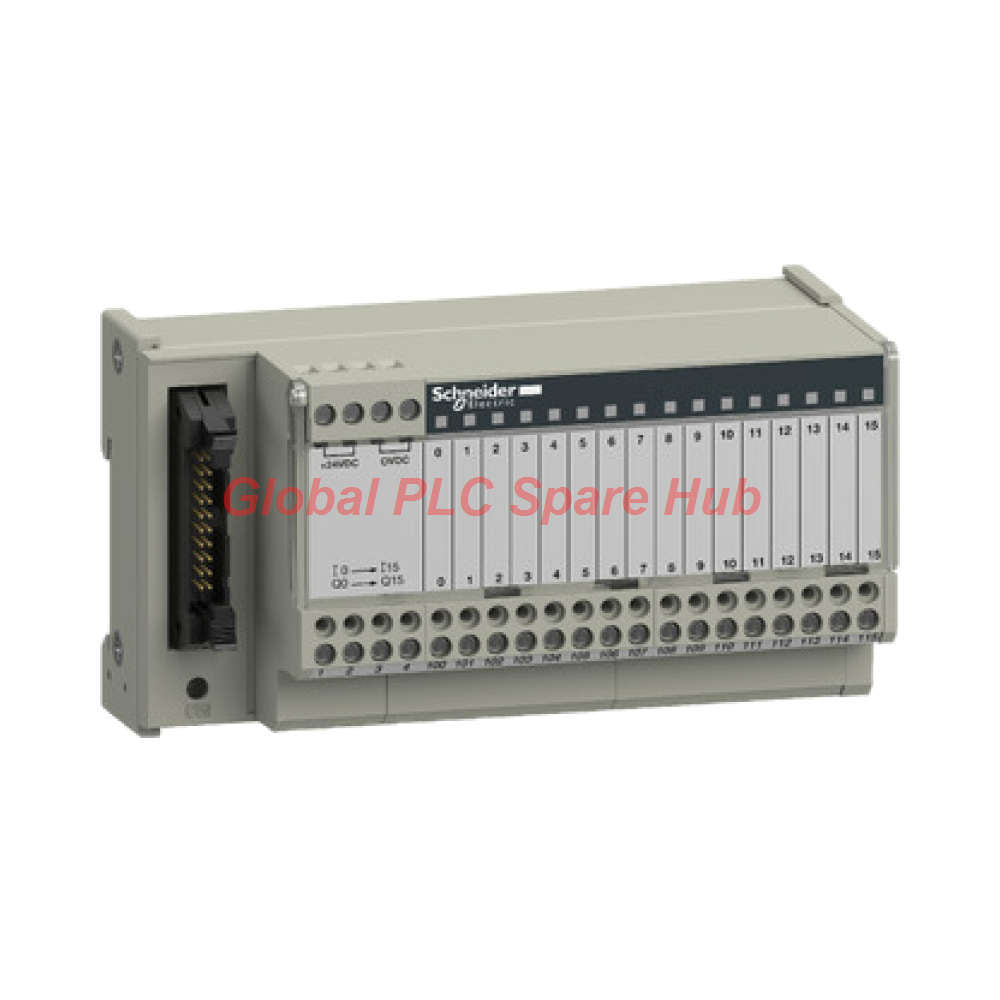

Schneider ABE7H16R11 ABE7 Telefast 16-Channel I/O Sub-Base

Schneider Electric ABE7H16R11 Telefast Sub-Base Technical Overview

Engineered for high-density control architectures, the ABE7H16R11 passive sub-base interfaces 16 discrete input or output channels directly to automation controllers via a standardized HE-10 20-pin ribbon cable connector. By eliminating point-to-point interposing wiring, this module streamlines cabinet layout while supporting non-polarized signal distribution across a 19–30V DC operational envelope.

Core Engineering Specifications

• Sub-Base Architecture: Passive discrete I/O interface, Telefast ABE7 series
• Channel Density: 16 channels configured with 1 terminal per channel
• Signal Characteristics: Discrete I/O with bidirectional, non-polarized distribution
• Voltage Range: 19 to 30V DC in compliance with IEC 61131-2 standards
• Current Ratings: 0.5A per individual channel; 1.8A maximum aggregate supply current
• System Interface: 20-pin HE-10 flat ribbon connector
• Conductor Capacity: 0.14–2.5 mm² solid wire; 0.09–1.5 mm² flexible wire with cable ends

Diagnostic & Protection Architecture

• Visual Telemetry: Integrated per-channel status LEDs offering immediate signal verification and active troubleshooting during runtime
• Overcurrent Defense: Factory-installed 2A internal fast-acting fuse protecting downstream field devices from supply surges
• Enclosure Rating: IP2X finger-safe terminal protection housing
• Thermal Envelope: Rated for continuous operation between -5 °C and 60 °C cabinet ambient

Global PLC Spare HUB's Insight

Deploying modular interface sub-bases like the ABE7H16R11 fundamentally alters control panel commissioning speed by replacing cumbersome hand-wired terminal blocks with pre-engineered ribbon cable assemblies. In legacy PLC migration projects or high-density I/O expansion racks, maintaining consistent loop resistance and reliable mechanical connections is vital to preventing intermittent signal degradation. Schneider Electric's Telefast design successfully isolates field wiring from controller cards, reducing MTTR (Mean Time to Repair) when physical terminal damage occurs in harsh industrial environments.

Compatible Equipment & Industrial Applications

• PLC Control Racks: Schneider Electric Modicon Premium, Modicon M340, and legacy Micro automation platforms utilizing HE-10 interface cards
• Factory Automation: Automated assembly cells, multi-axis material handling systems, and robotic workcell discrete logic distribution
• Process Skids: Water treatment dosing panels, hydraulic power units, and remote instrument junction enclosures
• Packaging Machinery: High-speed sorting lines and conveyor tracking arrays requiring compact terminal footprints

Reliability Assurance & Logistics Protocol

• Warranty Protection: Comprehensive 12-month operational warranty covering replacement and factory repair services.
• Express Global Fulfillment: Secure courier dispatch via FedEx, UPS, and DHL to ensure rapid delivery directly to your facility.

Expert FAQs & Selection Guide

Q: How can technicians verify if a channel failure stems from the internal fuse rather than external field wiring?

The sub-base features integrated per-channel LED indicators. If a specific channel's logic is driven high by the controller or field sensor but the corresponding LED remains unlit while supply voltage is present at the input terminal, verify the state of the 2A internal protection fuse before tracing back to field loops.

Q: What precautions are necessary when routing HE-10 ribbon cables alongside high-voltage motor drives?

Ribbon cables carrying low-level 24V DC discrete signals are susceptible to electromagnetic interference (EMI). Maintain a minimum physical separation of 300 mm from VFD output cables, or route the control harness through grounded metallic conduit to prevent phantom signal triggering.

Q: Can this sub-base handle mixed AC and DC discrete signals within the same 16-channel block?

No. The ABE7H16R11 is rated strictly for 19–30V DC operation and non-polarized discrete signals. Mixing AC control voltages across these terminals violates insulation ratings and can permanently damage connected interface electronics.

Q: What is the primary selection criterion when upgrading from older Telefast generations to the ABE7 range?

Verify the exact pinout mapping of the existing controller-side connector. While physical DIN rail dimensions (77 × 206 mm) remain consistent, legacy pin allocations on custom pre-wired cables must match the HE-10 20-pin standard layout to avoid reversal of signal paths.

Q: Why is wire cross-section adherence critical for the spring or screw clamp terminals on this model?

Using fine-stranded wire below 0.09 mm² without proper ferrules can lead to poor clamping force and high contact resistance under vibration, whereas conductors exceeding 2.5 mm² will not seat correctly in the terminal housing, risking thermal hotspots.
