MTL4760ac MTL Intrinsically Safe Barrier for RTD and THC Sensors

Intrinsic Safety & Signal Architecture

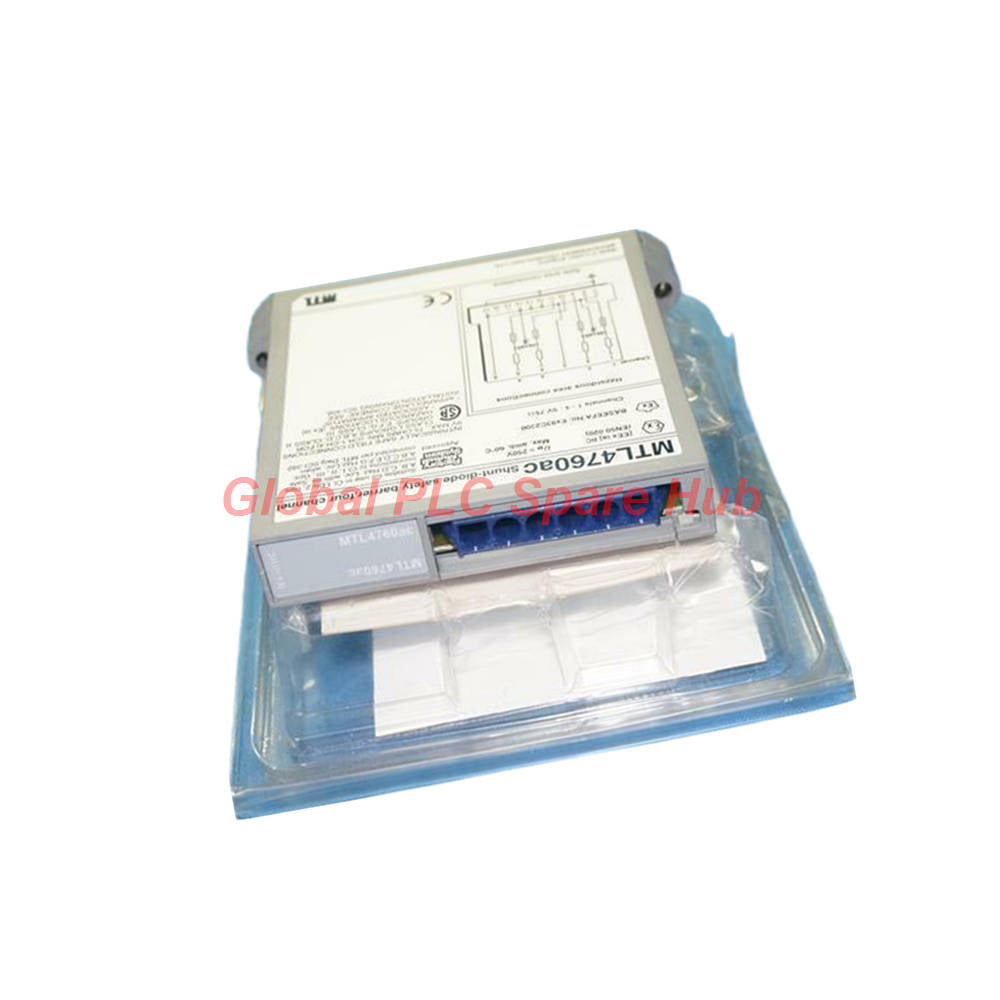

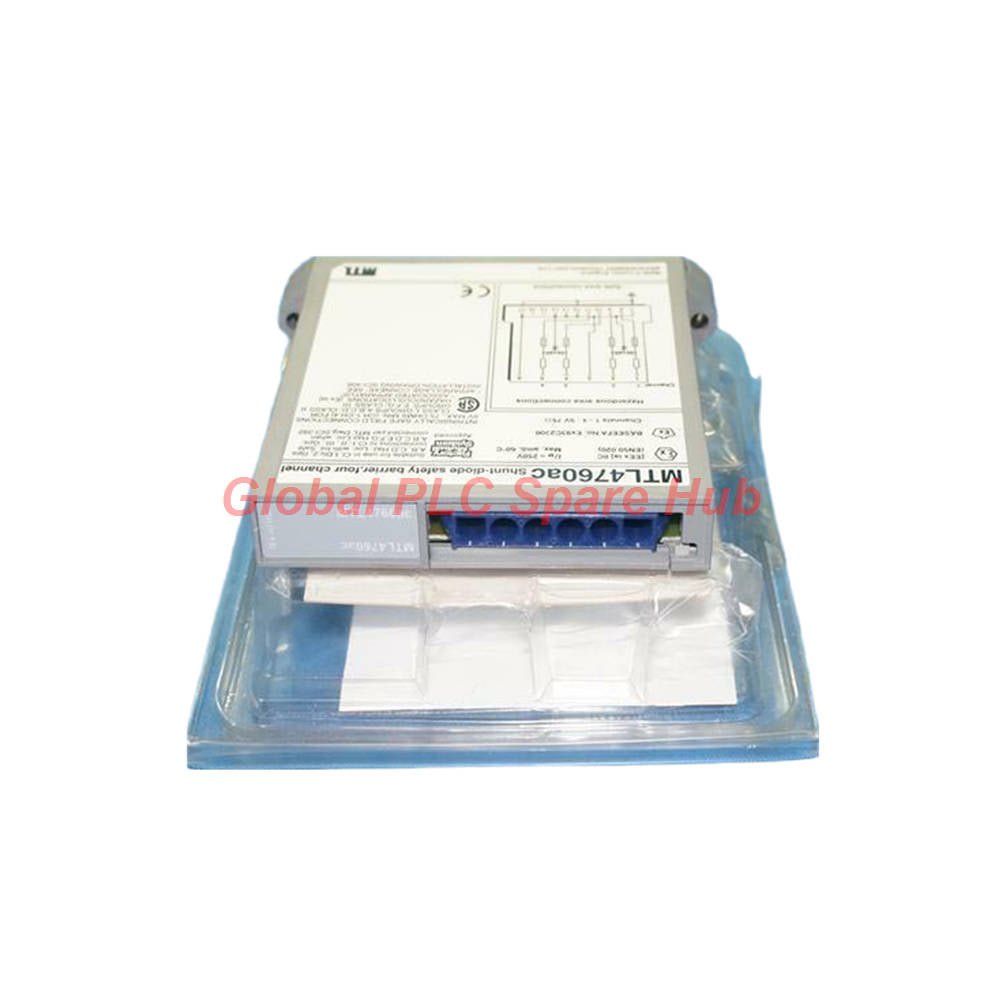

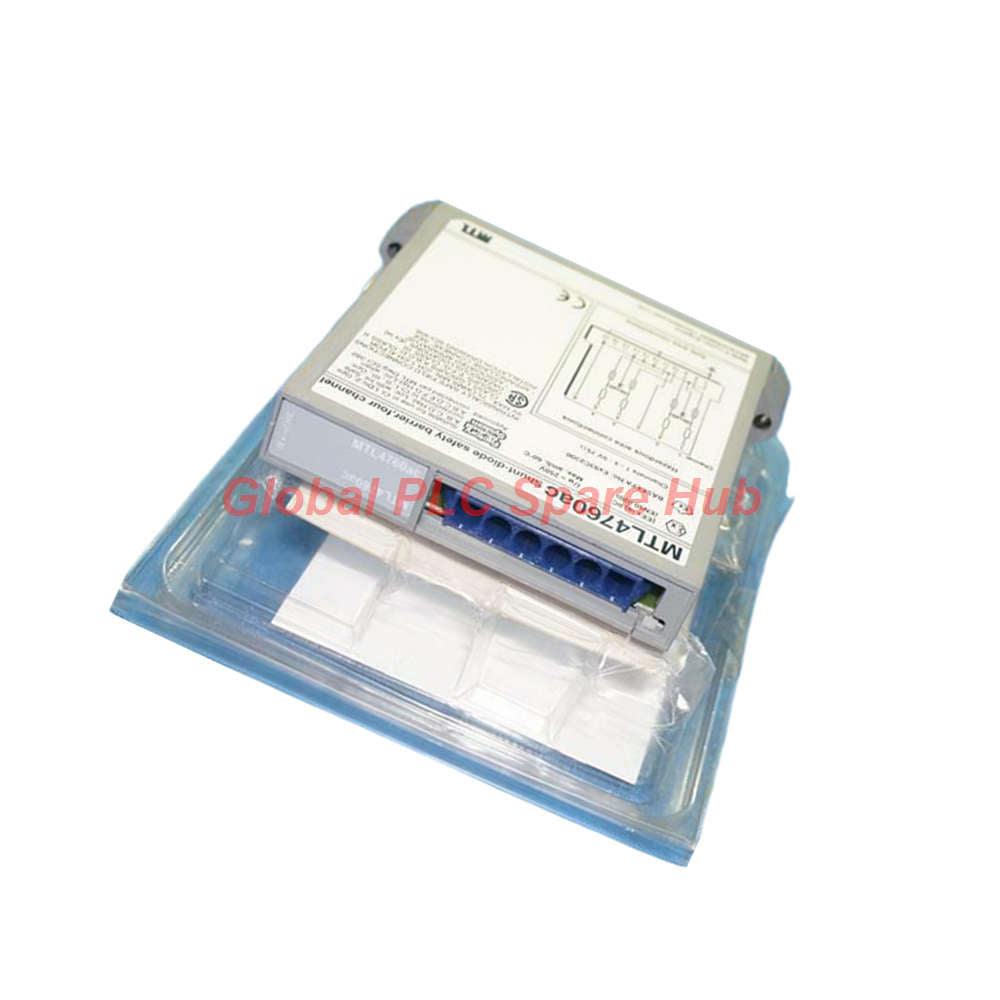

The MTL4760ac is a high-performance, twin 2-channel intrinsic safety barrier specifically engineered for low-level ac signals, Thermocouples (THC), and 4-wire Resistance Temperature Detectors (RTD). This module ensures hazardous area protection while maintaining signal integrity for sensitive field instrumentation. Designed as a non-bussed power unit, it provides dedicated, isolated protection for complex multi-channel sensor loops.

Safety & Electrical Specifications

• Brand: MTL
• Model: MTL4760ac
• Channel Capacity: 4 Channels
• Safety Description: 9V, 75Ω, 120mA
• End-to-End Resistance: 95Ω (Maximum)
• Working Voltage (Vwkg): 7.0V @ 10µA
• Fuse Rating: 50mA
• Polarity: AC (Bidirectional signal compatibility)

Engineering Application Guidelines

• Sensor Compatibility: Interface with two THCs or low-level ac devices per module using dual channels, or one 4-wire RTD using all four channels.
• Field Wiring: Ensure the barrier is mounted within a suitable certified enclosure to maintain the integrity of the intrinsic safety rating.
• Cable Management: Strictly adhere to the stated L/R ratios and capacitance limits (BASEEFA/FM standards) to prevent hazardous energy accumulation in cable runs.

Global PLC Spare HUB's Insight

The MTL4760ac is a legacy favorite for process automation where bidirectional (AC) signal purity is paramount. Our diagnostic analysis shows that common failures are often linked to exceeding fuse ratings during field wiring shorts. We recommend this unit for facilities upgrading or maintaining older turbine and heat-monitoring skids where 4-wire RTD precision is non-negotiable for safety logic.

Professional FAQ

Q: Why is the MTL4760ac not designed for bussed power?
A: The AC polarity and specific channel safety description require isolated, independent power paths to prevent crosstalk and maintain strict intrinsic safety parameters.

Q: What is the benefit of the 0.27W matched power rating?
A: This ensures that the energy transferred to the hazardous area is kept below the ignition threshold, even under single-fault conditions in the field wiring.

Q: Can I use this for 3-wire RTD applications?
A: Yes, though the 4-channel capacity is specifically geared for 4-wire RTDs, you can utilize the extra channels to ensure symmetrical signal conditioning for 3-wire configurations.

Q: How do I verify if my cable parameters are compliant?
A: Refer to the provided BASEEFA/FM tables; ensure your total cable length does not result in capacitance/inductance values exceeding the listed maximums for your specific group (IIC or A/B).

Q: Selection Guide: How do I know if the "ac" polarity is required?
A: Use the MTL4760ac for any application where the signal voltage can swing positive and negative, or where specific impedance matching for low-level AC sensors is required.
