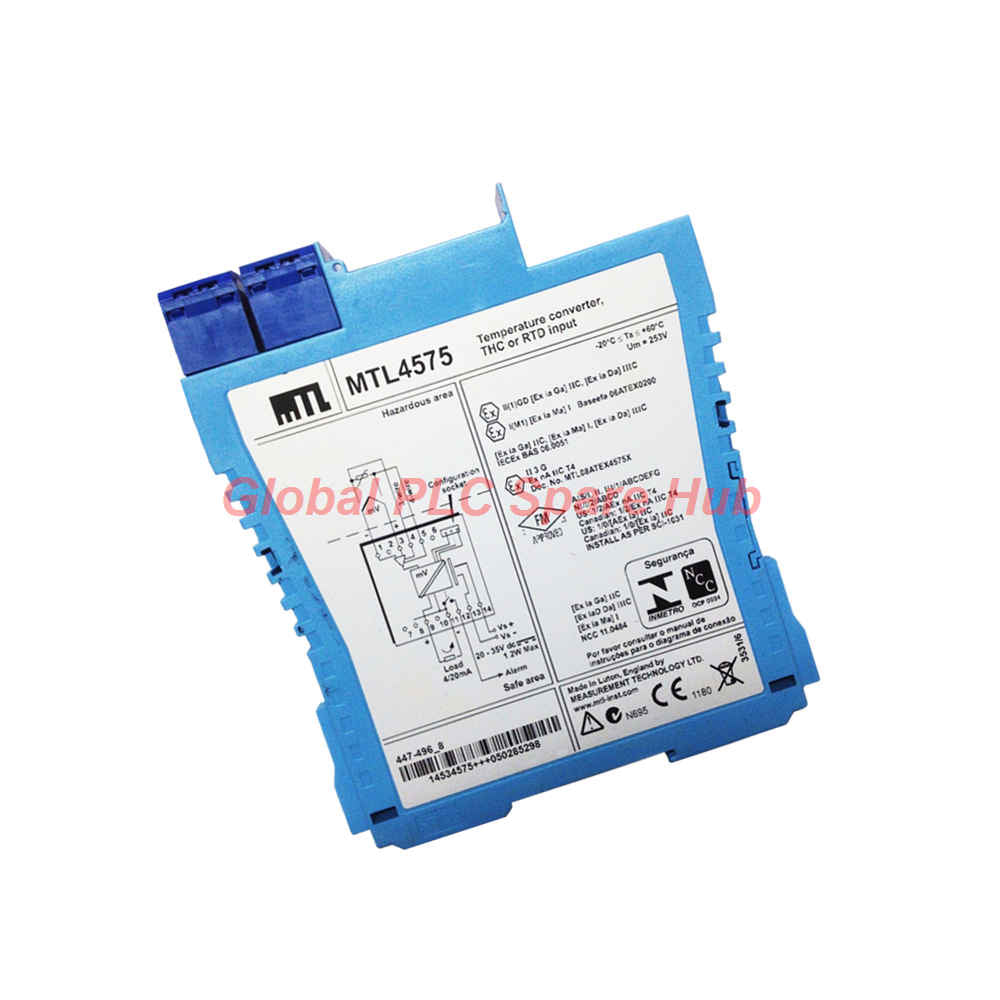

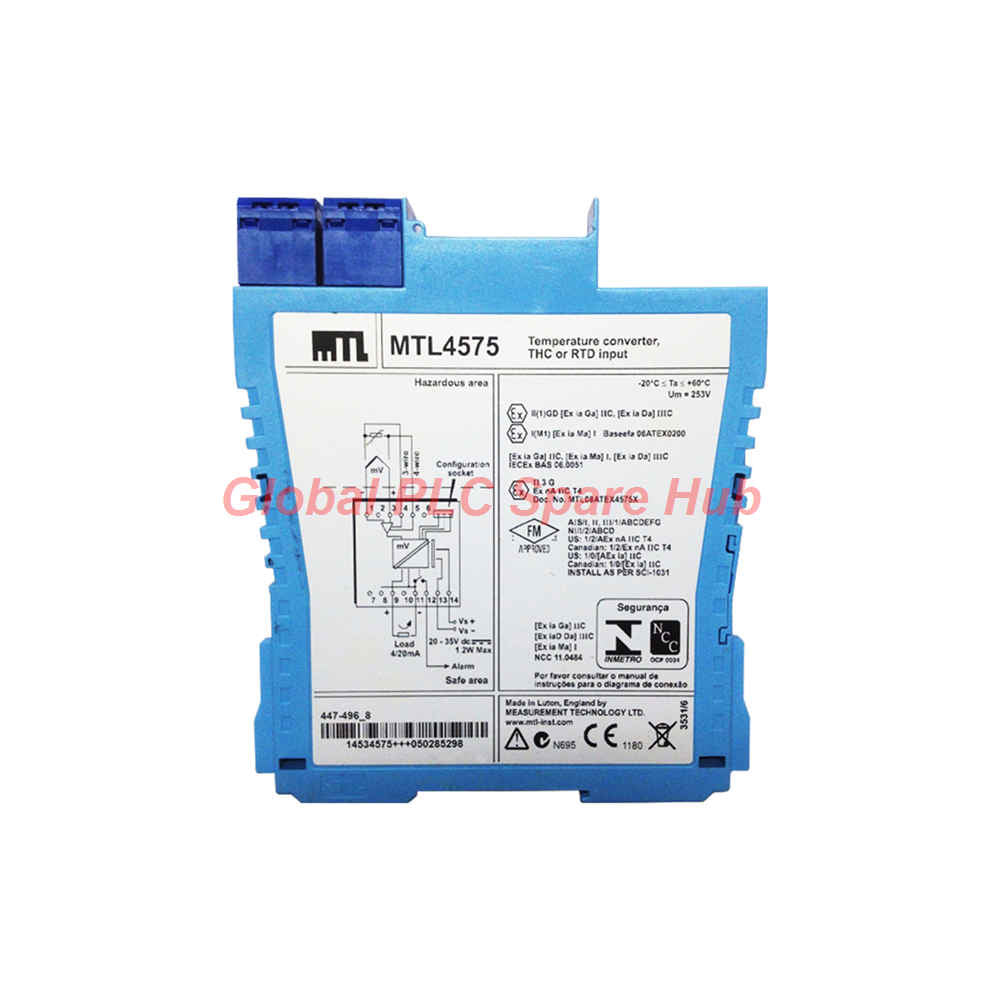

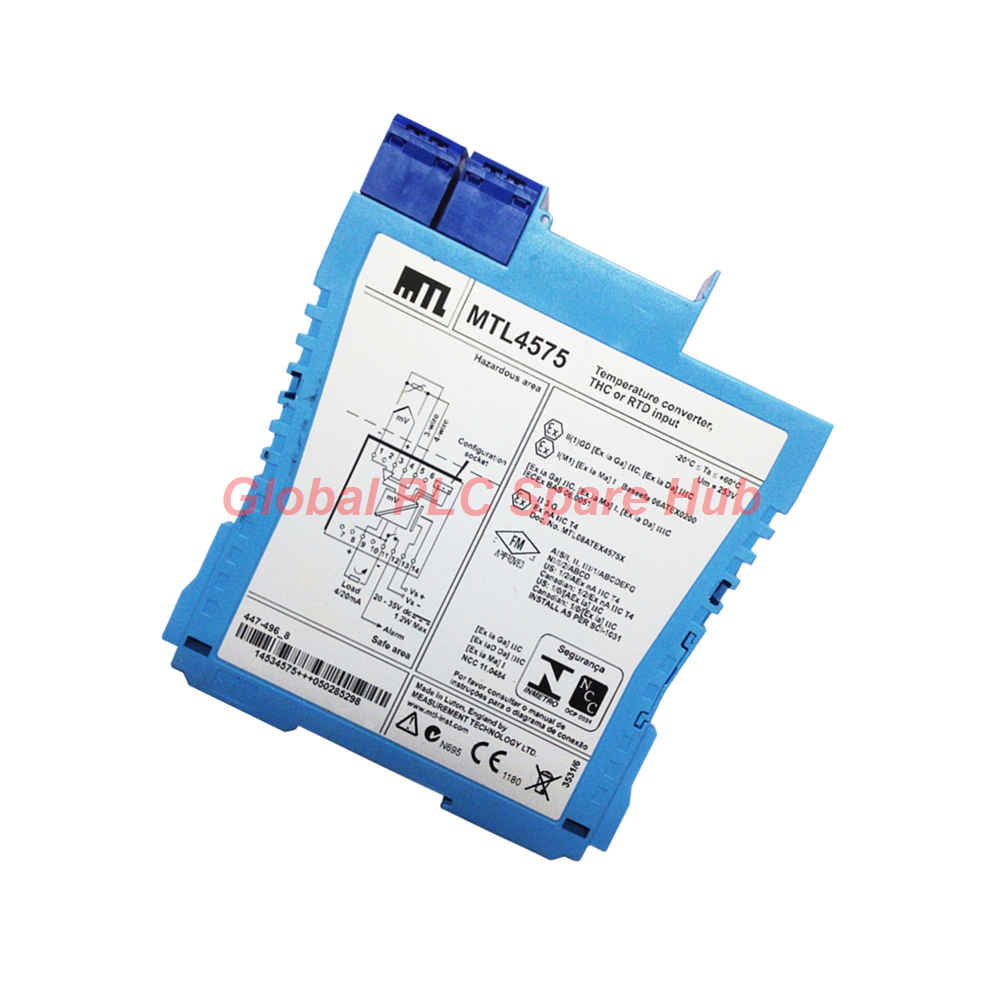

MTL4575 Temperature Converter – Single Channel Isolated Barrier

Engineering Overview

The MTL4575 serves as a precision single-channel temperature converter and galvanic isolator, designed for high-integrity signal conditioning in explosive atmospheres (Zone 0/Div 1). It translates low-level millivolt signals from thermocouples or resistance values from RTDs into a stable 4–20mA process loop. Unlike standard isolation barriers, this unit provides advanced software-defined flexibility, allowing engineers to switch between sensor types, ranging profiles, and failure-mode behaviors via the PCS45 configuration interface.

Technical Specifications

• Model: MTL4575
• Input Flexibility: Universal support for J, K, T, E, R, S, B, N Thermocouples & Pt/Ni/Cu RTDs
• Input Range: -75 to +75mV or 0 to 400Ω (expandable for Pt1000/Ni1000)
• Output Signal: 4–20mA (max 600Ω load)
• Response Time: 500ms (default) with configurable filter constants
• Isolation Integrity: 120dB CMRR; 253V Um safety rating
• Cold Junction Accuracy: ≤ 1.0°C deviation
• Power Requirements: 24V DC; 1.2W dissipation at 20mA output

Global PLC Spare HUB's Insight

Our technical team identifies the MTL4575 as the superior solution for retrofitting legacy temperature points in hazardous process skids. Its unique "Early Burnout Detection" capability—which monitors loop resistance increases greater than 50Ω—is a predictive maintenance goldmine. This allows technicians to schedule thermocouple replacements during planned turnarounds, rather than reacting to a catastrophic open-circuit failure in the middle of a production run.

Maintenance & Diagnostic Capabilities

• Status Monitoring: Bi-color LED interface provides immediate visual health checks (Green: Power/Status; Yellow: Alarm).
• Proactive Diagnostics: Alarm relay can be configured to trip on process limits or sensor degradation.
• Configuration: All parameters (linearization, sensor type, burnout drive) are set via PC software, removing the need for manual potentiometers or hardware jumpers.

Logistics and Assurance

• Worldwide Logistics: Expedited dispatch via FedEx, UPS, and DHL.
• Turnaround: Orders processed and shipped within 24–48 hours.
• Quality Promise: Each unit is backed by a 12-month quality assurance guarantee.

Frequently Asked Questions

• Why is the HAZ-CJC plug necessary for thermocouple applications?
  The plug contains an integrated cold junction compensation sensor that is critical for maintaining absolute temperature measurement accuracy when thermocouples terminate at the barrier.
• How does the "Early Burnout" feature differ from standard failure modes?
  While a standard sensor failure mode triggers a hard-scale drive (Upscale/Downscale) upon total circuit break, the early burnout alarm monitors for resistive degradation over 50Ω, alerting you before the signal is lost.
• Can the MTL4575 be used with a 4-wire Pt100 without losing accuracy?
  Yes, the unit natively supports 4-wire RTD configurations, providing superior lead-wire resistance compensation compared to standard 2-wire setups.
• What is the best way to handle signal noise in high-EMI environments?
  Ensure the module is configured for the 500ms response time; this provides 120dB of common-mode rejection, effectively filtering out 50Hz/60Hz industrial line interference.
• Buying Guide: What should I confirm before commissioning?
  Always verify that your PCL45USB serial interface is updated to the latest software version to ensure full compatibility with the specific RTD/THC calibration curves required by your process.
