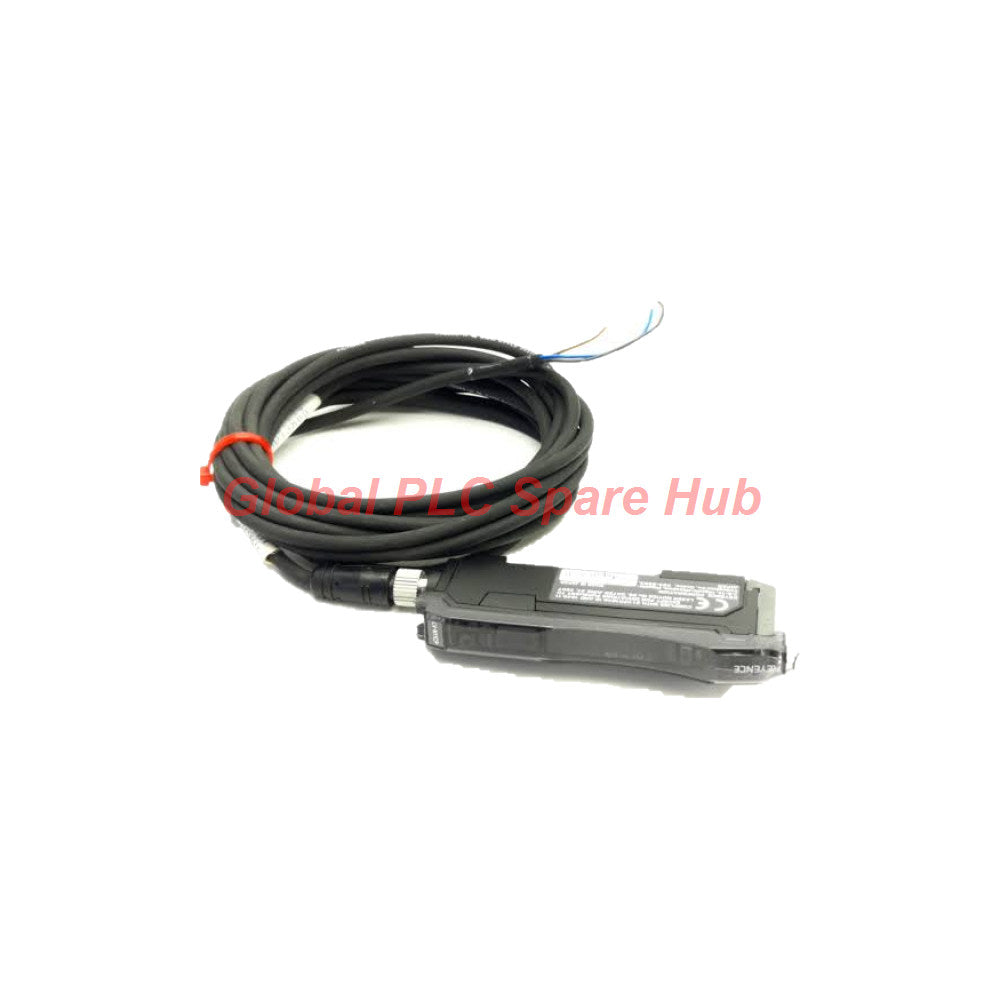

LV-N11CP KEYENCE LV-N Series Amplifier Unit PNP Output Optical Controller
Manufacturer: Keyence
Product No.: LV-N11CP
Condition： In stock
Product Type: Amplifier Unit
Product Origin: USA
Payment: T/T, Western Union
Weight: 15g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Engineering Overview
The LV-N11CP represents a high-performance LV-N series digital sensor amplifier engineered by KEYENCE. This main unit features a PNP output configuration and an M8 connector interface for precision fiber optic sensing.
Technical Architecture & Core Specifications
| Parameter Specification | Technical Value |
|---|---|
| Part Identifier & Brand | LV-N11CP by KEYENCE |
| Product Series & Type | LV-N Series Main Amplifier Unit |
| Control Output Type | 1 PNP open collector output (30 V max) |
| Response Time Settings | Selectable from 80 µs (High Speed) to 16 ms (Mega) |
| Power Supply Voltage | 24 VDC (operating range 10 to 30 VDC) |
| Power Consumption | 950 mW or less (Normal mode) |
| Unit Expansion Capacity | Supports up to 17 total connected units |
| Physical Weight & Case | Approx. 20 g, Polycarbonate enclosure |
Target Equipment & Industrial Application Scenarios
- High-speed semiconductor component positioning and tiny part verification on assembly lines.
- Precision packaging line registration mark detection and label presence checks.
- Automated electronic parts insertion machinery and circuit board handling systems.
- Fast-moving conveyor sorting systems requiring ultra-short response times.
Built-in Diagnostics & Protection Mechanisms
The LV-N11CP features built-in reverse polarity protection, over-current protection, and surge absorber circuits to safeguard internal electronics against power transients. Operators monitor operational status and error codes directly through the digital dual-display interface on the main housing.
Global PLC Spare HUB's Insight
Global PLC Spare HUB notes that when cascading multiple units of the LV-N11CP, engineers must account for mutual interference reduction settings based on the connected fiber head model. Proper configuration of the response time mode prevents cross-talk interference in densely packed multi-sensor DIN rail installations.
Fulfillment & Quality Assurance
- Global Dispatch: Fast 24 to 48-hour shipping turnaround window.
- Logistics Carriers: Secure international delivery via FedEx, UPS, and DHL.
- Protection Guarantee: Comprehensive 12-month quality warranty included.
Technical FAQ & Selection Guide
Question: How does changing the response time mode affect high-speed detection?
Answer: Selecting High Speed drops response time to 80 µs, which is ideal for fast parts, though it reduces the maximum mutual interference prevention limit.
Question: Can the LV-N11CP support expansion with two-output sub-units? Note on counting.
Answer: Yes, but keep in mind that a two-output expansion unit counts as two units against the total 17-unit connection limit.
Question: What causes an over-current protection trip on the output line?
Answer: This occurs if the load current exceeds 100 mA for a stand-alone configuration or 20 mA when multiple units are connected.
Question: How do I wire the external input function?
Answer: The external input terminal handles preset calibration or timing functions, requiring a minimum input duration of 2 ms for ON signals.
Question: What environmental conditions affect optical stability?
Answer: Heavy dust accumulation or extreme condensation outside the 35 to 85 percent RH range can degrade light transmission through connected fiber cables.
Selection Guide: Verify that your control system architecture requires a PNP switching output and ensure your power supply provides clean 24 VDC with under 10 percent ripple before deploying the LV-N11CP.
