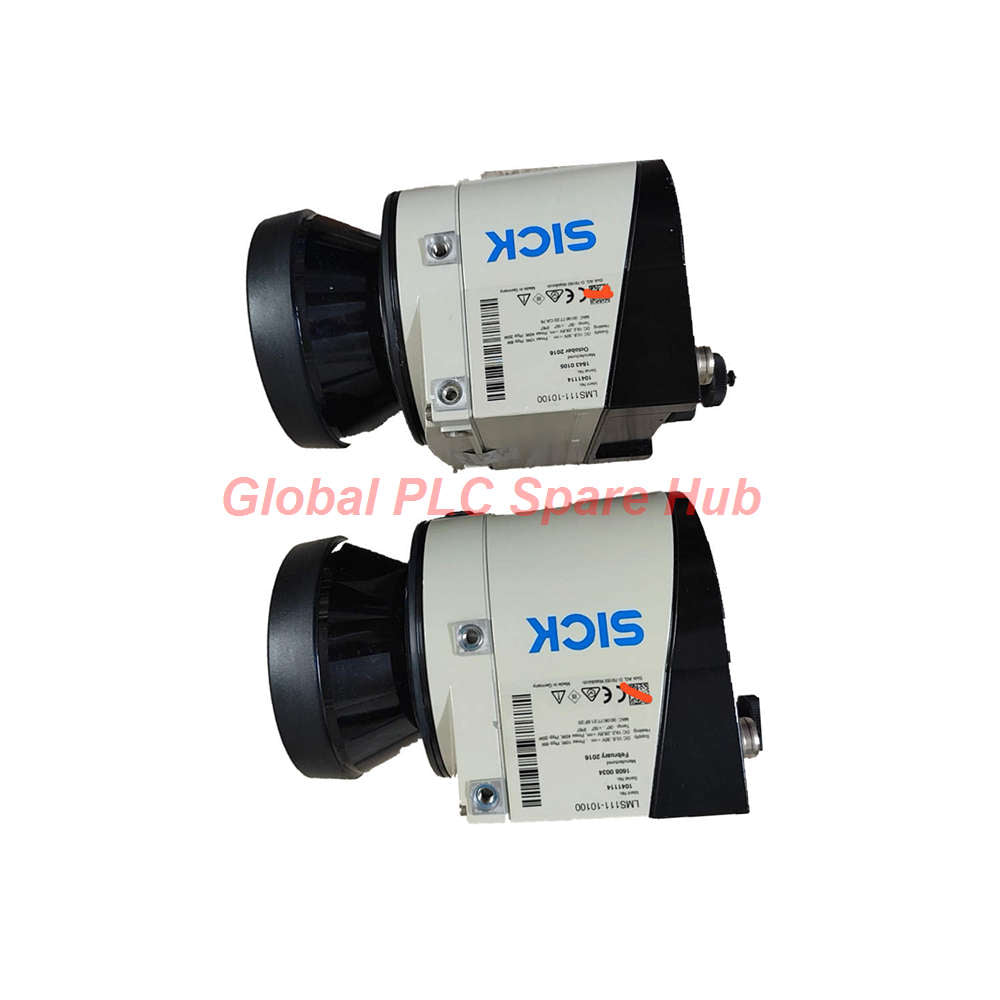

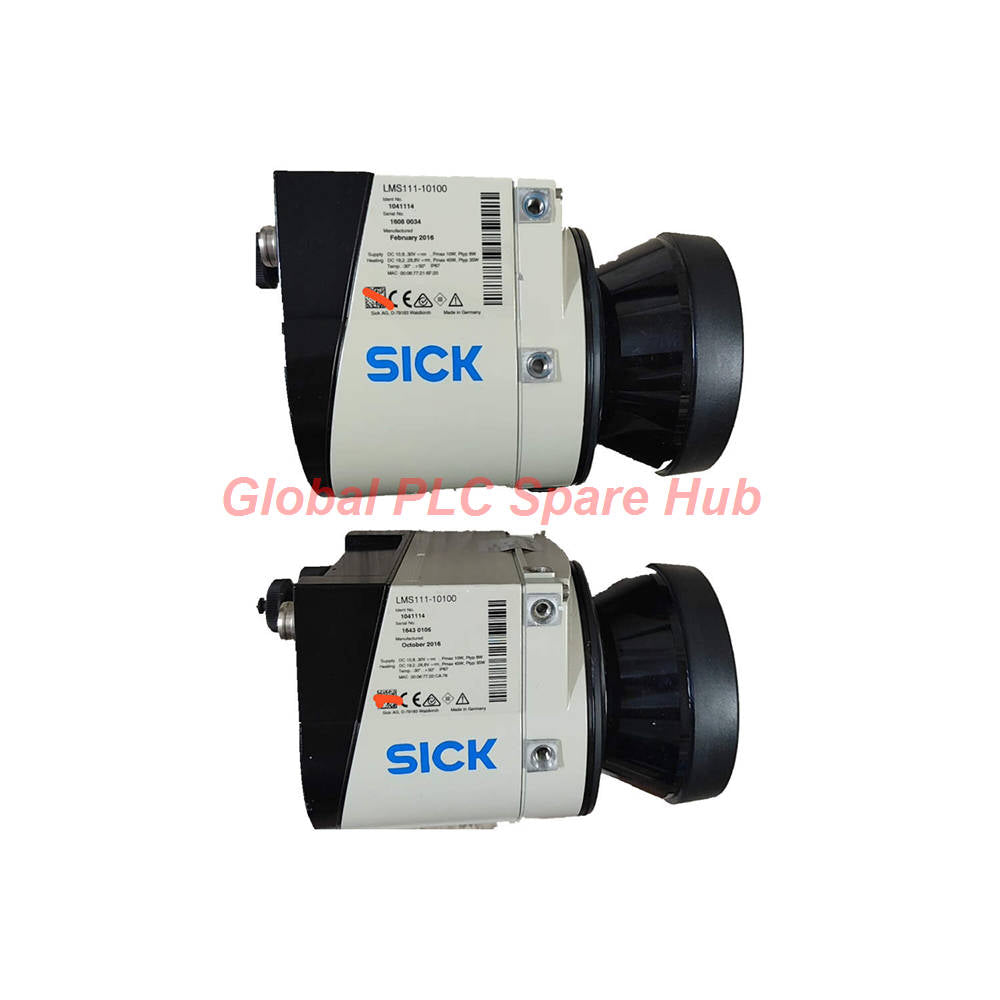

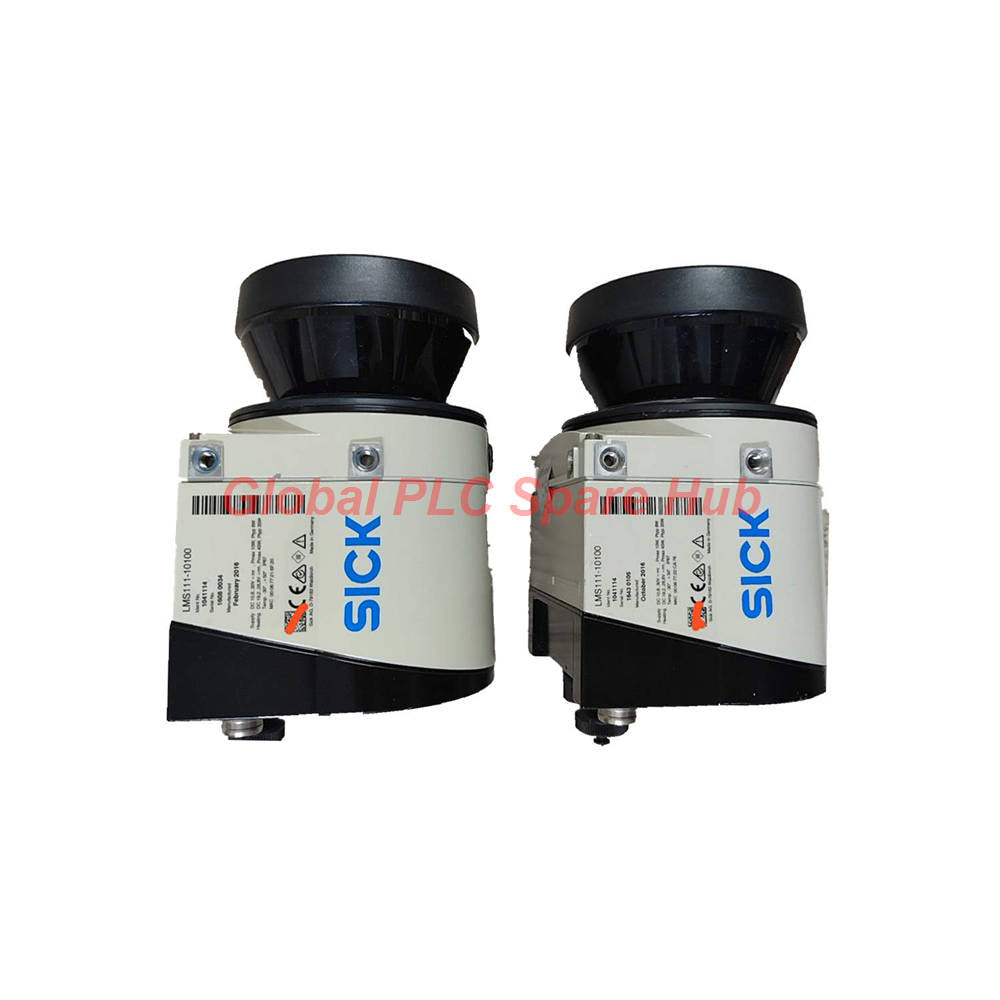

LMS111-10100 SICK 2D Laser Scanner - Infrared Indoor Outdoor Sensor

Engineering Overview

The LMS111-10100 SICK 2D Laser Scanner utilizes infrared time-of-flight measurement to map complex environments with high precision. Designed for both indoor and outdoor deployments, this LMS111-10100 sensor delivers reliable object detection across a wide 270-degree aperture angle.

Core Technical Architecture

Installation & Mechanical Mounting

• Mount the unit securely using the integrated threaded holes to prevent mechanical shifting.
• Ensure an unhindered 270-degree horizontal field of view without structural blockage.
• Connect M12 round connectors tightly to maintain the IP67 environmental seal.
• Verify power supply stability within the 10.8 VDC to 30 VDC operating window.
• Position cabling away from high-voltage motor lines to prevent electromagnetic coupling.

Commissioning & Environmental Adaptation

• Configure field sets and monitoring zones using SOPAS ET engineering software.
• Enable integrated fog correction parameters when deploying in high-humidity outdoor locations.
• Activate internal heating elements for installations subject to sub-zero temperatures down to –30 °C.
• Perform routine optical window cleaning to prevent dust accumulation errors.

Built-In Diagnostic Capabilities

• Real-time contamination warning via integrated status LEDs and 7-segment display.
• Self-monitoring of internal temperature and laser diode operational status.
• Digital output feedback for error reporting and field evaluation triggers.

Commercial Terms, Fulfillment & Warranty

• Expedited global fulfillment processed within 24 to 48 hours.
• Trusted logistics partners: FedEx, UPS, and DHL.
• Backed by a reliable 12-month operational warranty.

Global PLC Spare HUB's Insight

In outdoor automated guided vehicle (AGV) applications, heavy fog and airborne particulate accumulation often trigger false positive obstructions on optical scanners. Field engineers successfully mitigate this issue by enabling the LMS111-10100 built-in fog correction algorithm and scheduling automated optical lens wiping cycles during shift changes.

Frequently Asked Questions

What factors should guide my selection between 25 Hz and 50 Hz scanning frequencies?

Choose 50 Hz when tracking fast-moving targets where high temporal resolution is critical, and select 25 Hz for standard static zone monitoring applications.

How does target remission factor impact maximum detection distance?

Targets with low reflectivity (3% to 10% remission) reduce the reliable scanning range to approximately 18 meters, while high-reflectivity surfaces extend reach up to 20 meters.

Can this laser scanner be integrated into certified safety-rated machine stops?

No, the sensor is designed for standard automation and field evaluation tasks and does not constitute a certified safety component under machinery safety legislation.

What is the primary cause of intermittent Ethernet communication drops in industrial environments?

Ground loop potentials or unshielded cable runs near heavy inverter drives typically cause packet loss; using industrial-grade shielded CAT5e cables resolves this.

How do I interpret the diagnostic LED indicators on the housing panel?

The 5 status LEDs and 7-segment display provide immediate visual cues regarding operational readiness, Ethernet link status, and optical window contamination levels.
