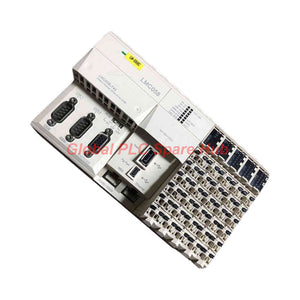

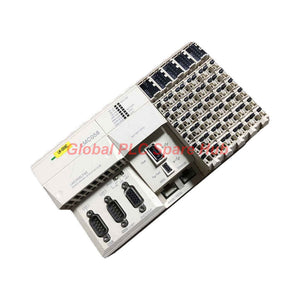

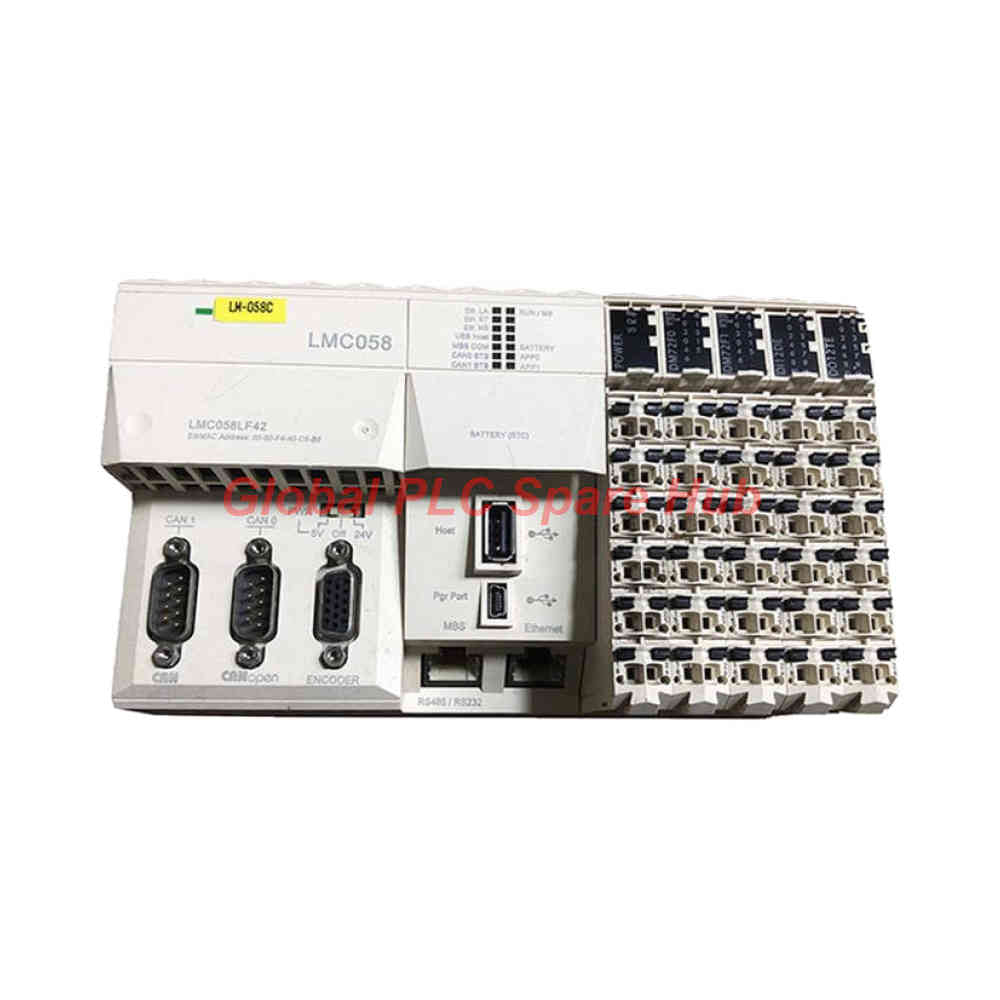

LMC058LF42S0 Schneider Electric Modicon LMC058 Logic Controller

Engineering Blueprint & Core Architecture

The LMC058LF42S0 is a high-performance logic-only motion controller variant engineered by Schneider Electric within the established Modicon LMC058 platform. Built around a dual-core ARM Cortex-A8 processor, this controller delivers an ultra-fast instruction execution speed of 22 ns per Boolean instruction, backed by 128 MB of Flash program memory and 64 MB of RAM. While sharing the robust mechanical framework of its multi-axis counterparts, this 42 I/O variant operates natively as a logic controller (0 active motion axes), making it an ideal high-speed processing core for complex discrete machine architectures programmed via EcoStruxure Machine Expert or SoMachine.

Global PLC Spare HUB's Insight

In brownfield industrial automation systems where legacy control hardware experiences processor wear or sudden electronic failure, replacing a discontinued controller without altering cabinet wiring layouts is critical for minimizing downtime. During a recent emergency restoration for an automated packaging line, our engineering team deployed the LMC058LF42S0 logic controller to replace a faulting unit. Because it maintains the exact 175 x 99 x 85 mm physical footprint, dual CAN ports, and 26 digital input / 16 digital output terminal distribution of the standard LMC058 platform, we completed the swap and restored communication over Modbus TCP/IP within hours, completely avoiding costly mechanical redesigns.

Technical Specification Matrix

• Manufacturer & Brand: Schneider Electric
• Product Series: Modicon LMC058 Automation Platform
• Catalog / Part Number: LMC058LF42S0
• Device Type: Logic-Only Motion Controller Variant (0 Active Axes)
• Processing Core: Dual-core ARM Cortex-A8 (M258 architecture) with 22 ns Boolean execution speed
• Memory Allocation: 128 MB Flash program storage; 64 MB system RAM; 3V CR2477M lithium RTC battery
• Onboard I/O Capacity: 26 digital inputs (10 fast, 12 regular, 4 configurable); 16 digital outputs (12 regular, 4 fast)
• Communication Interfaces: 1x Ethernet RJ45 (10/100BASE-TX), 1x serial RS-232/RS-485, 2x CAN (SUB-D9), 1x incremental encoder input (SUB-D15), 1x USB-B mini, and 1x USB-A host
• Electrical Ratings: 24V DC supply voltage (20.4 to 28.8 V range); 13.03 W power consumption; 0.28 A bus current draw

Mechanical Installation & Wiring Guidelines

• Enclosure Mounting: Mount the controller securely onto a standard symmetrical DIN rail inside a protective NEMA/IP20-rated industrial control enclosure.
• Expansion Limits: Supports up to seven (7) TM5 modular expansion blocks on the right-hand bus interface to scale analog and digital I/O counts.
• Terminal Wiring: Route 24V DC power and sensor/actuator lines carefully to avoid high-voltage AC interference, utilizing shielded cabling for all encoder and serial communication links.
• Thermal Management: Maintain vertical spacing above and below the 175 mm housing body to keep ambient operating temperatures between 0 degrees Celsius and 55 degrees Celsius.

Diagnostic Capabilities & Fault Management

• System LED Diagnostics: Front-panel status indicators display real-time processor health, bus communication errors, I/O states, and battery voltage levels.
• Software Diagnostics: EcoStruxure Machine Expert provides deep diagnostic buffer logging, execution time profiling, and task watchdog monitoring to trace intermittent faults.
• Battery Backed Retain RAM: Ensures critical process variables and real-time clock data are preserved during unexpected power loss events via the internal CR2477M lithium cell.

Industrial Application Sectors

• Packaging Machinery: High-speed cartoning machines, vertical form-fill-seal equipment, and automated wrapping systems.
• Material Handling: Complex sorting conveyors, palletizing cells, and automated storage and retrieval systems (AS/RS).
• Process Skids: Industrial water treatment panels and chemical dosing skids requiring high-speed logic execution and Modbus TCP telemetry.

Warranty & Global Logistics Support

• Warranty Coverage: Fully protected by a comprehensive 12-month warranty covering hardware integrity and operational workmanship.
• Express Shipping Partners: Fast worldwide dispatch handled securely through Tier-1 logistics carriers including FedEx, UPS, and DHL.
• Order Fulfillment: Secure anti-static industrial packaging ensures prompt processing and shipment dispatch within 24-48 hours.

Expert Purchasing Guide & Selection Tips

• Axis Configuration Check: Verify whether your application requires active hardware motion control axes; the LMC058LF42S0 is a logic-only variant with 0 active motion axes and is intended for high-speed PLC logic tasks.
• Lifecycle Awareness: Note that the LMC058 series entered formal manufacturer phase-out in mid-2026, making verified replacement inventory essential for maintaining legacy machine uptime.
• Spare Inventory Strategy: Keeping a pre-configured spare LMC058LF42S0 unit on hand eliminates multi-day downtime risks when servicing legacy Modicon LMC058 installations.

Professional Frequently Asked Questions

Q: Does the LMC058LF42S0 controller support active multi-axis motion control out of the box?
A: No, this specific catalog number is a logic-only variant configured with 0 active motion axes, designed primarily for high-speed discrete PLC logic and communication tasks.

Q: Can standard TM5 expansion modules be attached to this controller?
A: Yes, the unit supports up to seven (7) TM5 modular expansion blocks connected via the integrated right-hand expansion bus.

Q: What programming software is required to configure and upload code to this controller?
A: The controller is programmed using Schneider Electric's EcoStruxure Machine Expert or legacy SoMachine engineering software suites.

Q: What is the purpose of the onboard CR2477M lithium battery?
A: The battery maintains the real-time clock (RTC) data and retains values in internal RAM variables during unpowered states.
