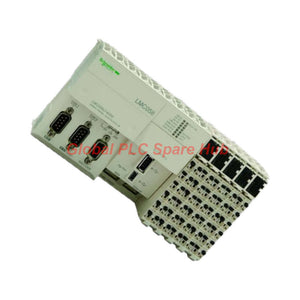

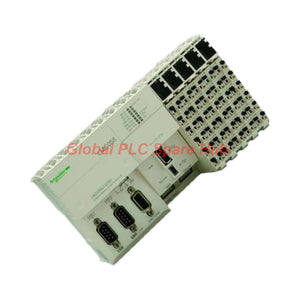

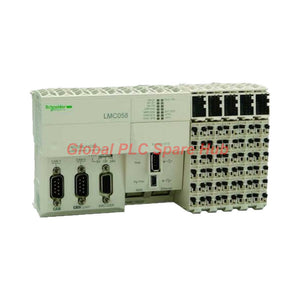

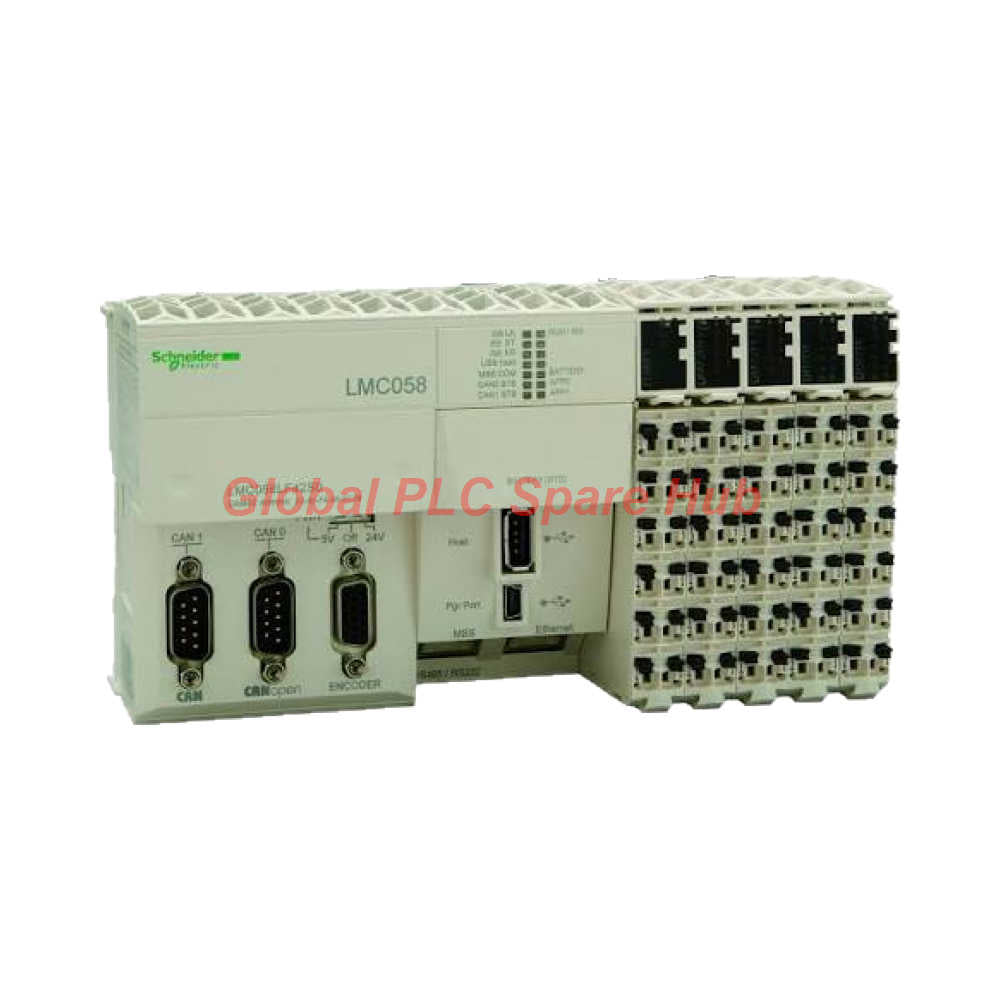

LMC058LF424 Schneider Electric Modicon LMC058 Motion Controller

System Architecture & Processing Core

The LMC058LF424 unit operates as an advanced 4-axis motion controller engineered by Schneider Electric. Part of the robust Modicon LMC058 series, this Motion Controller features a dual-core ARM Cortex-A8 processor executing Boolean instructions at 22 ns, supported by 128 MB Flash program memory and 64 MB RAM.

Comprehensive Technical Parameters

• Brand & Series: Schneider Electric / Modicon LMC058
• Catalog Number: LMC058LF424
• Device Type: Multi-axis Motion Controller
• I/O Capacity: 42 total I/O (26 digital inputs including 10 fast; 16 digital outputs including 4 fast)
• Motion Control: 4 synchronized axes via CANmotion master and CANopen master protocols; 1x incremental encoder input (RS-422)
• Communication Ports: 1x Ethernet RJ45, 1x RS-232/RS-485 serial, 2x CAN, 1x USB-B mini, 1x USB-A
• Expansion Capacity: Supports up to 7 TM5 expansion modules
• Electrical Ratings: 24V DC supply (20.4 to 28.8V range); 0.28 A bus current draw
• Environmental Limits: 0 to 55 degrees Celsius operating temperature; IP20 protection rating
• Physical Dimensions & Weight: 175 x 99 x 85 mm (H x W x D); 0.77 kg

Industrial Applications & Target Machinery

Engineered for high-precision synchronization, the LMC058LF424 controller is deployed extensively in multi-axis packaging lines, electronic assembly robots, high-speed rotary tables, CNC cutting machinery, and complex material handling systems requiring deterministic motion profiles within a Modicon LMC058 framework.

Diagnostic Capabilities & System Monitoring

The controller provides advanced diagnostics through SoMachine and EcoStruxure Machine Expert software environments. Engineers can monitor scan execution times, track CANopen bus health, evaluate real-time axis synchronization errors, and review internal CR2477M lithium battery status for data retention and real-time clock integrity.

Global PLC Spare HUB's Insight

Our automation engineering specialists note that multi-axis motion controllers demand strict grounding practices on encoder and CAN lines to prevent high-frequency noise from corrupting position feedback registers.

Field Experience Example: A multi-axis packaging system experienced intermittent axis drift during high-speed profile execution. Inspecting the shielded RS-422 encoder cables and updating the CANmotion bus termination on the LMC058LF424 controller eliminated packet jitter and restored absolute motion repeatability.

Logistics, Global Fulfillment & Warranty Terms

• Express Freight Partners: Secure international shipping via FedEx, UPS, and DHL.
• Processing Window: Guaranteed order handling and dispatch within 24 to 48 hours.
• Package Contents: One LMC058LF424 motion controller unit with backup battery and technical documentation.
• Warranty Policy: Backed by a comprehensive 12-month operational performance warranty.

Frequently Asked Questions & Expert Buying Guide

Q: What programming software is required to configure this motion controller?

A: The unit is programmed and configured using either SoMachine or EcoStruxure Machine Expert software platforms.

Q: How many synchronized axes can this specific model manage simultaneously?

A: The controller natively supports up to 4 synchronized axes via integrated CANopen and CANmotion master protocols.

Q: What is the purpose of the onboard CR2477M lithium battery?

A: The battery maintains the internal real-time clock and protects retained user data variables during power-down cycles.

Q: What key parameters should I evaluate when selecting a replacement controller?

A: Verify that your application requires exactly 4 axes or fewer, check that your I/O count matches the 42 embedded points, and confirm your engineering software supports the Modicon LMC058 hardware profile.

Q: Why is DIN rail mounting orientation critical for this controller?

A: Vertical mounting on symmetrical DIN rails ensures proper natural convection airflow across the housing, preventing internal thermal accumulation during continuous dual-core processing cycles.
