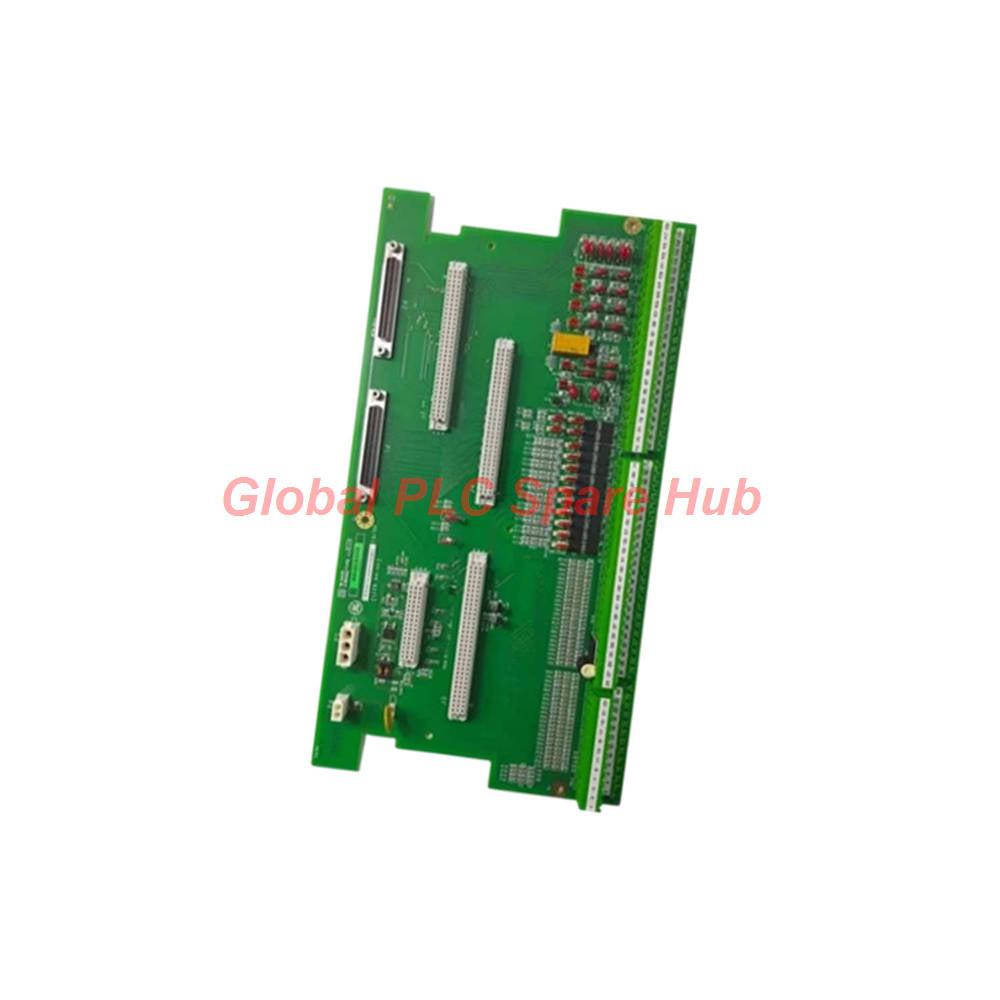

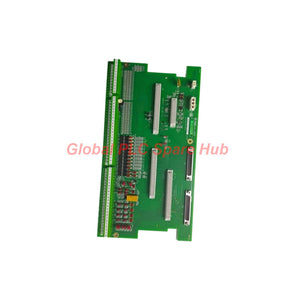

IS400TCASH1AFD GE Mark VIe Core Analog IO Board In-Stock

Product Overview

• The IS400TCASH1AFD functions as a highly specialized Core Analog I/O Terminal Board within General Electric’s advanced Mark VIe Speedtronic series.
• This high-density TCAS hardware interface serves as the direct mechanical and electrical termination layer for matching PCAA processing modules.
• It streamlines field deployment by providing deterministic signal distribution directly from critical turbine sensors and actuators to control software processors.

Engineering Technical Specifications

• Manufacturer: General Electric / GE Energy
• Model Designation: IS400TCASH1AFD
• Control Platform Series: Mark VIe Speedtronic DCS
• Functional Component Type: Core Analog (PCAA) Module Terminal Board (TCAS)
• System Topology Compatibility: Simplex redundancy control loops
• Power Interface: Accepts bulk 28 VDC control power via integrated P5 input plug
• Auxiliary Power Distribution: P4 cross-connect link routes 28V power to local JGPA shield termination hardware
• Interconnect Cable Ports: Dual 68-pin high-density ribbon connectors labeled P1 and P2
• Sub-System Routing Compatibility: Formulates direct signal pathways into BCAA and BCAB board architectures
• Companion Equipment: Links with TCAT terminal blocks, IS230PCAAH1A, and IS230PCAAH1B I/O packs
• Ambient Thermal Limits: Fan-less operation verified from -30 °C to +65 °C
• Hazardous Location Certification: UL/cUL approved for Class 1, Division 2 environments

System Architecture & Device Compatibility

• The IS400TCASH1AFD is custom-engineered to eliminate interposing field instrumentation, cutting down loop impedance and maintenance failure points.
• It functions exclusively within the Ethernet-enabled **Mark VIe** architecture to facilitate real-time sensor communications.
• The assembly is built without integral DIN-rail clips, intended for direct panel standoff assembly inside specialized turbine control enclosures.
• This specific **TCAS** board variant features the rare 1AFD revision matrix for optimized multi-board signal matching.

Deployable Application Scenarios

• Core analog sensor termination inside utility-scale **Mark VIe** gas turbine generator systems
• Wetting and power routing for high-reliability heavy industrial steam turbine governors
• Simplex analog input and output loop management within oil and gas infrastructure control units
• Direct process variable collection in harsh power generation cabinet environments lacking auxiliary cooling

Diagnostic Capabilities & System Resilience

• Onboard line trace routing preserves high signal-to-noise ratios during millivolt-level analog sensor operations.
• Direct integration with PCAA packs allows upstream network diagnostics to locate loose connections across the P1 and P2 68-pin buses.
• The isolated 28 VDC power feed routing acts as a physical barrier to block field ground loops from disrupting processing boards.
• Rugged hardware traces minimize thermal drift when operating at the absolute extremes of the -30°C to 65°C certified window.

Installation & Commissioning Parameters

• Isolate all auxiliary bulk 28V power supplies before connecting any cable harnesses to the board.
• Securely anchor the board assembly onto the panel standoffs inside the cabinet layout before snapping on matching PCAA packs.
• Route the 68-pin terminal cables from the TCAT board directly into ports P1 and P2, ensuring the retention clips lock tight.
• Verify that the shield grounding paths from the local JGPA board tie clean to the master cabinet grounding bar.

Global PLC Spare HUB's Insight

• The GE IS400TCASH1AFD card represents an essential link in the simplex analog control loop strategy for Mark VIe upgrades.
• By removing standard interposing transmitters and combining direct sensor terminations onto a single board, GE effectively eliminates typical signal attenuation vectors.
• Field engineers should note that the AFD revision string incorporates specific trace-width optimization that improves tolerance against high electrical noise when distributed alongside TCAT subsystems.

Procurement & Express Logistics Terms

• Inclusions: One factory-validated IS400TCASH1AFD terminal module packed in a certified static-barrier sleeve.
• Warranty Policy: Fully backed by our 12-month comprehensive component and performance protection plan.
• Express Logistics: Priority worldwide transit handled through trusted FedEx, UPS, and DHL networks.
• Dispatch Commitment: Secure packaging and warehouse dispatch completed within 24 to 48 hours of order processing.

Technical Buying Guide

• Confirm your control loop layout is strictly a simplex configuration; dual or triple redundant loops require a different terminal architecture.
• Verify that your existing field cabling matches the dual 68-pin P1/P2 connector orientation before starting a hot-swap operation.
• Ensure your on-site spare inventory contains the exact AFD suffix combination to avoid hardware matching conflicts with older PCAA pack firmware revisions.

FAQ

Does this specific board include an integrated DIN-rail bracket for mounting?

No, the board architecture does not feature or support standard DIN-rail hardware; it is engineered for direct stand-off panel installation inside the cabinet frame.

What specific role do the dual 68-pin P1 and P2 connectors perform?

The P1 and P2 connectors act as the dedicated routing highways for the interface ribbon cables coming directly from the external TCAT terminal board.

How does this terminal board handle field power distribution for cable shield terminations?

The board accepts bulk 28 VDC control power through the P5 plug and drops it down through the P4 connector directly to feed the local JGPA shielding board.

Can this board be deployed inside dual or triple redundant control loop architectures?

No, this model is built specifically for simplex redundancy control setups and shouldn't be used in multi-channel voting loop applications.

Why does this module have Class 1, Division 2 hazardous area approvals?

The design utilizes solid-state, spark-free interface routing and component layouts that allow safe, non-incendive operation in environments with potential flammable gases.
