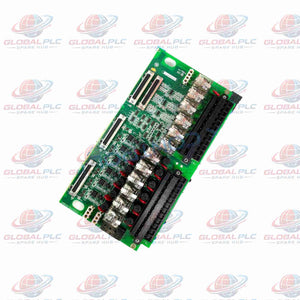

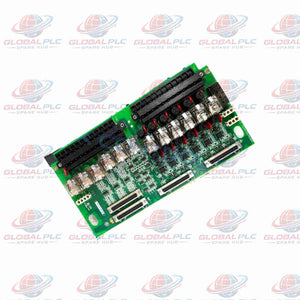

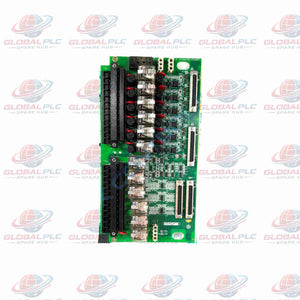

IS230TRLYH1BGG GE Mark VIe Relay Output Coil Sensing Board

Product Overview

The General Electric IS230TRLYH1BGG operates as a Relay Output with Coil Sensing Terminal Board designed for the Mark VIe Speedtronic Control System. Featuring 12 plug-in magnetic relays, this board translates digital control commands into high-power discrete switching. It incorporates coil sensing hardware to monitor relay actuation in real time. Configurable jumper settings allow engineers to tailor output channels for unpowered dry contacts or solenoid power drives, safeguarding industrial process loops from electrical disturbances.

Technical Specifications

• Manufacturer: General Electric (GE)
• Part Number: IS230TRLYH1BGG
• Product Series: Mark VIe Speedtronic Control
• Board Type: Relay Output with Coil Sensing Terminal Board (TRLYH1B)
• Relay Configuration: 12 Plug-In Magnetic Relays (Form-C Contact Outputs)
• Circuit Customization: Relays 1 to 6 Jumper-Configurable (Dry Contacts or Solenoid Drive)
• Isolated Contacts: Relays 7 to 11 (Unpowered Form-C Isolated Contacts)
• Special Application Channel: Relay 12 (Dedicated Form-C for Ignition Transformers/Solenoids)
• Power Source Compatibility: 125 V DC, 115/230 V AC, or 24 V DC with Individual Fuses
• Wiring Terminals: Two 24-Point Barrier Blocks (Accepts up to #12 AWG Wire)
• Operating Temperature Range: -30°C to +60°C (-22°F to +140°F)
• Manufacturing Technology: Surface-Mount Component Architecture
• Country of Origin: United States (USA)

Functional Architecture

Power Distribution & Solenoid Drive

• Routes external field power via JF1 connectors to energize solenoid loads across channels 1 through 6.
• Facilitates daisy-chain power distribution across multi-board setups using secondary JF2 power headers.
• Offers direct power termination at terminal block TB3 when header connectors remain unused.
• Provides dedicated power routing to the JG1 connector to drive the Relay 12 special application load.

Circuit Protection & Contact Isolation

• Includes onboard transient voltage suppression to dampen inductive voltage spikes during contact opening.
• Employs jumper-selectable individual fuses across 24 V DC power branches to prevent cross-channel failure.
• Isolates signal domains on Relays 7 through 11, preventing bus noise cross-talk.

System Compatibility & Machinery Applications

The IS230TRLYH1BGG terminal module integrates into GE Mark VIe control cabinet assemblies. Instrumentation teams install this board across heavy industrial assets:

• Gas turbine fuel gas stop valves and liquid fuel bypass solenoids.
• Steam turbine trip solenoid valve (ETV/MTV) actuation systems.
• Turbine ignition transformer step-up firing control circuits (Relay 12).
• Balance-of-plant auxiliary pump starters and motor control center (MCC) interlocks.

Diagnostic Capabilities & Field Testing

• Real-Time Coil State Feedback: Onboard sensing circuits continuously monitor coil voltage integrity, flagging relay coil open circuits or driver transistor failures to the main controller.
• Individual Loop Verification: Allows field personnel to perform loop energization tests on isolated channels before activating primary solenoid buses.
• Leakage Current Mitigation: Removing channel fuses eliminates RC network suppression leakage on isolated contact lines, guaranteeing true open-circuit conditions.

Global PLC Spare HUB's Insight

During automated turbine startups, coil feedback validation prevents catastrophic field failures. On a recent commissioning project at a combined-cycle facility, operators experienced interlock faults on a trip solenoid driven by an IS230TRLYH1BGG board. Diagnostic logs pointed to a channel fault, but physical testing revealed that field technicians had left factory-shipped JP1–JP6 jumpers off while wiring external 24 V DC power. Without these jumpers installed, no drive voltage reached the output contacts despite the internal relay firing correctly. Always verify jumper placement against your cabinet loop drawing, and ensure unused channels have their fuses pulled to prevent unwanted suppression leakage back onto sensitive signal lines.

Purchasing Guide

• Confirm Jumper Accessories: Check that the loose JP1–JP6 jumper kit included in the factory packaging is preserved before installing the replacement board.
• Inspect Field Wiring Size: Ensure field cable lugs match the 24-point screw barrier blocks and stay within the #12 AWG wire limit.
• Verify Cabinet Power Rails: Measure your 125 V DC or 24 V DC bus voltages under load prior to energizing solenoids to prevent coil chattering.

Package Contents & Logistics

• 1 x General Electric IS230TRLYH1BGG Relay Output Terminal Board.
• 1 x Factory Jumper Kit (JP1–JP6) in protective bag.
• Anti-static storage enclosure.
• Standard 12-Month Replacement Warranty.
• Express Global Dispatch: Ships worldwide within 24 to 48 hours via FedEx, UPS, or DHL.

Frequently Asked Questions (FAQ)

Q: What is the main purpose of the coil sensing feature on the IS230TRLYH1BGG board?

A: Coil sensing monitors the physical voltage state across each relay coil, allowing the Mark VIe controller to verify that a relay has responded to a software command.

Q: How are Relays 1 through 6 reconfigured between dry contacts and solenoid drives?

A: Reconfiguration is achieved by installing or removing the corresponding hardware jumpers (JP1 through JP6) to either supply field power to the contact or keep it unpowered.

Q: Why should fuses be removed when operating channels as unpowered isolated contacts?

A: Removing the fuses disconnects the onboard suppression network from the power bus, eliminating leakage currents that could interfere with high-impedance monitoring inputs.

Q: How does the daisy-chain power feature work for powering multiple TRLY boards?

A: Solenoid power is wired into the primary JF1 header of the first board and routed out through the JF2 header directly into the JF1 header of the adjacent TRLY module.

Q: What delivery timeframes can be expected for urgent plant outages?

A: Orders process and ship within 24 to 48 hours using global express carriers including FedEx, UPS, and DHL.
