IS215UCVDH7AM GE Mark VI Input Module | Turbine Control

Advanced Turbine Control: IS215UCVDH7AM Architecture

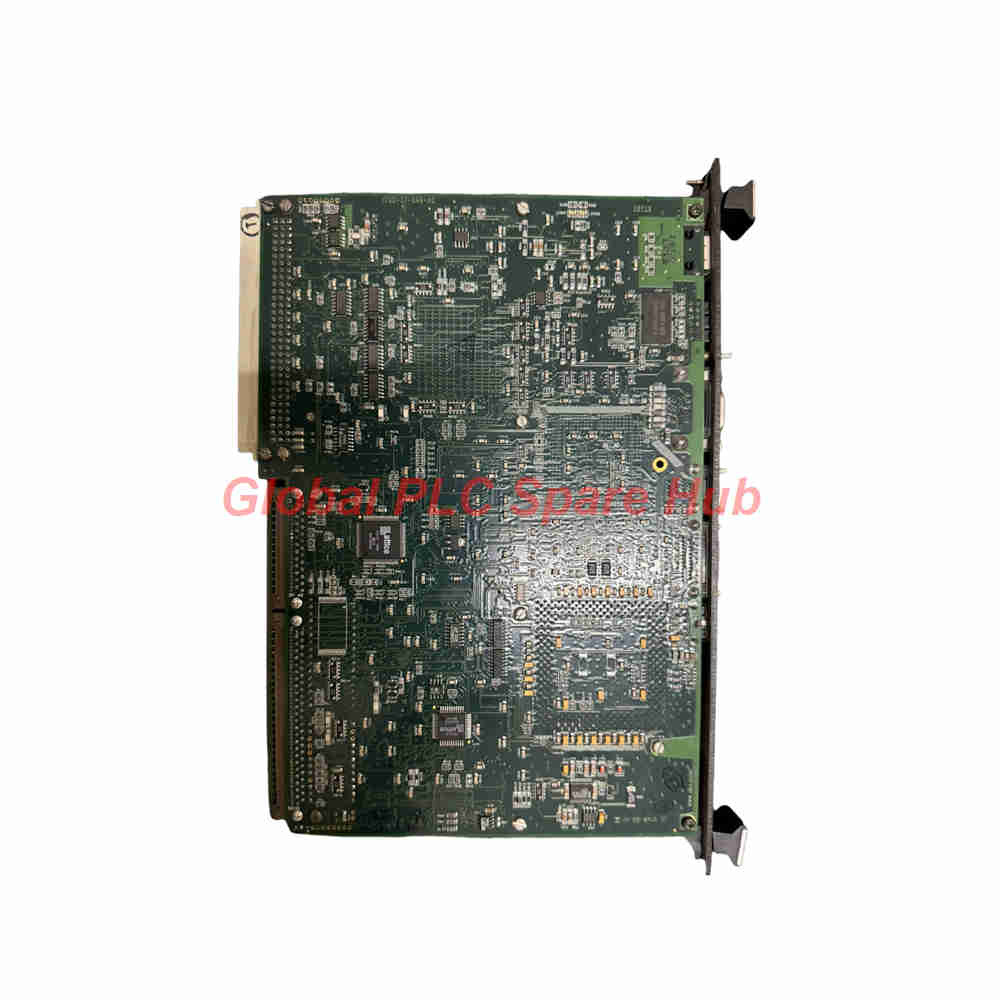

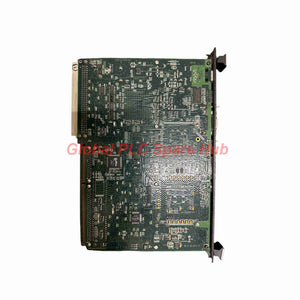

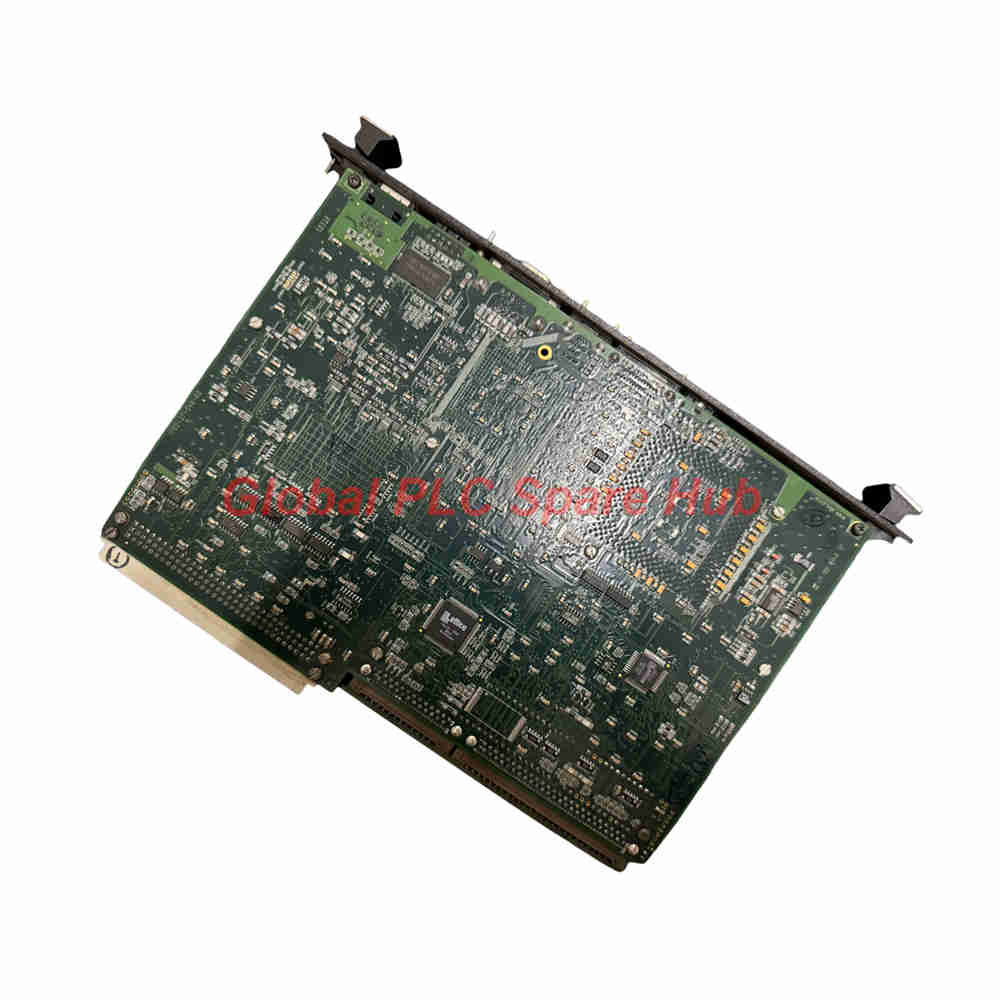

The IS215UCVDH7AM is a high-performance Input Module Board (UCVD) specifically designed for the General Electric Mark VI Speedtronic Series. As a refined iteration of the base IS215UCVDH7 model, this board incorporates critical functional revisions (A and M) to enhance operational reliability. Engineered by GE Industrial Systems, the module is reinforced with high-grade conformal coating to withstand harsh, corrosive, or high-humidity environments typical of turbine control rooms.

Technical Specifications and Connectivity

• Brand/Series: GE Mark VI Speedtronic
• Model Number: IS215UCVDH7AM
• Module Type: UCVD Input Module Board
• Diagnostics: Front-faceplate LED array (ACTIVE, BMAS, SLOT1, ENET, SYS, BSLV)
• Error Monitoring: Dedicated 10-point H/L LED matrix for real-time Runtime Error Code display
• Communication Ports: Ethernet (UDH), ISBus Drive LAN, COM1/COM2 (RS-232C)
• Protected Assembly: Chemically applied conformal protection against environmental degradation
• Engineering Revision: Functional Revisions A and M integration

Diagnostic Capability and System Intelligence

The IS215UCVDH7AM excels in system self-monitoring. The integrated LED diagnostic suite provides immediate visual feedback, allowing maintenance teams to troubleshoot communication status and slot activity without interrupting primary control functions. The 10-point error code display simplifies the identification of runtime faults, drastically reducing Mean Time to Repair (MTTR) during critical maintenance cycles.

Global PLC Spare HUB Insight

Global PLC Spare HUB recognizes the IS215UCVDH7AM as a vital link in the Unit Data Highway (UDH) architecture. It is best deployed in power generation and large-scale industrial turbine applications where high-speed communication and environmental resilience are paramount. Our experts recommend this unit specifically for replacement programs where existing Mark VI turbine controls demand verified hardware compatibility and robust signal isolation.

Shipping, Support, and Warranty

• Logistics: Secure worldwide shipping through FedEx, UPS, and DHL.
• Dispatch: Expedited processing with 24-48 hour lead times.
• Quality Assurance: Backed by a comprehensive 12-month quality warranty.
• Package Contents: Includes the verified IS215UCVDH7AM PCB with documentation.

Frequently Asked Questions

What is the purpose of the conformal coating on this module?
The conformal coating acts as a protective shield against moisture, dust, and corrosive airborne particulates, ensuring the electronic components maintain integrity even in non-climate-controlled industrial settings.

Can the Monitor, Mouse, and Keyboard ports be used for standard peripheral connection?
No. These ports are reserved exclusively for GE technician diagnostics and factory-level service procedures. Connecting non-approved peripherals may disrupt the turbine control logic.

How do I interpret the 10-point H or L LED Runtime Error display?
These LEDs provide binary or status-coded error data. If these lights indicate an error, cross-reference the sequence against your specific Mark VI system documentation to identify the exact subsystem fault code.

Why is this version (Revision AM) preferred over the parent board (IS215UCVDH7)?
Revision AM incorporates specific functional improvements and reliability upgrades developed by GE to handle evolving communication demands, making it a more stable choice for legacy control system modernizations.

Selection Guide: When should I choose the IS215UCVDH7AM?
Choose this module when you require a drop-in replacement for a Mark VI turbine control system that utilizes UDH communication. Ensure your existing system software is compatible with the AM functional revision before procurement.
