IS200VTURH1BAB GE Mark VI VTUR Primary Turbine Protection Module

Global PLC Spare HUB's Insight

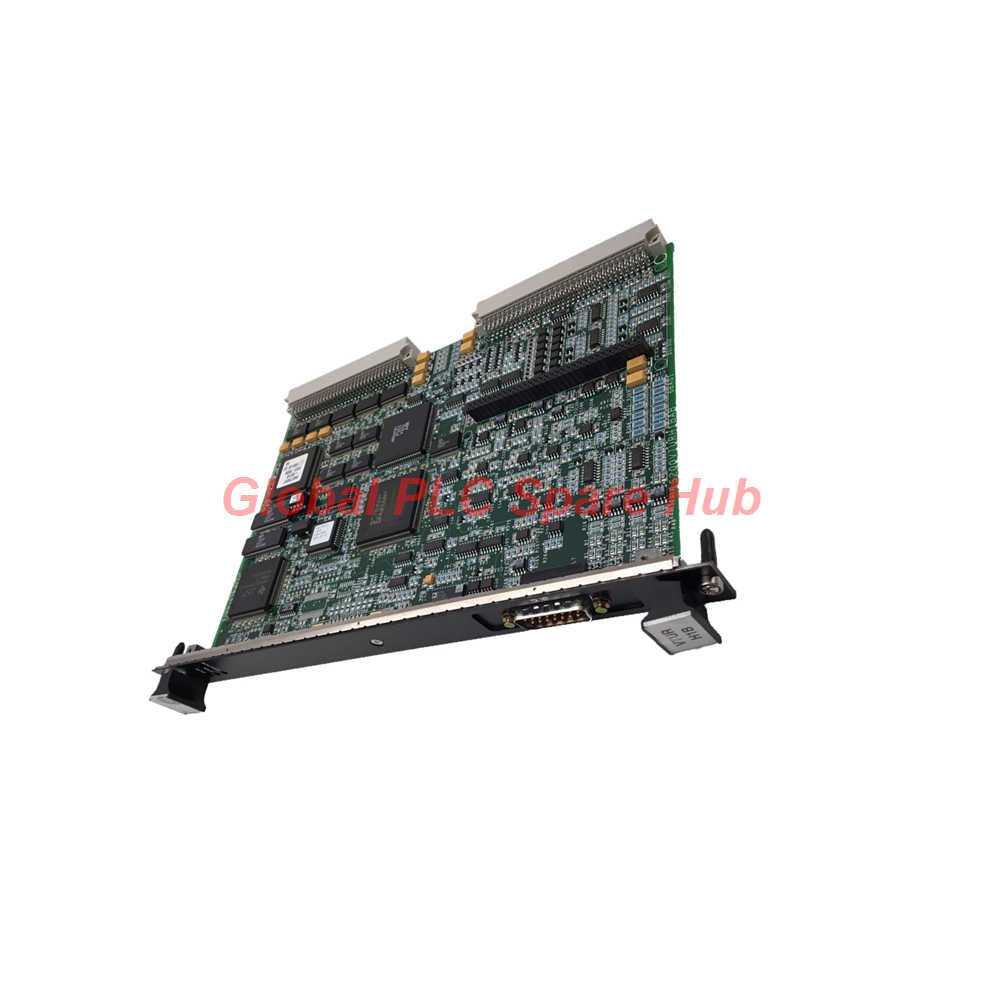

The GE Mark VI IS200VTURH1BAB is a highly specialized primary turbine protection and sensor interface sub-system. It operates as a VME bus-compliant card within standard Speedtronic control racks. Unlike generic I/O modules, the IS200VTURH1BAB features independent frequency processing channels capable of capturing low-amplitude pulse signals from passive magnetic pickups down to 2 Hz. Its physical layer incorporates heavy conformal coating to mitigate conductive particulate bridging, a common failure mode in power generation environments. The integration of high-voltage flame detector power paths alongside low-voltage CMOS logic demonstrates advanced multi-layer PCB isolation engineering.

Target Equipment Compatibility

This primary protection module integrates directly with the following host systems:

• GE Mark VI Speedtronic gas and steam turbine control panels.
• VMEbus control rack enclosures utilizing Group 1 backplane distributions.
• TRPG terminal boards configured for industrial gas turbine emergency trip systems.
• TRPS and TRPL terminal interfaces engineered for steam turbine execution.
• Sub-system architectures requiring automatic generator synchronization line matching.

Engineering Product Overview

The GE IS200VTURH1BAB serves as the primary VTUR functional assembly within the Mark VI Speedtronic series. It processes critical turbine feedback parameters including vibration, speed, and flame presence. The module supports both Simplex configuration and Triple Modular Redundant (TMR) architectures for high-reliability deployments. It features a single-slot form factor with a rugged front faceplate hosting a dedicated J5 cable connector. Three surface-mounted LEDs provide instant operational feedback regarding board hardware health.

Technical Specifications

• Brand: General Electric (GE)
• Model Number: IS200VTURH1BAB
• Product Series: Mark VI Speedtronic
• Functional Acronym: VTUR
• Core Classification: Vibration Transducer Interface & Primary Protection Card
• Board Voltage Rating: 125V DC nominal operational threshold
• Common Mode Range: Plus or minus 5V DC maximum tolerance limits
• Number of Analog Inputs: 6 voltage-mode input channels
• Speed Pulse Inputs: 4 passive magnetic pulse rate interface channels
• Frequency Response Range: 2 Hz to 20,000 Hz processing capability
• Speed Sensitivity: Resolves turning gear rotation down to 2 RPM on 60-tooth wheels
• Flame Detector Support: Interfaces with 8 Geiger-Mueller sensors via TRPG
• Flame Sensor Power: Supports external supply nodes of 335V DC at 0.5 mA
• Relay Drive Capacity: Controls 3 primary overspeed trip relays on terminal boards
• Relay Array Configuration: Employs 9 magnetic relays for TMR systems or 3 for Simplex
• Internal Component Array: Built with over sixty integrated circuits and 13 discrete transistors
• Backplane Interface: Dual multi-pin backplane connectors for VME bus communication
• Daughterboard Interface: Integrated multi-position plug for auxiliary board stacking
• Circuit Board Codes: Stamped Type 6, 94V-0 flammability rated, and 6BA01 manufacturing identifiers
• Physical Dimensions: 11.00 inches height by 9.00 inches depth by 3.00 inches width
• Operating Temperature: 0 to 60 degrees Celsius horizontal ambient range
• Revision History: 3 distinct hardware revisions backward-compatible with the first two iterations
• Manufacturing Origin: United States of America
• Core Documentation Reference: GEH-6421I system instruction manual

Diagnostics & Real-Time Monitoring Capabilities

• Front-panel Light Emitting Diodes track critical hardware and communication faults instantly.
• Real-time tracking registers monitor discrete status signals from all primary trip relay positions.
• Internal diagnostic circuits verify synchronizing relay coil activation and ETD power availability.
• Shaft voltage and casing current levels generate predictive alarms prior to insulation breakdown.
• Status flags monitor the continuity of the high-voltage Geiger-Mueller flame detector current loops.

Hardware Installation Guidelines

• Isolate all power distribution blocks feeding the destination VME control rack before installation.
• Slide the board along the card guides into the assigned rack slot to prevent pin misalignment.
• Press the card firmly to seat both backplane connectors into the rack motherboard.
• Secure the single-slot front panel to the rack frame using the top and bottom retaining fasteners.
• Connect the pre-formed field wiring harness directly to the front J5 interface plug.
• Ground the rack frame according to the GEH-6421I installation manual guidelines to prevent ground loops.

Maintenance & Field Troubleshooting

• Removable front-panel connector configuration allows rapid card substitution without rewiring field terminals.
• Smooth faceplate surfaces resist dust accumulation and permit easy wiping during scheduled outages.
• Internal fault logs accessible via the Centralized HMI isolate card failures from field sensor faults.
• Front diagnostic LEDs provide immediate indication of fatal functional errors without test equipment.

Procurement & Global Logistics

• Package Contents: One factory-verified GE IS200VTURH1BAB interface module inside static-shielded packaging.
• Dispatch Lead Time: Complete shipment handling finished within 24 to 48 hours of order verification.
• Preferred Express Carriers: Global distribution managed via expedited FedEx, UPS, and DHL cargo channels.
• Warranty Framework: Protected by a comprehensive 12-month industrial operations warranty policy.

Procurement & Selection Guide

• Match the IS200VTURH1BAB model number against your existing system configuration block to ensure group alignment.
• Verify your turbine uses passive magnetic speed pickups, as active sensors require a different card configuration.
• Confirm your control architecture matches the 3-revision backward compatibility spectrum of your running firmware.
• Account for the specialized 20-pin front connector or J5 cabling interface dependencies when updating legacy panels.

Frequently Asked Questions

How does the module handle zero-speed detection on low-speed turning gears?

The processing circuit measures pulse frequencies down to 2 Hz from a standard sixty-tooth wheel, translating into a 2 RPM turning gear threshold.

Can this specific card revision be swapped directly into an older Group 2 VME rack configuration?

No, this module is specifically designated for Group 1 configurations and requires matching backplane bus pinning and power delivery layout.

What happens if the external 335V DC flame detector power supply experiences a voltage drop?

The module detects the drop through its internal current loop diagnostics, flags a loop error, and sends a system alarm to the HMI.

Why does the card have an integrated multi-position plug on the surface of the PCB?

This header layout supports the attachment of a specialized daughterboard to extend processing capabilities without occupying another rack slot.

How do I isolate whether an overspeed trip signal came from the VTUR card or the VPRO module?

You must check the centralized HMI diagnostic alarm log, which references the individual hardware status registers of both components.
