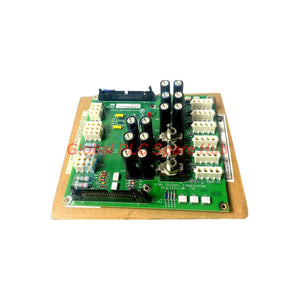

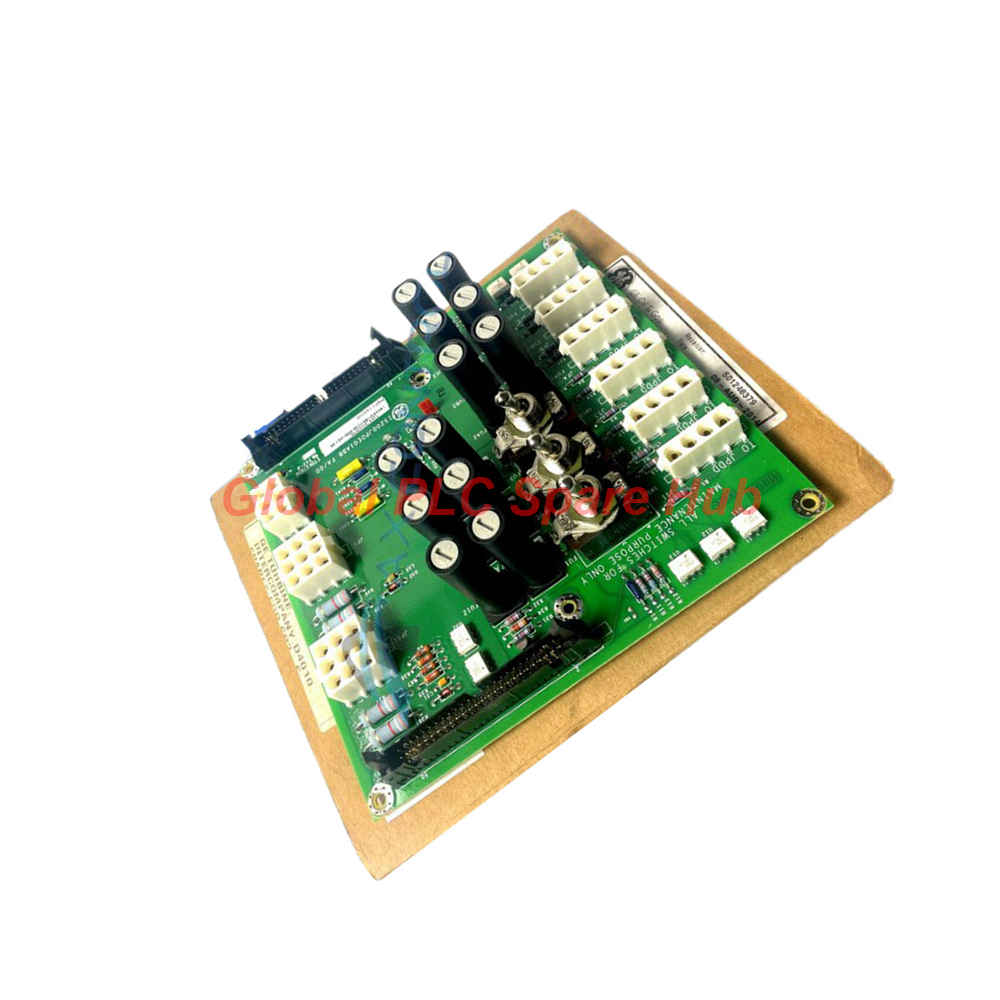

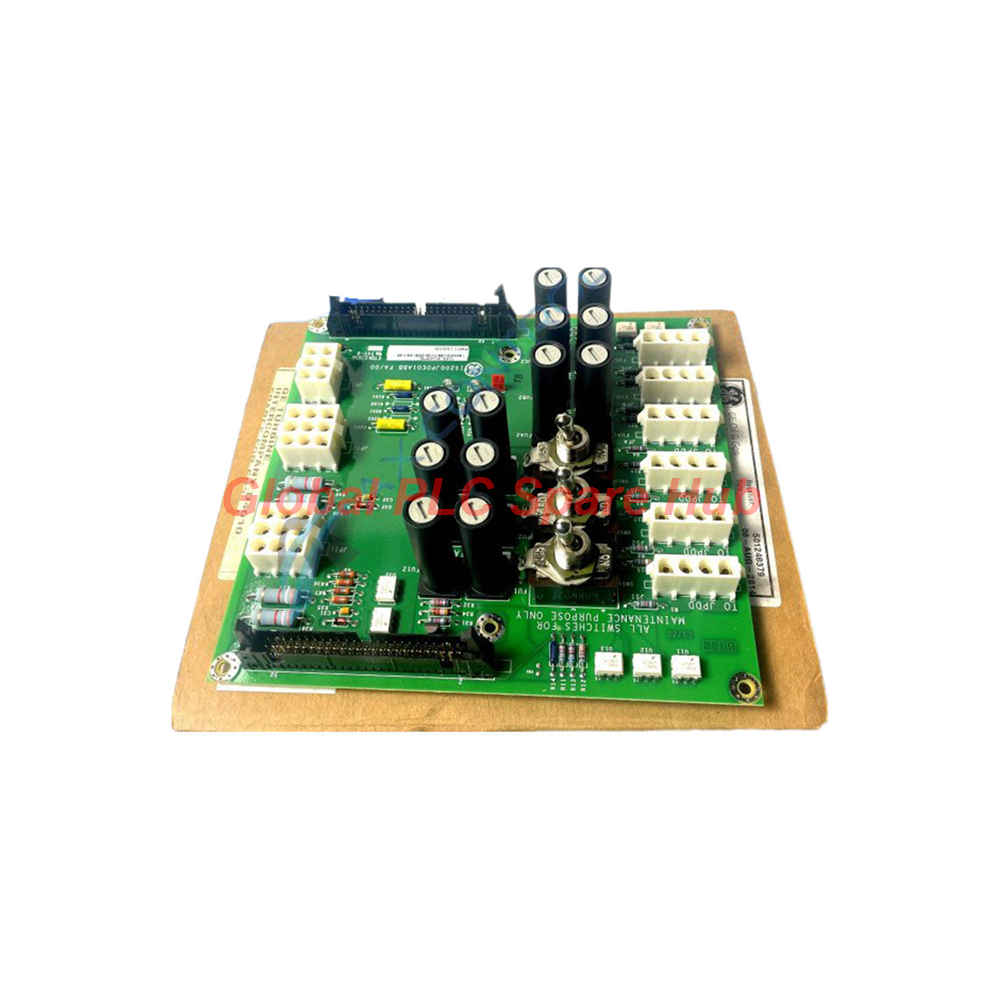

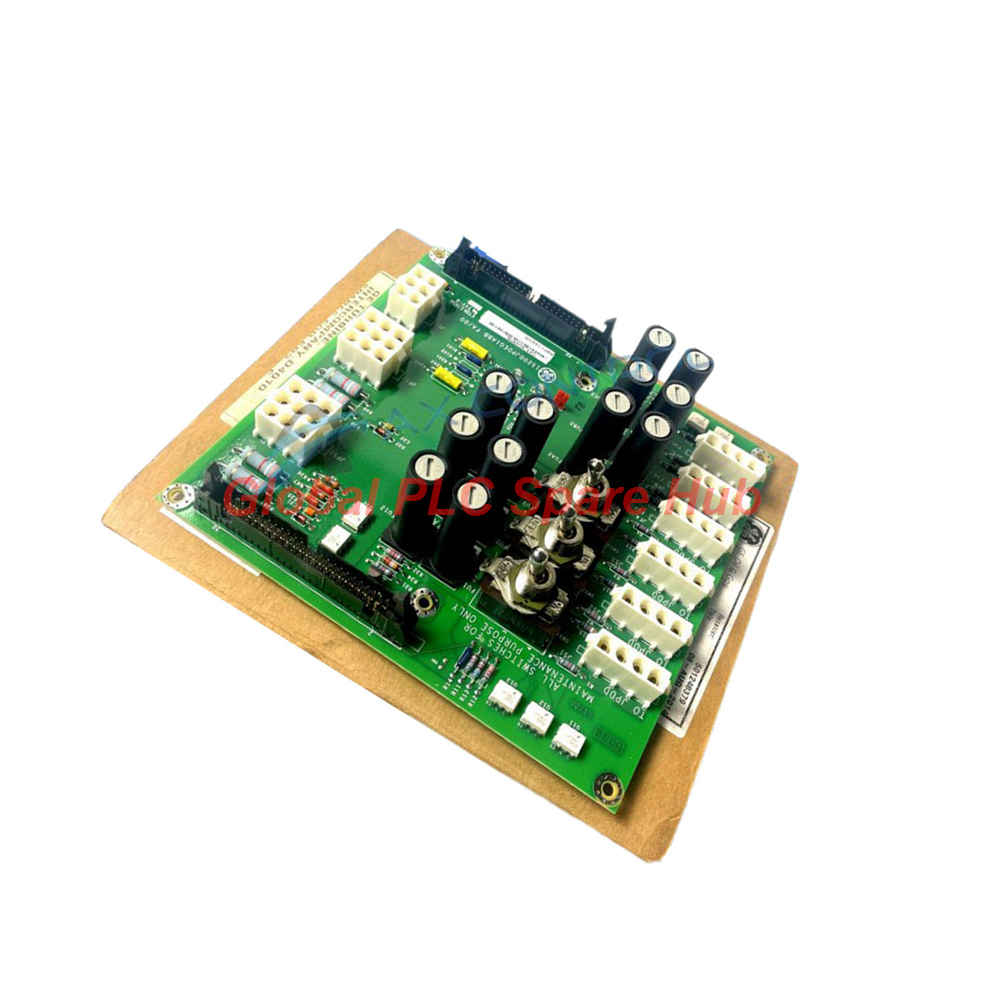

IS200JPDEG1AAA Power Distribution Module for GE Mark VIe Control Systems

Engineering Profile: IS200JPDEG1AAA

The IS200JPDEG1AAA is a mission-critical DC Power Distribution Module designed for the GE Mark VIe turbine control architecture. As an upgraded functional revision of the base board, this module centralizes battery voltage distribution to terminal boards and downstream loads. Engineered for reliability, it includes integrated protective coating to withstand industrial ambient conditions.

Technical Specifications

• Manufacturer: General Electric (GE Energy)
• Series: Mark VIe
• Module Type: DC Battery Distribution Board
• Input Protection: 30A Input Filter and DC Circuit Breaker
• Diagnostic Connectivity: Dual 50-pin (P1, P2) interfaces for PPDA I/O Pack communication
• Power Input: Dual 9-pin Mate-n-lock connectors
• Mounting Requirement: PDM-style drive assembly with integrated metal chassis bracket
• Safety Features: Transient voltage suppression via resistors, transistors, and diodes

Diagnostic Capabilities & Integration

This module provides bidirectional feedback signal transmission, allowing the PPDA I/O pack to monitor real-time power health. The inclusion of maintenance switches allows technicians to isolate circuits during diagnostic troubleshooting without disconnecting the entire PDM assembly. Grounding is facilitated directly through the mounting bracket, ensuring electromagnetic compatibility in high-interference environments.

Deployment Insights

• Primary Application: Gas and steam turbine power generation, mechanical drive control.
• Compatibility: Fully compatible with Mark VIe PDM cabinets and related distribution architectures.
• Global PLC Spare HUB's Insight: We recognize this board as the primary "gatekeeper" for DC health in Mark VIe systems. Our engineering team recommends this unit for legacy system modernizations where power supply stability is the primary failure variable.

Logistics & Quality Assurance

• Shipping Carriers: Secure global delivery via FedEx, UPS, and DHL.
• Lead Time: 24–48 hour dispatch window.
• Warranty: 12-month performance guarantee on all units.
• Package Contents: IS200JPDEG1AAA module, grounding hardware, and technical compliance certification.

Expert Frequently Asked Questions

What are the critical indicators of an IS200JPDEG1AAA power failure?

Look for triggered status lights on the associated PPDA I/O pack. Voltage drop across the 30A input filter or tripped DC circuit breakers are standard indicators of a localized short or component degradation.

Can I swap this module while the system is energized?

This module is intended for use in an industrial PDM assembly. Always adhere to your facility’s Lock-Out/Tag-Out (LOTO) procedures before removing or installing the board to prevent arc flash or control system damage.

Why is the 30A input filter so important?

Turbine environments often contain high-frequency switching noise. The filter prevents this noise from entering the control logic, which protects the stability of your sensor readings.

Are there specific tools needed for mounting this board?

The board uses a standard PDM-style metal bracket. Ensure you have a torque-calibrated screwdriver to secure the grounding terminal, as loose connections here are the leading cause of signal noise.

How should I choose between revision levels for my PDM?

Always check your original cabinet BOM (Bill of Materials). The IS200JPDEG1AAA is a revision-A model; it is generally backward compatible with older non-A versions, but verify the PDM physical clearance first to ensure the mounting brackets align correctly.
