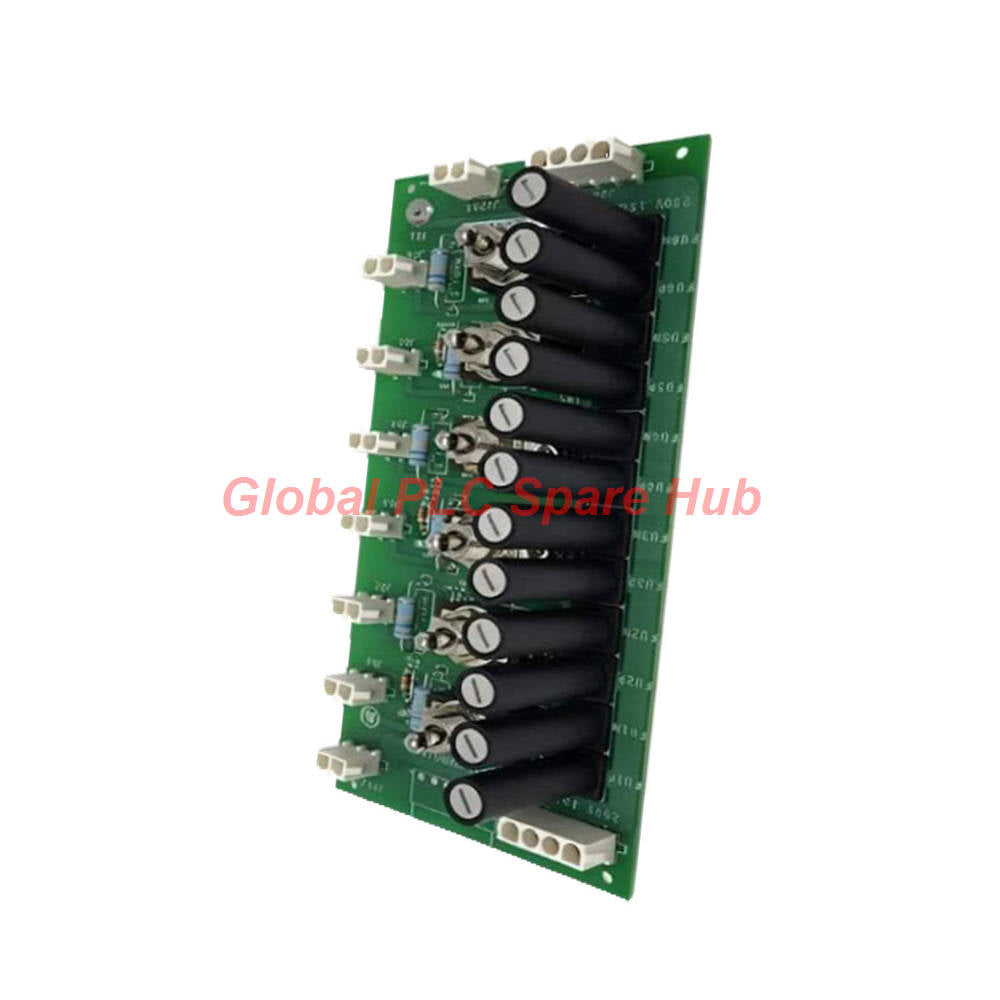

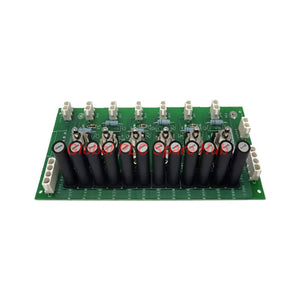

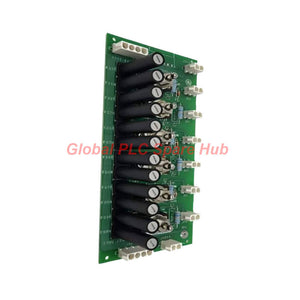

IS200JPDDG1A GE Mark VI DC Power Board Distribution Module

Product Overview

• The IS200JPDDG1A serves as a specialized DC power distribution board engineered within the General Electric Speedtronic Mark VI and Mark VIe turbine control architectures.
• This functional JPDD module splits a single ungrounded DC power source into six isolated, fuse-protected parallel branch loads.
• It provides critical voltage routing for high-reliability industrial control loops, wetting contacts, and external relay logic systems.

Engineering Technical Specifications

• Manufacturer: General Electric (GE)
• Model Designation: IS200JPDDG1A
• System Series: Mark VI / Mark VIe Speedtronic Control
• Functional Classification: DC Power Distribution and Protection Board (JPDD)
• Nominal Input Configurations: 24 VDC, 48 VDC, or 125 VDC (single-voltage level usage only)
• Branch Output Circuits: 6 independent ungrounded loops
• Circuit Protection Components: 12 total fuse positions (2 fuses per isolated circuit path)
• Recommended Fuse Class: Bussmann ABC series (0.25 inch x 1.25 inch, up to 15A max, 250V)
• Physical Isolation Hardware: 6 onboard dual-contact toggle switches
• Visual Telemetry Indicators: 6 active power-status green LED lamps
• Physical Dimensions: 23.495 cm Height x 10.795 cm Width
• Mounting Infrastructure: Vertical DIN-rail plastic holder assembly
• Ground Interface: Dedicated TB1 conduction terminal sensor for metal switch frame grounding
• Operating Thermal Range: -30 °C to +65 °C ambient threshold

Hardware Topology & Connectivity

• The IS200JPDDG1A architecture features seven 2-position plugs arrayed along the primary board edge.
• Connectors JD1 through JD6 function as the isolated branch line outputs mapped to individual switches.
• For 125 VDC deployment, the module integrates dual 2-pin Mate-N-Lok plugs to enable power daisy-chaining between parallel JPDD modules.
• Low-voltage configurations (24V/48V DC) utilize two 4-pin Mate-N-Lok ports, arranging pin pairs in parallel to boost current distribution capacity.

Device Compatibility & Target Equipment

• Mark VI Speedtronic Central Control Module power routing substructures
• Mark VIe distributed control system I/O cabinet accessories
• Heavy-duty gas and steam turbine main breaker command panels
• GE exciter drive distribution cabinets requiring isolated wetting voltages

Advanced Diagnostics & Protection Architecture

• Dual-fuse isolation on both legs of the DC path enables completely safe operation with ungrounded, floating power supplies.
• Real-time voltage monitoring via 6 low-draw green lamps provides immediate visual detection of blown branch fuses.
• Integrated TB1 ground plane prevents chassis-to-switch voltage tracking during manual field troubleshooting operations.
• Absence of software-configurable jumpers eliminates field programming human error during high-stress maintenance windows.

Deployable Application Scenarios

• Wetting voltage distribution for remote digital input contact arrays
• Isolated pilot solenoid valve power management in hazardous turbine areas
• Multi-channel protective relay trip circuit branching
• Sub-panel DC bus segregation inside turbine control compartments

Installation & System Commissioning Rules

• Mount the plastic carrier board housing securely onto a vertical DIN rail structure.
• Wire a low-impedance copper ground lead from the TB1 terminal directly to the main system earth ground.
• Confirm that neither side of the incoming DC distribution bus is tied to ground prior to energy application.
• Never mix different nominal DC voltages simultaneously across the input connector terminal blocks.

Global PLC Spare HUB's Insight

• From an engineering perspective, the GE IS200JPDDG1A is an exceptionally robust piece of analog engineering, deliberately isolated from the PPDA feedback loop network to ensure independent local power availability.
• By providing a clean mechanical break across both legs of the floating DC bus via the heavy-duty toggle switches, it allows control technicians to hot-swap field components safely without dropping power to adjacent critical I/O channels.
• Its thick circuit trace construction minimizes thermal footprints across high ambient operational limits.

Procurement & Logistics Terms

• Package Inclusions: One factory-sealed IS200JPDDG1A power board enclosed in static-shielding film.
• Warranty Terms: 12-month comprehensive performance and functional warranty protection.
• Global Logistics Carriers: Rapid express transit via FedEx, UPS, and DHL networks.
• Dispatch Timeline: Standard inventory processing ensures warehouse dispatch within 24 to 48 hours.

Technical Buying Guide

• Check the physical dimensions (23.495 cm x 10.795 cm) to guarantee rail space in older MKVI cabinets.
• Calculate your aggregate load to select optimal Bussmann ABC fuses under the 15A system ceiling.
• Determine if your application feeds I/O packs directly; if so, source an alternate power module as this board does not interface with PPDA communications cables.

FAQ

Why does this module feature two fuses for each single branch circuit output loop?

The dual-fuse architecture isolates both the positive and negative legs of the DC path, ensuring total circuit protection when using floating, ungrounded power systems typical in turbine installations.

What happens if I attempt to input both 24 VDC and 125 VDC to separate terminal ports simultaneously?

Mixing voltage levels will cause catastrophic short circuits across the input busses; the module is strictly designed to distribute a single uniform nominal voltage tier at a time.

Can this board be monitored remotely via the Mark VIe control room HSI workstation?

No, this board does not connect to the PPDA feedback cable system, meaning all diagnostics are performed locally on the plant floor using the onboard status lights.

What is the purpose of connecting the TB1 terminal to the cabinet earth ground?

The TB1 terminal serves as the mechanical grounding path for the external metal bodies of the six toggle switches, protecting field engineers from shock hazards during operation.

How should the input connections be adapted when switching a cabinet from 125 VDC to 24 VDC?

You must shift the input wiring away from the 2-pin Mate-N-Lok connections and utilize the 4-pin Mate-N-Lok ports to run parallel pin pairs for the necessary increased current capacity.
