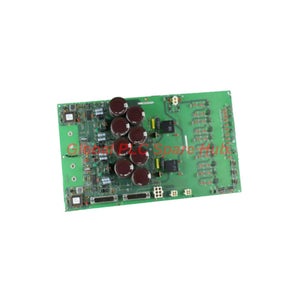

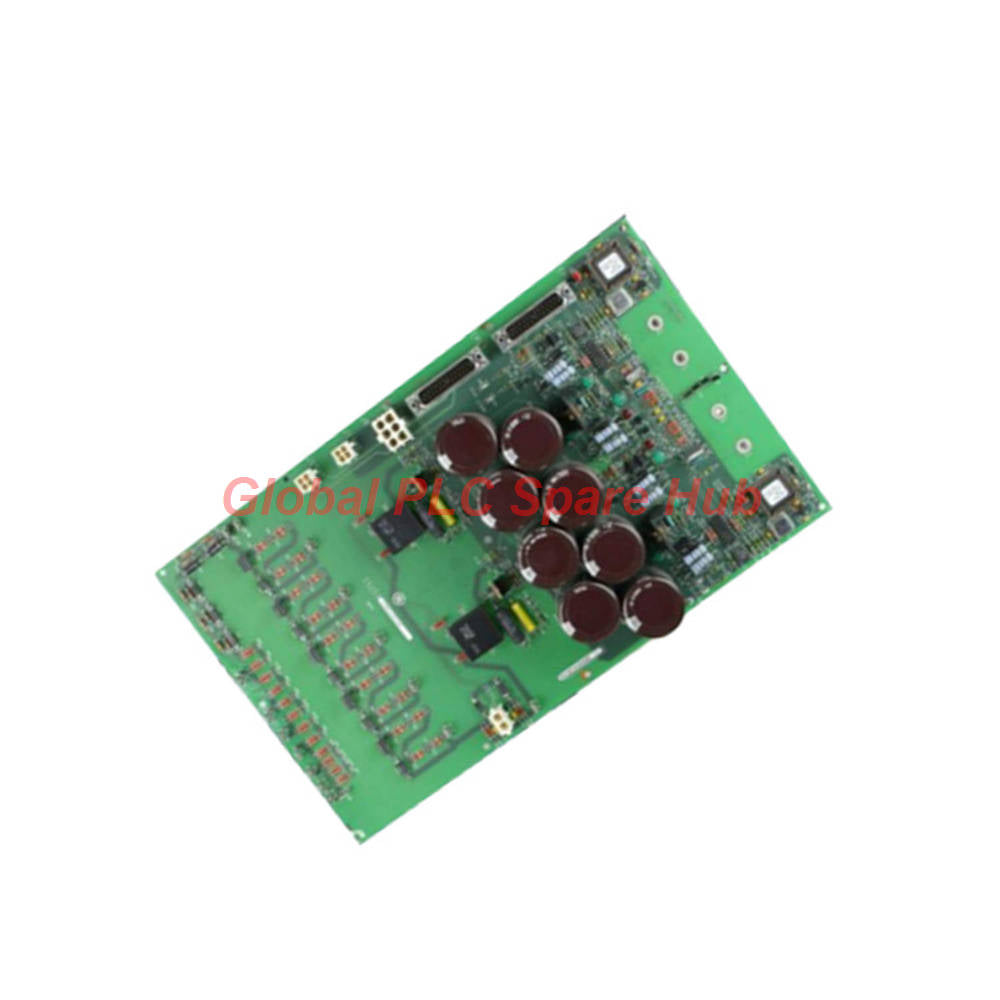

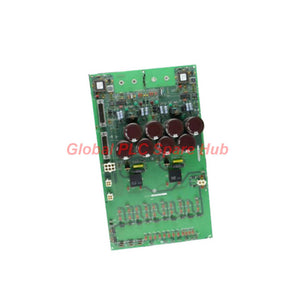

IS200EDEXG1ADA GE EX2100 Exciter De-Excitation Module

Product Overview

The IS200EDEXG1ADA functions as the mission-critical core of the EX2100 Excitation Control System. Engineered by General Electric, this De-Excitation Module Main Board manages energy dissipation during generator shutdown sequences. It integrates high-precision conduction sensing with robust voltage retention circuitry to maintain operational integrity. By facilitating controlled SCR firing, the module protects vital infrastructure from field energy surges. This component serves as an essential upgrade for industrial excitation systems requiring high-reliability energy management.

Technical Specifications

• Manufacturer: General Electric (GE)
• Part Number: IS200EDEXG1ADA
• Series: EX2100
• Product Type: De-Excitation Module Main Board (Group 1)
• Input Power: 24 VDC (derived from EPSM module)
• Operational Output: 125 VDC voltage conversion
• Measurement Capabilities: High-speed field current discharge sensing via Hall effect sensors
• Frequency Response: Optimized for millisecond-level transient response during breaker trips
• Sensitivity: Precision detection for SCR firing thresholds
• Temperature Range: Industrial rated for standard control room environments
• Environmental Tolerance: Resistant to standard industrial vibrations and thermal fluctuations
• Compatibility: Designed for full integration with EXTB control modules
• Certifications: Manufactured to GE Industrial Systems quality standards

Installation and Maintenance

• Ensure the EX2100 system remains de-energized before board insertion.
• Secure the module into the designated rack slot using standard mounting hardware.
• Verify all harness connections between the EPSM, EXTB, and IS200EDEXG1ADA.
• Perform a logic continuity check after physical installation to confirm conduction sensing feedback.
• Routine maintenance includes inspecting electrolytic capacitors for physical deformation.
• Utilize the onboard diagnostic LEDs to confirm proper firing logic state.

Reliability and Shipping

• Warranty: Full 12-month performance warranty included.
• Dispatch Time: Orders process and ship within 24–48 hours.
• Logistics: Expedited shipping provided via FedEx, UPS, and DHL.
• Packaging: Secure anti-static protective packaging ensures safe transit.

Typical Application and Diagnostics

The IS200EDEXG1ADA is primarily utilized in power generation facilities, specifically within turbine excitation control cabinets. It provides critical diagnostic capabilities by reporting real-time conduction feedback to the host controller. If the primary control fails, the board retains independent logic to trigger de-excitation, preventing catastrophic generator field damage. It is a vital asset for maintaining uptime in heavy industrial power grids.

FAQ

What is the difference between Group 1 and Group 2 boards?
Group 1 boards are engineered specifically for SCR de-excitation applications, while Group 2 supports diode-based configurations.

Can the module trigger de-excitation without the EXTB command?
Yes, the board features autonomous logic to initiate firing if the primary control signal is lost or if voltage thresholds are breached.

What should I check if the conduction sense feedback is failing?
Inspect the Hall effect sensors for debris and verify the signal cables connecting the module to the main controller.

Buying Guide

Verify that your existing system requires a Group 1 board to ensure compatibility with your current SCR configuration. Check the board revision label (e.g., ADA) to ensure consistency with your facility's documentation. Always confirm the EPSM voltage output before powering up the module to avoid input damage.

Global PLC Spare HUB's Insight

At Global PLC Spare HUB, we recognize that the IS200EDEXG1ADA is a cornerstone of the EX2100 ecosystem. This board is highly recommended for facilities operating critical energy infrastructure where rapid field energy dissipation is non-negotiable. Its robust design minimizes long-term maintenance costs by providing reliable, automated protection for generator fields. It remains the preferred choice for engineers managing high-availability power generation assets.
