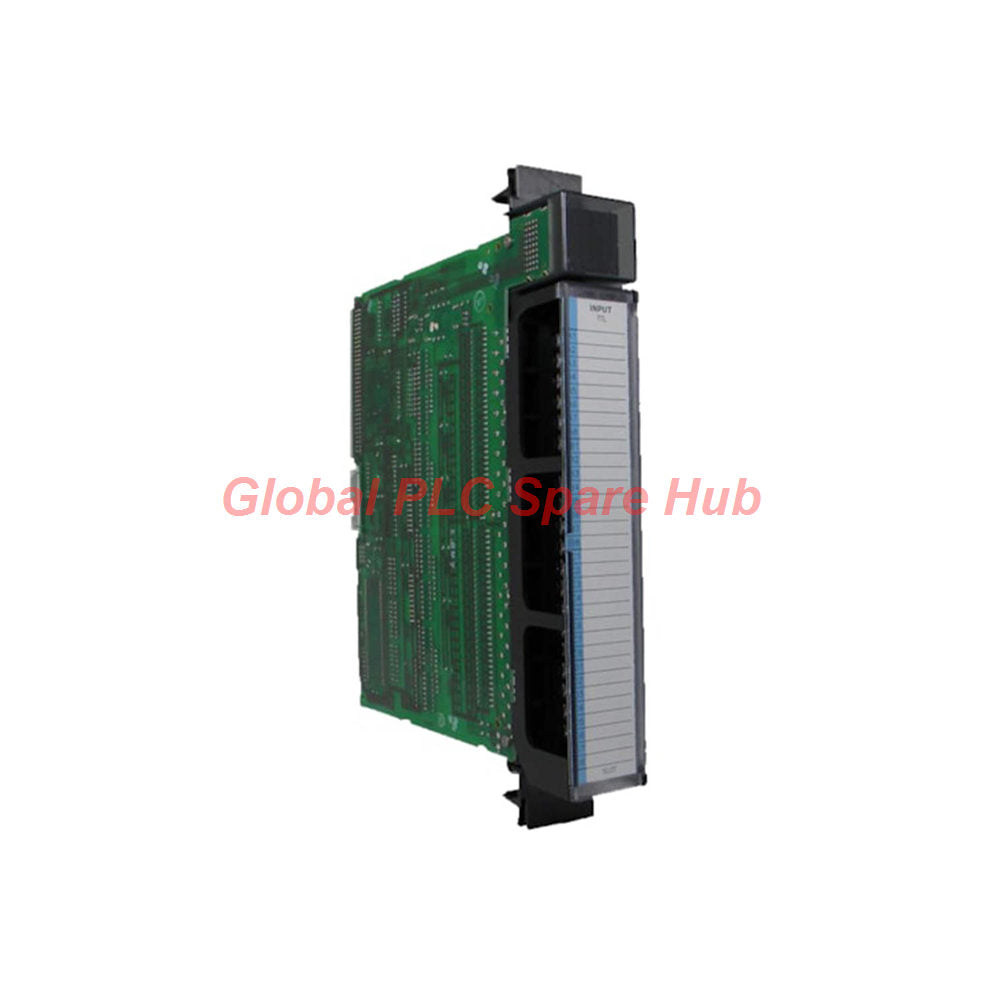

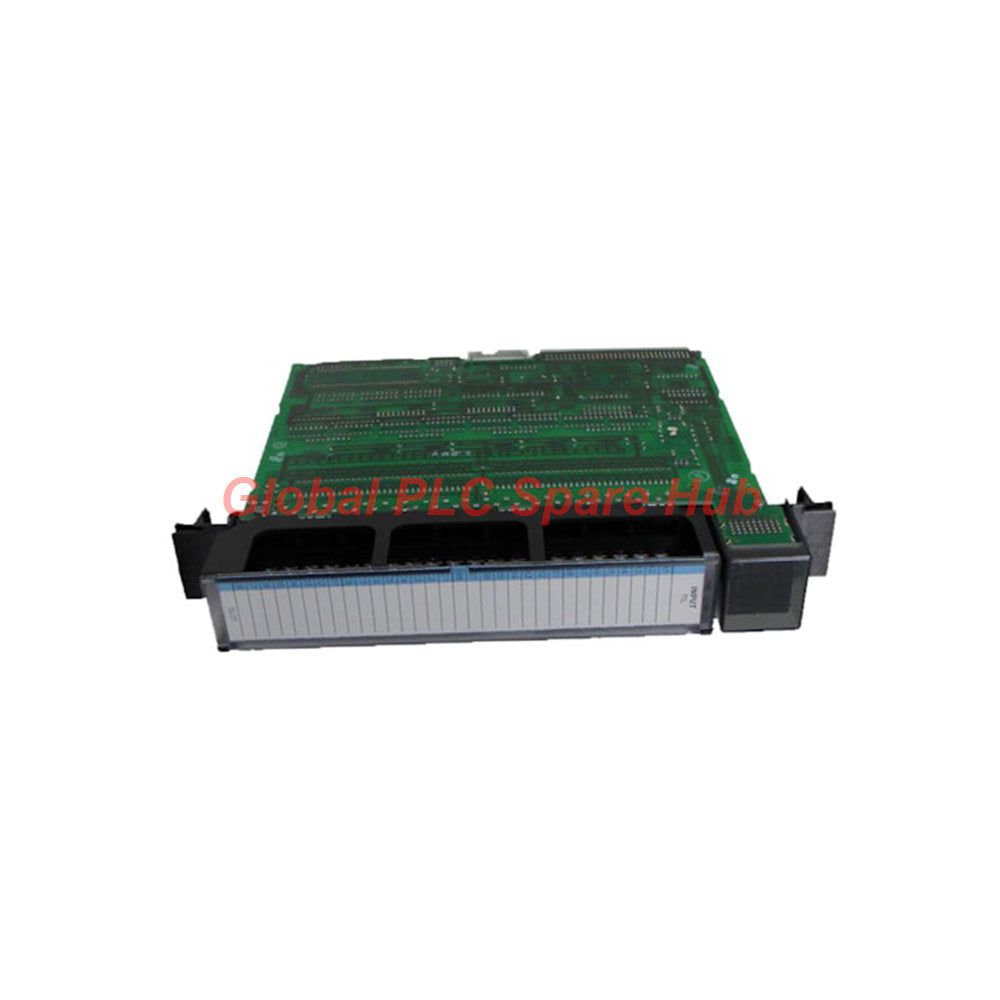

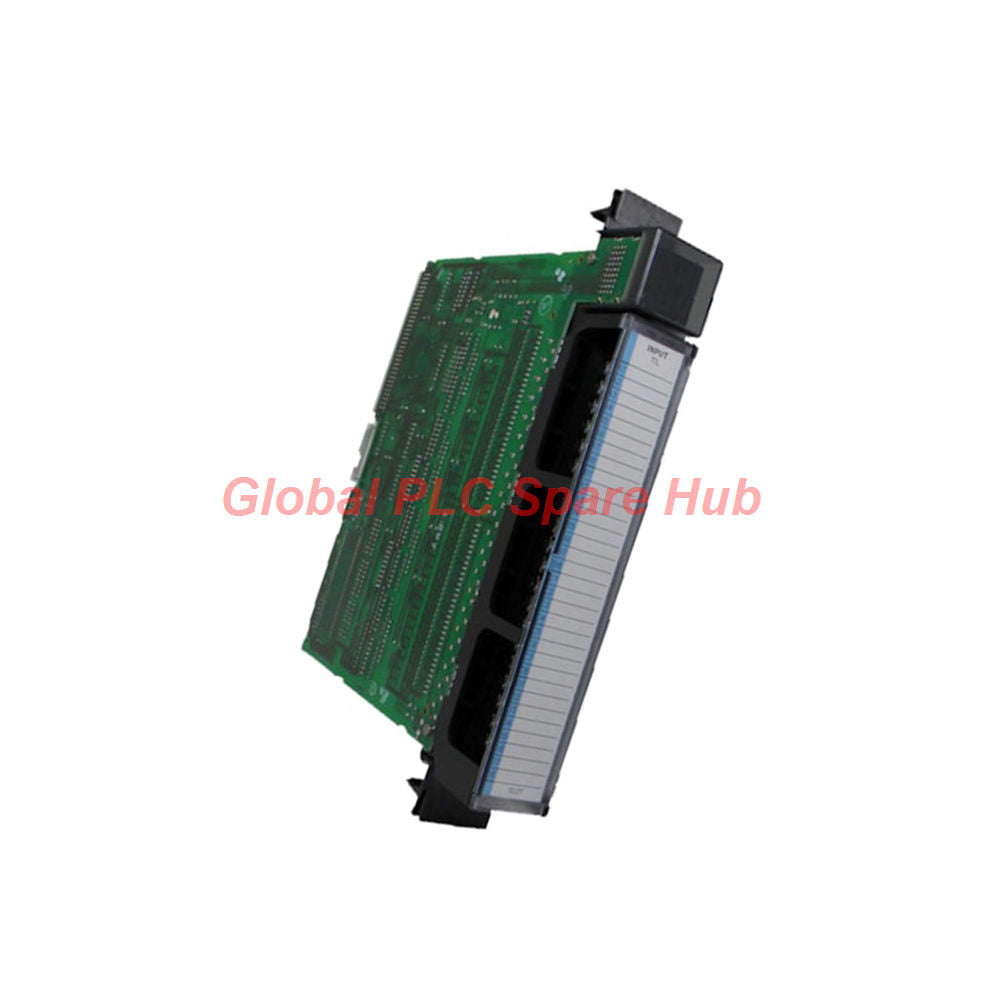

IC697MDL650 GE Series 90-70 Positive Logic Input Module | 32-Point I/O

Engineering Overview

The IC697MDL650 is a high-density, 32-point Positive Logic Input Module designed for the GE Fanuc Series 90-70 PLC platform. Engineered for robust industrial input interfacing, this module features four isolated groups of eight points each. It supports versatile input signal monitoring for 24VDC circuits, featuring user-configurable input filtering that eliminates the need for physical DIP switches or jumpers. This module excels in high-uptime environments, providing clear visual status feedback via integrated faceplate LEDs.

Technical Performance Specs

• Model/Series: IC697MDL650 / Series 90-70
• Input Density: 32 Points (4 groups of 8)
• Rated Voltage: 24 VDC
• Voltage Range: -3 to 30 VDC
• Input Current: 10 mA (at rated voltage)
• Bus Current Required: 0.3 A
• Logic Type: Positive Logic (Sourcing)
• Configurability: Selectable input filter time constants via software

Diagnostic & Operational Capabilities

• Visual Status Reporting: Front-facing LED indicators provide real-time monitoring of signal states; extinguished LEDs serve as immediate diagnostic indicators for loop errors or power loss.
• Versatile Compatibility: Interfaces seamlessly with mechanical devices (limit switches, pushbuttons) and electronic sensors (2-wire/3-wire proximity switches).
• System Integration: Fully compatible with IC641 programming software, allowing for streamlined configuration across various Series 90-70 programming devices, including legacy industrial PCs.
• Signal Conditioning: The selectable input filter enhances noise immunity, ensuring accurate sensing in environments with high electromagnetic interference.

Logistics and Quality Assurance

• Warranty: Industry-standard 12-month performance guarantee.
• Logistics: Expedited dispatch via FedEx, UPS, and DHL.
• Lead Time: Rapid order processing within 24–48 hours.
• Protection: Secure anti-static industrial packaging.

Expert FAQ

How does positive logic impact my wiring compared to negative logic?
In the IC697MDL650, the input device acts as the current source to the negative bus. Ensure your field devices are configured for sourcing outputs to match this input module's logic requirements.

What is the advantage of the user-configurable input filtering?
Configuring filter times through software allows you to tune the module's sensitivity to transient spikes or contact bounce without opening the cabinet to adjust hardware switches.

Can this module be used with 3-wire proximity switches?
Yes, this module is specifically designed to interface with electronic 2-wire and 3-wire proximity switches, making it highly suitable for modern automated sensor arrays.

What does it mean when the faceplate LEDs turn off?
If the PLC power is on but the LED for a specific channel is off while the switch is closed, it indicates a loss of field input signal or a blown loop circuit. If all LEDs are off, check the module backplane power.

Is there a specific programming device required for configuration?
While designed for Series 90-70, it can be configured via any PC running IC641 software. Using modern, compatible industrial computers can simplify the setup process significantly.

Global PLC Spare HUB's Insight

At Global PLC Spare HUB, we view the IC697MDL650 as a critical component for maintaining legacy Series 90-70 architectures. It is the ideal choice for large-scale control systems where high-density I/O is required for monitoring intricate machinery sequences. We recommend this module for facilities undergoing gradual automation upgrades where high-reliability, proven I/O density is essential for system stability.

Selection Guide

• Compatibility Check: Confirm your PLC backplane supports Series 90-70 modules before integration.
• Input Logic Alignment: Ensure your entire I/O loop is configured for positive logic to prevent sensor signal mismatch.
• Power Planning: Account for the 0.3A backplane current draw when expanding your rack with multiple high-density input modules.
