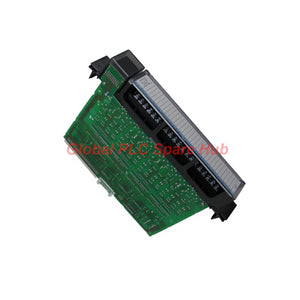

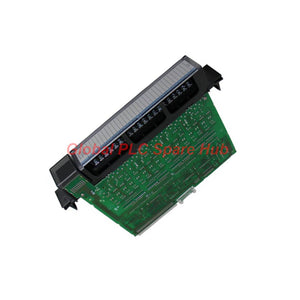

IC697MDL252 GE Fanuc Series 90-70 32-Point Discrete Input Module

Engineering Architecture & Signal Processing

The IC697MDL252 is a high-density discrete input module integrated into the GE Fanuc Series 90-70 PLC architecture. Designed for 12V AC signal acquisition, it facilitates robust monitoring across 32 individual input points. These points are organized into four isolated groups of eight, allowing for phase-diverse AC inputs. The module features a 20ms hardware-defined input filter, which effectively suppresses signal chatter and transient noise common in industrial proximity switch and limit switch applications.

Performance Specifications

• Brand: GE Intelligent Platforms / GE Fanuc
• Series: Series 90-70
• Part Number: IC697MDL252
• Input Capacity: 32 points (4 isolated groups of 8)
• Rated Voltage: 12V AC (47-63 Hz)
• Current Draw: 10mA (On-state) / 0.30A (Required internal current)
• Filtering Time: 20ms fixed
• Device Compatibility: Limit switches, pushbuttons, and electronic 2-wire/3-wire proximity sensors
• Programming: Software-configurable via Windows/MS-DOS utilities (No DIP switches required)

Global PLC Spare HUB Insight

The IC697MDL252 remains a staple in legacy Series 90-70 installations due to its IEC Type 1 resistive input characteristic. Engineers value this module because it eliminates the need for manual hardware adjustments—configuration is handled entirely through the Ethernet TCP/IP or SNP port programming environment. It is perfectly suited for complex conveyor systems, assembly lines, and machine tools where multiple AC-switched sensors must be interfaced with a centralized logic controller.

Deployment & Diagnostic Highlights

• Status Visibility: Integrated LED array at the top of the chassis provides per-point monitoring for rapid visual confirmation of circuit state.
• Operational Reliability: Specifically engineered to handle 2mA off-state leakage current, ensuring sensors do not trigger false positives.
• Streamlined Integration: Automated tuning capabilities ensure that replacement modules inherit the configuration of the previous unit without manual recalibration.
• Installation Note: Due to point isolation, ensure input devices are correctly phased when connecting across distinct AC supply segments.

Logistics, Warranty, and Support

• Global Shipping: Secure transit via FedEx, UPS, or DHL.
• Turnaround: Rapid processing with 24-48 hour dispatch.
• Assurance: Comprehensive 12-month performance warranty included.
• Packaging: All units are supplied in protective, anti-static industrial packaging to maintain factory-new integrity.

Professional Frequently Asked Questions

Question: Can this module handle DC input signals?

Answer: No, the IC697MDL252 is specifically designed for 12V AC applications and will not function correctly with standard DC logic levels.

Question: How is the module configured if no DIP switches are present?

Answer: Configuration is performed digitally using your programming software via the CPU's SNP or Ethernet port, mapping I/O references directly in the project file.

Question: What should I verify if a single input point remains "ON" regardless of sensor state?

Answer: Check the sensor leakage current; if the device exceeds 2mA, it may keep the input circuitry latched. Additionally, verify phase consistency across the group.

Question: Is it possible to use different phases for each input group?

Answer: Yes, the module’s 4 isolated groups of 8 points are specifically designed to allow each group to reference a different AC supply phase.

Question: Selection Guide: How do I ensure full compatibility during a field replacement?

Answer: Ensure your controller backplane is designated for Series 90-70 and that your application software supports the specific I/O reference mapping for this module.
