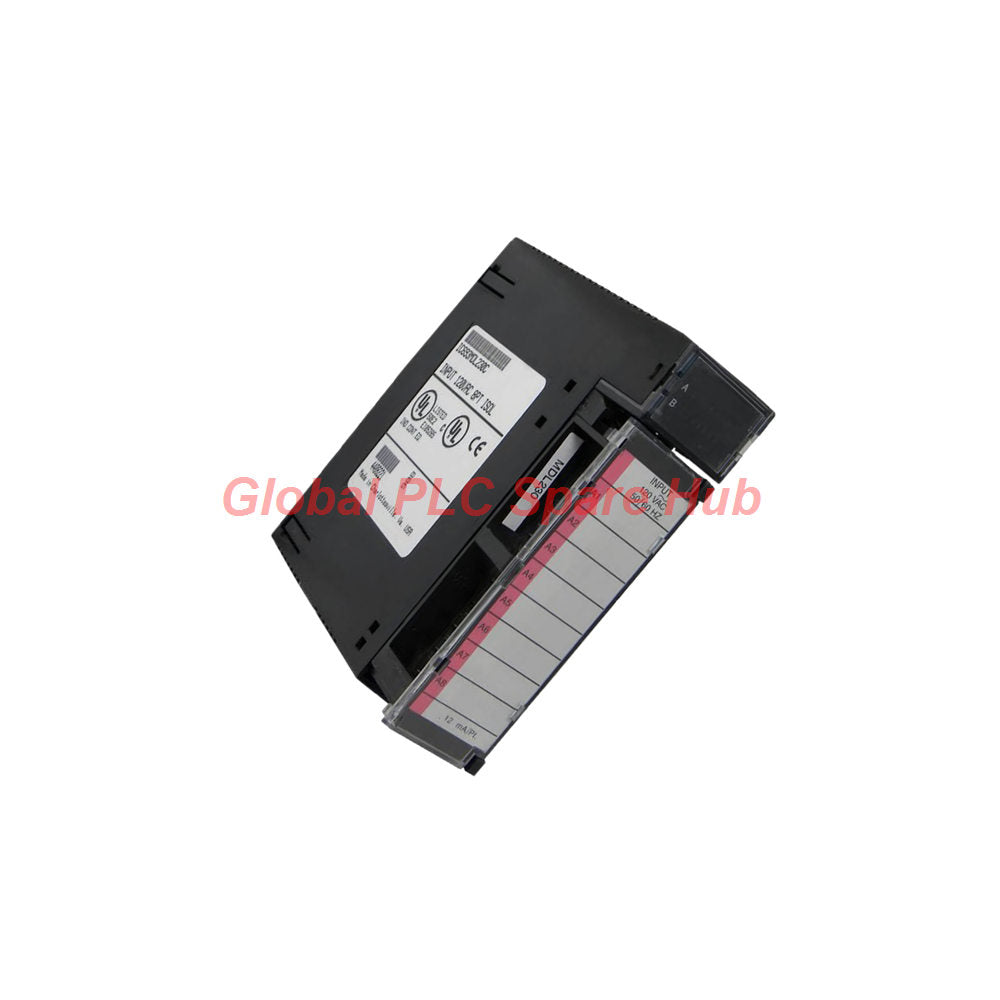

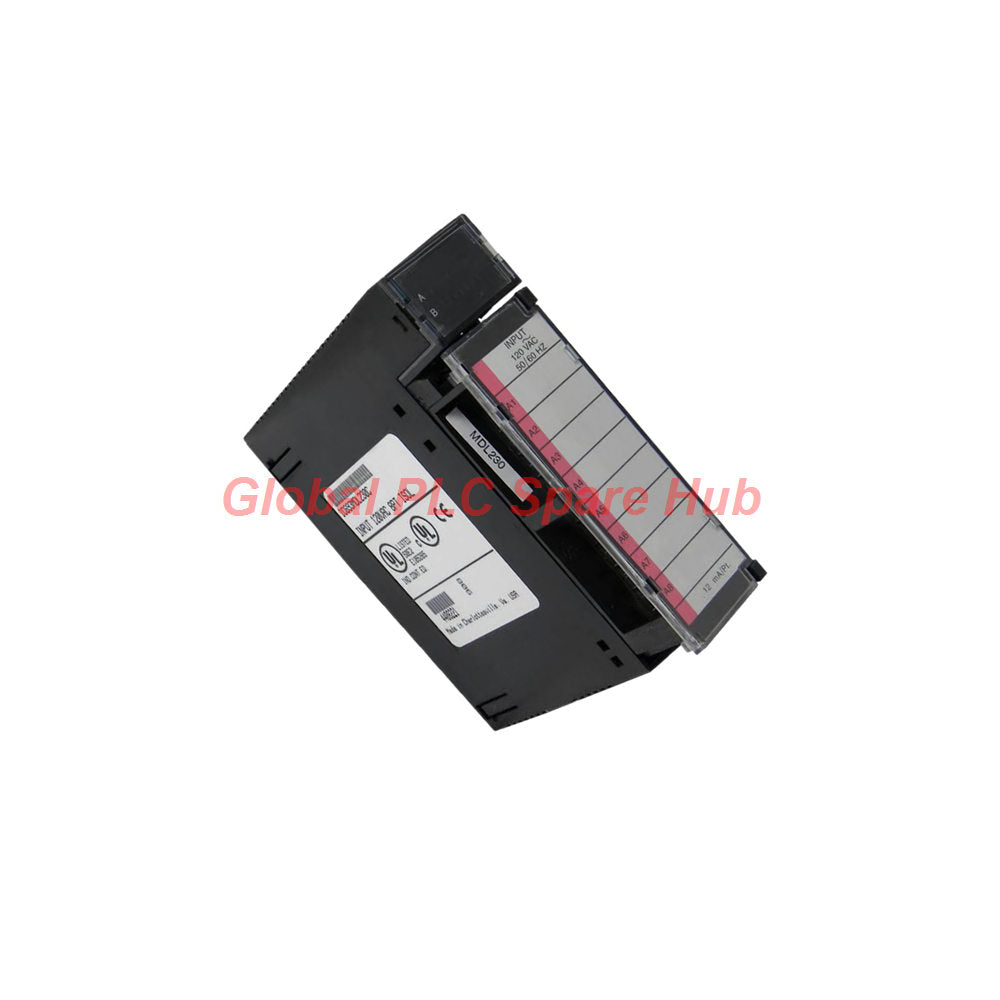

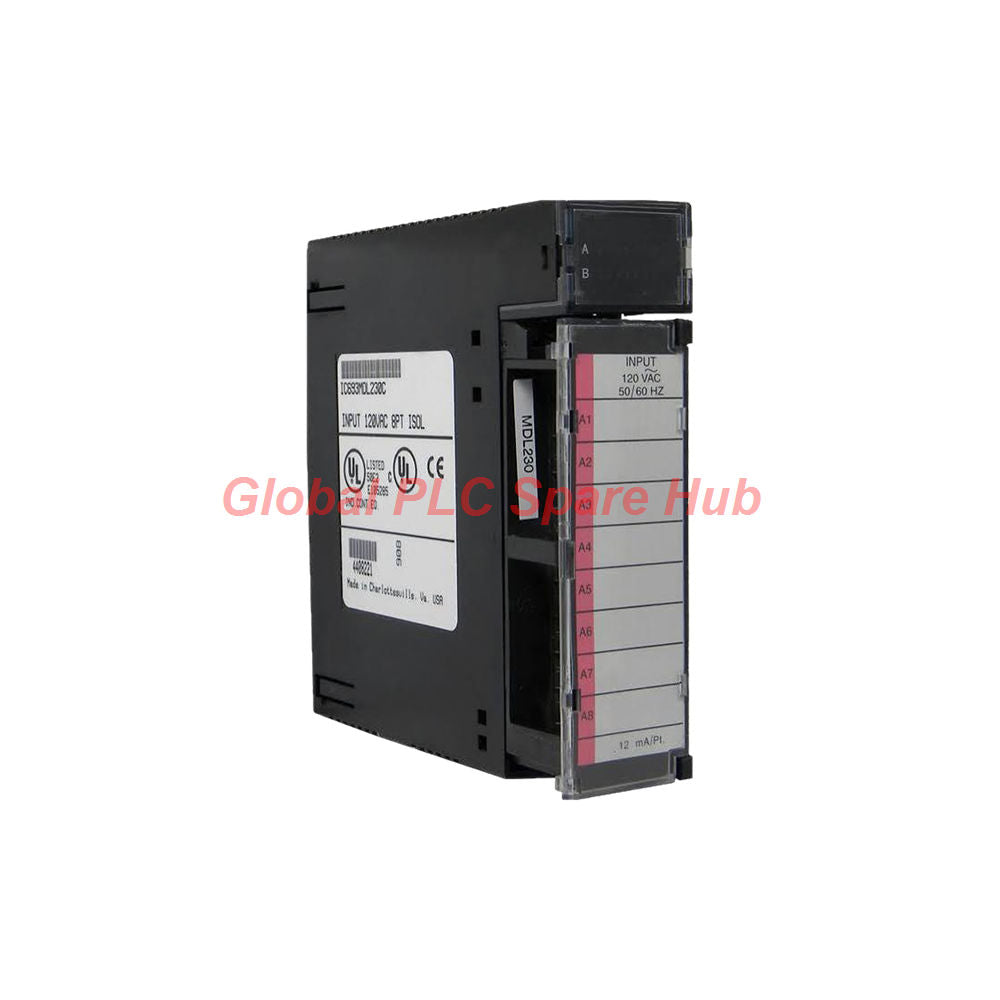

IC693MDL230 GE Series 90-30 Isolated Input Module

Engineering Overview

The IC693MDL230 module serves as an 8-point isolated discrete input interface engineered for Series 90-30 programmable logic control systems. Operating at 120V AC, this component processes high-voltage line signals from industrial field devices while maintaining strict galvanic isolation between reactive load circuits and internal logic backplanes.

Technical Parameters and Specifications

Mechanical Integration and Hardware Deployment

• Slide the IC693MDL230 module directly into any available I/O slot on standard Series 90-30 baseplates.
• Utilize the integrated hinged door featuring a custom door card with red edge striping to signify high-voltage circuitry.
• Record custom circuit identification markings directly onto the outer surface of the sliding door card.
• Ensure external AC power sources are properly wired to the single common power input terminal servicing all 8 points.

Real-Time Diagnostics and Fault Monitoring

• Monitor status via the top-mounted LED block containing eight distinct indicators corresponding to each input point.
• Verify normal operating status when individual channel LEDs illuminate solid green during active signal detection.
• Identify system faults immediately when status indicators transition to red during abnormal electrical events.

Compatibility and System Integration

• Designed exclusively for integration within GE Fanuc Series 90-30 PLC hardware architectures.
• Interfaces seamlessly with standard industrial 120V AC field devices including pushbuttons, limit switches, and electronic proximity sensors.
• Operates reliably within reactive input configurations requiring dedicated external AC supply voltages.

Logistics and Warranty Terms

• Protected by a standard 12-month warranty covering manufacturing defects and operational failures.
• Expedited global dispatch managed through carriers including FedEx, UPS, and DHL.
• Guaranteed processing and shipment within 24-48 hours of order confirmation.

Target Equipment and Typical Application Scenarios

• Heavy industrial machine panels utilizing 120V AC control voltage logic rails.
• Conveyor system limit switch arrays requiring high noise immunity via isolated inputs.
• Legacy manufacturing automation cells upgrading or maintaining Series 90-30 control loops.

Global PLC Spare HUB's Insight and Field Experience

Field maintenance engineers frequently encounter the IC693MDL230 in older municipal water and heavy manufacturing environments where 120V AC control logic remains standard. Experience dictates that installers must strictly verify the red edge striping on the door card as a visual safety reminder before servicing high-voltage terminals. Because this module lacks DC compatibility, technicians must avoid attempting to bridge DC sensor loops directly without intermediate interposing relay blocks.

Frequently Asked Questions

Q: What selection criteria determine whether to use the IC693MDL230 instead of a standard non-isolated module?
A: Choose the IC693MDL230 when your application demands complete electrical separation between individual field circuits and the PLC backplane to prevent ground loops.

Q: Can the IC693MDL230 module process low-voltage DC proximity sensors safely?
A: No, this module operates exclusively on 120V AC power and cannot process DC voltage inputs or low-voltage sensor signals.

Q: How does the red edge striping on the module door assist maintenance personnel?
A: The red stripe serves as an immediate visual warning indicator that the module handles high-voltage AC circuits during servicing.

Q: What corrective steps should be taken if a channel status LED turns red during operation?
A: Inspect the external field wiring for short circuits, voltage drops, or grounding anomalies tied to that specific input point.

Q: Is an external power supply mandatory for operating the IC693MDL230 module?
A: Yes, users must supply an external 120V AC power source through the designated common terminal block to energize input devices.
