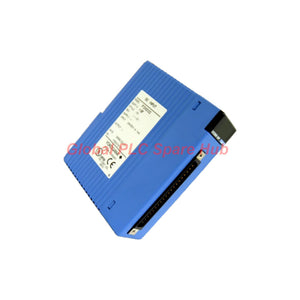

F3XD32-3F Yokogawa F3 Series 32-Point DC Input Module

F3XD32-3F | Yokogawa 32-Point DC Input Module

The Yokogawa F3XD32-3F is a 32-point DC input module designed for industrial control systems that require reliable acquisition of 24 V DC field signals. It supports sink/source input wiring and uses photocoupler isolation to separate the input signal interface from the module's internal circuitry.

Selectable input sampling times allow engineers to balance signal response against input stability. With five sampling options for both OFF-to-ON and ON-to-OFF transitions, the module can be configured for different signal characteristics and control requirements. Each input point can also be configured for interrupt operation where supported by the system configuration.

01 | Signal Acquisition Profile

• Manufacturer: Yokogawa
• Model: F3XD32-3F
• Series: FA-M3
• Product type: DC input module
• Input configuration: Sink/source
• Number of input points: 32
• Rated input voltage: 24 V DC
• Rated input current: 4.1 mA per point at 24 V DC
• Operating voltage range: 20.4–26.4 V DC
• Isolation method: Photocoupler isolation
• Common arrangement: 8 points per common
• External connection: One 40-pin connector
• Maximum simultaneous ON ratio: 100%
• Current consumption: 75 mA at 5 V DC
• Weight: 120 g

02 | Input Thresholds and Sampling Configuration

The module's input thresholds help determine whether a field signal is recognized as ON or OFF. Check the actual voltage at the input terminals under operating conditions, rather than relying only on the nominal 24 V supply value.

• ON recognition: Minimum 16.0 V DC and minimum 3.2 mA.
• OFF recognition: Maximum 5.8 V DC and maximum 0.9 mA.
• OFF-to-ON sampling options: Always (0 μs), 62.5 μs, 250 μs, 1 ms, or 16 ms.
• ON-to-OFF sampling options: Always (0 μs), 62.5 μs, 250 μs, 1 ms, or 16 ms.
• Interrupt configuration: Specifiable for each input point.

The selected sampling time affects how quickly changes are reflected in the module's input state. Shorter settings are useful when fast signal recognition is required, while longer settings may help reject brief transitions in signals affected by contact bounce or electrical noise. Confirm the available configuration and timing behavior in the applicable FA-M3 hardware and programming documentation.

03 | Wiring and Integration Considerations

The F3XD32-3F accepts sink/source DC input signals. Before wiring, identify the output type of each connected sensor, switch, relay interface, or other field device. The field device's current path must match the selected wiring arrangement.

The 32 inputs are organized into groups of eight points per common. This grouping matters when planning shared returns, field power distribution, and mixed signal sources. Check the common wiring and polarity requirements before connecting multiple devices to the same group.

The module uses one 40-pin external connector. Confirm the matching connector, cable assembly, terminal arrangement, and pin assignment against the system documentation. Do not assume that a mechanically compatible connector has the correct signal mapping.

04 | Typical Equipment and Application Scenarios

FA-M3 PLC systems: Provides multi-point DC signal acquisition in a compatible Yokogawa FA-M3 configuration.

Machine status monitoring: Collects discrete status signals from limit switches, interlocks, and other compatible 24 V DC field devices.

Production-line sequencing: Supports input monitoring for machine sequence conditions, part detection, and equipment state changes.

Process equipment interfaces: Can acquire discrete signals from compatible field devices used in manufacturing and process-control applications.

Event-driven control: Per-point interrupt configuration may be useful for applications that require specific input changes to trigger controller processing, subject to CPU and system software support.

Confirm the target base unit, CPU, module slot, connector assembly, and software configuration before selecting this module for a new installation or replacement.

05 | Field Troubleshooting: Start with the Signal Path

Input remains OFF when the field device is active: Measure the voltage at the module input and verify that it reaches the minimum ON threshold of 16.0 V DC. Check the field supply, common wiring, polarity, connector pin assignment, and sink/source compatibility.

Input remains ON after the field signal is removed: Check for residual voltage, leakage current from electronic output devices, incorrect common wiring, or unintended bridging between input points. Confirm that the input falls within the specified OFF conditions of no more than 5.8 V DC and 0.9 mA.

Brief signals are missed: Review the configured sampling time and compare it with the field signal duration. A sampling setting that is too long for the signal may prevent short pulses from being recognized as expected. Verify the controller scan and application logic as well.

Input status fluctuates unexpectedly: Inspect grounding and wiring routes, check for electrical interference, and examine field-device contact behavior. If appropriate for the application, evaluate a longer sampling setting and confirm whether the instability is caused by signal noise or by the field device itself.

Several inputs in one group fail together: Inspect the shared common, field power distribution, and connector seating for that group. Because the module uses eight points per common, a shared wiring issue may affect multiple inputs at once.

Interrupt behavior does not match expectations: Verify the interrupt configuration for the individual input, the selected sampling time, and the CPU or program's handling of the event. Do not assume that enabling an input interrupt alone guarantees a particular application response time.

06 | Environmental and Installation Limits

• Operating temperature: 0 to 55°C.
• Storage temperature: -20 to 75°C.
• Operating humidity: 10–90% RH, non-condensing.
• Storage humidity: 10–90% RH, non-condensing.
• Atmosphere: Must be free of corrosive gases, flammable gases, and heavy dust.

Install the module within the environmental limits specified for the FA-M3 system. Before insertion or removal, follow the applicable equipment manual for power isolation and module handling. Verify that the module is securely seated and that the external connector is correctly aligned.

07 | Global PLC Spare HUB's Insight

For the F3XD32-3F, a successful replacement depends on more than matching the 32-point count. The field wiring arrangement, common grouping, input thresholds, and sampling-time configuration can all affect how the controller interprets a signal.

When investigating a suspected module fault, compare the electrical state measured at the input with the state reported by the PLC. If the voltage does not meet the specified ON or OFF conditions, investigate the field circuit first. If the signal is electrically valid but the reported state remains incorrect, review connector mapping, module seating, sampling configuration, and controller diagnostics before replacing hardware.

For procurement, provide the full model F3XD32-3F, the installed FA-M3 hardware configuration, and the intended application. This helps verify the replacement requirement and reduces the risk of selecting a module with a different input function.

08 | Warranty, Shipping and Quotation Support

• Warranty: 12-month warranty, subject to the seller's written warranty terms.
• Shipping options: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch target: 24–48 hours where stock availability and order processing permit. Confirm the actual dispatch schedule when ordering.
• Quotation assistance: Provide the model, required quantity, target PLC configuration, and destination to help confirm availability and shipping options.

Contact Global PLC Spare HUB for pricing, availability, and compatibility checks for the Yokogawa F3XD32-3F DC Input Module.

09 | Frequently Asked Questions

Q1: How can I verify whether a field sensor is suitable for the F3XD32-3F?

Check that the sensor provides a compatible 24 V DC sink/source signal and that its ON-state voltage and current meet the module's input requirements. Also verify the common wiring, polarity, and output circuit behavior before connecting it.

Q2: What is the practical importance of having eight input points per common?

It affects how field devices share their common connection and how wiring faults can propagate across a group. Plan each group according to the sensor output type and system wiring scheme, and check the common connection when several related inputs fail together.

Q3: Will the module capture every short pulse at the input?

Not necessarily. Signal recognition depends on the selected sampling time, pulse duration, input electrical characteristics, and controller application. Test with the actual signal profile and configure the sampling option according to the required response.

Q4: What should be compared when replacing an existing 32-point input module?

Confirm the exact model and suffix, input type, rated voltage, connector and pin assignment, common grouping, and supported FA-M3 hardware configuration. The same channel count does not guarantee electrical or system compatibility.

Q5: How can I distinguish a faulty input module from a field-wiring problem?

Measure the input signal at the relevant connection and compare it with the specified ON/OFF thresholds. Check the field device, supply, common wiring, and connector first. If the electrical signal is valid but the controller still reports an incorrect state, inspect the module seating and configuration, then follow the system's diagnostic procedure to determine whether replacement is justified.
