F3XD32-4F Yokogawa FA-M3 Digital Input Module | 12V DC Sink/Source

F3XD32-4F | Yokogawa 32-Point DC Input Module

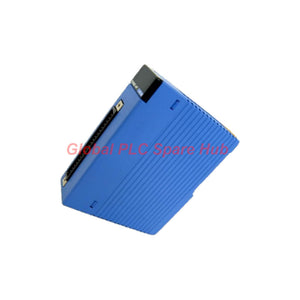

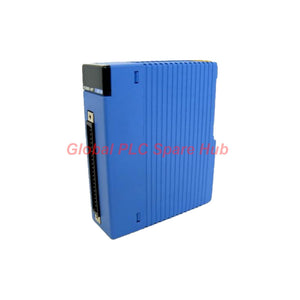

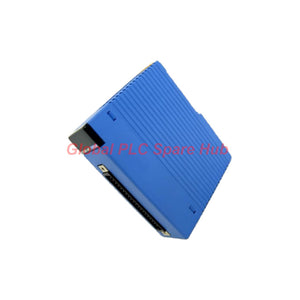

The Yokogawa F3XD32-4F is a 32-point DC input module designed to acquire discrete field signals in industrial automation systems. It supports both sink and source input configurations, uses photocoupler isolation, and operates with a nominal 12 V DC input supply.

For control engineers, the key selection factors are the field signal voltage, ON/OFF thresholds, common-point wiring, and input sampling time. The F3XD32-4F supports five selectable sampling settings, from 0 μs (Always) to 16 ms, allowing the input response to be configured according to the signal characteristics and control requirements.

01 | Electrical Interface at a Glance

02 | Input Thresholds and Sampling Control

Input thresholds determine whether the module recognizes a field signal as ON or OFF. Confirm these limits against the connected sensor or switching device before commissioning.

Important: The input sampling setting is configurable for both OFF-to-ON and ON-to-OFF transitions. The selected sampling interval affects how input changes are acquired; it should not be treated as a guaranteed end-to-end PLC response time.

03 | Configuration Code Breakdown

• F3XD32 — Yokogawa module model designation.
• -4F — Suffix code associated with the specified 12 V DC sink/source input configuration and 32 input points.

When ordering a replacement, verify the complete model and suffix against the installed module label and system documentation. Do not select a substitute based on point count alone.

04 | Where Engineers Use This Module

• PLC discrete input acquisition: Collects ON/OFF status signals from compatible field devices.
• Machine control: Reads limit switches, position switches, pushbuttons, and other compatible 12 V DC switching signals.
• Process equipment: Monitors discrete equipment states, interlock feedback, and auxiliary contact signals where the electrical interface is suitable.
• Packaging and assembly lines: Acquires sensor and actuator feedback for sequencing and machine-state monitoring.
• Equipment retrofits: Supports replacement planning where the existing Yokogawa system requires a compatible 32-point DC input module.

These are typical application examples, not a claim that every listed device is directly compatible. Confirm signal voltage, sink/source wiring, connector pinout, common grouping, and controller support before connecting field equipment.

05 | Installation and Commissioning Checks

1. Verify the system: Confirm that the installed Yokogawa controller or I/O platform supports the F3XD32-4F.
2. Check field voltage: Measure the signal under operating conditions and confirm that it falls within the 10.2–13.2 V DC operating range where applicable.
3. Confirm wiring logic: Match sink/source configuration and polarity to the connected field devices.
4. Review common grouping: Account for the eight input points per common when planning wiring and troubleshooting shared signals.
5. Set input sampling: Choose the sampling interval based on signal timing and noise characteristics. Validate short pulses during commissioning.
6. Test every channel: Apply known ON and OFF states and confirm that the controller reports the expected input status.

06 | Diagnostic Guide for Field Engineers

Diagnostic limitation: The specifications supplied for this module do not establish a dedicated onboard fault display or self-diagnostic indicator. Use controller status information, field measurements, program monitoring, and wiring inspection as the primary troubleshooting methods unless the applicable hardware manual specifies additional diagnostics.

07 | Global PLC Spare HUB's Insight

For a 32-point input module, the most common replacement risks are not simply module failure. Engineers should also check the input voltage class, shared-common arrangement, signal leakage, and sampling configuration. A module with the correct number of channels can still be unsuitable if the field devices use a different voltage or wiring logic.

During maintenance, record the original sampling setting and test representative channels before returning the machine to automatic operation. If the fault affects several inputs in one common group, investigate the shared supply and wiring first. This approach helps distinguish a module-level problem from a field-circuit issue and reduces unnecessary component replacement.

08 | Selection and Replacement Checklist

• Confirm the complete part number: F3XD32-4F.
• Confirm that the application requires 32 discrete DC inputs.
• Verify the nominal 12 V DC signal level and the 10.2–13.2 V DC operating range.
• Confirm sink/source compatibility and the eight-points-per-common wiring arrangement.
• Check the 40-pin connector and the existing cable or interface assembly.
• Review input sampling and per-point interrupt requirements.
• Confirm controller/I/O platform compatibility using the relevant Yokogawa hardware documentation.

09 | Ordering, Warranty and Shipping

• Product: Yokogawa F3XD32-4F DC Input Module
• Warranty: 12-month warranty, subject to the seller's warranty terms.
• Shipping carriers: FedEx, UPS, and DHL.
• Dispatch: 24–48-hour dispatch may be available after stock and order details are confirmed.
• Before ordering: Provide the complete model number and, where possible, a photo of the installed module label to help verify the required configuration.

10 | Frequently Asked Questions

Q1. Can the F3XD32-4F read signals from a 24 V DC sensor?

Answer: Do not connect a 24 V DC signal directly based only on the module's sink/source capability. Its specified operating range is 10.2–13.2 V DC. Use a suitable signal interface or a compatible input module if the field device outputs 24 V DC.

Q2. What should be checked if the module misses a brief sensor pulse?

Answer: Measure the pulse duration and review the configured input sampling interval. Test the 0 μs, 62.5 μs, 250 μs, 1 ms, and 16 ms settings as appropriate to the application and controller configuration. Also confirm that the sensor pulse reaches the required ON voltage and current thresholds.

Q3. If multiple input channels stop working, should the module be replaced immediately?

Answer: Not immediately. First check the field supply, common wiring, connector seating, and affected eight-point common group. If the supply and wiring are correct, test individual input signals and inspect controller status to narrow down the fault before replacing hardware.

Q4. What information should be provided when sourcing a replacement?

Answer: Provide the full F3XD32-4F model, a clear label photo, the controller or I/O platform model, and details of the existing field wiring. If possible, include the connector or cable part number. These details help reduce the risk of ordering a module with a mismatched interface or electrical specification.

Q5. Is the F3XD32-4F suitable for safety-critical shutdown signals?

Answer: The supplied specifications identify it as a DC input module but do not establish a safety-rated function. Do not use it as a safety input solely because it can monitor discrete signals. For emergency stops or protective shutdown circuits, select a suitably certified safety system and follow the machine's safety design requirements.

Request a Quote for Yokogawa F3XD32-4F

Contact Global PLC Spare HUB to check availability, confirm the required configuration, and request pricing for the Yokogawa F3XD32-4F 32-point DC input module. FedEx, UPS, and DHL shipping options are available subject to order arrangements.
