RETA-01 ABB Ethernet Adapter Module for Industrial Drives

RETA-01 | ABB Ethernet Drive Communication Adapter

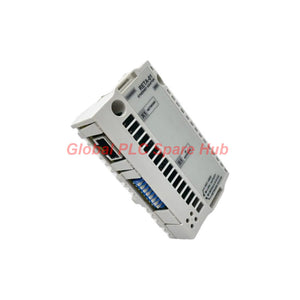

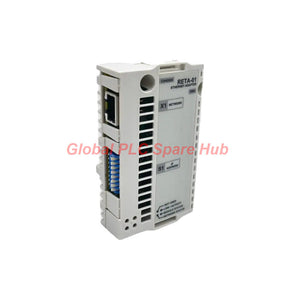

The ABB RETA-01 is an Ethernet communication adapter for compatible ABB drives. It installs into an option slot on the drive control board. It connects the drive to an industrial Ethernet network for data exchange with automation systems. The adapter supports TCP/IP communication and the EtherNet/IP and Modbus/TCP application protocols. It operates at 10 or 100 Mbps and supports half-duplex and full-duplex communication. An eight-way DIP switch supports intranet IP address selection. The RETA-01 helps engineers integrate supported drives with PLCs, supervisory systems, and industrial network infrastructure.

01 | Product Identity and Hardware Specifications

Engineering note: The adapter receives power from the drive control board. It does not require a separate external 5 V supply. Confirm the supported drive model and option-slot compatibility before installation.

02 | Ethernet Communication Architecture

The ABB RETA-01 supports standard Ethernet physical interfaces and two industrial application protocols. Select the protocol that matches the controller and drive integration requirements.

Protocol selection: Use EtherNet/IP when the controller requires that application protocol. Select Modbus/TCP for compatible Modbus-based control or monitoring systems. Confirm supported drive functions and data mapping in the relevant ABB documentation.

03 | Network Planning and IP Configuration

The RETA-01 combines drive parameter settings with an eight-way DIP switch for intranet IP address selection.

• Address planning: Assign an address that matches the approved network plan.
• Address uniqueness: Avoid duplicate IP addresses on the same network.
• Subnet configuration: Verify the controller and drive use compatible IP addressing and subnet settings.
• Protocol alignment: Configure the PLC or supervisory system for the selected application protocol.
• Cable selection: Use suitable CAT 5 cabling and keep each segment within 100 m.
• Network topology: Follow the documented bus or star arrangement for the intended installation.

The supplied specifications do not include the DIP-switch address table. Consult the applicable ABB manual before changing switch positions. Do not infer an IP address from switch numbering alone.

04 | Installation Procedure

1. Verify the drive: Confirm that the exact ABB drive supports the RETA-01.
2. Isolate the equipment: Follow the drive manual's power isolation and discharge instructions.
3. Inspect the option slot: Check the 34-pin interface and mounting area.
4. Install the adapter: Seat the module correctly in the designated control board slot.
5. Connect Ethernet: Use the RJ-45 connector and suitable industrial network cable.
6. Set the address: Configure the DIP switches according to the manufacturer's instructions.
7. Configure drive parameters: Apply the required communication settings.
8. Configure the controller: Select the correct protocol and network parameters.
9. Test communication: Verify network access and supported drive data exchange before production use.

Do not install or remove the adapter while the drive is energized. Follow the drive-specific instructions for connector alignment and mounting.

05 | Diagnostics and Fault Isolation

The supplied specifications do not identify dedicated status LEDs or their diagnostic codes for the RETA-01. Use the drive's diagnostic facilities and network tools to investigate communication faults.

Field example: After a drive replacement, a PLC may fail to reconnect even when the network cable appears intact. Check the configured IP address and DIP-switch positions first. Then verify the application protocol and drive parameters. This sequence helps separate addressing errors from controller configuration or hardware compatibility issues.

06 | Compatible Systems and Industrial Applications

The ABB RETA-01 is intended for compatible ABB drives that support this Ethernet option. It enables network integration with controllers and supervisory systems using supported protocols.

• PLC-controlled machinery: Exchange supported drive commands and status data with industrial controllers.
• Conveyor systems: Connect compatible drives to centralized machine control.
• Pumping and fluid handling: Integrate drive communication into process monitoring systems.
• Industrial ventilation: Connect supported drives to building or plant automation networks.
• Packaging equipment: Support Ethernet-based drive monitoring and control.
• Production lines: Provide drive data to compatible PLC or supervisory architectures.
• System retrofits: Add Ethernet connectivity where the drive hardware and software support the adapter.

Ethernet connectivity alone does not guarantee full interoperability. Confirm the required application protocol, drive firmware, available parameters, and controller integration method.

07 | Global PLC Spare HUB Review

From a commissioning perspective, the RETA-01 requires attention to three areas: drive compatibility, IP configuration, and application protocol selection. Consider a plant that connects an ABB drive to a PLC over Modbus/TCP. The physical connection may be correct, yet communication can still fail if the address settings conflict or the controller uses the wrong protocol. Engineers should verify the IP address, subnet, drive parameters, and data mapping before replacing hardware. For EtherNet/IP installations, confirm the controller configuration and supported drive data. For Modbus/TCP installations, verify the required register or parameter mapping against the applicable documentation. A structured troubleshooting sequence reduces unnecessary module replacement. Start with network addressing and cabling, then review the protocol configuration and drive compatibility. Record the final settings to simplify future maintenance.

08 | Replacement Selection Checklist

Before ordering the RETA-01, verify these details:

• Exact model: Confirm RETA-01 against the installed adapter or approved parts list.
• Drive compatibility: Check the drive model and supported option slot.
• Protocol requirement: Confirm whether the application uses EtherNet/IP or Modbus/TCP.
• IP configuration: Check the required addressing method and DIP-switch settings.
• Network infrastructure: Verify the cable type, topology, and segment length.
• Drive configuration: Record the communication parameters and required data mapping.
• Environmental limits: Follow the drive Hardware Manual.

09 | Packaging, Warranty, and Shipping

10 | Frequently Asked Questions

Q1: What is the difference between the RETA-01 and a standard Ethernet network card?

The RETA-01 is a drive-specific communication adapter. It connects through the drive's control board and supports drive communication using the documented industrial protocols. A standard computer network card does not provide this dedicated drive interface.

Q2: Can one RETA-01 support both EtherNet/IP and Modbus/TCP in the same installation?

The specification lists both protocols, but it does not establish simultaneous operation. Confirm the supported configuration and protocol selection options in the applicable ABB documentation before designing a dual-protocol system.

Q3: Why should engineers record the DIP-switch positions before replacement?

The switch positions determine the configured intranet IP address selection. Recording them helps preserve the intended addressing scheme and reduces commissioning time. Always verify the address against the approved network plan before energizing the system.

Q4: What should be checked if network communication works but drive commands have no effect?

Check the selected application protocol, command mapping, drive control parameters, operating state, and control permissions. A working Ethernet connection does not prove that the controller has configured the drive's command interface correctly.

Q5: What information helps confirm the right replacement adapter?

Provide the RETA-01 model, the exact ABB drive model, the communication protocol, the current IP configuration, and the controller type. These details help the supplier verify hardware and application compatibility before shipment.

Request a Quote from Global PLC Spare HUB

Need the ABB RETA-01 for drive communication, a control system retrofit, or maintenance inventory? Contact Global PLC Spare HUB for pricing, availability, warranty details, and shipping options through FedEx, UPS, or DHL.
