ABB FCNA-01 ControlNet Adapter Module — Industrial Drive Communication Interface

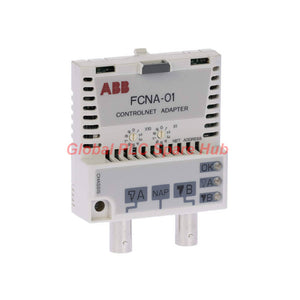

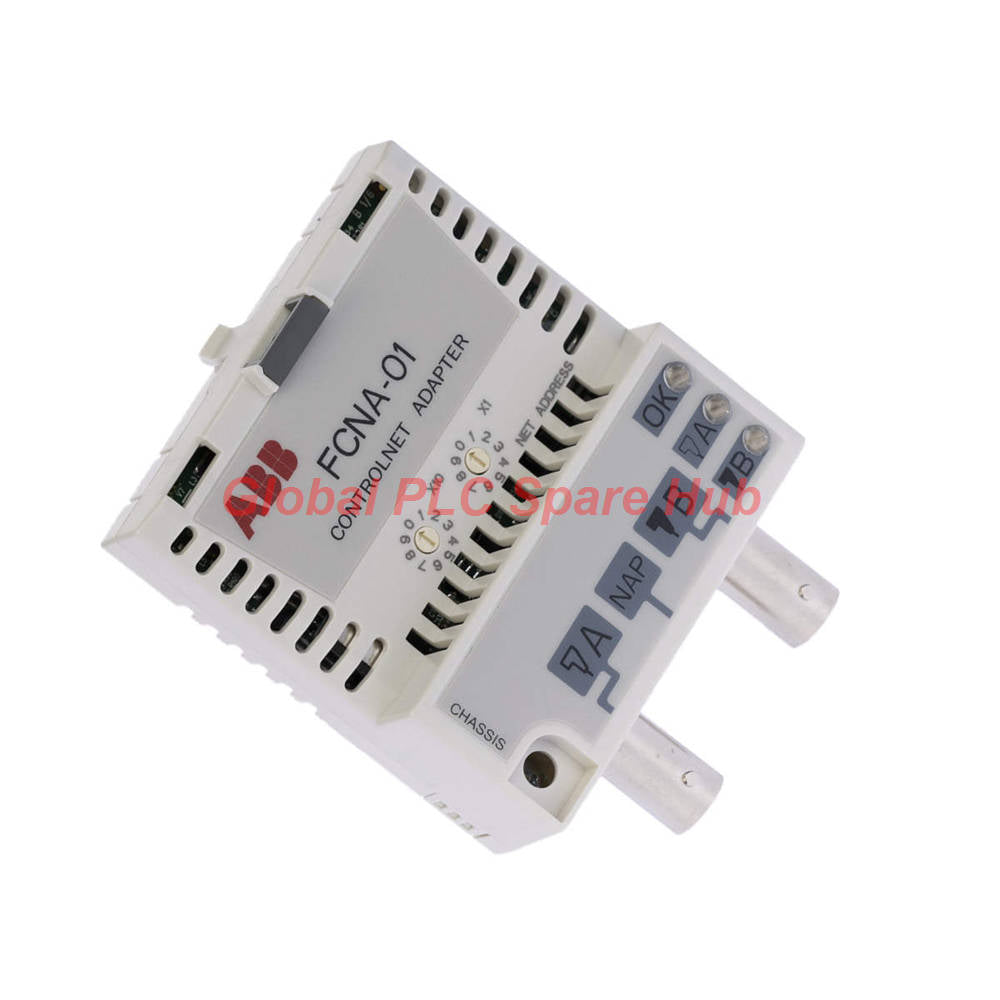

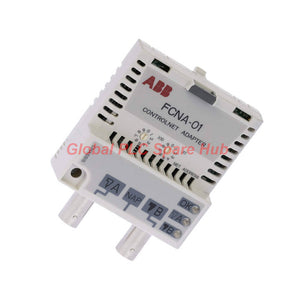

The ABB FCNA-01 is a ControlNet communication adapter designed for compatible ABB drives. It connects the drive to a ControlNet industrial network for communication with a compatible ControlNet scanner.

The module installs directly into the drive's option slot. The drive supplies its operating power through the 20-pin X3 connector. This arrangement simplifies integration without requiring a separate external power supply for the adapter.

Operating at 5 Mbit/s, the FCNA-01 supports ControlNet network topologies including bus, star, and tree configurations. Its RG-6 quad-shielded coaxial cable specification supports industrial network installations when engineers follow the applicable cabling and termination requirements.

The adapter features IP20 protection, diagnostic LED indicators, and a conformal-coated printed circuit board. These features support installation inside a suitable drive cabinet or protected electrical enclosure.

01 | Product Identity and Core Function

02 | Electrical and Hardware Specifications

Power budget note: The adapter requires a nominal 3.3 V supply and can draw up to 450 mA. Confirm the drive's option-slot power capability before installation. Do not apply an external supply unless the manufacturer explicitly requires it.

03 | ControlNet Network Performance

The FCNA-01 connects a compatible drive to a ControlNet network. The network's cable type, termination, topology, and total length affect communication reliability.

These cable lengths depend on the specified network configuration. Confirm the applicable ControlNet design rules before extending a network or adding nodes. Repeater placement and segment limits must follow the network equipment documentation.

Important connector check: The supplied specification lists two 8P8C modular jacks. Verify the connector type and pinout against the module label and ABB documentation before selecting cables or accessories.

04 | Installation and Network Commissioning

Install the ABB FCNA-01 according to the drive manufacturer's instructions. Confirm compatibility before removing covers or inserting the option module.

1. Verify the drive: Confirm that the drive supports the FCNA-01 option and its firmware requirements.
2. Isolate power: Disconnect the drive from its power source and follow site lockout procedures.
3. Inspect the option slot: Check the slot, connector, and module for visible damage or contamination.
4. Install the module: Insert the adapter into the designated option slot without forcing the connector.
5. Secure the installation: Follow the drive manual's mounting and fastening instructions.
6. Connect the network: Use the specified cable and verify the connector assignment.
7. Check termination: Confirm the required termination at both ends of the applicable network segment.
8. Restore power: Re-energise the drive after completing all safety checks.
9. Verify communication: Inspect the LEDs and confirm that the scanner recognises the drive interface.
10. Test drive data: Check the configured control and status data before enabling normal operation.

Follow the drive's commissioning procedure for parameter configuration and network integration. Do not assume that physical installation alone establishes a working ControlNet connection.

05 | Diagnostic Indicators and Troubleshooting

The module provides two bicolor LEDs and one tricolor diagnostic LED. These indicators assist engineers during installation and fault investigation. Refer to the applicable ABB manual for the exact meaning of each LED colour and flashing pattern.

• Power-related symptoms: Check the drive's option-slot supply and the module's seating if the adapter does not initialise.
• Network communication faults: Inspect cable integrity, connectors, termination, and network topology.
• Scanner cannot identify the drive: Confirm scanner configuration, node addressing, and the adapter's compatibility with the drive.
• Intermittent communication: Review cable routing, shielding, connector condition, and possible electrical interference.
• Drive data does not update: Check the scanner's configuration and the drive's communication parameters.

Field troubleshooting example: A drive may power up normally while the scanner reports a communication fault. First, verify the adapter's seating and diagnostic LEDs. Next, inspect the ControlNet cable and termination. Finally, confirm scanner configuration and drive compatibility. This sequence separates basic hardware issues from network configuration problems.

The adapter's LEDs provide diagnostic indications rather than complete network analysis. Use compatible ControlNet diagnostic tools when faults persist or require detailed signal investigation.

06 | Drive Compatibility and Application Suitability

The FCNA-01 is intended for compatible ABB drives that support this option module. The supplied specification does not identify every compatible drive model or firmware revision.

• ABB variable-frequency drives: Network integration where the exact drive model supports the adapter.
• Industrial motor control: Exchange of configured drive control and status data over ControlNet.
• Automated production lines: Integration of compatible drives into a ControlNet-based control architecture.
• Material handling systems: Network connectivity for supported conveyor and motor-drive applications.
• Process machinery: Drive communication within compatible industrial automation networks.
• Drive replacement projects: Restoration of network connectivity after checking the existing module and drive configuration.

Before ordering, confirm the drive model, option-slot support, firmware requirements, network connector arrangement, and scanner configuration. Do not assume that all ABB drives accept the FCNA-01.

07 | Global PLC Spare HUB's Insight

When troubleshooting a ControlNet-connected drive, engineers should separate three layers: drive readiness, adapter operation, and network communication. This approach avoids replacing a communication module before checking the surrounding system.

Case 1: The drive runs locally, but the control system cannot communicate.

Local operation does not confirm that the network adapter works correctly. Check the option-slot connection, diagnostic LEDs, scanner configuration, and physical network connections. Verify that the scanner recognises the expected device.

Case 2: Communication becomes unstable after a cable change.

Review the cable specification and connector compatibility first. Then verify the network's termination and topology. Incorrect termination or unsuitable cabling can disrupt communication even when the drive remains powered.

Case 3: The replacement module powers up but does not restore communication.

Confirm the exact FCNA-01 part number and drive compatibility. Check the scanner's configuration and the drive's communication settings. Compare the installed wiring with the original arrangement before changing network parameters.

Engineering recommendation: Record the original LED states, scanner status, drive model, and network configuration before replacing the module. These records provide a useful baseline for fault isolation and commissioning verification.

08 | Standards, Protection, and Installation Conditions

• EMC: The supplied specification identifies compliance with EN 61800-3:2004.
• Ingress protection: IP20. The module requires suitable enclosure protection against environmental hazards.
• PCB protection: Conformal coating provides an additional layer of protection for the circuit board.
• Ambient conditions: Follow the limits specified in the applicable drive manual.
• Electrical safety: Isolate the drive and observe the manufacturer's installation requirements.

IP20 does not provide protection against water or conductive dust. Select the enclosure and installation location according to the actual operating environment.

09 | Packaging, Warranty, and Shipping

• Product: ABB FCNA-01 ControlNet adapter module.
• Quantity: One module unless the quotation states otherwise.
• Accessories: Cables, termination resistors, and additional network components are not included unless specified.
• Documentation: Availability depends on the agreed product package.
• Warranty: 12 months under the agreed sales terms.
• Dispatch: Typically 24–48 hours after order confirmation, subject to stock availability and payment clearance.
• Shipping carriers: FedEx, UPS, and DHL, subject to destination and service availability.

Contact Global PLC Spare HUB to confirm availability, the exact model, included accessories, and shipping arrangements. Provide the destination country and required quantity for a quotation.

10 | Frequently Asked Questions

Q1: Does the FCNA-01 require a separate power supply?

No separate external supply is listed in the supplied specification. The drive provides +3.3 V DC ±5%, with a maximum current of 450 mA, through the option interface. Confirm that the selected drive supports the module.

Q2: What information should engineers collect before replacing an installed adapter?

Record the drive model, module part number, scanner configuration, network connector arrangement, and diagnostic LED states. Also document the existing cable routing and termination positions. This information helps prevent wiring and configuration mismatches.

Q3: Can the FCNA-01 connect directly to an Ethernet network?

The FCNA-01 is specified for ControlNet, not standard Ethernet networking. Its listed 8P8C connectors do not establish Ethernet compatibility. Confirm the protocol and cable requirements before connecting any network equipment.

Q4: How should a network designer assess the maximum cable length?

Use the specified node count and network topology to select the applicable length limit. The supplied figures list 250 m for 48 nodes and 1,000 m for two nodes. Extended distances up to 5,000 m require repeaters and a compliant network design.

Q5: What should buyers verify when sourcing an FCNA-01 for an older drive installation?

Confirm the exact part number, drive option-slot compatibility, firmware requirements, and ControlNet scanner configuration. Check connector availability and termination requirements as well. Request technical verification before ordering if the original drive documentation is unavailable.
