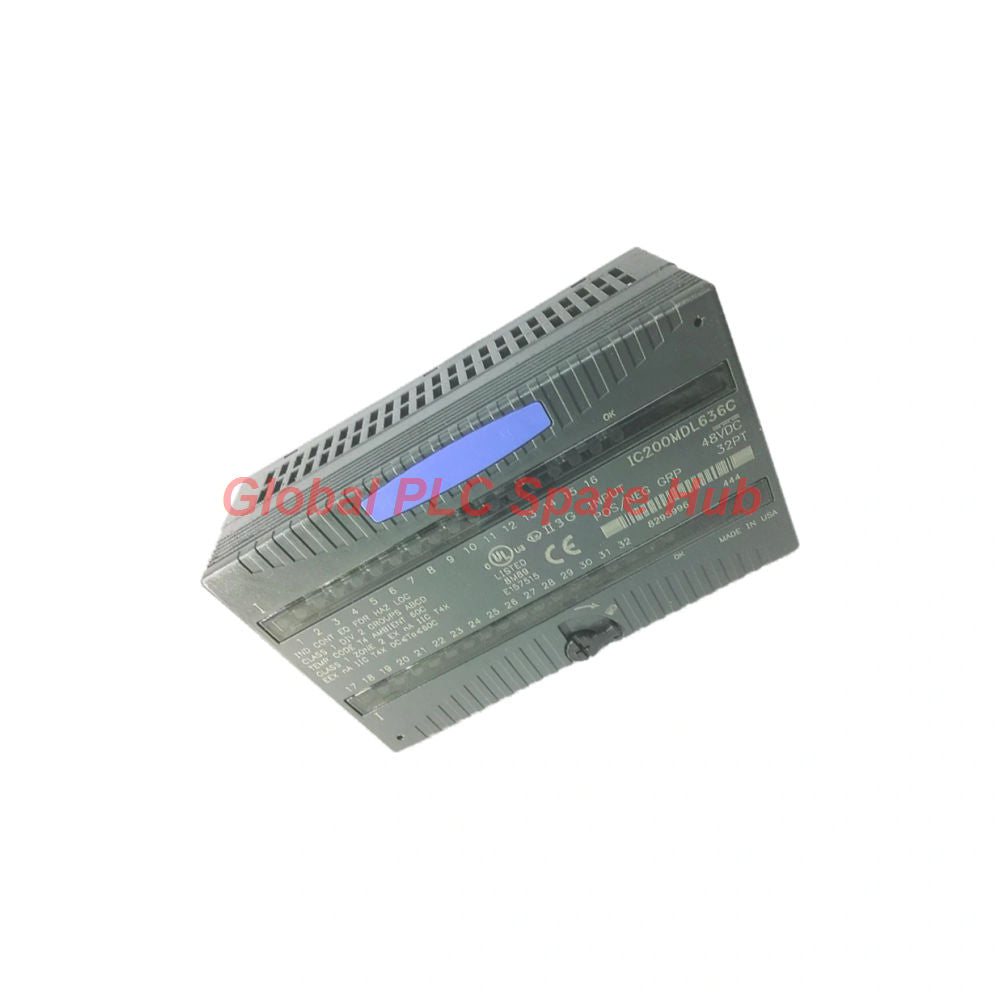

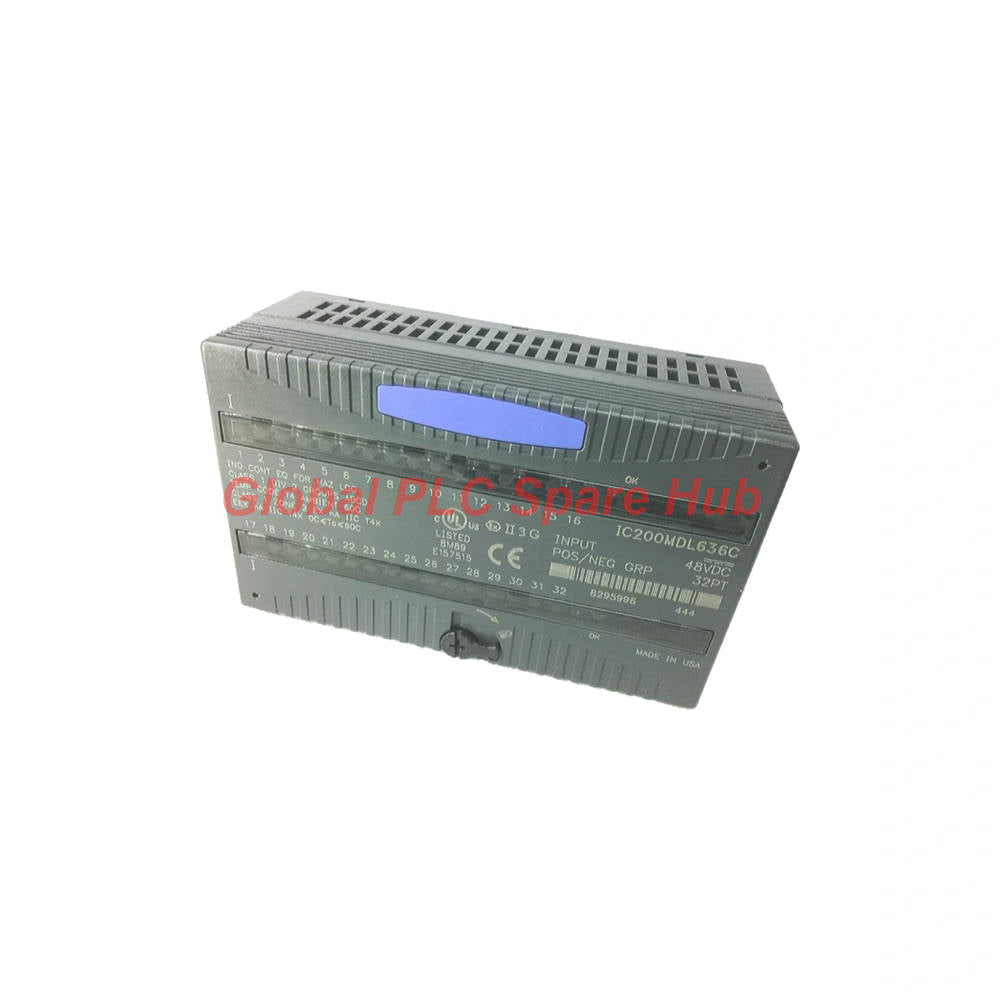

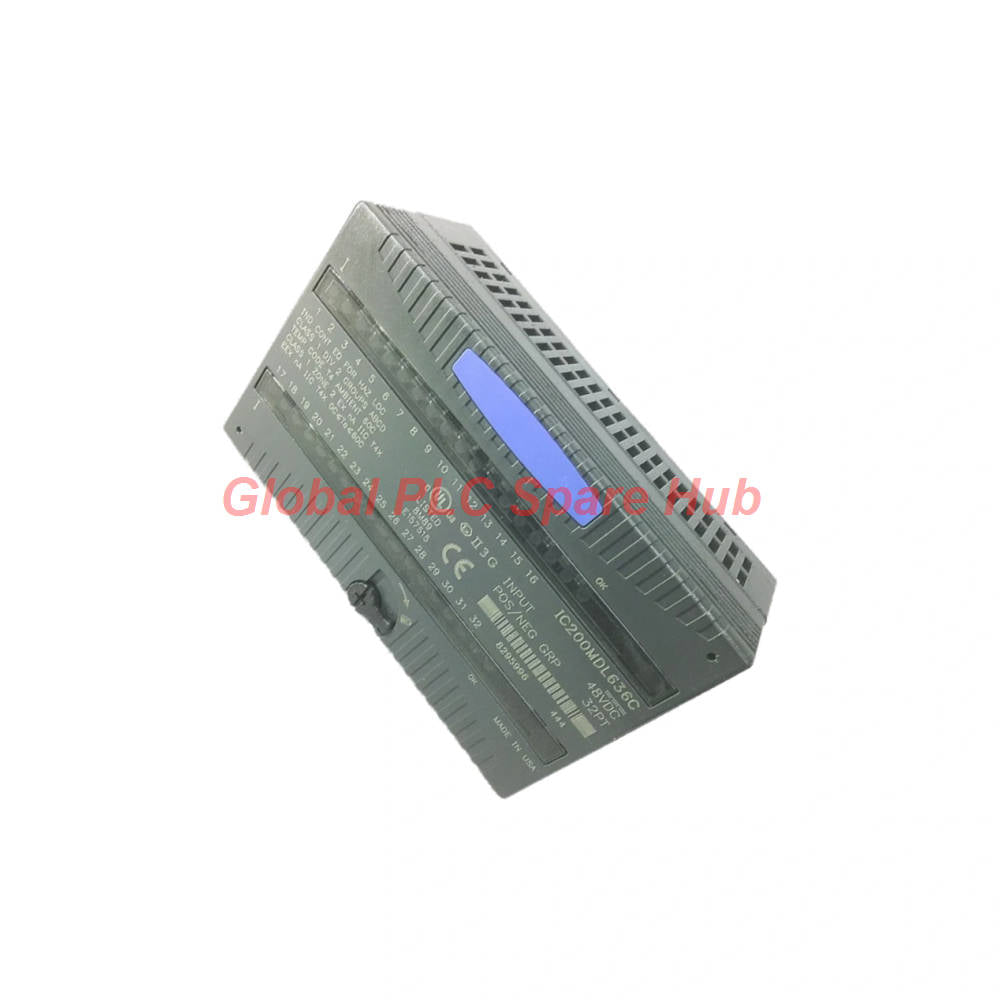

IC200MDL636 Versamax Series GE Fanuc 32-Channel Digital Input Module
Manufacturer: GE Fanuc
Product No.: IC200MDL636
Condition： In stock
Product Type: Logic Input Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The IC200MDL636 is a high-density digital Input Module engineered by GE Fanuc within the Versamax Series. This 32-point DC input unit manages large volumes of discrete automation signals efficiently, relying entirely on backplane power without requiring an external field power supply for its internal logic.
Technical Specifications Matrix
| Brand | GE Fanuc |
| Model / Part Number | IC200MDL636 |
| Product Series | Versamax PLC System |
| Number of Inputs | 32 discrete input points (organized in 4 groups of 8) |
| Nominal Voltage Rating | 48 Volts DC (Operating range: 0 to 60 Volts DC) |
| On/Off State Thresholds | On-state: 34 to 60 VDC; Off-state: 0 to 10 VDC |
| Backplane Power Draw | 5 VDC output voltage at 140 mA maximum current |
| Group Isolation Rating | 1500 VAC for 1 minute and 250 VAC continuous group-to-group |
| Configurable Input Filtering | Selectable filter times (Default: 1 ms; Adjustable: 0 ms to 7 ms) |
| Logic Compatibility | Supports both positive logic (sink) and negative logic (source) |
Configuration and Wiring Architecture
- Channel Grouping: Divided into 4 isolated blocks of 8 inputs for flexible logic partitioning
- Power Source: Internal backplane architecture eliminates auxiliary power wiring burdens
- Status Indication: Integrated green "OK" LED visualizes healthy backplane power status
- Data Processing: Delivers 32 discrete input bits directly to the PLC CPU or Network Interface Unit (NIU)
Installation Guide
Slot the IC200MDL636 directly onto the standard Versamax carrier base linked to your PLC backplane. Verify that the green "OK" LED illuminates upon rack power-up. Connect field sensors to appropriate terminal blocks while maintaining clean separation between positive and negative common configurations.
Commissioning and Maintenance Convenience
Engineers can tune filter response times via software configuration to suppress electrical contact bounce in noisy environments. The modular snap-fit design allows rapid swapping during scheduled maintenance windows without disturbing panel wiring structures.
Compatibility Notes
This module integrates seamlessly with GE Fanuc Versamax CPU racks and NIU node assemblies. It operates cleanly alongside standard discrete output and analog modules within the same backplane system.
Certifications and Warranty Terms
Built to strict industrial electrical standards. Backed by a comprehensive 12-month factory warranty covering material and workmanship flaws.
Shipping and Logistics
Dispatched swiftly via major carriers including FedEx, UPS, and DHL. Verified stock items ship within 24 to 48 hours to eliminate costly facility delays.
Application Scenarios and Diagnostics
Deploys effectively in high-density material handling systems, packaging machinery, and discrete manufacturing control panels requiring 48V DC signal collection. Integrated CPU diagnostics monitor backplane communication integrity and flag module-level faults instantly.
Global PLC Spare HUB's Insight
Our automation team deployed the IC200MDL636 in an automotive transfer line experiencing severe ambient electrical noise. Adjusting the input filter time from the default 1 ms up to 4 ms successfully eliminated false triggering caused by nearby variable frequency drive harmonics, stabilizing the entire 32-point input scan.
Frequently Asked Questions
Q: What causes the green "OK" LED to remain unlit after inserting the module?
A: This typically indicates improper seating on the carrier base or an insufficient 5V backplane power supply from the rack power supply module.
Q: Can mixed positive and negative logic sensors be wired to the same 8-input group?
A: No, all eight inputs within a single isolated group must share a common voltage polarity configuration.
Q: How does adjusting the input filter time impact high-speed sensor detection?
A: Lowering the filter time to 0 ms speeds up response for rapid pulses, but increases susceptibility to false trips from electrical noise.
Q: What selection factors matter most when replacing older discrete blocks with this Versamax unit?
A: Verify that your field signal voltage matches the 48V DC nominal requirement and that your backplane power budget can support the 140 mA draw.
Q: Is point-to-point electrical isolation provided between individual channels?
A: No, individual points share internal circuits within their respective 8-channel group; isolation is maintained strictly between groups up to 1500 VAC.
