IC200ALG327 Voltage Current Output Module GE Fanuc Versamax

Product Overview

The GE Fanuc IC200ALG327 is a high-density analog output module designed for the Versamax I/O system platform. Built with 13-bit digital-to-analog conversion resolution, this module converts controller logic data into precise voltage and current process loops. The unit features dual LED indicators for power and bus status, continuous field isolation protection, and onboard fault reporting. It is engineered to drive control valves, variable frequency drives, and industrial actuators in complex automation networks.

Configuration Breakdown & Specifications (MECE Framework)

1. Basic System Identification

• Brand: GE Fanuc Automation
• Model / Part Number: IC200ALG327
• Product Series: Versamax I/O Series
• Module Type: Analog Output Module

2. Electrical & Conversion Performance

3. Protection, Isolation & Environment

• Optical Channel Isolation: 250 VAC continuous isolation; withstands 1500 VAC potential for 1 minute between field side and backplane logic.
• Inter-channel Isolation: Channels organized in one group; no internal channel-to-channel isolation provided.
• Electromagnetic Immunity: Requires shielded cabling and grounding block terminations; precision rating derating advised during RF emission exposure.
• Visual Diagnostic Indicators: Two front-panel LEDs delivering status for backplane bus power and field interface connection integrity.

4. Physical & Mounting Characteristics

• Form Factor: Compact Versamax snap-in rail module design.
• Wiring System: Mounts on standard Versamax terminal bases using shielded screw or spring-clamp connections.

Diagnostic & Self-Monitoring Capabilities

The IC200ALG327 incorporates internal hardware self-test diagnostic logic that reports channel health to the CPU. The module automatically tracks field power integrity and backplane communication states. Two front-mounted status LEDs visually indicate logic power availability and backplane link health. When field wiring faults, parameter mismatch, or power loss occur, the module transmits fault tables to the GE Fanuc Versamax host controller for rapid troubleshooting.

Target Equipment & Application Scenarios

• Speed reference control for variable frequency drives (VFDs) in conveyor systems.
• Proportional control valve positioning in fluid processing networks.
• Modulating damper actuator adjustment in HVAC plant automation.
• Remote signal distribution to analog recorders and panel indicators.

Installation & Wiring Guidelines

Mount the IC200ALG327 onto an approved Versamax I/O carrier base with system power disconnected. Connect the 18 to 30 VDC auxiliary power supply directly to designated base terminals. Always use shielded twisted-pair cables for all output signals, tying the cable shields securely to a low-impedance ground bar. Route signal wires away from high-voltage AC lines to prevent RF interference from corrupting the 13-bit output precision.

Packaging, Logistics & Warranty Terms

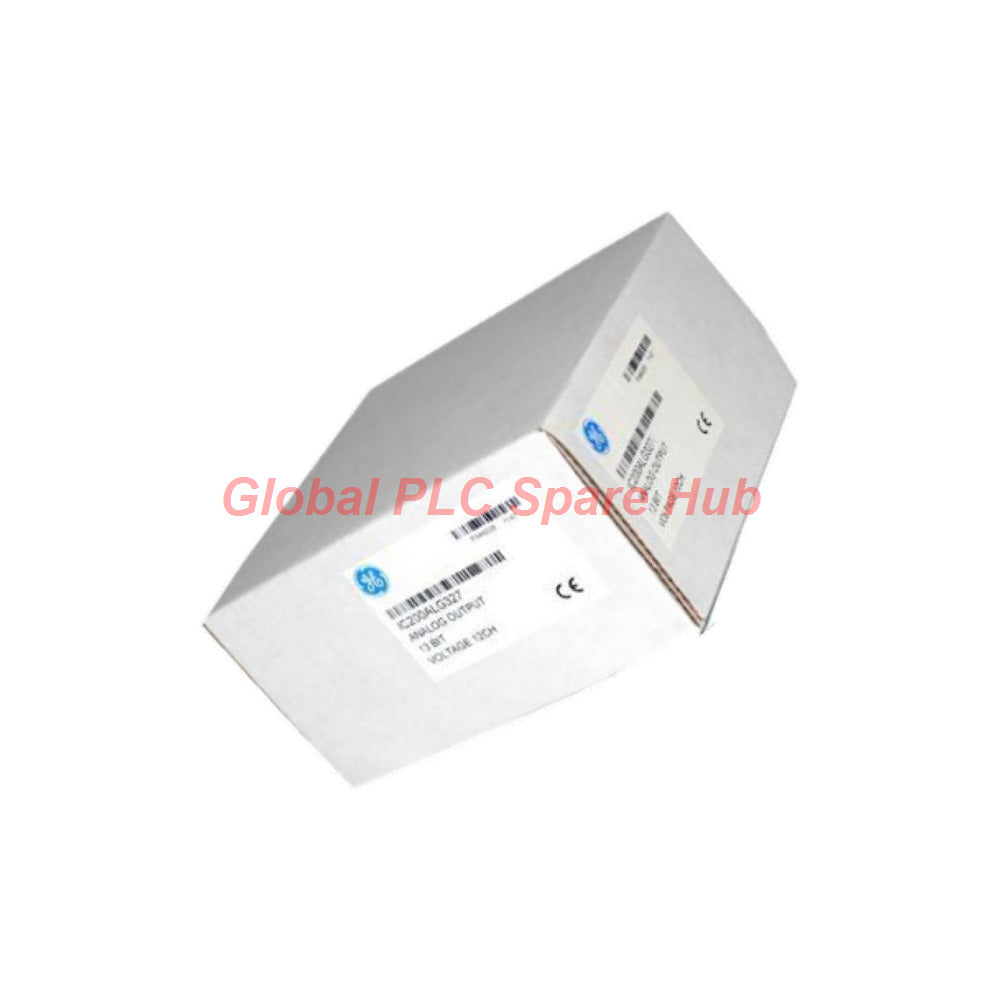

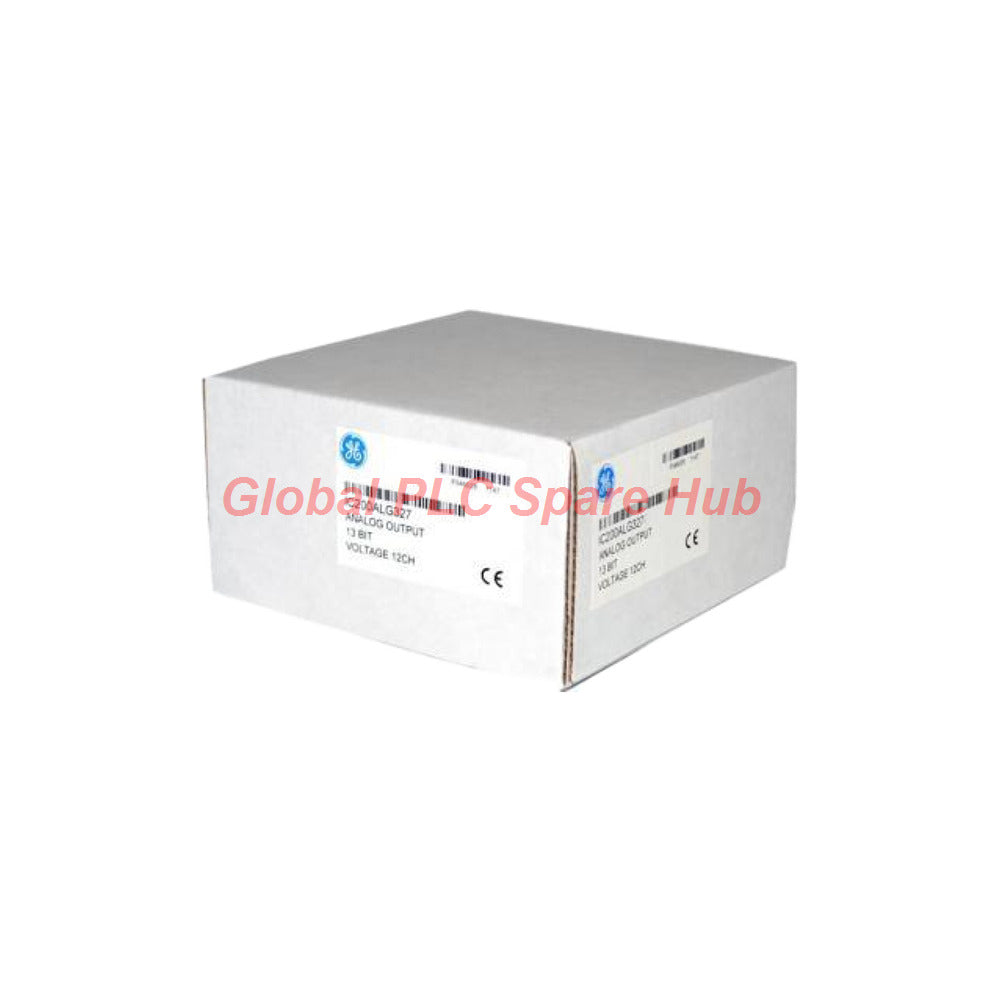

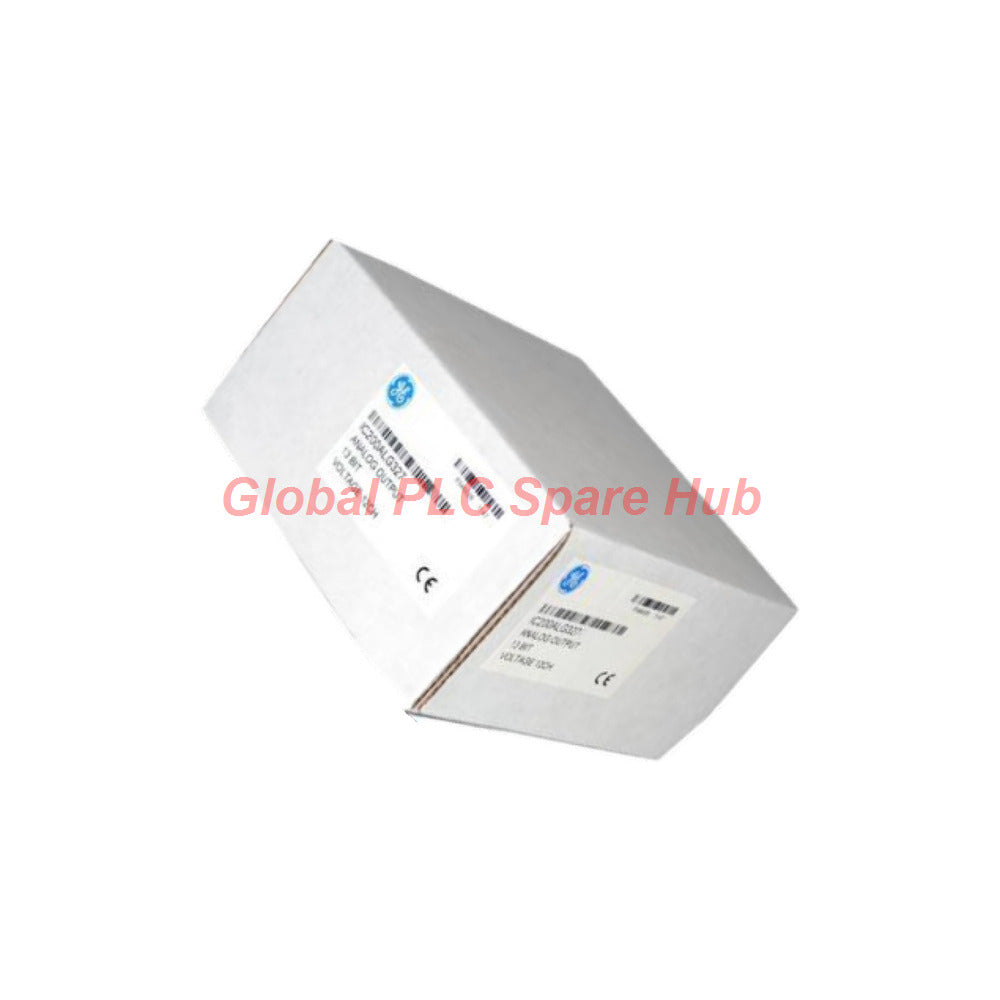

• Package Checklist: 1x Factory Sealed GE Fanuc IC200ALG327 Versamax Analog Output Module, 1x Technical Datasheet.
• Warranty Terms: Complete 12-month comprehensive warranty covering functional defects.
• Dispatch Processing: Rapid order handling with 24 to 48 hour shipping window.
• Global Carriers: Worldwide express delivery managed via FedEx, UPS, or DHL.

Global PLC Spare HUB's Insight & Field Experience

During a commissioning audit at a municipal water treatment facility, our field engineering team addressed an erratic speed control issue on a main pump VFD driven by an IC200ALG327 module. The output signal showed high-frequency voltage spikes whenever nearby motor starters engaged. Inspection showed the field cable shield was grounded at both ends, creating a ground loop across the unisolated channel group. Isolating the shield ground at the carrier base side instantly stabilized the 13-bit DAC output signal. Field Tip: Because all channels on this module share a common return line, always ground shields at a single point to prevent ground loops from affecting adjacent outputs.

Selection & Buyer's Guide

Verify your field device signal requirements before specifying the IC200ALG327. If your actuators require 4 to 20 mA loop control, verify jumper positions during installation to select current mode over the voltage mode. If your application demands channel-to-channel electrical isolation due to high noise or ground potential differences, consider dedicated isolated output modules within the GE Fanuc Versamax catalog.

Frequently Asked Questions (FAQ)

Q1: How do I change an output channel on the IC200ALG327 from 4-20mA to 0-20mA mode?

A: Output range adjustments are set via hardware configuration jumpers on the module base and configured in the CPU software hardware setup.

Q2: What occurs to the output signals if backplane bus communication breaks during operation?

A: The module defaults to user-configured safety states, either holding the last valid command value or dropping to zero output.

Q3: Why does the module require an external 18 to 30 VDC power supply connection?

A: The 5 VDC backplane bus only powers internal digital logic (50mA max); external DC voltage powers the analog output driving circuitry.

Q4: How do I identify a field power loss using the front panel status lights?

A: The upper LED indicates 5 VDC backplane power status, while the secondary LED darkens or changes state if external 24 VDC field power fails.

Q5: Can I drive low-resistance load devices directly using the voltage output terminals?

A: Voltage mode requires a minimum load impedance of 5000 Ω; connecting lower impedance loads causes voltage loading errors and invalidates the 13-bit accuracy rating.
