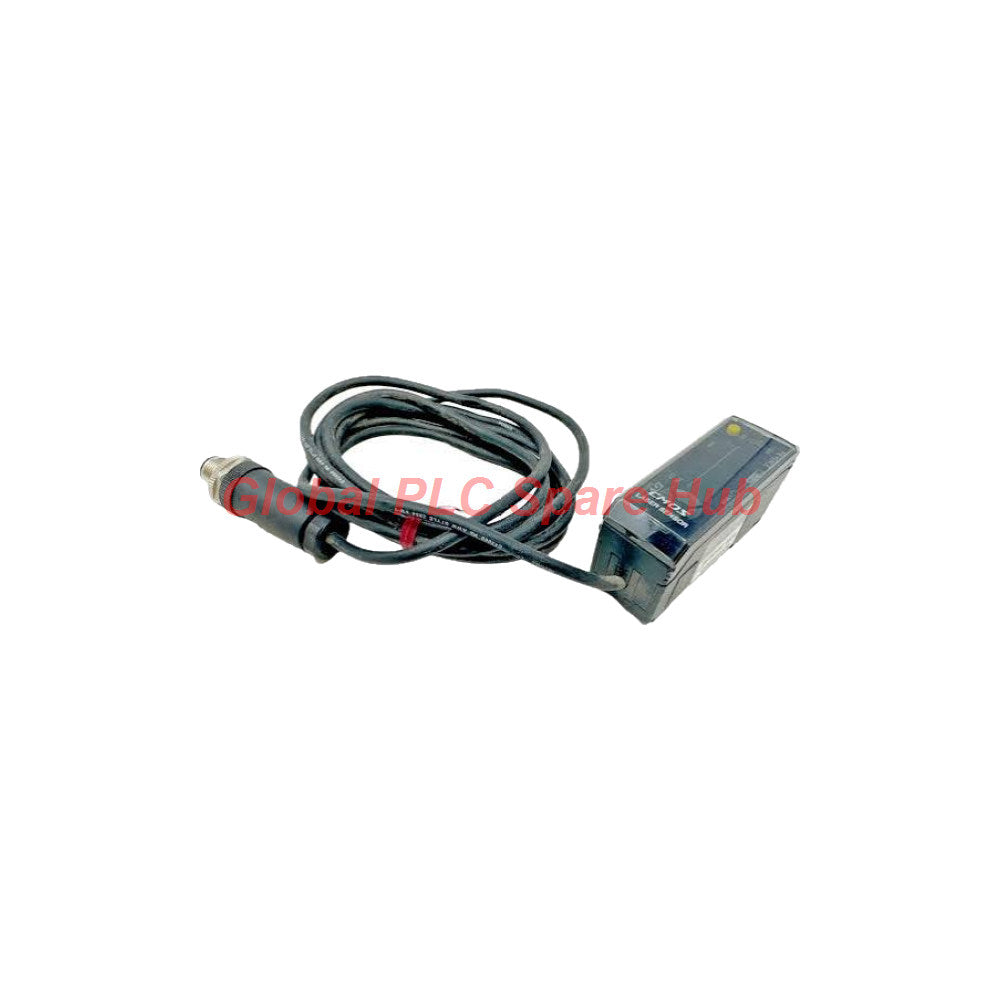

GV-21P KEYENCE Digital CMOS Sensor Amplifier Unit Main Unit

Engineering Overview & Digital Display Architecture

The GV-21P from KEYENCE is a high-performance digital CMOS sensor amplifier unit designed as a main control module for advanced industrial sensing tasks. Featuring a dual 7-segment display coupled with a 2-color 13-level bar LED indicator, this device provides operators with instant visual feedback on current and preset values. Automation engineers rely on the GV SERIES amplifiers to manage high-speed switching and precise measurement evaluations across demanding production floors.

Technical Specifications & Electrical Parameters

Installation & Panel Mounting Guidelines

• Mount the unit securely onto standard DIN rails inside control enclosures.
• Interlock multiple expansion units correctly if auxiliary channels are deployed.
• Connect DC power lines to the designated terminals ensuring voltage stays within 10 to 30 VDC.
• Route PNP output and control input wiring away from high-voltage power cables to avoid cross-talk.

Commissioning & Operational Usability

• Select appropriate response time modes (1.5 ms to 50 ms) depending on target conveyor velocity.
• Program preset thresholds easily using the tactile front-panel key tops.
• Utilize bank switching inputs to save and recall multiple product inspection profiles instantly.

Equipment Compatibility & System Integration

• Compatible with KEYENCE GV series digital CMOS sensor heads.
• Interfaces cleanly with standard PNP PLC input cards and automation relays.
• Supports external emission stop commands for safety interlocking sequences.

Quality Standards, Warranty & Fulfillment

• Engineered to meet rigorous industrial durability and EMC guidelines.
• Backed by a dependable 12-month operational replacement warranty.
• Expedited dispatch within 24 to 48 hours utilizing global carriers FedEx, UPS, and DHL.

Typical Industrial Applications & Suitable Equipment

• High-speed electronic component sorting and verification lines.
• Precision edge-detection and thickness-checking machinery.
• Automated packaging inspection stations requiring rapid response times.
• Assembly conveyor positioning and part-present validation setups.

Built-In Diagnostic Capabilities

• Real-time residual voltage tracking to flag overloaded PNP output channels.
• Dual-color bar indicators that signal marginal detection limits before failure occurs.
• Fault status LED indicators for immediate identification of emission and timing errors.

Global PLC Spare HUB's Insight

During a high-speed semiconductor sorting line upgrade, technicians experienced intermittent output drops on the GV-21P amplifier when handling ultra-fast parts. Field analysis revealed that the response time was set too slow for the rapid product stream, causing missed trigger states. Switching the response time setting down to 1.5 ms and securing the DIN rail ground reference completely stabilized the PNP output pulses and eliminated sorting errors.

Frequently Asked Questions (FAQ)

Question: What causes the control output LEDs to flash during machine operation?

Answer: Flashing indicators typically signify an overcurrent condition on the PNP output or a near-threshold detection state that requires sensitivity adjustment.

Question: Can this main unit power multiple expansion amplifier units?

Answer: Yes, power is distributed across connected expansion units via backplane connectors, provided total current draw remains within power supply limits.

Question: How do I switch between different pre-programmed inspection settings?

Answer: Utilize the external bank switching input terminal or configure the setting directly through the digital front panel interface.

Question: What maintenance checks are recommended for the enclosure housing?

Answer: Periodically inspect the polycarbonate display cover for dust or oil accumulation, wiping it clean with a soft anti-static cloth during scheduled shutdowns.

Question: How does the Eco-All mode affect power consumption?

Answer: Eco-All mode reduces display illumination and internal power draw to a maximum of 1600 mW, lowering thermal buildup in crowded control cabinets.

Selection & Purchasing Guide

When selecting a sensor amplifier for high-speed industrial measurement, verify that your control architecture requires a PNP output configuration. Ensure your input voltage matches the 10 to 30 VDC operating window. Purchasing verified automation hardware guarantees dependable factory performance and long-term signal accuracy.
