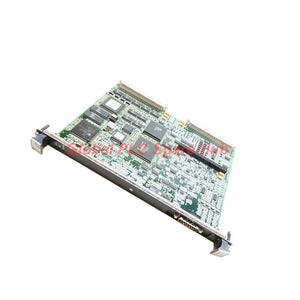

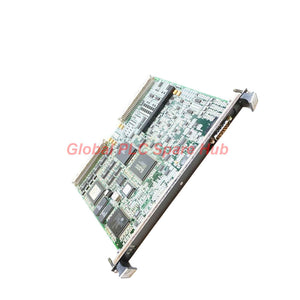

GE Speedtronic IS200VTURH1BAA Mark VI Turbine Protection Module

Core Engineering: The IS200VTURH1BAA Turbine Protection Board

The IS200VTURH1BAA is a mission-critical Primary Turbine Protection Board engineered for the GE Mark VI Speedtronic control system. Designed to oversee industrial steam and gas turbines, this module acts as a high-speed command hub. It integrates essential safety protocols, including turbine overspeed protection, automatic generator synchronization, and real-time monitoring of flame detection and shaft integrity.

Technical Specifications

• Manufacturer: General Electric
• Model/Part No: IS200VTURH1BAA
• System Series: Mark VI Speedtronic
• Speed Monitoring: 4x passive pulse rate inputs (2 Hz to 20 kHz range)
• Flame Detector Capacity: Monitoring for 8x Geiger-Mueller detectors
• Synchronization: Dual single-phase PT inputs (115V nominal, 1500V isolation)
• Operational Temperature: 0°C to 60°C
• Interface: 40-pin style board architecture with VME rack integration
• Physical Integrity: Conformal PCB coating for industrial environmental resilience

Global PLC Spare HUB's Technical Insight

Our experts categorize the IS200VTURH1BAA as the primary safeguarding gatekeeper within the Speedtronic architecture. While standard I/O cards handle basic signal processing, the IS200VTURH1BAA executes autonomous trip sequences that operate independently of the main controller, ensuring fail-safe turbine shutdown. This card is vital for aging assets undergoing modernization, as it bridges the gap between legacy control and advanced safety-rated logic.

Suitable Applications: Critical infrastructure, gas-to-power peaking plants, and heavy-duty steam turbine-driven compressors. It is particularly effective for high-frequency speed detection environments where precision is non-negotiable.

Diagnostics and Operational Safety

• Status Feedback: Real-time monitoring via board-front LEDs (Status, Fail, Run).
• Overspeed Redundancy: Logic-level synchronization with VPRO systems for TMR (Triple Modular Redundancy) configurations.
• Fail-Safe Trip: Interfaces directly with Electrical Trip Devices (ETD) to execute emergency solenoid activation within milliseconds.

Logistics and Quality Assurance

• Warranty: All units are backed by a comprehensive 12-month quality guarantee.
• Shipping Logistics: Expedited worldwide delivery via FedEx, UPS, or DHL.
• Processing: Orders typically ship within 24-48 hours to minimize plant downtime.

Expert FAQ & Selection Guide

Q: Can the IS200VTURH1BAA be replaced while the VME rack is energized?
A: No. It is strictly required that the VME processor rack be powered down completely before insertion or removal to prevent backplane damage.

Q: What is the significance of the 2 Hz MPU threshold?
A: This low-frequency detection allows the system to accurately track the turbine's state from very low rotational speeds, ensuring trip protection is active even during start-up sequences.

Q: How does this board differ in Simplex vs. TMR configurations?
A: In Simplex, it manages 3 relays for ETD control. In TMR, it coordinates all 9 relays to maintain voter logic integrity.

Q: Selection Guide: Should I check revision numbers before ordering?
A: Yes. While the first two revisions are backwards-compatible, always verify that your control software configuration aligns with the board's revision history.

Q: Are the Geiger-Mueller detectors powered directly by the board?
A: No, these detectors require an external 335 V DC supply; the board acts as the monitoring and signal acquisition interface for those inputs.
