GE Mark VIe IS230PCAAH1A Analog I/O Module - Turbine Control

Core Architecture: The IS230PCAAH1A Analog Module

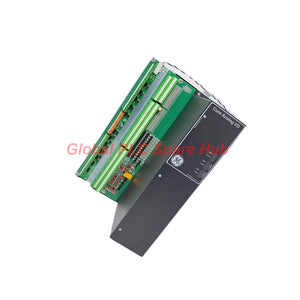

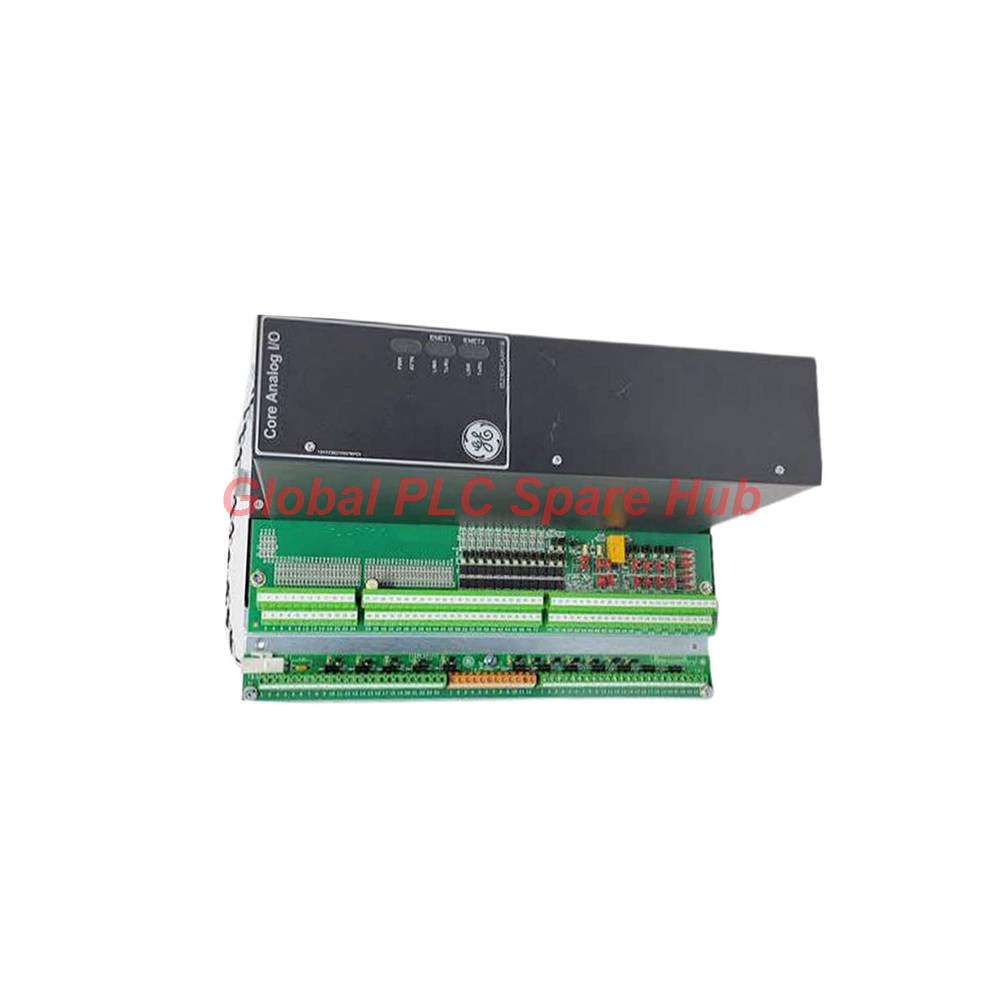

The IS230PCAAH1A acts as the central intelligence for analog signal processing within GE Mark VIe distributed control systems. Engineered to handle the rigorous demands of gas turbine operations, this Core Analog (PCAA) module integrates a BPPB processor, dual application I/O boards, and seamless terminal board connectivity. It serves as the definitive Link Replaceable Unit (LRU) for high-availability applications, supporting simplex, dual, and Triple Modular Redundant (TMR) configurations with precision.

Technical Performance Specifications

• Part Number: IS230PCAAH1A
• System Series: Mark VIe
• Interface Type: Core Analog Module (PCAA)
• I/O Versatility: Thermocouples, 4-20 mA current loops, seismic inputs, LVDT excitation, pulse rates, and servo coil drivers.
• Connectivity: Dual RJ45 Ethernet ports (10/100 Mbps) and 120 Euro-style box terminals.
• Operational Range: -30°C to 65°C
• Power Requirements: 28 V dc (soft-start/current-limited input protection).

Global PLC Spare HUB's Insight

In our experience, the IS230PCAAH1A is distinguished by its robust fault-tolerance. The module’s internal hardware watchdog and temperature monitoring provide proactive diagnostic feedback, which is essential for preventing unscheduled turbine trips. Engineers should note that because the PCAA is an LRU, troubleshooting focuses on the Ethernet status and power indicators rather than component-level repairs, ensuring rapid recovery times in TMR environments.

Diagnostic & Application Utility

This module is optimized for mission-critical power generation environments. Its internal soft-start circuitry prevents inrush current disturbances from affecting the broader 28 V dc power system. The integrated Electronic ID (EID) allows the controller to automatically detect the attached TCAT terminal board, streamlining configuration in complex redundant architectures.

Logistics & Service Guarantee

• Warranty: Industry-standard 12-month performance coverage.
• Global Logistics: Express worldwide shipping via FedEx, UPS, and DHL.
• Fulfillment: Rapid processing and dispatch within 24-48 hours.

Professional FAQ and Selection Guide

Can the PCAA module operate without the TCAT terminal board?
Yes, the IS230PCAAH1A can be wired directly to field devices using the 120 Euro-style terminals if fanned TMR input signals are not required.

What should I prioritize during the installation of the 68-pin TCAT cables?
Ensure the cable mounting screws are seated finger-tight only; overtightening can damage the connection, while loose cables may prevent the module from reading the terminal board's electronic ID.

How do I handle shield grounding if the mounting sheet metal is isolated?
In applications where the board is isolated from the chassis, you must provide an independent ground wire from the JGPA terminals to a dedicated shield ground potential.

What does the green PWR indicator status signify?
Steady illumination indicates the module is receiving valid 28 V dc power; if the light is on but the module is unresponsive, verify the current limit function isn't engaged due to an external field short.

Selection Guide: When is TMR configuration required?
Select TMR for critical safety-related control loops where a single module failure must not cause a system shutdown; ensure all three modules are synchronized via the associated TCAT connections.
